A rhythm game needs music. This unit defines the song data format and creates the first complete song.

Until now, notes used placeholder data and fixed frequencies. Now each note carries its actual pitch. Hit a note and hear the melody. The game becomes musical.

Run It

Assemble and run:

acme -f cbm -o symphony.prg symphony.asm

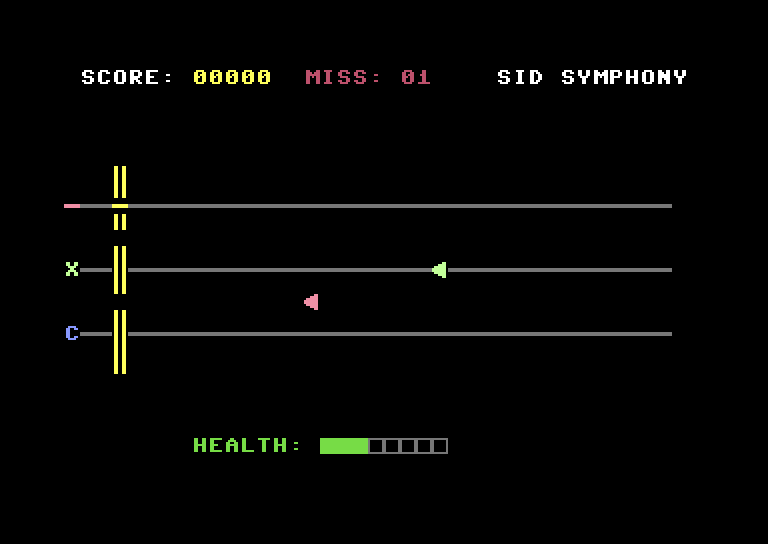

Unit 9 Screenshot

Play through the song and listen. Each hit plays the correct note from the melody. Miss and you hear the harsh noise - a gap in the music. The game and music become one.

Song data — notes now carry pitch information

The Song Format

Each note entry is now three bytes:

; ============================================================================
; SONG DATA FORMAT
; ============================================================================
; Each note entry is 3 bytes:
;   byte 0: beat number (0-63, when note spawns)
;   byte 1: track number (1=Z high, 2=X mid, 3=C low)
;   byte 2: note frequency high byte
;
; End of song marker: $FF
;
; Note frequency table (high byte only):
; C3=$11  D3=$13  E3=$16  F3=$17  G3=$1A  A3=$1D  B3=$21
; C4=$23  D4=$27  E4=$2C  F4=$2F  G4=$35  A4=$3B  B4=$42
; C5=$47  D5=$4F  E5=$58  F5=$5E  G5=$6A  A5=$77  B5=$85
; ============================================================================

song_data:
            ; Bar 1 - Opening phrase
            !byte 0, 1, $47     ; Beat 0, Track 1 (Z), C5
            !byte 2, 2, $2C     ; Beat 2, Track 2 (X), E4
            !byte 4, 3, $11     ; Beat 4, Track 3 (C), C3

            ; Bar 2 - Descending
            !byte 8, 1, $3B     ; A4
            !byte 10, 2, $27    ; D4
            !byte 12, 3, $13    ; D3

            ; ... more bars ...

            !byte $FF           ; End of song marker

The format is:

Beat - When the note spawns (0 to song length minus 1)
Track - Which track (1=Z, 2=X, 3=C)
Frequency - High byte of SID frequency

The $FF byte marks the end of song data.

SID Frequency Reference

The SID uses 16-bit frequency values, but for simplicity we only store the high byte. Here are useful note values:

Note	C	D	E	F	G	A	B
Octave 3	$11	$13	$16	$17	$1A	$1D	$21
Octave 4	$23	$27	$2C	$2F	$35	$3B	$42
Octave 5	$47	$4F	$58	$5E	$6A	$77	$85

Track 1 (Z) plays high notes with sawtooth. Track 2 (X) plays mid notes with pulse. Track 3 (C) plays low notes with triangle. Three voices, three timbres, three octave ranges.

Reading 3-Byte Entries

The spawn routine now reads three bytes per entry:

; ----------------------------------------------------------------------------
; Check Spawn Note - Now reads 3-byte song entries
; ----------------------------------------------------------------------------

check_spawn_note:
            ldy #0

spawn_check_loop:
            lda (song_pos),y
            cmp #$FF
            beq spawn_restart_song

            cmp beat_count
            beq spawn_match
            bcs spawn_done

            jmp spawn_advance

spawn_match:
            iny
            lda (song_pos),y    ; Track number
            sta temp_track
            iny
            lda (song_pos),y    ; Note frequency
            pha
            lda temp_track
            jsr spawn_note_with_freq
            pla                 ; Clean up stack
            dey
            dey

spawn_advance:
            lda song_pos
            clc
            adc #3              ; 3 bytes per entry now
            sta song_pos
            lda song_pos_hi
            adc #0
            sta song_pos_hi
            jmp spawn_check_loop

spawn_done:
            rts

The key change is adc #3 instead of adc #2. Each entry advances by three bytes. The frequency is stored in the note array alongside track and column.

Playing the Correct Note

When a note is hit, we play its stored frequency:

; ----------------------------------------------------------------------------
; Play Voice With Note Frequency
; ----------------------------------------------------------------------------
; When a note is hit, we play its stored frequency, not a fixed pitch.
; This makes each hit sound like part of the melody.

play_voice1_note:
            lda #0
            sta SID_V1_FREQ_LO
            lda hit_note_freq   ; Use the note's actual pitch
            sta SID_V1_FREQ_HI
            lda #VOICE1_WAVE
            ora #$01            ; Gate on
            sta SID_V1_CTRL
            rts

play_voice2_note:
            lda #0
            sta SID_V2_FREQ_LO
            lda hit_note_freq
            sta SID_V2_FREQ_HI
            lda #VOICE2_WAVE
            ora #$01
            sta SID_V2_CTRL
            rts

play_voice3_note:
            lda #0
            sta SID_V3_FREQ_LO
            lda hit_note_freq
            sta SID_V3_FREQ_HI
            lda #VOICE3_WAVE
            ora #$01
            sta SID_V3_CTRL
            rts

The hit_note_freq variable stores the frequency from the hit note. Instead of fixed pitches, each track voice plays whatever note was hit. Hit the right notes and you hear the melody.

Musical Composition

The song data creates a simple 8-bar phrase:

song_data:
            ; Bar 1 - Opening phrase
            !byte 0, 1, $47     ; C5 - high
            !byte 2, 2, $2C     ; E4 - mid
            !byte 4, 3, $11     ; C3 - low

            ; Bar 2 - Descending
            !byte 8, 1, $3B     ; A4
            !byte 10, 2, $27    ; D4
            !byte 12, 3, $13    ; D3
            ; ...

The pattern:

Bars 1-2: Establish the tonality (C major)
Bars 3-4: Build tension with faster notes
Bars 5-6: Introduce variation
Bars 7-8: Climax and resolve

When the song loops, players hear the progression repeat. Musical structure makes the game feel purposeful.

Memory Usage

Each song entry is 3 bytes. Our 30-note song uses 90 bytes plus the $FF terminator. A 64-beat song with dense notes might use 100-150 bytes. Plenty of room for longer songs.

The Complete Code

; ============================================================================
; SID SYMPHONY - Unit 9: Song Data
; ============================================================================
; Design the song data format. Create the first complete musical pattern.
; Notes now carry pitch information - each hit plays its actual note.
;
; Controls: Z = Track 1 (high), X = Track 2 (mid), C = Track 3 (low)
; ============================================================================

; ============================================================================
; CUSTOMISATION SECTION
; ============================================================================

; SID Voice Settings (default for when no note playing)
VOICE1_WAVE = $21               ; Sawtooth
VOICE2_WAVE = $41               ; Pulse
VOICE3_WAVE = $11               ; Triangle

; Default frequencies (used if no note data)
VOICE1_FREQ = $1C               ; High pitch
VOICE2_FREQ = $0E               ; Mid pitch
VOICE3_FREQ = $07               ; Low pitch

VOICE_AD    = $09               ; Attack=0, Decay=9
VOICE_SR    = $00               ; Sustain=0, Release=0
PULSE_WIDTH = $08               ; 50% duty cycle

; Miss sound settings
MISS_FREQ   = $08               ; Low rumble
MISS_WAVE   = $81               ; Noise waveform
MISS_AD     = $00               ; Instant attack, no decay
MISS_SR     = $90               ; High sustain, fast release

; Visual Settings
BORDER_COL  = 0                 ; Black border
BG_COL      = 0                 ; Black background

TRACK1_NOTE_COL = 10            ; Light red
TRACK2_NOTE_COL = 13            ; Light green
TRACK3_NOTE_COL = 14            ; Light blue

TRACK_LINE_COL = 11             ; Dark grey
HIT_ZONE_COL = 7                ; Yellow

HIT_COL     = 1                 ; White - flash on successful hit
PERFECT_COL = 1                 ; White - perfect hit border flash
GOOD_COL    = 7                 ; Yellow - good hit border flash
MISS_COL    = 2                 ; Red - miss border flash

HEALTH_COL  = 5                 ; Green for health bar

; ============================================================================
; SCORING SETTINGS
; ============================================================================

PERFECT_SCORE = 100
GOOD_SCORE    = 50

; ============================================================================
; HEALTH SETTINGS
; ============================================================================

HEALTH_MAX    = 64
HEALTH_START  = 32
HEALTH_PERFECT = 4
HEALTH_GOOD   = 2
HEALTH_MISS   = 8

; ============================================================================
; HIT DETECTION SETTINGS
; ============================================================================

HIT_ZONE_MIN = 2
HIT_ZONE_MAX = 5
HIT_ZONE_CENTRE = 3

; ============================================================================
; SONG SETTINGS
; ============================================================================

SONG_LENGTH   = 64              ; Beats in the song

; ============================================================================
; MEMORY MAP
; ============================================================================

SCREEN      = $0400
COLRAM      = $D800
BORDER      = $D020
BGCOL       = $D021
CHARPTR     = $D018

CHARSET     = $3000

; SID registers
SID         = $D400
SID_V1_FREQ_LO = $D400
SID_V1_FREQ_HI = $D401
SID_V1_PWHI = $D403
SID_V1_CTRL = $D404
SID_V1_AD   = $D405
SID_V1_SR   = $D406

SID_V2_FREQ_LO = $D407
SID_V2_FREQ_HI = $D408
SID_V2_PWHI = $D40A
SID_V2_CTRL = $D40B
SID_V2_AD   = $D40C
SID_V2_SR   = $D40D

SID_V3_FREQ_LO = $D40E
SID_V3_FREQ_HI = $D40F
SID_V3_PWHI = $D411
SID_V3_CTRL = $D412
SID_V3_AD   = $D413
SID_V3_SR   = $D414

SID_VOLUME  = $D418

; CIA keyboard
CIA1_PRA    = $DC00
CIA1_PRB    = $DC01

; Track positions
TRACK1_ROW  = 8
TRACK2_ROW  = 12
TRACK3_ROW  = 16

; Health bar position
HEALTH_ROW  = 23

; Hit zone
HIT_ZONE_COLUMN = 3

; Custom character codes
CHAR_NOTE   = 128
CHAR_TRACK  = 129
CHAR_HITZONE = 130
CHAR_SPACE  = 32
CHAR_BAR_FULL = 131
CHAR_BAR_EMPTY = 132

; Note settings
MAX_NOTES   = 8
NOTE_SPAWN_COL = 37

; Timing
FRAMES_PER_BEAT = 25

; Zero page
ZP_PTR      = $FB
ZP_PTR_HI   = $FC

; Variables
frame_count = $02
beat_count  = $03
song_pos    = $04
song_pos_hi = $05
temp_track  = $06
key_pressed = $07
hit_quality = $08
border_flash = $09
miss_track  = $0A
game_over   = $0B
hit_note_freq = $0C             ; Frequency of note being hit

; ----------------------------------------------------------------------------
; BASIC Stub
; ----------------------------------------------------------------------------

            * = $0801

            !byte $0C, $08
            !byte $0A, $00
            !byte $9E
            !text "2064"
            !byte $00
            !byte $00, $00

; ----------------------------------------------------------------------------
; Main Program
; ----------------------------------------------------------------------------

            * = $0810

start:
            jsr copy_charset
            jsr init_screen
            jsr init_sid
            jsr init_notes
            jsr init_score
            jsr init_health

            lda #<song_data
            sta song_pos
            lda #>song_data
            sta song_pos_hi

            lda #0
            sta frame_count
            sta beat_count
            sta border_flash
            sta game_over

main_loop:
            lda #$FF
wait_raster:
            cmp $D012
            bne wait_raster

            lda game_over
            bne main_loop

            inc frame_count
            lda frame_count
            cmp #FRAMES_PER_BEAT
            bcc no_new_beat

            lda #0
            sta frame_count
            jsr check_spawn_note
            inc beat_count

no_new_beat:
            jsr update_notes
            jsr reset_track_colours
            jsr update_border_flash
            jsr check_keys

            jmp main_loop

; ----------------------------------------------------------------------------
; Copy Character Set from ROM to RAM
; ----------------------------------------------------------------------------

copy_charset:
            sei

            lda $01
            pha
            and #$FB
            sta $01

            ldx #0
copy_loop:
            lda $D000,x
            sta CHARSET,x
            lda $D100,x
            sta CHARSET+$100,x
            lda $D200,x
            sta CHARSET+$200,x
            lda $D300,x
            sta CHARSET+$300,x
            lda $D400,x
            sta CHARSET+$400,x
            lda $D500,x
            sta CHARSET+$500,x
            lda $D600,x
            sta CHARSET+$600,x
            lda $D700,x
            sta CHARSET+$700,x
            inx
            bne copy_loop

            pla
            sta $01

            cli

            jsr define_custom_chars

            lda #$1C
            sta CHARPTR

            rts

; ----------------------------------------------------------------------------
; Define Custom Characters
; ----------------------------------------------------------------------------

define_custom_chars:
            lda #%00000110
            sta CHARSET + (CHAR_NOTE * 8) + 0
            lda #%00011110
            sta CHARSET + (CHAR_NOTE * 8) + 1
            lda #%01111110
            sta CHARSET + (CHAR_NOTE * 8) + 2
            lda #%11111110
            sta CHARSET + (CHAR_NOTE * 8) + 3
            lda #%11111110
            sta CHARSET + (CHAR_NOTE * 8) + 4
            lda #%01111110
            sta CHARSET + (CHAR_NOTE * 8) + 5
            lda #%00011110
            sta CHARSET + (CHAR_NOTE * 8) + 6
            lda #%00000110
            sta CHARSET + (CHAR_NOTE * 8) + 7

            lda #%00000000
            sta CHARSET + (CHAR_TRACK * 8) + 0
            lda #%00000000
            sta CHARSET + (CHAR_TRACK * 8) + 1
            lda #%00000000
            sta CHARSET + (CHAR_TRACK * 8) + 2
            lda #%11111111
            sta CHARSET + (CHAR_TRACK * 8) + 3
            lda #%11111111
            sta CHARSET + (CHAR_TRACK * 8) + 4
            lda #%00000000
            sta CHARSET + (CHAR_TRACK * 8) + 5
            lda #%00000000
            sta CHARSET + (CHAR_TRACK * 8) + 6
            lda #%00000000
            sta CHARSET + (CHAR_TRACK * 8) + 7

            lda #%01100110
            sta CHARSET + (CHAR_HITZONE * 8) + 0
            sta CHARSET + (CHAR_HITZONE * 8) + 1
            sta CHARSET + (CHAR_HITZONE * 8) + 2
            sta CHARSET + (CHAR_HITZONE * 8) + 3
            sta CHARSET + (CHAR_HITZONE * 8) + 4
            sta CHARSET + (CHAR_HITZONE * 8) + 5
            sta CHARSET + (CHAR_HITZONE * 8) + 6
            sta CHARSET + (CHAR_HITZONE * 8) + 7

            lda #%11111111
            sta CHARSET + (CHAR_BAR_FULL * 8) + 0
            sta CHARSET + (CHAR_BAR_FULL * 8) + 1
            sta CHARSET + (CHAR_BAR_FULL * 8) + 2
            sta CHARSET + (CHAR_BAR_FULL * 8) + 3
            sta CHARSET + (CHAR_BAR_FULL * 8) + 4
            sta CHARSET + (CHAR_BAR_FULL * 8) + 5
            sta CHARSET + (CHAR_BAR_FULL * 8) + 6
            sta CHARSET + (CHAR_BAR_FULL * 8) + 7

            lda #%11111111
            sta CHARSET + (CHAR_BAR_EMPTY * 8) + 0
            lda #%10000001
            sta CHARSET + (CHAR_BAR_EMPTY * 8) + 1
            sta CHARSET + (CHAR_BAR_EMPTY * 8) + 2
            sta CHARSET + (CHAR_BAR_EMPTY * 8) + 3
            sta CHARSET + (CHAR_BAR_EMPTY * 8) + 4
            sta CHARSET + (CHAR_BAR_EMPTY * 8) + 5
            sta CHARSET + (CHAR_BAR_EMPTY * 8) + 6
            lda #%11111111
            sta CHARSET + (CHAR_BAR_EMPTY * 8) + 7

            rts

; ----------------------------------------------------------------------------
; Initialize Health
; ----------------------------------------------------------------------------

init_health:
            lda #HEALTH_START
            sta health
            jsr display_health
            rts

; ----------------------------------------------------------------------------
; Initialize Score
; ----------------------------------------------------------------------------

init_score:
            lda #0
            sta score_lo
            sta score_hi
            sta miss_count
            jsr display_score
            jsr display_misses
            rts

; ----------------------------------------------------------------------------
; Initialize Notes
; ----------------------------------------------------------------------------

init_notes:
            ldx #MAX_NOTES-1
            lda #0
init_notes_loop:
            sta note_track,x
            sta note_col,x
            sta note_freq,x     ; Also clear note frequencies
            dex
            bpl init_notes_loop
            rts

; ----------------------------------------------------------------------------
; Check Spawn Note - Now reads 3-byte song entries
; ----------------------------------------------------------------------------

check_spawn_note:
            ldy #0

spawn_check_loop:
            lda (song_pos),y
            cmp #$FF
            beq spawn_restart_song

            cmp beat_count
            beq spawn_match
            bcs spawn_done

            jmp spawn_advance

spawn_match:
            iny
            lda (song_pos),y    ; Track number
            sta temp_track
            iny
            lda (song_pos),y    ; Note frequency
            pha
            lda temp_track
            jsr spawn_note_with_freq
            pla                 ; Clean up stack
            dey
            dey

spawn_advance:
            lda song_pos
            clc
            adc #3              ; 3 bytes per entry now
            sta song_pos
            lda song_pos_hi
            adc #0
            sta song_pos_hi
            jmp spawn_check_loop

spawn_done:
            rts

spawn_restart_song:
            lda #<song_data
            sta song_pos
            lda #>song_data
            sta song_pos_hi
            lda #0
            sta beat_count
            rts

; ----------------------------------------------------------------------------
; Spawn Note With Frequency
; Input: A = track, stack has frequency
; ----------------------------------------------------------------------------

spawn_note_with_freq:
            sta temp_track

            ldx #0
spawn_find_slot:
            lda note_track,x
            beq spawn_found_slot
            inx
            cpx #MAX_NOTES
            bne spawn_find_slot
            rts

spawn_found_slot:
            lda temp_track
            sta note_track,x
            lda #NOTE_SPAWN_COL
            sta note_col,x

            ; Get frequency from stack (caller pushed it)
            tsx
            lda $0103,x         ; Get frequency from stack
            sta note_freq,x

            jsr draw_note
            rts

; ----------------------------------------------------------------------------
; Update Notes
; ----------------------------------------------------------------------------

update_notes:
            ldx #0

update_loop:
            lda note_track,x
            beq update_next

            jsr erase_note

            dec note_col,x
            lda note_col,x
            cmp #1
            bcc update_miss

            jsr draw_note
            jmp update_next

update_miss:
            lda note_track,x
            sta miss_track
            lda #0
            sta note_track,x
            jsr handle_miss

update_next:
            inx
            cpx #MAX_NOTES
            bne update_loop
            rts

; ----------------------------------------------------------------------------
; Handle Miss
; ----------------------------------------------------------------------------

handle_miss:
            inc miss_count

            jsr play_miss_sound

            lda #MISS_COL
            sta BORDER
            lda #8
            sta border_flash

            jsr display_misses
            jsr decrease_health

            rts

; ----------------------------------------------------------------------------
; Decrease Health
; ----------------------------------------------------------------------------

decrease_health:
            lda health
            sec
            sbc #HEALTH_MISS
            bcc health_zero
            sta health
            jsr display_health
            jsr check_game_over
            rts

health_zero:
            lda #0
            sta health
            jsr display_health
            jsr check_game_over
            rts

; ----------------------------------------------------------------------------
; Increase Health
; ----------------------------------------------------------------------------

increase_health:
            clc
            adc health
            cmp #HEALTH_MAX
            bcc health_ok
            lda #HEALTH_MAX
health_ok:
            sta health
            jsr display_health
            rts

; ----------------------------------------------------------------------------
; Check Game Over
; ----------------------------------------------------------------------------

check_game_over:
            lda health
            bne not_game_over

            lda #1
            sta game_over
            jsr show_game_over

not_game_over:
            rts

; ----------------------------------------------------------------------------
; Show Game Over
; ----------------------------------------------------------------------------

show_game_over:
            ldx #0
game_over_loop:
            lda game_over_text,x
            beq game_over_done
            sta SCREEN + (12 * 40) + 15,x
            lda #2
            sta COLRAM + (12 * 40) + 15,x
            inx
            jmp game_over_loop
game_over_done:
            lda #2
            sta BORDER
            rts

game_over_text:
            !scr "game over"
            !byte 0

; ----------------------------------------------------------------------------
; Display Health
; ----------------------------------------------------------------------------

display_health:
            lda health
            lsr
            lsr
            lsr
            sta temp_health

            ldx #0
            lda temp_health
            beq draw_empty_bars

draw_full_bars:
            lda #CHAR_BAR_FULL
            sta SCREEN + (HEALTH_ROW * 40) + 16,x
            lda #HEALTH_COL
            sta COLRAM + (HEALTH_ROW * 40) + 16,x
            inx
            cpx temp_health
            bne draw_full_bars

draw_empty_bars:
            cpx #8
            beq health_done
            lda #CHAR_BAR_EMPTY
            sta SCREEN + (HEALTH_ROW * 40) + 16,x
            lda #11
            sta COLRAM + (HEALTH_ROW * 40) + 16,x
            inx
            jmp draw_empty_bars

health_done:
            rts

temp_health: !byte 0

; ----------------------------------------------------------------------------
; Play Miss Sound
; ----------------------------------------------------------------------------

play_miss_sound:
            lda #0
            sta SID_V3_FREQ_LO
            lda #MISS_FREQ
            sta SID_V3_FREQ_HI
            lda #MISS_AD
            sta SID_V3_AD
            lda #MISS_SR
            sta SID_V3_SR
            lda #MISS_WAVE
            ora #$01
            sta SID_V3_CTRL
            rts

; ----------------------------------------------------------------------------
; Draw Note
; ----------------------------------------------------------------------------

draw_note:
            lda note_track,x
            cmp #1
            beq draw_note_t1
            cmp #2
            beq draw_note_t2
            cmp #3
            beq draw_note_t3
            rts

draw_note_t1:
            lda note_col,x
            clc
            adc #<(SCREEN + TRACK1_ROW * 40)
            sta ZP_PTR
            lda #>(SCREEN + TRACK1_ROW * 40)
            adc #0
            sta ZP_PTR_HI

            ldy #0
            lda #CHAR_NOTE
            sta (ZP_PTR),y

            lda note_col,x
            clc
            adc #<(COLRAM + TRACK1_ROW * 40)
            sta ZP_PTR
            lda #>(COLRAM + TRACK1_ROW * 40)
            adc #0
            sta ZP_PTR_HI
            lda #TRACK1_NOTE_COL
            sta (ZP_PTR),y
            rts

draw_note_t2:
            lda note_col,x
            clc
            adc #<(SCREEN + TRACK2_ROW * 40)
            sta ZP_PTR
            lda #>(SCREEN + TRACK2_ROW * 40)
            adc #0
            sta ZP_PTR_HI

            ldy #0
            lda #CHAR_NOTE
            sta (ZP_PTR),y

            lda note_col,x
            clc
            adc #<(COLRAM + TRACK2_ROW * 40)
            sta ZP_PTR
            lda #>(COLRAM + TRACK2_ROW * 40)
            adc #0
            sta ZP_PTR_HI
            lda #TRACK2_NOTE_COL
            sta (ZP_PTR),y
            rts

draw_note_t3:
            lda note_col,x
            clc
            adc #<(SCREEN + TRACK3_ROW * 40)
            sta ZP_PTR
            lda #>(SCREEN + TRACK3_ROW * 40)
            adc #0
            sta ZP_PTR_HI

            ldy #0
            lda #CHAR_NOTE
            sta (ZP_PTR),y

            lda note_col,x
            clc
            adc #<(COLRAM + TRACK3_ROW * 40)
            sta ZP_PTR
            lda #>(COLRAM + TRACK3_ROW * 40)
            adc #0
            sta ZP_PTR_HI
            lda #TRACK3_NOTE_COL
            sta (ZP_PTR),y
            rts

; ----------------------------------------------------------------------------
; Erase Note
; ----------------------------------------------------------------------------

erase_note:
            lda note_track,x
            cmp #1
            beq erase_note_t1
            cmp #2
            beq erase_note_t2
            cmp #3
            beq erase_note_t3
            rts

erase_note_t1:
            lda note_col,x
            clc
            adc #<(SCREEN + TRACK1_ROW * 40)
            sta ZP_PTR
            lda #>(SCREEN + TRACK1_ROW * 40)
            adc #0
            sta ZP_PTR_HI

            ldy #0
            lda #CHAR_TRACK
            sta (ZP_PTR),y

            lda note_col,x
            clc
            adc #<(COLRAM + TRACK1_ROW * 40)
            sta ZP_PTR
            lda #>(COLRAM + TRACK1_ROW * 40)
            adc #0
            sta ZP_PTR_HI
            lda #TRACK_LINE_COL
            sta (ZP_PTR),y
            rts

erase_note_t2:
            lda note_col,x
            clc
            adc #<(SCREEN + TRACK2_ROW * 40)
            sta ZP_PTR
            lda #>(SCREEN + TRACK2_ROW * 40)
            adc #0
            sta ZP_PTR_HI

            ldy #0
            lda #CHAR_TRACK
            sta (ZP_PTR),y

            lda note_col,x
            clc
            adc #<(COLRAM + TRACK2_ROW * 40)
            sta ZP_PTR
            lda #>(COLRAM + TRACK2_ROW * 40)
            adc #0
            sta ZP_PTR_HI
            lda #TRACK_LINE_COL
            sta (ZP_PTR),y
            rts

erase_note_t3:
            lda note_col,x
            clc
            adc #<(SCREEN + TRACK3_ROW * 40)
            sta ZP_PTR
            lda #>(SCREEN + TRACK3_ROW * 40)
            adc #0
            sta ZP_PTR_HI

            ldy #0
            lda #CHAR_TRACK
            sta (ZP_PTR),y

            lda note_col,x
            clc
            adc #<(COLRAM + TRACK3_ROW * 40)
            sta ZP_PTR
            lda #>(COLRAM + TRACK3_ROW * 40)
            adc #0
            sta ZP_PTR_HI
            lda #TRACK_LINE_COL
            sta (ZP_PTR),y
            rts

; ----------------------------------------------------------------------------
; Initialize Screen
; ----------------------------------------------------------------------------

init_screen:
            lda #BORDER_COL
            sta BORDER
            lda #BG_COL
            sta BGCOL

            ldx #0
            lda #CHAR_SPACE
clr_screen:
            sta SCREEN,x
            sta SCREEN+$100,x
            sta SCREEN+$200,x
            sta SCREEN+$2E8,x
            inx
            bne clr_screen

            ldx #0
            lda #TRACK_LINE_COL
clr_colour:
            sta COLRAM,x
            sta COLRAM+$100,x
            sta COLRAM+$200,x
            sta COLRAM+$2E8,x
            inx
            bne clr_colour

            jsr draw_tracks
            jsr draw_hit_zones
            jsr draw_labels

            rts

; ----------------------------------------------------------------------------
; Draw Tracks
; ----------------------------------------------------------------------------

draw_tracks:
            lda #CHAR_TRACK
            ldx #0
draw_t1:
            sta SCREEN + (TRACK1_ROW * 40),x
            inx
            cpx #38
            bne draw_t1

            lda #CHAR_TRACK
            ldx #0
draw_t2:
            sta SCREEN + (TRACK2_ROW * 40),x
            inx
            cpx #38
            bne draw_t2

            lda #CHAR_TRACK
            ldx #0
draw_t3:
            sta SCREEN + (TRACK3_ROW * 40),x
            inx
            cpx #38
            bne draw_t3

            rts

; ----------------------------------------------------------------------------
; Draw Hit Zones
; ----------------------------------------------------------------------------

draw_hit_zones:
            lda #CHAR_HITZONE

            sta SCREEN + ((TRACK1_ROW-2) * 40) + HIT_ZONE_COLUMN
            sta SCREEN + ((TRACK1_ROW-1) * 40) + HIT_ZONE_COLUMN
            sta SCREEN + (TRACK1_ROW * 40) + HIT_ZONE_COLUMN
            sta SCREEN + ((TRACK1_ROW+1) * 40) + HIT_ZONE_COLUMN

            sta SCREEN + ((TRACK2_ROW-1) * 40) + HIT_ZONE_COLUMN
            sta SCREEN + (TRACK2_ROW * 40) + HIT_ZONE_COLUMN
            sta SCREEN + ((TRACK2_ROW+1) * 40) + HIT_ZONE_COLUMN

            sta SCREEN + ((TRACK3_ROW-1) * 40) + HIT_ZONE_COLUMN
            sta SCREEN + (TRACK3_ROW * 40) + HIT_ZONE_COLUMN
            sta SCREEN + ((TRACK3_ROW+1) * 40) + HIT_ZONE_COLUMN
            sta SCREEN + ((TRACK3_ROW+2) * 40) + HIT_ZONE_COLUMN

            lda #HIT_ZONE_COL
            sta COLRAM + ((TRACK1_ROW-2) * 40) + HIT_ZONE_COLUMN
            sta COLRAM + ((TRACK1_ROW-1) * 40) + HIT_ZONE_COLUMN
            sta COLRAM + (TRACK1_ROW * 40) + HIT_ZONE_COLUMN
            sta COLRAM + ((TRACK1_ROW+1) * 40) + HIT_ZONE_COLUMN

            sta COLRAM + ((TRACK2_ROW-1) * 40) + HIT_ZONE_COLUMN
            sta COLRAM + (TRACK2_ROW * 40) + HIT_ZONE_COLUMN
            sta COLRAM + ((TRACK2_ROW+1) * 40) + HIT_ZONE_COLUMN

            sta COLRAM + ((TRACK3_ROW-1) * 40) + HIT_ZONE_COLUMN
            sta COLRAM + (TRACK3_ROW * 40) + HIT_ZONE_COLUMN
            sta COLRAM + ((TRACK3_ROW+1) * 40) + HIT_ZONE_COLUMN
            sta COLRAM + ((TRACK3_ROW+2) * 40) + HIT_ZONE_COLUMN

            rts

; ----------------------------------------------------------------------------
; Draw Labels
; ----------------------------------------------------------------------------

draw_labels:
            ldx #0
draw_score_label:
            lda score_label,x
            beq draw_score_label_done
            sta SCREEN + 1,x
            lda #1
            sta COLRAM + 1,x
            inx
            bne draw_score_label
draw_score_label_done:

            ldx #0
draw_miss_label:
            lda miss_label,x
            beq draw_miss_label_done
            sta SCREEN + 15,x
            lda #2
            sta COLRAM + 15,x
            inx
            bne draw_miss_label
draw_miss_label_done:

            ldx #0
draw_title:
            lda title_text,x
            beq draw_title_done
            sta SCREEN + 27,x
            lda #1
            sta COLRAM + 27,x
            inx
            bne draw_title
draw_title_done:

            ldx #0
draw_health_label:
            lda health_label,x
            beq draw_health_label_done
            sta SCREEN + (HEALTH_ROW * 40) + 8,x
            lda #5
            sta COLRAM + (HEALTH_ROW * 40) + 8,x
            inx
            bne draw_health_label
draw_health_label_done:

            lda #$1A
            sta SCREEN + (TRACK1_ROW * 40)
            lda #TRACK1_NOTE_COL
            sta COLRAM + (TRACK1_ROW * 40)

            lda #$18
            sta SCREEN + (TRACK2_ROW * 40)
            lda #TRACK2_NOTE_COL
            sta COLRAM + (TRACK2_ROW * 40)

            lda #$03
            sta SCREEN + (TRACK3_ROW * 40)
            lda #TRACK3_NOTE_COL
            sta COLRAM + (TRACK3_ROW * 40)

            rts

score_label:
            !scr "score:"
            !byte 0

miss_label:
            !scr "miss:"
            !byte 0

title_text:
            !scr "sid symphony"
            !byte 0

health_label:
            !scr "health:"
            !byte 0

; ----------------------------------------------------------------------------
; Initialize SID
; ----------------------------------------------------------------------------

init_sid:
            ldx #$18
            lda #0
clear_sid:
            sta SID,x
            dex
            bpl clear_sid

            lda #$0F
            sta SID_VOLUME

            lda #$00
            sta SID_V1_FREQ_LO
            lda #VOICE1_FREQ
            sta SID_V1_FREQ_HI
            lda #PULSE_WIDTH
            sta SID_V1_PWHI
            lda #VOICE_AD
            sta SID_V1_AD
            lda #VOICE_SR
            sta SID_V1_SR

            lda #$00
            sta SID_V2_FREQ_LO
            lda #VOICE2_FREQ
            sta SID_V2_FREQ_HI
            lda #PULSE_WIDTH
            sta SID_V2_PWHI
            lda #VOICE_AD
            sta SID_V2_AD
            lda #VOICE_SR
            sta SID_V2_SR

            lda #$00
            sta SID_V3_FREQ_LO
            lda #VOICE3_FREQ
            sta SID_V3_FREQ_HI
            lda #PULSE_WIDTH
            sta SID_V3_PWHI
            lda #VOICE_AD
            sta SID_V3_AD
            lda #VOICE_SR
            sta SID_V3_SR

            rts

; ----------------------------------------------------------------------------
; Reset Track Colours
; ----------------------------------------------------------------------------

reset_track_colours:
            ldx #0
            lda #TRACK_LINE_COL
reset_t1:
            sta COLRAM + (TRACK1_ROW * 40),x
            inx
            cpx #38
            bne reset_t1

            ldx #0
reset_t2:
            sta COLRAM + (TRACK2_ROW * 40),x
            inx
            cpx #38
            bne reset_t2

            ldx #0
reset_t3:
            sta COLRAM + (TRACK3_ROW * 40),x
            inx
            cpx #38
            bne reset_t3

            lda #TRACK1_NOTE_COL
            sta COLRAM + (TRACK1_ROW * 40)
            lda #TRACK2_NOTE_COL
            sta COLRAM + (TRACK2_ROW * 40)
            lda #TRACK3_NOTE_COL
            sta COLRAM + (TRACK3_ROW * 40)

            lda #HIT_ZONE_COL
            sta COLRAM + (TRACK1_ROW * 40) + HIT_ZONE_COLUMN
            sta COLRAM + (TRACK2_ROW * 40) + HIT_ZONE_COLUMN
            sta COLRAM + (TRACK3_ROW * 40) + HIT_ZONE_COLUMN

            jsr redraw_all_notes

            rts

; ----------------------------------------------------------------------------
; Redraw All Notes
; ----------------------------------------------------------------------------

redraw_all_notes:
            ldx #0
redraw_loop:
            lda note_track,x
            beq redraw_next
            jsr draw_note
redraw_next:
            inx
            cpx #MAX_NOTES
            bne redraw_loop
            rts

; ----------------------------------------------------------------------------
; Update Border Flash
; ----------------------------------------------------------------------------

update_border_flash:
            lda border_flash
            beq flash_done
            dec border_flash
            bne flash_done
            lda #BORDER_COL
            sta BORDER
flash_done:
            rts

; ----------------------------------------------------------------------------
; Check Keys
; ----------------------------------------------------------------------------

check_keys:
            lda #$FD
            sta CIA1_PRA
            lda CIA1_PRB
            and #$10
            bne check_x_key

            lda #1
            sta key_pressed
            jsr check_hit
            bcc check_x_key
            jsr play_voice1_note
            jsr flash_track1_hit
            jsr award_points

check_x_key:
            lda #$FB
            sta CIA1_PRA
            lda CIA1_PRB
            and #$80
            bne check_c_key

            lda #2
            sta key_pressed
            jsr check_hit
            bcc check_c_key
            jsr play_voice2_note
            jsr flash_track2_hit
            jsr award_points

check_c_key:
            lda #$FB
            sta CIA1_PRA
            lda CIA1_PRB
            and #$10
            bne check_keys_done

            lda #3
            sta key_pressed
            jsr check_hit
            bcc check_keys_done
            jsr play_voice3_note
            jsr flash_track3_hit
            jsr award_points

check_keys_done:
            lda #$FF
            sta CIA1_PRA
            rts

; ----------------------------------------------------------------------------
; Check Hit - Now stores note frequency for playback
; ----------------------------------------------------------------------------

check_hit:
            ldx #0

check_hit_loop:
            lda note_track,x
            beq check_hit_next

            cmp key_pressed
            bne check_hit_next

            lda note_col,x
            cmp #HIT_ZONE_MIN
            bcc check_hit_next
            cmp #HIT_ZONE_MAX+1
            bcs check_hit_next

            ; Store note frequency for sound playback
            lda note_freq,x
            sta hit_note_freq

            cmp #HIT_ZONE_CENTRE
            bcc hit_good
            cmp #HIT_ZONE_CENTRE+2
            bcs hit_good

            lda #2
            sta hit_quality
            jmp hit_found

hit_good:
            lda #1
            sta hit_quality

hit_found:
            jsr erase_note
            lda #0
            sta note_track,x
            sec
            rts

check_hit_next:
            inx
            cpx #MAX_NOTES
            bne check_hit_loop

            lda #0
            sta hit_quality
            clc
            rts

; ----------------------------------------------------------------------------
; Award Points
; ----------------------------------------------------------------------------

award_points:
            lda hit_quality
            cmp #2
            beq award_perfect

            lda score_lo
            clc
            adc #GOOD_SCORE
            sta score_lo
            lda score_hi
            adc #0
            sta score_hi

            lda #GOOD_COL
            sta BORDER
            lda #4
            sta border_flash

            lda #HEALTH_GOOD
            jsr increase_health

            jmp award_done

award_perfect:
            lda score_lo
            clc
            adc #PERFECT_SCORE
            sta score_lo
            lda score_hi
            adc #0
            sta score_hi

            lda #PERFECT_COL
            sta BORDER
            lda #6
            sta border_flash

            lda #HEALTH_PERFECT
            jsr increase_health

award_done:
            jsr display_score
            rts

; ----------------------------------------------------------------------------
; Display Score
; ----------------------------------------------------------------------------

display_score:
            lda score_lo
            sta work_lo
            lda score_hi
            sta work_hi

            ldx #0
div_10000:
            lda work_lo
            sec
            sbc #<10000
            tay
            lda work_hi
            sbc #>10000
            bcc done_10000
            sta work_hi
            sty work_lo
            inx
            jmp div_10000
done_10000:
            txa
            ora #$30
            sta SCREEN + 8

            ldx #0
div_1000:
            lda work_lo
            sec
            sbc #<1000
            tay
            lda work_hi
            sbc #>1000
            bcc done_1000
            sta work_hi
            sty work_lo
            inx
            jmp div_1000
done_1000:
            txa
            ora #$30
            sta SCREEN + 9

            ldx #0
div_100:
            lda work_lo
            sec
            sbc #100
            bcc done_100
            sta work_lo
            inx
            jmp div_100
done_100:
            txa
            ora #$30
            sta SCREEN + 10

            ldx #0
div_10:
            lda work_lo
            sec
            sbc #10
            bcc done_10
            sta work_lo
            inx
            jmp div_10
done_10:
            txa
            ora #$30
            sta SCREEN + 11

            lda work_lo
            ora #$30
            sta SCREEN + 12

            lda #7
            sta COLRAM + 8
            sta COLRAM + 9
            sta COLRAM + 10
            sta COLRAM + 11
            sta COLRAM + 12

            rts

; ----------------------------------------------------------------------------
; Display Misses
; ----------------------------------------------------------------------------

display_misses:
            lda miss_count

            ldx #0
miss_div_10:
            cmp #10
            bcc miss_done_10
            sec
            sbc #10
            inx
            jmp miss_div_10
miss_done_10:
            pha
            txa
            ora #$30
            sta SCREEN + 21
            pla
            ora #$30
            sta SCREEN + 22

            lda #2
            sta COLRAM + 21
            sta COLRAM + 22

            rts

work_lo:    !byte 0
work_hi:    !byte 0

; ----------------------------------------------------------------------------
; Play Voices With Note Frequency
; ----------------------------------------------------------------------------

play_voice1_note:
            lda #0
            sta SID_V1_FREQ_LO
            lda hit_note_freq
            sta SID_V1_FREQ_HI
            lda #VOICE1_WAVE
            ora #$01
            sta SID_V1_CTRL
            rts

play_voice2_note:
            lda #0
            sta SID_V2_FREQ_LO
            lda hit_note_freq
            sta SID_V2_FREQ_HI
            lda #VOICE2_WAVE
            ora #$01
            sta SID_V2_CTRL
            rts

play_voice3_note:
            lda #0
            sta SID_V3_FREQ_LO
            lda hit_note_freq
            sta SID_V3_FREQ_HI
            lda #VOICE3_WAVE
            ora #$01
            sta SID_V3_CTRL
            rts

; ----------------------------------------------------------------------------
; Flash Tracks on Hit
; ----------------------------------------------------------------------------

flash_track1_hit:
            ldx #0
            lda #HIT_COL
flash_t1h_loop:
            sta COLRAM + (TRACK1_ROW * 40),x
            inx
            cpx #38
            bne flash_t1h_loop
            lda #1
            sta COLRAM + (TRACK1_ROW * 40)
            rts

flash_track2_hit:
            ldx #0
            lda #HIT_COL
flash_t2h_loop:
            sta COLRAM + (TRACK2_ROW * 40),x
            inx
            cpx #38
            bne flash_t2h_loop
            lda #1
            sta COLRAM + (TRACK2_ROW * 40)
            rts

flash_track3_hit:
            ldx #0
            lda #HIT_COL
flash_t3h_loop:
            sta COLRAM + (TRACK3_ROW * 40),x
            inx
            cpx #38
            bne flash_t3h_loop
            lda #1
            sta COLRAM + (TRACK3_ROW * 40)
            rts

; ============================================================================
; SONG DATA
; ============================================================================
; Format: beat, track, note_freq_hi
;
; Note frequency table (high byte only for simplicity):
; C3=$11  D3=$13  E3=$16  F3=$17  G3=$1A  A3=$1D  B3=$21
; C4=$23  D4=$27  E4=$2C  F4=$2F  G4=$35  A4=$3B  B4=$42
; C5=$47  D5=$4F  E5=$58  F5=$5E  G5=$6A  A5=$77  B5=$85
;
; Track 1 (Z) = high notes, sawtooth
; Track 2 (X) = mid notes, pulse
; Track 3 (C) = low notes, triangle
; ============================================================================

song_data:
            ; Bar 1 - Opening phrase
            !byte 0, 1, $47     ; C5 - high
            !byte 2, 2, $2C     ; E4 - mid
            !byte 4, 3, $11     ; C3 - low

            ; Bar 2 - Descending
            !byte 8, 1, $3B     ; A4
            !byte 10, 2, $27    ; D4
            !byte 12, 3, $13    ; D3

            ; Bar 3 - Building
            !byte 16, 1, $35    ; G4
            !byte 17, 2, $2C    ; E4
            !byte 18, 1, $3B    ; A4
            !byte 20, 3, $16    ; E3

            ; Bar 4 - Resolution
            !byte 24, 1, $47    ; C5
            !byte 26, 2, $35    ; G4
            !byte 28, 3, $11    ; C3

            ; Bar 5 - New phrase
            !byte 32, 2, $2F    ; F4
            !byte 34, 1, $4F    ; D5
            !byte 36, 3, $17    ; F3

            ; Bar 6 - Variation
            !byte 40, 1, $58    ; E5
            !byte 42, 2, $2C    ; E4
            !byte 44, 3, $11    ; C3
            !byte 46, 2, $27    ; D4

            ; Bar 7 - Climax approach
            !byte 48, 1, $6A    ; G5
            !byte 49, 2, $35    ; G4
            !byte 50, 1, $58    ; E5
            !byte 52, 3, $1A    ; G3
            !byte 54, 2, $2F    ; F4

            ; Bar 8 - Resolution/Loop point
            !byte 56, 1, $47    ; C5
            !byte 58, 2, $2C    ; E4
            !byte 60, 3, $11    ; C3
            !byte 62, 1, $35    ; G4

            !byte $FF           ; End of song

; ----------------------------------------------------------------------------
; Note Arrays
; ----------------------------------------------------------------------------

note_track:
            !fill MAX_NOTES, 0

note_col:
            !fill MAX_NOTES, 0

note_freq:
            !fill MAX_NOTES, 0  ; Note frequency for each active note

; ----------------------------------------------------------------------------
; Game Variables
; ----------------------------------------------------------------------------

score_lo:   !byte 0
score_hi:   !byte 0
miss_count: !byte 0
health:     !byte 0

Try This: Compose Your Own

Create a different melody:

song_data:
            ; Simple ascending scale
            !byte 0, 3, $11     ; C3
            !byte 4, 3, $13     ; D3
            !byte 8, 3, $16     ; E3
            !byte 12, 3, $17    ; F3
            !byte 16, 2, $1A    ; G3 (switch to mid track)
            !byte 20, 2, $1D    ; A3
            !byte 24, 1, $21    ; B3 (switch to high track)
            !byte 28, 1, $23    ; C4

            !byte $FF

Experiment with different patterns. What makes a satisfying rhythm?

Try This: Denser Patterns

Add more notes for a harder challenge:

            ; Rapid alternation
            !byte 0, 1, $47
            !byte 1, 2, $2C
            !byte 2, 3, $11
            !byte 3, 1, $47
            !byte 4, 2, $2C
            !byte 5, 3, $11
            ; ...

Notes on every beat create intense gameplay.

What You’ve Learnt

Data-driven design - Song structure defined in data, not code
SID frequencies - Note values for the sound chip
Three-byte entries - Expandable format for future features
Musical structure - Bars, phrases, and progression

What’s Next

In Unit 10, we’ll add song progress tracking. The game will show how far through the song you are and handle the song ending properly - either victory or game over.

What Changed

Unit 8 → Unit 9

+136-92

1	1		`; ============================================================================`
2		-	`; SID SYMPHONY - Unit 8: Health System`
	2	+	`; SID SYMPHONY - Unit 9: Song Data`
3	3		`; ============================================================================`
4		-	`; A health meter that grows on hits and shrinks on misses. The game can be`
5		-	`; lost. Stakes make success meaningful.`
	4	+	`; Design the song data format. Create the first complete musical pattern.`
	5	+	`; Notes now carry pitch information - each hit plays its actual note.`
6	6		`;`
7	7		`; Controls: Z = Track 1 (high), X = Track 2 (mid), C = Track 3 (low)`
8	8		`; ============================================================================`
			...
11	11		`; CUSTOMISATION SECTION`
12	12		`; ============================================================================`
13	13
14		-	`; SID Voice Settings`
	14	+	`; SID Voice Settings (default for when no note playing)`
15	15		`VOICE1_WAVE = $21 ; Sawtooth`
16	16		`VOICE2_WAVE = $41 ; Pulse`
17	17		`VOICE3_WAVE = $11 ; Triangle`
18	18
	19	+	`; Default frequencies (used if no note data)`
19	20		`VOICE1_FREQ = $1C ; High pitch`
20	21		`VOICE2_FREQ = $0E ; Mid pitch`
21	22		`VOICE3_FREQ = $07 ; Low pitch`
			...
40	41
41	42		`TRACK_LINE_COL = 11 ; Dark grey`
42	43		`HIT_ZONE_COL = 7 ; Yellow`
43		-
44		-	`FLASH1_COL = 2 ; Red`
45		-	`FLASH2_COL = 5 ; Green`
46		-	`FLASH3_COL = 6 ; Blue`
47	44
48	45		`HIT_COL = 1 ; White - flash on successful hit`
49	46		`PERFECT_COL = 1 ; White - perfect hit border flash`
			...
63	60		`; HEALTH SETTINGS`
64	61		`; ============================================================================`
65	62
66		-	`HEALTH_MAX = 64 ; Maximum health`
67		-	`HEALTH_START = 32 ; Starting health (half)`
68		-	`HEALTH_PERFECT = 4 ; Health gained on perfect hit`
69		-	`HEALTH_GOOD = 2 ; Health gained on good hit`
70		-	`HEALTH_MISS = 8 ; Health lost on miss`
	63	+	`HEALTH_MAX = 64`
	64	+	`HEALTH_START = 32`
	65	+	`HEALTH_PERFECT = 4`
	66	+	`HEALTH_GOOD = 2`
	67	+	`HEALTH_MISS = 8`
71	68
72	69		`; ============================================================================`
73	70		`; HIT DETECTION SETTINGS`
			...
76	73		`HIT_ZONE_MIN = 2`
77	74		`HIT_ZONE_MAX = 5`
78	75		`HIT_ZONE_CENTRE = 3`
	76	+
	77	+	`; ============================================================================`
	78	+	`; SONG SETTINGS`
	79	+	`; ============================================================================`
	80	+
	81	+	`SONG_LENGTH = 64 ; Beats in the song`
79	82
80	83		`; ============================================================================`
81	84		`; MEMORY MAP`
			...
158	161		`hit_quality = $08`
159	162		`border_flash = $09`
160	163		`miss_track = $0A`
161		-	`game_over = $0B ; Non-zero when game ended`
	164	+	`game_over = $0B`
	165	+	`hit_note_freq = $0C ; Frequency of note being hit`
162	166
163	167		`; ----------------------------------------------------------------------------`
164	168		`; BASIC Stub`
			...
204	208		`cmp $D012`
205	209		`bne wait_raster`
206	210
207		-	`; Check if game is over`
208	211		`lda game_over`
209		-	`bne main_loop ; Freeze if game over`
	212	+	`bne main_loop`
210	213
211	214		`inc frame_count`
212	215		`lda frame_count`
			...
276	279		`; ----------------------------------------------------------------------------`
277	280
278	281		`define_custom_chars:`
279		-	`; Note character - diamond shape`
280	282		`lda #%00000110`
281	283		`sta CHARSET + (CHAR_NOTE * 8) + 0`
282	284		`lda #%00011110`
			...
294	296		`lda #%00000110`
295	297		`sta CHARSET + (CHAR_NOTE * 8) + 7`
296	298
297		-	`; Track character - horizontal line`
298	299		`lda #%00000000`
299	300		`sta CHARSET + (CHAR_TRACK * 8) + 0`
300	301		`lda #%00000000`
			...
312	313		`lda #%00000000`
313	314		`sta CHARSET + (CHAR_TRACK * 8) + 7`
314	315
315		-	`; Hit zone character - vertical bars`
316	316		`lda #%01100110`
317	317		`sta CHARSET + (CHAR_HITZONE * 8) + 0`
318	318		`sta CHARSET + (CHAR_HITZONE * 8) + 1`
			...
323	323		`sta CHARSET + (CHAR_HITZONE * 8) + 6`
324	324		`sta CHARSET + (CHAR_HITZONE * 8) + 7`
325	325
326		-	`; Health bar full - solid block`
327	326		`lda #%11111111`
328	327		`sta CHARSET + (CHAR_BAR_FULL * 8) + 0`
329	328		`sta CHARSET + (CHAR_BAR_FULL * 8) + 1`
			...
334	333		`sta CHARSET + (CHAR_BAR_FULL * 8) + 6`
335	334		`sta CHARSET + (CHAR_BAR_FULL * 8) + 7`
336	335
337		-	`; Health bar empty - outline`
338	336		`lda #%11111111`
339	337		`sta CHARSET + (CHAR_BAR_EMPTY * 8) + 0`
340	338		`lda #%10000001`
			...
382	380		`init_notes_loop:`
383	381		`sta note_track,x`
384	382		`sta note_col,x`
	383	+	`sta note_freq,x ; Also clear note frequencies`
385	384		`dex`
386	385		`bpl init_notes_loop`
387	386		`rts`
388	387
389	388		`; ----------------------------------------------------------------------------`
390		-	`; Check Spawn Note`
	389	+	`; Check Spawn Note - Now reads 3-byte song entries`
391	390		`; ----------------------------------------------------------------------------`
392	391
393	392		`check_spawn_note:`
			...
406	405
407	406		`spawn_match:`
408	407		`iny`
409		-	`lda (song_pos),y`
410		-	`jsr spawn_note`
	408	+	`lda (song_pos),y ; Track number`
	409	+	`sta temp_track`
	410	+	`iny`
	411	+	`lda (song_pos),y ; Note frequency`
	412	+	`pha`
	413	+	`lda temp_track`
	414	+	`jsr spawn_note_with_freq`
	415	+	`pla ; Clean up stack`
	416	+	`dey`
411	417		`dey`
412	418
413	419		`spawn_advance:`
414	420		`lda song_pos`
415	421		`clc`
416		-	`adc #2`
	422	+	`adc #3 ; 3 bytes per entry now`
417	423		`sta song_pos`
418	424		`lda song_pos_hi`
419	425		`adc #0`
			...
433	439		`rts`
434	440
435	441		`; ----------------------------------------------------------------------------`
436		-	`; Spawn Note`
	442	+	`; Spawn Note With Frequency`
	443	+	`; Input: A = track, stack has frequency`
437	444		`; ----------------------------------------------------------------------------`
438	445
439		-	`spawn_note:`
	446	+	`spawn_note_with_freq:`
440	447		`sta temp_track`
441	448
442	449		`ldx #0`
			...
453	460		`sta note_track,x`
454	461		`lda #NOTE_SPAWN_COL`
455	462		`sta note_col,x`
	463	+
	464	+	`; Get frequency from stack (caller pushed it)`
	465	+	`tsx`
	466	+	`lda $0103,x ; Get frequency from stack`
	467	+	`sta note_freq,x`
	468	+
456	469		`jsr draw_note`
457	470		`rts`
458	471
			...
505	518		`sta border_flash`
506	519
507	520		`jsr display_misses`
508		-
509		-	`; Decrease health`
510	521		`jsr decrease_health`
511	522
512	523		`rts`
513	524
514	525		`; ----------------------------------------------------------------------------`
515		-	`; Decrease Health - Subtract HEALTH_MISS, clamp at 0`
	526	+	`; Decrease Health`
516	527		`; ----------------------------------------------------------------------------`
517	528
518	529		`decrease_health:`
519	530		`lda health`
520	531		`sec`
521	532		`sbc #HEALTH_MISS`
522		-	`bcc health_zero ; Underflow - set to 0`
	533	+	`bcc health_zero`
523	534		`sta health`
524	535		`jsr display_health`
525	536		`jsr check_game_over`
			...
533	544		`rts`
534	545
535	546		`; ----------------------------------------------------------------------------`
536		-	`; Increase Health - Add amount, clamp at HEALTH_MAX`
537		-	`; Input: A = amount to add`
	547	+	`; Increase Health`
538	548		`; ----------------------------------------------------------------------------`
539	549
540	550		`increase_health:`
			...
542	552		`adc health`
543	553		`cmp #HEALTH_MAX`
544	554		`bcc health_ok`
545		-	`lda #HEALTH_MAX ; Clamp to max`
	555	+	`lda #HEALTH_MAX`
546	556		`health_ok:`
547	557		`sta health`
548	558		`jsr display_health`
			...
556	566		`lda health`
557	567		`bne not_game_over`
558	568
559		-	`; Game over!`
560	569		`lda #1`
561	570		`sta game_over`
562		-
563		-	`; Display game over message`
564	571		`jsr show_game_over`
565	572
566	573		`not_game_over:`
			...
571	578		`; ----------------------------------------------------------------------------`
572	579
573	580		`show_game_over:`
574		-	`; Display "GAME OVER" in centre of screen`
575	581		`ldx #0`
576	582		`game_over_loop:`
577	583		`lda game_over_text,x`
578	584		`beq game_over_done`
579	585		`sta SCREEN + (12 * 40) + 15,x`
580		-	`lda #2 ; Red`
	586	+	`lda #2`
581	587		`sta COLRAM + (12 * 40) + 15,x`
582	588		`inx`
583	589		`jmp game_over_loop`
584	590		`game_over_done:`
585		-
586		-	`; Flash border red`
587	591		`lda #2`
588	592		`sta BORDER`
589		-
590	593		`rts`
591	594
592	595		`game_over_text:`
			...
594	597		`!byte 0`
595	598
596	599		`; ----------------------------------------------------------------------------`
597		-	`; Display Health - 8 character bar`
	600	+	`; Display Health`
598	601		`; ----------------------------------------------------------------------------`
599	602
600	603		`display_health:`
601		-	`; Health ranges 0-64, displayed as 8 characters`
602		-	`; Each character represents 8 health points`
603		-
604	604		`lda health`
605		-	`lsr ; Divide by 8`
606	605		`lsr`
607	606		`lsr`
608		-	`sta temp_health ; Full bars to draw`
	607	+	`lsr`
	608	+	`sta temp_health`
609	609
610		-	`; Draw full bars`
611	610		`ldx #0`
612	611		`lda temp_health`
613	612		`beq draw_empty_bars`
			...
621	620		`cpx temp_health`
622	621		`bne draw_full_bars`
623	622
624		-	`; Draw empty bars for remainder`
625	623		`draw_empty_bars:`
626	624		`cpx #8`
627	625		`beq health_done`
628	626		`lda #CHAR_BAR_EMPTY`
629	627		`sta SCREEN + (HEALTH_ROW * 40) + 16,x`
630		-	`lda #11 ; Dark grey`
	628	+	`lda #11`
631	629		`sta COLRAM + (HEALTH_ROW * 40) + 16,x`
632	630		`inx`
633	631		`jmp draw_empty_bars`
			...
937	935		`; ----------------------------------------------------------------------------`
938	936
939	937		`draw_labels:`
940		-	`; Draw "SCORE:" label`
941	938		`ldx #0`
942	939		`draw_score_label:`
943	940		`lda score_label,x`
			...
949	946		`bne draw_score_label`
950	947		`draw_score_label_done:`
951	948
952		-	`; Draw "MISS:" label`
953	949		`ldx #0`
954	950		`draw_miss_label:`
955	951		`lda miss_label,x`
			...
961	957		`bne draw_miss_label`
962	958		`draw_miss_label_done:`
963	959
964		-	`; Draw title`
965	960		`ldx #0`
966	961		`draw_title:`
967	962		`lda title_text,x`
			...
973	968		`bne draw_title`
974	969		`draw_title_done:`
975	970
976		-	`; Draw "HEALTH:" label`
977	971		`ldx #0`
978	972		`draw_health_label:`
979	973		`lda health_label,x`
980	974		`beq draw_health_label_done`
981	975		`sta SCREEN + (HEALTH_ROW * 40) + 8,x`
982		-	`lda #5 ; Green`
	976	+	`lda #5`
983	977		`sta COLRAM + (HEALTH_ROW * 40) + 8,x`
984	978		`inx`
985	979		`bne draw_health_label`
986	980		`draw_health_label_done:`
987	981
988		-	`; Track labels`
989		-	`lda #$1A ; Z`
	982	+	`lda #$1A`
990	983		`sta SCREEN + (TRACK1_ROW * 40)`
991	984		`lda #TRACK1_NOTE_COL`
992	985		`sta COLRAM + (TRACK1_ROW * 40)`
993	986
994		-	`lda #$18 ; X`
	987	+	`lda #$18`
995	988		`sta SCREEN + (TRACK2_ROW * 40)`
996	989		`lda #TRACK2_NOTE_COL`
997	990		`sta COLRAM + (TRACK2_ROW * 40)`
998	991
999		-	`lda #$03 ; C`
	992	+	`lda #$03`
1000	993		`sta SCREEN + (TRACK3_ROW * 40)`
1001	994		`lda #TRACK3_NOTE_COL`
1002	995		`sta COLRAM + (TRACK3_ROW * 40)`
			...
1157	1150		`sta key_pressed`
1158	1151		`jsr check_hit`
1159	1152		`bcc check_x_key`
1160		-	`jsr play_voice1`
	1153	+	`jsr play_voice1_note`
1161	1154		`jsr flash_track1_hit`
1162	1155		`jsr award_points`
1163	1156
			...
1172	1165		`sta key_pressed`
1173	1166		`jsr check_hit`
1174	1167		`bcc check_c_key`
1175		-	`jsr play_voice2`
	1168	+	`jsr play_voice2_note`
1176	1169		`jsr flash_track2_hit`
1177	1170		`jsr award_points`
1178	1171
			...
1187	1180		`sta key_pressed`
1188	1181		`jsr check_hit`
1189	1182		`bcc check_keys_done`
1190		-	`jsr play_voice3`
	1183	+	`jsr play_voice3_note`
1191	1184		`jsr flash_track3_hit`
1192	1185		`jsr award_points`
1193	1186
			...
1197	1190		`rts`
1198	1191
1199	1192		`; ----------------------------------------------------------------------------`
1200		-	`; Check Hit`
	1193	+	`; Check Hit - Now stores note frequency for playback`
1201	1194		`; ----------------------------------------------------------------------------`
1202	1195
1203	1196		`check_hit:`
			...
1215	1208		`bcc check_hit_next`
1216	1209		`cmp #HIT_ZONE_MAX+1`
1217	1210		`bcs check_hit_next`
	1211	+
	1212	+	`; Store note frequency for sound playback`
	1213	+	`lda note_freq,x`
	1214	+	`sta hit_note_freq`
1218	1215
1219	1216		`cmp #HIT_ZONE_CENTRE`
1220	1217		`bcc hit_good`
			...
1268	1265		`lda #4`
1269	1266		`sta border_flash`
1270	1267
1271		-	`; Increase health for good hit`
1272	1268		`lda #HEALTH_GOOD`
1273	1269		`jsr increase_health`
1274	1270
			...
1288	1284		`lda #6`
1289	1285		`sta border_flash`
1290	1286
1291		-	`; Increase health for perfect hit`
1292	1287		`lda #HEALTH_PERFECT`
1293	1288		`jsr increase_health`
1294	1289
			...
1417	1412		`work_hi: !byte 0`
1418	1413
1419	1414		`; ----------------------------------------------------------------------------`
1420		-	`; Play Voices`
	1415	+	`; Play Voices With Note Frequency`
1421	1416		`; ----------------------------------------------------------------------------`
1422	1417
1423		-	`play_voice1:`
	1418	+	`play_voice1_note:`
	1419	+	`lda #0`
	1420	+	`sta SID_V1_FREQ_LO`
	1421	+	`lda hit_note_freq`
	1422	+	`sta SID_V1_FREQ_HI`
1424	1423		`lda #VOICE1_WAVE`
1425	1424		`ora #$01`
1426	1425		`sta SID_V1_CTRL`
1427	1426		`rts`
1428	1427
1429		-	`play_voice2:`
	1428	+	`play_voice2_note:`
	1429	+	`lda #0`
	1430	+	`sta SID_V2_FREQ_LO`
	1431	+	`lda hit_note_freq`
	1432	+	`sta SID_V2_FREQ_HI`
1430	1433		`lda #VOICE2_WAVE`
1431	1434		`ora #$01`
1432	1435		`sta SID_V2_CTRL`
1433	1436		`rts`
1434	1437
1435		-	`play_voice3:`
	1438	+	`play_voice3_note:`
	1439	+	`lda #0`
	1440	+	`sta SID_V3_FREQ_LO`
	1441	+	`lda hit_note_freq`
	1442	+	`sta SID_V3_FREQ_HI`
1436	1443		`lda #VOICE3_WAVE`
1437	1444		`ora #$01`
1438	1445		`sta SID_V3_CTRL`
			...
1478	1485		`sta COLRAM + (TRACK3_ROW * 40)`
1479	1486		`rts`
1480	1487
1481		-	`; ----------------------------------------------------------------------------`
1482		-	`; Song Data`
1483		-	`; ----------------------------------------------------------------------------`
	1488	+	`; ============================================================================`
	1489	+	`; SONG DATA`
	1490	+	`; ============================================================================`
	1491	+	`; Format: beat, track, note_freq_hi`
	1492	+	`;`
	1493	+	`; Note frequency table (high byte only for simplicity):`
	1494	+	`; C3=$11 D3=$13 E3=$16 F3=$17 G3=$1A A3=$1D B3=$21`
	1495	+	`; C4=$23 D4=$27 E4=$2C F4=$2F G4=$35 A4=$3B B4=$42`
	1496	+	`; C5=$47 D5=$4F E5=$58 F5=$5E G5=$6A A5=$77 B5=$85`
	1497	+	`;`
	1498	+	`; Track 1 (Z) = high notes, sawtooth`
	1499	+	`; Track 2 (X) = mid notes, pulse`
	1500	+	`; Track 3 (C) = low notes, triangle`
	1501	+	`; ============================================================================`
1484	1502
1485	1503		`song_data:`
1486		-	`!byte 0, 1`
1487		-	`!byte 2, 2`
1488		-	`!byte 4, 3`
1489		-	`!byte 6, 1`
	1504	+	`; Bar 1 - Opening phrase`
	1505	+	`!byte 0, 1, $47 ; C5 - high`
	1506	+	`!byte 2, 2, $2C ; E4 - mid`
	1507	+	`!byte 4, 3, $11 ; C3 - low`
1490	1508
1491		-	`!byte 8, 2`
1492		-	`!byte 10, 3`
1493		-	`!byte 12, 1`
1494		-	`!byte 14, 2`
	1509	+	`; Bar 2 - Descending`
	1510	+	`!byte 8, 1, $3B ; A4`
	1511	+	`!byte 10, 2, $27 ; D4`
	1512	+	`!byte 12, 3, $13 ; D3`
1495	1513
1496		-	`!byte 16, 3`
1497		-	`!byte 18, 1`
1498		-	`!byte 20, 2`
1499		-	`!byte 22, 3`
	1514	+	`; Bar 3 - Building`
	1515	+	`!byte 16, 1, $35 ; G4`
	1516	+	`!byte 17, 2, $2C ; E4`
	1517	+	`!byte 18, 1, $3B ; A4`
	1518	+	`!byte 20, 3, $16 ; E3`
1500	1519
1501		-	`!byte 24, 1`
1502		-	`!byte 25, 2`
1503		-	`!byte 26, 3`
1504		-	`!byte 28, 1`
1505		-	`!byte 29, 2`
1506		-	`!byte 30, 3`
	1520	+	`; Bar 4 - Resolution`
	1521	+	`!byte 24, 1, $47 ; C5`
	1522	+	`!byte 26, 2, $35 ; G4`
	1523	+	`!byte 28, 3, $11 ; C3`
1507	1524
1508		-	`!byte $FF`
	1525	+	`; Bar 5 - New phrase`
	1526	+	`!byte 32, 2, $2F ; F4`
	1527	+	`!byte 34, 1, $4F ; D5`
	1528	+	`!byte 36, 3, $17 ; F3`
	1529	+
	1530	+	`; Bar 6 - Variation`
	1531	+	`!byte 40, 1, $58 ; E5`
	1532	+	`!byte 42, 2, $2C ; E4`
	1533	+	`!byte 44, 3, $11 ; C3`
	1534	+	`!byte 46, 2, $27 ; D4`
	1535	+
	1536	+	`; Bar 7 - Climax approach`
	1537	+	`!byte 48, 1, $6A ; G5`
	1538	+	`!byte 49, 2, $35 ; G4`
	1539	+	`!byte 50, 1, $58 ; E5`
	1540	+	`!byte 52, 3, $1A ; G3`
	1541	+	`!byte 54, 2, $2F ; F4`
	1542	+
	1543	+	`; Bar 8 - Resolution/Loop point`
	1544	+	`!byte 56, 1, $47 ; C5`
	1545	+	`!byte 58, 2, $2C ; E4`
	1546	+	`!byte 60, 3, $11 ; C3`
	1547	+	`!byte 62, 1, $35 ; G4`
	1548	+
	1549	+	`!byte $FF ; End of song`
1509	1550
1510	1551		`; ----------------------------------------------------------------------------`
1511	1552		`; Note Arrays`
			...
1516	1557
1517	1558		`note_col:`
1518	1559		`!fill MAX_NOTES, 0`
	1560	+
	1561	+	`note_freq:`
	1562	+	`!fill MAX_NOTES, 0 ; Note frequency for each active note`
1519	1563
1520	1564		`; ----------------------------------------------------------------------------`
1521	1565		`; Game Variables`
