Game 1 Unit 31 of 64 1 hr learning time
Results Screen Enhancements
Enhancing the results screen with performance grades (S/A/B/C/D), accuracy percentage calculation, and best streak display. Players now receive clear feedback on their performance quality.
48% of SID Symphony
Numbers tell part of the story. A score of 4,350 means nothing without context—was that good? Great? Mediocre? Performance grades give players instant understanding of how well they played.
This unit adds letter grades (S/A/B/C/D), accuracy percentage calculation, and best streak tracking to the results screen.
Run It
Assemble and run:
acme -f cbm -o symphony.prg symphony.asm
Complete a song and the results screen now shows your performance grade alongside statistics.
Grade Thresholds
Letter grades based on perfect hit percentage:
; Performance grade thresholds (based on accuracy percentage)
GRADE_S_THRESHOLD = 95 ; 95%+ perfect rate = S rank
GRADE_A_THRESHOLD = 85 ; 85%+ = A rank
GRADE_B_THRESHOLD = 70 ; 70%+ = B rank
GRADE_C_THRESHOLD = 50 ; 50%+ = C rank
; Below 50% = D rankS rank requires near-perfection—95% of all hits must be perfect timing. This creates aspirational goals for dedicated players.
Grade Variables
Two variables store the calculated grade:
current_grade = $23 ; Current performance grade letter (screen code)
current_grade_col = $24 ; Colour for current gradeScreen codes and colours are calculated together so display is immediate.
Percentage Calculation
Calculating (perfect_count × 100) / notes_hit requires multiplication and division in 8-bit assembly:
calculate_grade:
; If no notes hit, give D grade
lda notes_hit
bne calc_grade_continue
lda #'d'
sta current_grade
lda #2 ; Red
sta current_grade_col
rts
calc_grade_continue:
; Multiply perfect_count by 100
; Using shifts: 100 = 64 + 32 + 4
lda perfect_count
sta work_lo
lda #0
sta work_hiWe check for zero notes first to avoid division by zero.
Multiplication by Shifting
Multiplying by 100 uses binary decomposition:
; Multiply by 100 (64 + 32 + 4 = 100)
; work = perfect * 64
asl work_lo
rol work_hi ; *2
asl work_lo
rol work_hi ; *4
...
asl work_lo
rol work_hi ; *64Six shifts create ×64, then we add ×32 and ×4 to get ×100. This avoids slow multiplication loops.
Division by Subtraction
For small dividends, repeated subtraction is simplest:
grade_div_loop:
; Check if work >= notes_hit
lda work_hi
bne grade_can_sub ; High byte nonzero, can subtract
lda work_lo
cmp notes_hit
bcc grade_div_done ; work < notes_hit, done
grade_can_sub:
; Subtract notes_hit from work
lda work_lo
sec
sbc notes_hit
sta work_lo
lda work_hi
sbc #0
sta work_hi
inc ZP_TEMP ; Increment percentage
lda ZP_TEMP
cmp #101 ; Cap at 100%
bcc grade_div_loopEach subtraction increments the quotient. We cap at 100% to prevent overflow from rounding.
Grade Determination
Cascading comparisons find the correct grade:
lda ZP_TEMP
cmp #GRADE_S_THRESHOLD
bcs grade_is_s
cmp #GRADE_A_THRESHOLD
bcs grade_is_a
cmp #GRADE_B_THRESHOLD
bcs grade_is_b
cmp #GRADE_C_THRESHOLD
bcs grade_is_c
; Below C threshold = DBranch-if-carry-set (BCS) checks “greater than or equal” after a compare.
Grade Colours
Each grade has a distinct colour for instant recognition:
grade_is_s:
lda #'s'
sta current_grade
lda #7 ; Yellow
sta current_grade_col
rts
grade_is_a:
lda #'a'
sta current_grade
lda #5 ; Green
sta current_grade_col
rts| Grade | Colour | Meaning |
|---|---|---|
| S | Yellow | Superb—near perfect |
| A | Green | Excellent |
| B | Cyan | Good |
| C | Light grey | Average |
| D | Red | Needs practice |
Grade Display
The grade appears prominently on the results screen:
draw_grade:
; Calculate and display performance grade
jsr calculate_grade
; Display grade label
ldx #0
draw_grade_label:
lda grade_label,x
beq draw_grade_letter
sta SCREEN + (7 * 40) + 14,x
lda #7
sta COLRAM + (7 * 40) + 14,x
inx
jmp draw_grade_label
draw_grade_letter:
lda current_grade
sta SCREEN + (7 * 40) + 22
ldx current_grade_col
stx COLRAM + (7 * 40) + 22The grade letter stands alone, coloured for impact.
Best Streak Display
We also show the best perfect streak achieved:
; Draw best streak on row 19
ldx #0
draw_streak_label:
lda streak_label,x
beq draw_streak_value
sta SCREEN + (19 * 40) + 12,x
lda #3 ; Cyan
sta COLRAM + (19 * 40) + 12,x
inx
jmp draw_streak_labelPlayers see their longest run of consecutive perfect hits—a secondary goal beyond the overall grade.
Results Screen Layout
The enhanced results screen shows:
| Row | Content |
|---|---|
| 5 | ”COMPLETE” header |
| 7 | Grade: S/A/B/C/D |
| 9 | Final Score |
| 11 | Perfect count |
| 13 | Miss count |
| 15 | Max combo |
| 17 | High score |
| 19 | Best streak |
| 21 | ”Press fire” prompt |
Every statistic that matters is visible at a glance.
Text Data
New labels for the enhanced display:
grade_label:
!scr "grade:"
!byte 0
streak_label:
!scr "best streak:"
!byte 0Consistent formatting with existing labels maintains visual harmony.
The Complete Code
; ============================================================================
; SID SYMPHONY - Unit 31: Results Screen Enhancements
; ============================================================================
; Enhancing the results screen with performance grades (S/A/B/C/D), accuracy
; percentage, best streak display, and improved statistics layout.
;
; New concepts: Grade calculation, percentage display, enhanced UI layout
;
; Controls: Z = Track 1, X = Track 2, C = Track 3
; Up/Down = Song selection, Left/Right = Difficulty
; P = Toggle practice mode, +/- = Speed adjustment
; E = Toggle endless mode
; Fire/Space = Start game
; ============================================================================
; ============================================================================
; CUSTOMISATION SECTION
; ============================================================================
; Screenshot mode - set to 1 to skip title and show menu immediately
; Used for automated screenshot capture. Override with: acme -DSCREENSHOT_MODE=1
!ifndef SCREENSHOT_MODE { SCREENSHOT_MODE = 0 }
; SID Voice Settings (for note playback)
VOICE1_WAVE = $21 ; Sawtooth for track 1
VOICE2_WAVE = $41 ; Pulse for track 2
VOICE3_WAVE = $11 ; Triangle for track 3
VOICE1_FREQ = $1C
VOICE2_FREQ = $0E
VOICE3_FREQ = $07
VOICE_AD = $09 ; Attack=0, Decay=9
VOICE_SR = $00 ; Sustain=0, Release=0
PULSE_WIDTH = $08
; Perfect hit sound - bright and satisfying
PERFECT_SFX_FREQ = $30 ; Higher pitch
PERFECT_SFX_WAVE = $21 ; Sawtooth (bright)
PERFECT_SFX_AD = $08 ; Fast attack, medium decay
PERFECT_SFX_SR = $00 ; No sustain
; Good hit sound - positive but lesser
GOOD_SFX_FREQ = $20 ; Lower pitch than perfect
GOOD_SFX_WAVE = $11 ; Triangle (softer)
GOOD_SFX_AD = $0A ; Slightly slower decay
GOOD_SFX_SR = $00 ; No sustain
; Miss sound settings - harsh buzz
MISS_FREQ = $08
MISS_WAVE = $81 ; Noise
MISS_AD = $00 ; Instant attack
MISS_SR = $A0 ; Quick sustain, fast release
; Menu sound settings
MENU_SELECT_FREQ = $18 ; Menu click pitch
MENU_SELECT_WAVE = $41 ; Pulse for click
MENU_SELECT_AD = $00 ; Instant
MENU_SELECT_SR = $80 ; Very short
MENU_MOVE_FREQ = $10 ; Lower pitch for cursor move
MENU_MOVE_WAVE = $11 ; Triangle (soft)
MENU_MOVE_AD = $00 ; Instant
MENU_MOVE_SR = $40 ; Very short
; Visual Settings
BORDER_COL = 0
BG_COL = 0
TRACK1_NOTE_COL = 10 ; Light red for high track
TRACK2_NOTE_COL = 13 ; Light green for mid track
TRACK3_NOTE_COL = 14 ; Light blue for low track
TRACK_LINE_COL = 11 ; Grey for track lines
HIT_ZONE_COL = 7 ; Yellow for hit zone
HIT_COL = 1
PERFECT_COL = 1 ; White flash for perfect
GOOD_COL = 7 ; Yellow flash for good
MISS_COL = 2 ; Red flash for miss
HEALTH_COL = 5 ; Green for health bar
PROGRESS_COL = 3 ; Cyan for progress bar
COMBO_COL = 13 ; Light green for combo
; Title screen colours
TITLE_COL = 1 ; White for title
SUBTITLE_COL = 11 ; Grey for subtitle
MENU_COL = 7 ; Yellow for menu items
CURSOR_COL = 1 ; White for cursor
EASY_COL = 5 ; Green for Easy
NORMAL_COL = 7 ; Yellow for Normal
HARD_COL = 2 ; Red for Hard
; ============================================================================
; SCORING SETTINGS (BALANCED)
; ============================================================================
PERFECT_SCORE = 100 ; Perfect hit value
GOOD_SCORE = 50 ; Good hit value
; Streak bonuses (awarded every N consecutive perfects)
STREAK_THRESHOLD = 5 ; Perfect streak bonus every 5 perfects
STREAK_BONUS = 50 ; Bonus points per streak milestone
; Section completion bonuses (25%, 50%, 75%, 100%)
SECTION_BONUS = 100 ; Bonus per section completed
; Full combo bonus (no misses)
FULL_COMBO_BONUS = 200 ; Bonus if no misses entire song
; Performance grade thresholds (based on accuracy percentage)
; Accuracy = (perfect_count * 100 + good_count * 50) / total_notes
GRADE_S_THRESHOLD = 95 ; 95%+ perfect rate = S rank
GRADE_A_THRESHOLD = 85 ; 85%+ = A rank
GRADE_B_THRESHOLD = 70 ; 70%+ = B rank
GRADE_C_THRESHOLD = 50 ; 50%+ = C rank
; Below 50% = D rank
; ============================================================================
; COMBO SETTINGS (BALANCED)
; ============================================================================
COMBO_TIER_2 = 10 ; 2x multiplier at 10 hits
COMBO_TIER_3 = 25 ; 3x multiplier at 25 hits
COMBO_TIER_4 = 50 ; 4x multiplier at 50 hits
; Combo border colours (escalating intensity)
COMBO_BORDER_0 = 0 ; Black - no combo
COMBO_BORDER_1 = 11 ; Dark grey - building
COMBO_BORDER_2 = 5 ; Green - 2x (tier 2)
COMBO_BORDER_3 = 7 ; Yellow - 3x (tier 3)
COMBO_BORDER_4 = 2 ; Red - 4x (tier 4 / fire!)
; ============================================================================
; HEALTH SETTINGS (BASE VALUES - MODIFIED BY DIFFICULTY)
; ============================================================================
HEALTH_MAX = 64 ; Maximum health
HEALTH_START = 32 ; Start at half health
HEALTH_PERFECT = 4 ; Gain 4 for perfect
HEALTH_GOOD = 2 ; Gain 2 for good
; Health loss per difficulty
HEALTH_MISS_EASY = 4 ; Forgiving
HEALTH_MISS_NORMAL = 8 ; Balanced
HEALTH_MISS_HARD = 12 ; Punishing
; ============================================================================
; HIT DETECTION SETTINGS (BASE - MODIFIED BY DIFFICULTY)
; ============================================================================
; Hit zone column range (where notes can be hit)
HIT_ZONE_START = 2 ; Leftmost hittable column
HIT_ZONE_END = 6 ; Rightmost hittable column
; Perfect timing column (centre of hit zone)
PERFECT_COL_POS = 4
; Beat marker position (visual rhythm indicator)
HIT_ROW = 20 ; Row for beat marker display
; Timing windows per difficulty (columns from perfect)
; Easy: Perfect ±2, Good ±4
; Normal: Perfect ±1, Good ±2
; Hard: Perfect ±0, Good ±1
PERFECT_WINDOW_EASY = 2
PERFECT_WINDOW_NORMAL = 1
PERFECT_WINDOW_HARD = 0
GOOD_WINDOW_EASY = 4
GOOD_WINDOW_NORMAL = 2
GOOD_WINDOW_HARD = 1
; ============================================================================
; DIFFICULTY SETTINGS
; ============================================================================
DIFF_EASY = 0
DIFF_NORMAL = 1
DIFF_HARD = 2
; ============================================================================
; SONG SETTINGS
; ============================================================================
PROGRESS_WIDTH = 16 ; Progress bar width
; Per-song tempo (frames per beat)
TEMPO_SONG1 = 25 ; 120 BPM
TEMPO_SONG2 = 23 ; 130 BPM
TEMPO_SONG3 = 20 ; 150 BPM
TEMPO_SONG4 = 24 ; 125 BPM (syncopated feel)
TEMPO_SONG5 = 22 ; 136 BPM (chord-focused)
TEMPO_SONG6 = 23 ; 130 BPM (balanced for mixed techniques)
; Per-song length (beats)
LENGTH_SONG1 = 64
LENGTH_SONG2 = 64
LENGTH_SONG3 = 64
LENGTH_SONG4 = 64
LENGTH_SONG5 = 64
LENGTH_SONG6 = 64
; ============================================================================
; MENU SETTINGS
; ============================================================================
NUM_SONGS = 6
KEY_DELAY = 10 ; Frames between key repeats
; ============================================================================
; PRACTICE MODE SETTINGS
; ============================================================================
; Speed multipliers (stored as frame adjustment)
; Higher value = slower (more frames per beat)
SPEED_HALF = 2 ; 0.5x speed (double frames)
SPEED_3QRTR = 1 ; 0.75x speed (4/3 frames, approx +1)
SPEED_NORMAL = 0 ; 1.0x speed (no adjustment)
NUM_SPEEDS = 3
PRACTICE_COL = 3 ; Cyan for practice mode indicator
; ============================================================================
; GAME STATES
; ============================================================================
STATE_TITLE = 0 ; Title screen
STATE_MENU = 1 ; Song selection menu
STATE_PLAYING = 2 ; Gameplay
STATE_RESULTS = 3 ; Success results
STATE_GAMEOVER = 4 ; Failure game over
; ============================================================================
; MEMORY MAP
; ============================================================================
SCREEN = $0400
COLRAM = $D800
BORDER = $D020
BGCOL = $D021
CHARPTR = $D018
CHARSET = $3000
; SID registers
SID = $D400
SID_V1_FREQ_LO = $D400
SID_V1_FREQ_HI = $D401
SID_V1_PWHI = $D403
SID_V1_CTRL = $D404
SID_V1_AD = $D405
SID_V1_SR = $D406
SID_V2_FREQ_LO = $D407
SID_V2_FREQ_HI = $D408
SID_V2_PWHI = $D40A
SID_V2_CTRL = $D40B
SID_V2_AD = $D40C
SID_V2_SR = $D40D
SID_V3_FREQ_LO = $D40E
SID_V3_FREQ_HI = $D40F
SID_V3_PWHI = $D411
SID_V3_CTRL = $D412
SID_V3_AD = $D413
SID_V3_SR = $D414
SID_VOLUME = $D418
; CIA keyboard and joystick
CIA1_PRA = $DC00
CIA1_PRB = $DC01
; Track positions (balanced spacing)
TRACK1_ROW = 8 ; High track
TRACK2_ROW = 12 ; Mid track
TRACK3_ROW = 16 ; Low track
; HUD positions
HEALTH_ROW = 23 ; Health bar row
PROGRESS_ROW = 24 ; Progress bar row
; Combo display position
COMBO_ROW = 2 ; Combo display row
; Hit zone
HIT_ZONE_COLUMN = 3 ; Where notes are hit (visual)
; Custom character codes
CHAR_NOTE = 128
CHAR_TRACK = 129
CHAR_HITZONE = 130
CHAR_SPACE = 32
CHAR_BAR_FULL = 131
CHAR_BAR_EMPTY = 132
CHAR_CURSOR = 62 ; > character for menu cursor
CHAR_ARROW_L = 60 ; < for difficulty
CHAR_ARROW_R = 62 ; > for difficulty
; Note settings
MAX_NOTES = 8 ; Maximum simultaneous notes
NOTE_SPAWN_COL = 37 ; Where notes appear
; Timing
END_DELAY_FRAMES = 75 ; 1.5 seconds after song ends
; Zero page
ZP_PTR = $FB
ZP_PTR_HI = $FC
ZP_TEMP = $FD ; Temporary calculation
; Variables
frame_count = $02
beat_count = $03
song_pos = $04
song_pos_hi = $05
temp_track = $06
key_pressed = $07
hit_quality = $08
border_flash = $09
miss_track = $0A
game_state = $0B
hit_note_freq = $0C
song_beat = $0D
song_ended = $0E
end_delay = $0F
cursor_pos = $10 ; Menu cursor position
key_delay_count = $11 ; Key repeat delay counter
selected_song = $12 ; Which song to play
frames_per_beat = $13 ; Current song's tempo
song_length = $14 ; Current song's length
difficulty = $15 ; 0=Easy, 1=Normal, 2=Hard
perfect_window = $16 ; Current perfect timing window
good_window = $17 ; Current good timing window
health_miss_amt = $18 ; Health loss on miss
practice_mode = $19 ; 0=Normal play, 1=Practice mode
speed_setting = $1A ; 0=0.5x, 1=0.75x, 2=1.0x
bg_flash = $1B ; Background flash countdown (visual polish)
beat_pulse = $1C ; Beat marker pulse state
endless_mode = $1D ; 0=Normal (song ends), 1=Endless (loops)
loop_count = $1E ; Number of loops completed in endless mode
perfect_streak = $1F ; Current consecutive perfect hits
best_streak = $20 ; Best perfect streak this song
section_bonus = $21 ; Accumulated section bonus points
notes_hit = $22 ; Total notes hit (for accuracy calc)
current_grade = $23 ; Current performance grade letter (screen code)
current_grade_col = $24 ; Colour for current grade
; ----------------------------------------------------------------------------
; BASIC Stub
; ----------------------------------------------------------------------------
* = $0801
!byte $0C, $08
!byte $0A, $00
!byte $9E
!text "2064"
!byte $00
!byte $00, $00
; ----------------------------------------------------------------------------
; Main Program
; ----------------------------------------------------------------------------
* = $0810
start:
jsr copy_charset
jsr init_sid
; Start with Normal difficulty
lda #DIFF_NORMAL
sta difficulty
; Practice mode off, normal speed
lda #0
sta practice_mode
lda #NUM_SPEEDS-1 ; Start at 1.0x (normal speed)
sta speed_setting
!if SCREENSHOT_MODE = 1 {
; Screenshot mode: skip title, go to menu
jsr show_menu
lda #STATE_MENU
sta game_state
} else {
; Normal mode: show title screen
jsr show_title
lda #STATE_TITLE
sta game_state
}
main_loop:
lda #$FF
wait_raster:
cmp $D012
bne wait_raster
lda game_state
cmp #STATE_TITLE
beq do_title
cmp #STATE_MENU
beq do_menu
cmp #STATE_PLAYING
beq do_playing
cmp #STATE_RESULTS
beq do_results
jmp do_gameover
do_title:
jsr update_title
jmp main_loop
do_menu:
jsr update_menu
jmp main_loop
do_playing:
jsr update_playing
jmp main_loop
do_results:
jsr update_results
jmp main_loop
do_gameover:
jsr update_gameover
jmp main_loop
; ----------------------------------------------------------------------------
; Show Title Screen
; ----------------------------------------------------------------------------
show_title:
; Clear screen
lda #BORDER_COL
sta BORDER
lda #BG_COL
sta BGCOL
ldx #0
lda #CHAR_SPACE
clear_title:
sta SCREEN,x
sta SCREEN+$100,x
sta SCREEN+$200,x
sta SCREEN+$2E8,x
inx
bne clear_title
; Draw big title "SID SYMPHONY"
ldx #0
draw_title_text:
lda title_big,x
beq draw_title_done
sta SCREEN + (8 * 40) + 14,x
lda #TITLE_COL
sta COLRAM + (8 * 40) + 14,x
inx
jmp draw_title_text
draw_title_done:
; Draw subtitle "A RHYTHM GAME"
ldx #0
draw_subtitle:
lda subtitle_text,x
beq draw_subtitle_done
sta SCREEN + (10 * 40) + 13,x
lda #SUBTITLE_COL
sta COLRAM + (10 * 40) + 13,x
inx
jmp draw_subtitle
draw_subtitle_done:
; Draw controls
ldx #0
draw_controls:
lda controls_text,x
beq draw_controls_done
sta SCREEN + (14 * 40) + 11,x
lda #11
sta COLRAM + (14 * 40) + 11,x
inx
jmp draw_controls
draw_controls_done:
; Draw track info
ldx #0
draw_track_info:
lda track_info,x
beq draw_track_done
sta SCREEN + (16 * 40) + 9,x
lda #11
sta COLRAM + (16 * 40) + 9,x
inx
jmp draw_track_info
draw_track_done:
; Draw "PRESS FIRE TO START"
ldx #0
draw_press_fire:
lda press_fire_text,x
beq draw_press_done
sta SCREEN + (20 * 40) + 10,x
lda #7 ; Yellow
sta COLRAM + (20 * 40) + 10,x
inx
jmp draw_press_fire
draw_press_done:
rts
title_big:
!scr "sid symphony"
!byte 0
subtitle_text:
!scr "a rhythm game"
!byte 0
controls_text:
!scr "controls: z / x / c"
!byte 0
track_info:
!scr "hit notes as they reach"
!byte 0
press_fire_text:
!scr "press fire to start"
!byte 0
; ----------------------------------------------------------------------------
; Update Title State
; ----------------------------------------------------------------------------
update_title:
; Check for fire button (joystick port 2)
lda CIA1_PRA
and #$10 ; Bit 4 = fire
beq title_fire_pressed
; Also check space bar as alternative
lda #$7F
sta CIA1_PRA
lda CIA1_PRB
and #$10 ; Space
beq title_fire_pressed
; No input - stay on title
lda #$FF
sta CIA1_PRA
rts
title_fire_pressed:
lda #$FF
sta CIA1_PRA
; Play menu select sound
jsr play_menu_select
; Go to song selection menu
jsr show_menu
lda #STATE_MENU
sta game_state
rts
; ----------------------------------------------------------------------------
; Show Song Selection Menu
; ----------------------------------------------------------------------------

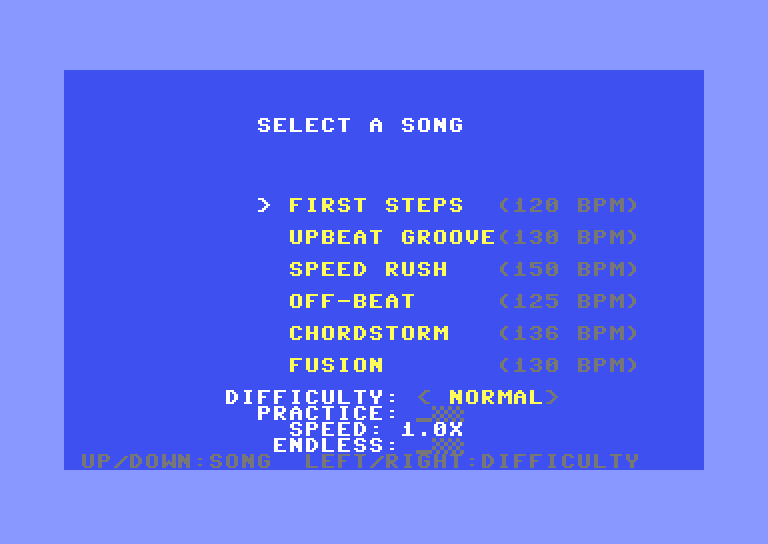

show_menu:
; Clear screen
ldx #0
lda #CHAR_SPACE
clear_menu:
sta SCREEN,x
sta SCREEN+$100,x
sta SCREEN+$200,x
sta SCREEN+$2E8,x
inx
bne clear_menu
; Initialise cursor
lda #0
sta cursor_pos
sta key_delay_count
; Draw menu title
ldx #0
draw_menu_title:
lda menu_title,x
beq draw_menu_title_done
sta SCREEN + (3 * 40) + 12,x
lda #TITLE_COL
sta COLRAM + (3 * 40) + 12,x
inx
jmp draw_menu_title
draw_menu_title_done:
; Draw song list
jsr draw_song_list
; Draw difficulty section
jsr draw_difficulty
; Draw practice mode section
jsr draw_practice_mode
; Draw instructions on row 24 (below Endless on row 23)
ldx #0
draw_menu_instr:
lda menu_instructions,x
beq draw_menu_instr_done
sta SCREEN + (24 * 40) + 1,x
lda #SUBTITLE_COL
sta COLRAM + (24 * 40) + 1,x
inx
jmp draw_menu_instr
draw_menu_instr_done:
rts
menu_title:
!scr "select a song"
!byte 0
menu_instructions:
!scr "up/down:song left/right:difficulty"
!byte 0
practice_instructions:
!scr "p:practice +/-:speed"
!byte 0
; ----------------------------------------------------------------------------
; Draw Song List
; ----------------------------------------------------------------------------
draw_song_list:
; Song 1: "First Steps" (120 BPM)
ldx #0
draw_song1:
lda song1_name,x
beq draw_song1_done
sta SCREEN + (8 * 40) + 14,x
lda #MENU_COL
sta COLRAM + (8 * 40) + 14,x
inx
jmp draw_song1
draw_song1_done:
; Song 1 tempo info
ldx #0
draw_tempo1:
lda song1_tempo_text,x
beq draw_tempo1_done
sta SCREEN + (8 * 40) + 27,x
lda #SUBTITLE_COL
sta COLRAM + (8 * 40) + 27,x
inx
jmp draw_tempo1
draw_tempo1_done:
; Song 2: "Upbeat Groove" (130 BPM)
ldx #0
draw_song2:
lda song2_name,x
beq draw_song2_done
sta SCREEN + (10 * 40) + 14,x
lda #MENU_COL
sta COLRAM + (10 * 40) + 14,x
inx
jmp draw_song2
draw_song2_done:
; Song 2 tempo info
ldx #0
draw_tempo2:
lda song2_tempo_text,x
beq draw_tempo2_done
sta SCREEN + (10 * 40) + 27,x
lda #SUBTITLE_COL
sta COLRAM + (10 * 40) + 27,x
inx
jmp draw_tempo2
draw_tempo2_done:
; Song 3: "Speed Rush" (150 BPM)
ldx #0
draw_song3:
lda song3_name,x
beq draw_song3_done
sta SCREEN + (12 * 40) + 14,x
lda #MENU_COL
sta COLRAM + (12 * 40) + 14,x
inx
jmp draw_song3
draw_song3_done:
; Song 3 tempo info
ldx #0
draw_tempo3:
lda song3_tempo_text,x
beq draw_tempo3_done
sta SCREEN + (12 * 40) + 27,x
lda #SUBTITLE_COL
sta COLRAM + (12 * 40) + 27,x
inx
jmp draw_tempo3
draw_tempo3_done:
; Song 4: "Off-Beat" (125 BPM)
ldx #0
draw_song4:
lda song4_name,x
beq draw_song4_done
sta SCREEN + (14 * 40) + 14,x
lda #MENU_COL
sta COLRAM + (14 * 40) + 14,x
inx
jmp draw_song4
draw_song4_done:
; Song 4 tempo info
ldx #0
draw_tempo4:
lda song4_tempo_text,x
beq draw_tempo4_done
sta SCREEN + (14 * 40) + 27,x
lda #SUBTITLE_COL
sta COLRAM + (14 * 40) + 27,x
inx
jmp draw_tempo4
draw_tempo4_done:
; Song 5: "Chordstorm" (136 BPM)
ldx #0
draw_song5:
lda song5_name,x
beq draw_song5_done
sta SCREEN + (16 * 40) + 14,x
lda #MENU_COL
sta COLRAM + (16 * 40) + 14,x
inx
jmp draw_song5
draw_song5_done:
; Song 5 tempo info
ldx #0
draw_tempo5:
lda song5_tempo_text,x
beq draw_tempo5_done
sta SCREEN + (16 * 40) + 27,x
lda #SUBTITLE_COL
sta COLRAM + (16 * 40) + 27,x
inx
jmp draw_tempo5
draw_tempo5_done:
; Song 6: "Fusion" (130 BPM)
ldx #0
draw_song6:
lda song6_name,x
beq draw_song6_done
sta SCREEN + (18 * 40) + 14,x
lda #MENU_COL
sta COLRAM + (18 * 40) + 14,x
inx
jmp draw_song6
draw_song6_done:
; Song 6 tempo info
ldx #0
draw_tempo6:
lda song6_tempo_text,x
beq draw_tempo6_done
sta SCREEN + (18 * 40) + 27,x
lda #SUBTITLE_COL
sta COLRAM + (18 * 40) + 27,x
inx
jmp draw_tempo6
draw_tempo6_done:
; Draw cursor at current position
jsr draw_cursor
rts
; Song names and info
song1_name:
!scr "first steps"
!byte 0
song1_tempo_text:
!scr "(120 bpm)"
!byte 0
song2_name:
!scr "upbeat groove"
!byte 0
song2_tempo_text:
!scr "(130 bpm)"
!byte 0
song3_name:
!scr "speed rush"
!byte 0
song3_tempo_text:
!scr "(150 bpm)"
!byte 0
song4_name:
!scr "off-beat"
!byte 0
song4_tempo_text:
!scr "(125 bpm)"
!byte 0
song5_name:
!scr "chordstorm"
!byte 0
song5_tempo_text:
!scr "(136 bpm)"
!byte 0
song6_name:
!scr "fusion"
!byte 0
song6_tempo_text:
!scr "(130 bpm)"
!byte 0
; ----------------------------------------------------------------------------
; Draw Difficulty Selection
; ----------------------------------------------------------------------------
draw_difficulty:
; Draw "DIFFICULTY:" label
ldx #0
draw_diff_label:
lda diff_label,x
beq draw_diff_label_done
sta SCREEN + (20 * 40) + 10,x
lda #TITLE_COL
sta COLRAM + (20 * 40) + 10,x
inx
jmp draw_diff_label
draw_diff_label_done:
; Draw arrows
lda #CHAR_ARROW_L
sta SCREEN + (20 * 40) + 22
lda #SUBTITLE_COL
sta COLRAM + (20 * 40) + 22
lda #CHAR_ARROW_R
sta SCREEN + (20 * 40) + 30
lda #SUBTITLE_COL
sta COLRAM + (20 * 40) + 30
; Draw current difficulty
jsr draw_current_difficulty
rts
diff_label:
!scr "difficulty:"
!byte 0
; ----------------------------------------------------------------------------
; Draw Current Difficulty Name
; ----------------------------------------------------------------------------
draw_current_difficulty:
; Clear difficulty name area
lda #CHAR_SPACE
sta SCREEN + (20 * 40) + 24
sta SCREEN + (20 * 40) + 25
sta SCREEN + (20 * 40) + 26
sta SCREEN + (20 * 40) + 27
sta SCREEN + (20 * 40) + 28
lda difficulty
cmp #DIFF_EASY
beq draw_diff_easy
cmp #DIFF_NORMAL
beq draw_diff_normal
jmp draw_diff_hard
draw_diff_easy:
ldx #0
draw_easy_text:
lda easy_text,x
beq draw_diff_done
sta SCREEN + (20 * 40) + 24,x
lda #EASY_COL
sta COLRAM + (20 * 40) + 24,x
inx
jmp draw_easy_text
draw_diff_normal:
ldx #0
draw_normal_text:
lda normal_text,x
beq draw_diff_done
sta SCREEN + (20 * 40) + 24,x
lda #NORMAL_COL
sta COLRAM + (20 * 40) + 24,x
inx
jmp draw_normal_text
draw_diff_hard:
ldx #0
draw_hard_text:
lda hard_text,x
beq draw_diff_done
sta SCREEN + (20 * 40) + 24,x
lda #HARD_COL
sta COLRAM + (20 * 40) + 24,x
inx
jmp draw_hard_text
draw_diff_done:
rts
easy_text:
!scr "easy"
!byte 0
normal_text:
!scr "normal"
!byte 0
hard_text:
!scr "hard"
!byte 0
; ----------------------------------------------------------------------------
; Draw Practice Mode Section
; ----------------------------------------------------------------------------
draw_practice_mode:
; Draw "PRACTICE:" label
ldx #0
draw_prac_label:
lda prac_label,x
beq draw_prac_label_done
sta SCREEN + (21 * 40) + 12,x
lda #TITLE_COL
sta COLRAM + (21 * 40) + 12,x
inx
jmp draw_prac_label
draw_prac_label_done:
; Draw current state
jsr draw_practice_state
; Draw speed section
ldx #0
draw_speed_label:
lda speed_label,x
beq draw_speed_label_done
sta SCREEN + (22 * 40) + 14,x
lda #TITLE_COL
sta COLRAM + (22 * 40) + 14,x
inx
jmp draw_speed_label
draw_speed_label_done:
jsr draw_speed_state
; Draw endless section
ldx #0
draw_endless_label:
lda endless_label,x
beq draw_endless_label_done
sta SCREEN + (23 * 40) + 13,x
lda #TITLE_COL
sta COLRAM + (23 * 40) + 13,x
inx
jmp draw_endless_label
draw_endless_label_done:
jsr draw_endless_state
rts
prac_label:
!scr "practice:"
!byte 0
speed_label:
!scr "speed:"
!byte 0
endless_label:
!scr "endless:"
!byte 0
; Draw ON/OFF based on practice_mode
draw_practice_state:
lda practice_mode
beq draw_prac_off
; Draw ON
lda #'o'
sta SCREEN + (21 * 40) + 22
lda #'n'
sta SCREEN + (21 * 40) + 23
lda #CHAR_SPACE
sta SCREEN + (21 * 40) + 24
lda #PRACTICE_COL
sta COLRAM + (21 * 40) + 22
sta COLRAM + (21 * 40) + 23
rts
draw_prac_off:
; Draw OFF
lda #'o'
sta SCREEN + (21 * 40) + 22
lda #'f'
sta SCREEN + (21 * 40) + 23
lda #'f'
sta SCREEN + (21 * 40) + 24
lda #SUBTITLE_COL
sta COLRAM + (21 * 40) + 22
sta COLRAM + (21 * 40) + 23
sta COLRAM + (21 * 40) + 24
rts
; Draw speed (0.5x / 0.75x / 1.0x)
draw_speed_state:
; Clear speed area
lda #CHAR_SPACE
sta SCREEN + (22 * 40) + 21
sta SCREEN + (22 * 40) + 22
sta SCREEN + (22 * 40) + 23
sta SCREEN + (22 * 40) + 24
sta SCREEN + (22 * 40) + 25
lda speed_setting
beq draw_speed_half
cmp #1
beq draw_speed_3qrtr
jmp draw_speed_normal
draw_speed_half:
ldx #0
draw_half_text:
lda half_text,x
beq draw_speed_done
sta SCREEN + (22 * 40) + 21,x
lda #EASY_COL ; Green - slowest
sta COLRAM + (22 * 40) + 21,x
inx
jmp draw_half_text
draw_speed_3qrtr:
ldx #0
draw_3qrtr_text:
lda qrtr_text,x
beq draw_speed_done
sta SCREEN + (22 * 40) + 21,x
lda #NORMAL_COL ; Yellow - medium
sta COLRAM + (22 * 40) + 21,x
inx
jmp draw_3qrtr_text
draw_speed_normal:
ldx #0
draw_normal_speed_text:
lda full_text,x
beq draw_speed_done
sta SCREEN + (22 * 40) + 21,x
lda #TITLE_COL ; White - full speed
sta COLRAM + (22 * 40) + 21,x
inx
jmp draw_normal_speed_text
draw_speed_done:
rts
half_text:
!scr "0.5x"
!byte 0
qrtr_text:
!scr "0.75x"
!byte 0
full_text:
!scr "1.0x"
!byte 0
; ----------------------------------------------------------------------------
; Draw Endless Mode State
; ----------------------------------------------------------------------------
draw_endless_state:
lda endless_mode
beq draw_endless_off
; Draw ON in cyan
lda #'o'
sta SCREEN + (23 * 40) + 22
lda #'n'
sta SCREEN + (23 * 40) + 23
lda #CHAR_SPACE
sta SCREEN + (23 * 40) + 24
lda #3 ; Cyan
sta COLRAM + (23 * 40) + 22
sta COLRAM + (23 * 40) + 23
rts
draw_endless_off:
; Draw OFF in grey
lda #'o'
sta SCREEN + (23 * 40) + 22
lda #'f'
sta SCREEN + (23 * 40) + 23
lda #'f'
sta SCREEN + (23 * 40) + 24
lda #SUBTITLE_COL
sta COLRAM + (23 * 40) + 22
sta COLRAM + (23 * 40) + 23
sta COLRAM + (23 * 40) + 24
rts
; ----------------------------------------------------------------------------
; Draw Menu Cursor
; ----------------------------------------------------------------------------
draw_cursor:
; Clear all cursor positions
lda #CHAR_SPACE
sta SCREEN + (8 * 40) + 12
sta SCREEN + (10 * 40) + 12
sta SCREEN + (12 * 40) + 12
sta SCREEN + (14 * 40) + 12
sta SCREEN + (16 * 40) + 12
sta SCREEN + (18 * 40) + 12
; Draw cursor at current position
lda cursor_pos
beq cursor_song1
cmp #1
beq cursor_song2
cmp #2
beq cursor_song3
cmp #3
beq cursor_song4
cmp #4
beq cursor_song5
jmp cursor_song6
cursor_song1:
lda #CHAR_CURSOR
sta SCREEN + (8 * 40) + 12
lda #CURSOR_COL
sta COLRAM + (8 * 40) + 12
rts
cursor_song2:
lda #CHAR_CURSOR
sta SCREEN + (10 * 40) + 12
lda #CURSOR_COL
sta COLRAM + (10 * 40) + 12
rts
cursor_song3:
lda #CHAR_CURSOR
sta SCREEN + (12 * 40) + 12
lda #CURSOR_COL
sta COLRAM + (12 * 40) + 12
rts
cursor_song4:
lda #CHAR_CURSOR
sta SCREEN + (14 * 40) + 12
lda #CURSOR_COL
sta COLRAM + (14 * 40) + 12
rts
cursor_song5:
lda #CHAR_CURSOR
sta SCREEN + (16 * 40) + 12
lda #CURSOR_COL
sta COLRAM + (16 * 40) + 12
rts
cursor_song6:
lda #CHAR_CURSOR
sta SCREEN + (18 * 40) + 12
lda #CURSOR_COL
sta COLRAM + (18 * 40) + 12
rts
; ----------------------------------------------------------------------------
; Update Menu State
; ----------------------------------------------------------------------------
update_menu:
; Handle key delay
lda key_delay_count
beq menu_check_input
dec key_delay_count
jmp menu_check_fire
menu_check_input:
; Check joystick up
lda CIA1_PRA
and #$01 ; Bit 0 = up
beq menu_up_pressed
; Check joystick down
lda CIA1_PRA
and #$02 ; Bit 1 = down
beq menu_down_pressed
; Check joystick left (difficulty)
lda CIA1_PRA
and #$04 ; Bit 2 = left
beq menu_left_pressed
; Check joystick right (difficulty)
lda CIA1_PRA
and #$08 ; Bit 3 = right
beq menu_right_pressed
jmp menu_check_fire
menu_up_pressed:
lda cursor_pos
beq menu_set_delay ; Already at top
dec cursor_pos
jsr play_menu_move
jsr draw_cursor
jmp menu_set_delay
menu_down_pressed:
lda cursor_pos
cmp #NUM_SONGS-1
bcs menu_set_delay ; Already at bottom
inc cursor_pos
jsr play_menu_move
jsr draw_cursor
jmp menu_set_delay
menu_left_pressed:
lda difficulty
beq menu_set_delay ; Already at Easy
dec difficulty
jsr play_menu_move
jsr draw_current_difficulty
jmp menu_set_delay
menu_right_pressed:
lda difficulty
cmp #DIFF_HARD
bcs menu_set_delay ; Already at Hard
inc difficulty
jsr play_menu_move
jsr draw_current_difficulty
jmp menu_set_delay
menu_set_delay:
lda #KEY_DELAY
sta key_delay_count
menu_check_keys:
; Check P key for practice toggle (row 1, column 5)
lda #$FD ; Row 1
sta CIA1_PRA
lda CIA1_PRB
and #$20 ; Column 5 = P
beq menu_p_pressed
; Check + key (row 0, column 0 = plus on keyboard)
lda #$FE ; Row 0
sta CIA1_PRA
lda CIA1_PRB
and #$01 ; Column 0 = +
beq menu_plus_pressed
; Check - key (row 5, column 3)
lda #$DF ; Row 5
sta CIA1_PRA
lda CIA1_PRB
and #$08 ; Column 3 = -
beq menu_minus_pressed
; Check E key for endless toggle (row 1, column 6)
lda #$FD ; Row 1
sta CIA1_PRA
lda CIA1_PRB
and #$40 ; Column 6 = E
beq menu_e_pressed
jmp menu_check_fire
menu_e_pressed:
; Toggle endless mode
lda endless_mode
eor #1
sta endless_mode
jsr play_menu_move
jsr draw_endless_state
lda #KEY_DELAY
sta key_delay_count
jmp menu_check_fire
menu_p_pressed:
; Toggle practice mode
lda practice_mode
eor #1
sta practice_mode
jsr play_menu_move
jsr draw_practice_state
lda #KEY_DELAY
sta key_delay_count
jmp menu_check_fire
menu_plus_pressed:
; Increase speed (towards 1.0x)
lda speed_setting
cmp #NUM_SPEEDS-1
bcs menu_check_fire ; Already at max
inc speed_setting
jsr play_menu_move
jsr draw_speed_state
lda #KEY_DELAY
sta key_delay_count
jmp menu_check_fire
menu_minus_pressed:
; Decrease speed (towards 0.5x)
lda speed_setting
beq menu_check_fire ; Already at min
dec speed_setting
jsr play_menu_move
jsr draw_speed_state
lda #KEY_DELAY
sta key_delay_count
menu_check_fire:
; Check for fire button
lda CIA1_PRA
and #$10
beq menu_fire_pressed
; Check space bar
lda #$7F
sta CIA1_PRA
lda CIA1_PRB
and #$10
beq menu_fire_pressed
lda #$FF
sta CIA1_PRA
rts
menu_fire_pressed:
lda #$FF
sta CIA1_PRA
; Play select sound
jsr play_menu_select
; Store selected song
lda cursor_pos
sta selected_song
; Set difficulty parameters
jsr set_difficulty_params
; Transition to game
jsr transition_to_game
rts
; ----------------------------------------------------------------------------
; Set Difficulty Parameters
; ----------------------------------------------------------------------------
set_difficulty_params:
lda difficulty
cmp #DIFF_EASY
beq set_diff_easy
cmp #DIFF_NORMAL
beq set_diff_normal
jmp set_diff_hard
set_diff_easy:
lda #PERFECT_WINDOW_EASY
sta perfect_window
lda #GOOD_WINDOW_EASY
sta good_window
lda #HEALTH_MISS_EASY
sta health_miss_amt
rts
set_diff_normal:
lda #PERFECT_WINDOW_NORMAL
sta perfect_window
lda #GOOD_WINDOW_NORMAL
sta good_window
lda #HEALTH_MISS_NORMAL
sta health_miss_amt
rts
set_diff_hard:
lda #PERFECT_WINDOW_HARD
sta perfect_window
lda #GOOD_WINDOW_HARD
sta good_window
lda #HEALTH_MISS_HARD
sta health_miss_amt
rts
; ----------------------------------------------------------------------------
; Transition to Game
; ----------------------------------------------------------------------------
transition_to_game:
; Set up tempo based on song selection
lda selected_song
beq setup_song1
cmp #1
beq setup_song2
cmp #2
bne +
jmp setup_song3
+ cmp #3
bne ++
jmp setup_song4
++ cmp #4
bne +++
jmp setup_song5
+++ jmp setup_song6
setup_song1:
lda #TEMPO_SONG1
sta frames_per_beat
lda #LENGTH_SONG1
sta song_length
; Select difficulty variant for Song 1
lda difficulty
cmp #DIFF_EASY
beq load_s1_easy
cmp #DIFF_NORMAL
beq load_s1_normal
jmp load_s1_hard
load_s1_easy:
lda #<song1_easy
sta song_data_ptr
lda #>song1_easy
sta song_data_ptr+1
jmp start_game
load_s1_normal:
lda #<song1_normal
sta song_data_ptr
lda #>song1_normal
sta song_data_ptr+1
jmp start_game
load_s1_hard:
lda #<song1_hard
sta song_data_ptr
lda #>song1_hard
sta song_data_ptr+1
jmp start_game
setup_song2:
lda #TEMPO_SONG2
sta frames_per_beat
lda #LENGTH_SONG2
sta song_length
; Select difficulty variant for Song 2
lda difficulty
cmp #DIFF_EASY
beq load_s2_easy
cmp #DIFF_NORMAL
beq load_s2_normal
jmp load_s2_hard
load_s2_easy:
lda #<song2_easy
sta song_data_ptr
lda #>song2_easy
sta song_data_ptr+1
jmp start_game
load_s2_normal:
lda #<song2_normal
sta song_data_ptr
lda #>song2_normal
sta song_data_ptr+1
jmp start_game
load_s2_hard:
lda #<song2_hard
sta song_data_ptr
lda #>song2_hard
sta song_data_ptr+1
jmp start_game
setup_song3:
lda #TEMPO_SONG3
sta frames_per_beat
lda #LENGTH_SONG3
sta song_length
; Select difficulty variant for Song 3
lda difficulty
cmp #DIFF_EASY
beq load_s3_easy
cmp #DIFF_NORMAL
beq load_s3_normal
jmp load_s3_hard
load_s3_easy:
lda #<song3_easy
sta song_data_ptr
lda #>song3_easy
sta song_data_ptr+1
jmp start_game
load_s3_normal:
lda #<song3_normal
sta song_data_ptr
lda #>song3_normal
sta song_data_ptr+1
jmp start_game
load_s3_hard:
lda #<song3_hard
sta song_data_ptr
lda #>song3_hard
sta song_data_ptr+1
jmp start_game
setup_song4:
lda #TEMPO_SONG4
sta frames_per_beat
lda #LENGTH_SONG4
sta song_length
; Select difficulty variant for Song 4
lda difficulty
cmp #DIFF_EASY
beq load_s4_easy
cmp #DIFF_NORMAL
beq load_s4_normal
jmp load_s4_hard
load_s4_easy:
lda #<song4_easy
sta song_data_ptr
lda #>song4_easy
sta song_data_ptr+1
jmp start_game
load_s4_normal:
lda #<song4_normal
sta song_data_ptr
lda #>song4_normal
sta song_data_ptr+1
jmp start_game
load_s4_hard:
lda #<song4_hard
sta song_data_ptr
lda #>song4_hard
sta song_data_ptr+1
jmp start_game
setup_song5:
lda #TEMPO_SONG5
sta frames_per_beat
lda #LENGTH_SONG5
sta song_length
; Select difficulty variant for Song 5
lda difficulty
cmp #DIFF_EASY
beq load_s5_easy
cmp #DIFF_NORMAL
beq load_s5_normal
jmp load_s5_hard
load_s5_easy:
lda #<song5_easy
sta song_data_ptr
lda #>song5_easy
sta song_data_ptr+1
jmp start_game
load_s5_normal:
lda #<song5_normal
sta song_data_ptr
lda #>song5_normal
sta song_data_ptr+1
jmp start_game
load_s5_hard:
lda #<song5_hard
sta song_data_ptr
lda #>song5_hard
sta song_data_ptr+1
jmp start_game
setup_song6:
lda #TEMPO_SONG6
sta frames_per_beat
lda #LENGTH_SONG6
sta song_length
; Select difficulty variant for Song 6
lda difficulty
cmp #DIFF_EASY
beq load_s6_easy
cmp #DIFF_NORMAL
beq load_s6_normal
jmp load_s6_hard
load_s6_easy:
lda #<song6_easy
sta song_data_ptr
lda #>song6_easy
sta song_data_ptr+1
jmp start_game
load_s6_normal:
lda #<song6_normal
sta song_data_ptr
lda #>song6_normal
sta song_data_ptr+1
jmp start_game
load_s6_hard:
lda #<song6_hard
sta song_data_ptr
lda #>song6_hard
sta song_data_ptr+1
start_game:
; Apply speed modifier to tempo
jsr apply_speed_modifier
; Initialise game
jsr init_game
lda #STATE_PLAYING
sta game_state
rts
; Apply speed modifier to frames_per_beat
apply_speed_modifier:
lda speed_setting
beq speed_half_tempo ; 0 = 0.5x
cmp #1
beq speed_3qrtr_tempo ; 1 = 0.75x
rts ; 2 = 1.0x, no change
speed_half_tempo:
; 0.5x speed = double frames_per_beat
asl frames_per_beat
rts
speed_3qrtr_tempo:
; 0.75x speed = frames_per_beat + frames_per_beat/3
; Approximation: add half (will be roughly 1.5x, close to 0.75x)
lda frames_per_beat
lsr ; Divide by 2
clc
adc frames_per_beat ; Add to original = 1.5x frames
sta frames_per_beat
rts
; Song data pointers
song_data_ptr:
!word 0
; ----------------------------------------------------------------------------
; Play Menu Move Sound
; ----------------------------------------------------------------------------
play_menu_move:
lda #0
sta SID_V3_FREQ_LO
lda #MENU_MOVE_FREQ
sta SID_V3_FREQ_HI
lda #$08
sta SID_V3_PWHI
lda #MENU_MOVE_AD
sta SID_V3_AD
lda #MENU_MOVE_SR
sta SID_V3_SR
lda #MENU_MOVE_WAVE
ora #$01 ; Gate on
sta SID_V3_CTRL
rts
; ----------------------------------------------------------------------------
; Play Menu Select Sound
; ----------------------------------------------------------------------------
play_menu_select:
lda #0
sta SID_V3_FREQ_LO
lda #MENU_SELECT_FREQ
sta SID_V3_FREQ_HI
lda #$08
sta SID_V3_PWHI
lda #MENU_SELECT_AD
sta SID_V3_AD
lda #MENU_SELECT_SR
sta SID_V3_SR
lda #MENU_SELECT_WAVE
ora #$01 ; Gate on
sta SID_V3_CTRL
rts
; ----------------------------------------------------------------------------
; Initialize Game
; ----------------------------------------------------------------------------
init_game:
jsr init_screen
jsr init_notes
jsr init_score
jsr init_health
jsr init_combo
jsr init_song
; Initialize visual effect variables
lda #0
sta bg_flash
sta beat_pulse
; Initialize advanced scoring variables
sta perfect_streak
sta best_streak
sta section_bonus
sta notes_hit
; Initialize endless mode loop counter
lda #1 ; Start at loop 1
sta loop_count
; Display loop count if in endless mode
lda endless_mode
beq init_game_done
jsr display_loop_count
init_game_done:
rts
; ----------------------------------------------------------------------------
; Initialize Combo
; ----------------------------------------------------------------------------
init_combo:
lda #0
sta combo
sta max_combo
jsr display_combo
rts
; ----------------------------------------------------------------------------
; Update Playing State
; ----------------------------------------------------------------------------
update_playing:
inc frame_count
lda frame_count
cmp frames_per_beat
bcc no_new_beat
lda #0
sta frame_count
jsr advance_song
jsr check_section_bonus ; Check for section completion bonus
jsr check_spawn_note
; Trigger beat pulse on every new beat
lda #8 ; Pulse duration (frames)
sta beat_pulse
no_new_beat:
jsr update_notes
jsr reset_track_colours
jsr update_border_flash
jsr check_keys
jsr check_song_end
rts
; ----------------------------------------------------------------------------
; Update Results State
; ----------------------------------------------------------------------------
update_results:
; Check for fire to return to menu
lda CIA1_PRA
and #$10
beq results_fire
; Also check space bar
lda #$7F
sta CIA1_PRA
lda CIA1_PRB
and #$10
beq results_fire
lda #$FF
sta CIA1_PRA
rts
results_fire:
lda #$FF
sta CIA1_PRA
jsr play_menu_select
; Return to menu
jsr show_menu
lda #STATE_MENU
sta game_state
rts
; ----------------------------------------------------------------------------
; Update Game Over State
; ----------------------------------------------------------------------------
update_gameover:
; Check for fire to return to menu
lda CIA1_PRA
and #$10
beq gameover_fire
; Also check space bar
lda #$7F
sta CIA1_PRA
lda CIA1_PRB
and #$10
beq gameover_fire
lda #$FF
sta CIA1_PRA
rts
gameover_fire:
lda #$FF
sta CIA1_PRA
jsr play_menu_select
; Return to menu
jsr show_menu
lda #STATE_MENU
sta game_state
rts
; ----------------------------------------------------------------------------
; Initialize Screen (Gameplay)
; ----------------------------------------------------------------------------
init_screen:
; Enable custom charset
lda #$1C ; Character ROM at $3000
sta CHARPTR
; Set colours
lda #BORDER_COL
sta BORDER
lda #BG_COL
sta BGCOL
; Clear screen
ldx #0
lda #CHAR_SPACE
clear_screen:
sta SCREEN,x
sta SCREEN+$100,x
sta SCREEN+$200,x
sta SCREEN+$2E8,x
inx
bne clear_screen
; Draw tracks
ldx #0
draw_tracks:
lda #CHAR_TRACK
sta SCREEN + (TRACK1_ROW * 40),x
sta SCREEN + (TRACK2_ROW * 40),x
sta SCREEN + (TRACK3_ROW * 40),x
lda #TRACK_LINE_COL
sta COLRAM + (TRACK1_ROW * 40),x
sta COLRAM + (TRACK2_ROW * 40),x
sta COLRAM + (TRACK3_ROW * 40),x
inx
cpx #38
bne draw_tracks
; Draw hit zones
lda #CHAR_HITZONE
sta SCREEN + (TRACK1_ROW * 40) + HIT_ZONE_COLUMN
sta SCREEN + (TRACK2_ROW * 40) + HIT_ZONE_COLUMN
sta SCREEN + (TRACK3_ROW * 40) + HIT_ZONE_COLUMN
lda #HIT_ZONE_COL
sta COLRAM + (TRACK1_ROW * 40) + HIT_ZONE_COLUMN
sta COLRAM + (TRACK2_ROW * 40) + HIT_ZONE_COLUMN
sta COLRAM + (TRACK3_ROW * 40) + HIT_ZONE_COLUMN
; Draw track labels
lda #$31 ; "1"
sta SCREEN + (TRACK1_ROW * 40)
lda #$32 ; "2"
sta SCREEN + (TRACK2_ROW * 40)
lda #$33 ; "3"
sta SCREEN + (TRACK3_ROW * 40)
lda #1
sta COLRAM + (TRACK1_ROW * 40)
sta COLRAM + (TRACK2_ROW * 40)
sta COLRAM + (TRACK3_ROW * 40)
; Draw HUD labels
ldx #0
draw_score_label:
lda score_label,x
beq draw_miss_label_start
sta SCREEN,x
lda #7
sta COLRAM,x
inx
jmp draw_score_label
draw_miss_label_start:
ldx #0
draw_miss_label:
lda miss_label,x
beq draw_combo_label_start
sta SCREEN + 14,x
lda #2
sta COLRAM + 14,x
inx
jmp draw_miss_label
draw_combo_label_start:
ldx #0
draw_combo_label:
lda combo_label,x
beq draw_health_label_start
sta SCREEN + (COMBO_ROW * 40) + 27,x
lda #COMBO_COL
sta COLRAM + (COMBO_ROW * 40) + 27,x
inx
jmp draw_combo_label
draw_health_label_start:
ldx #0
draw_health_label:
lda health_label,x
beq draw_progress_label_start
sta SCREEN + (HEALTH_ROW * 40),x
lda #HEALTH_COL
sta COLRAM + (HEALTH_ROW * 40),x
inx
jmp draw_health_label
draw_progress_label_start:
ldx #0
draw_progress_label:
lda progress_label,x
beq labels_done
sta SCREEN + (PROGRESS_ROW * 40),x
lda #PROGRESS_COL
sta COLRAM + (PROGRESS_ROW * 40),x
inx
jmp draw_progress_label
labels_done:
; Draw song name based on selection
lda selected_song
beq draw_name_song1
jmp draw_name_song2
draw_name_song1:
ldx #0
draw_sn1:
lda song1_name,x
beq draw_difficulty_hud
sta SCREEN + 28,x
lda #11
sta COLRAM + 28,x
inx
jmp draw_sn1
draw_name_song2:
ldx #0
draw_sn2:
lda song2_name,x
beq draw_difficulty_hud
sta SCREEN + 26,x
lda #11
sta COLRAM + 26,x
inx
jmp draw_sn2
draw_difficulty_hud:
; Show difficulty on gameplay HUD
lda difficulty
cmp #DIFF_EASY
beq draw_hud_easy
cmp #DIFF_NORMAL
beq draw_hud_normal
jmp draw_hud_hard
draw_hud_easy:
ldx #0
draw_hud_e:
lda easy_text,x
beq draw_song_name_done
sta SCREEN + (COMBO_ROW * 40),x
lda #EASY_COL
sta COLRAM + (COMBO_ROW * 40),x
inx
jmp draw_hud_e
draw_hud_normal:
ldx #0
draw_hud_n:
lda normal_text,x
beq draw_song_name_done
sta SCREEN + (COMBO_ROW * 40),x
lda #NORMAL_COL
sta COLRAM + (COMBO_ROW * 40),x
inx
jmp draw_hud_n
draw_hud_hard:
ldx #0
draw_hud_h:
lda hard_text,x
beq draw_song_name_done
sta SCREEN + (COMBO_ROW * 40),x
lda #HARD_COL
sta COLRAM + (COMBO_ROW * 40),x
inx
jmp draw_hud_h
draw_song_name_done:
rts
score_label:
!scr "score:"
!byte 0
miss_label:
!scr "miss:"
!byte 0
combo_label:
!scr "combo:"
!byte 0
health_label:
!scr "health:"
!byte 0
progress_label:
!scr "song:"
!byte 0
; ----------------------------------------------------------------------------
; Initialize Notes
; ----------------------------------------------------------------------------
init_notes:
ldx #0
lda #0
clear_notes:
sta note_track,x
sta note_col,x
sta note_freq,x
inx
cpx #MAX_NOTES
bne clear_notes
rts
; ----------------------------------------------------------------------------
; Initialize Score
; ----------------------------------------------------------------------------
init_score:
lda #0
sta score_lo
sta score_hi
sta miss_count
sta perfect_count
sta good_count
jsr display_score
jsr display_misses
rts
; ----------------------------------------------------------------------------
; Initialize Health
; ----------------------------------------------------------------------------
init_health:
lda #HEALTH_START
sta health
jsr display_health
rts
; ----------------------------------------------------------------------------
; Initialize Song
; ----------------------------------------------------------------------------
init_song:
lda #0
sta frame_count
sta beat_count
sta song_beat
sta song_ended
; Point to selected song data
lda song_data_ptr
sta song_pos
lda song_data_ptr+1
sta song_pos_hi
jsr display_progress
rts
; ----------------------------------------------------------------------------
; Initialize SID
; ----------------------------------------------------------------------------
init_sid:
; Clear SID
ldx #$18
lda #0
clear_sid:
sta SID,x
dex
bpl clear_sid
; Set volume
lda #$0F
sta SID_VOLUME
; Set pulse widths
lda #PULSE_WIDTH
sta SID_V1_PWHI
sta SID_V2_PWHI
sta SID_V3_PWHI
; Set ADSR for all voices
lda #VOICE_AD
sta SID_V1_AD
sta SID_V2_AD
sta SID_V3_AD
lda #VOICE_SR
sta SID_V1_SR
sta SID_V2_SR
sta SID_V3_SR
rts
; ----------------------------------------------------------------------------
; Copy Custom Charset
; ----------------------------------------------------------------------------
copy_charset:
; Copy default ROM charset to RAM first
sei
lda #$33
sta $01
ldx #0
copy_rom_chars:
lda $D000,x
sta CHARSET,x
lda $D100,x
sta CHARSET+$100,x
lda $D200,x
sta CHARSET+$200,x
lda $D300,x
sta CHARSET+$300,x
lda $D400,x
sta CHARSET+$400,x
lda $D500,x
sta CHARSET+$500,x
lda $D600,x
sta CHARSET+$600,x
lda $D700,x
sta CHARSET+$700,x
inx
bne copy_rom_chars
lda #$37
sta $01
cli
; Now add custom characters
; Character 128 - Note (solid circle)
lda #%00111100
sta CHARSET + (128 * 8) + 0
lda #%01111110
sta CHARSET + (128 * 8) + 1
lda #%11111111
sta CHARSET + (128 * 8) + 2
lda #%11111111
sta CHARSET + (128 * 8) + 3
lda #%11111111
sta CHARSET + (128 * 8) + 4
lda #%11111111
sta CHARSET + (128 * 8) + 5
lda #%01111110
sta CHARSET + (128 * 8) + 6
lda #%00111100
sta CHARSET + (128 * 8) + 7
; Character 129 - Track line (dashes)
lda #%00000000
sta CHARSET + (129 * 8) + 0
lda #%00000000
sta CHARSET + (129 * 8) + 1
lda #%00000000
sta CHARSET + (129 * 8) + 2
lda #%11001100
sta CHARSET + (129 * 8) + 3
lda #%11001100
sta CHARSET + (129 * 8) + 4
lda #%00000000
sta CHARSET + (129 * 8) + 5
lda #%00000000
sta CHARSET + (129 * 8) + 6
lda #%00000000
sta CHARSET + (129 * 8) + 7
; Character 130 - Hit zone (vertical bars)
lda #%10000001
sta CHARSET + (130 * 8) + 0
lda #%10000001
sta CHARSET + (130 * 8) + 1
lda #%10000001
sta CHARSET + (130 * 8) + 2
lda #%10000001
sta CHARSET + (130 * 8) + 3
lda #%10000001
sta CHARSET + (130 * 8) + 4
lda #%10000001
sta CHARSET + (130 * 8) + 5
lda #%10000001
sta CHARSET + (130 * 8) + 6
lda #%10000001
sta CHARSET + (130 * 8) + 7
; Character 131 - Bar full (solid block)
lda #%11111111
sta CHARSET + (131 * 8) + 0
sta CHARSET + (131 * 8) + 1
sta CHARSET + (131 * 8) + 2
sta CHARSET + (131 * 8) + 3
sta CHARSET + (131 * 8) + 4
sta CHARSET + (131 * 8) + 5
sta CHARSET + (131 * 8) + 6
sta CHARSET + (131 * 8) + 7
; Character 132 - Bar empty (hollow block)
lda #%11111111
sta CHARSET + (132 * 8) + 0
lda #%10000001
sta CHARSET + (132 * 8) + 1
sta CHARSET + (132 * 8) + 2
sta CHARSET + (132 * 8) + 3
sta CHARSET + (132 * 8) + 4
sta CHARSET + (132 * 8) + 5
sta CHARSET + (132 * 8) + 6
lda #%11111111
sta CHARSET + (132 * 8) + 7
rts
; ----------------------------------------------------------------------------
; Advance Song
; ----------------------------------------------------------------------------
advance_song:
inc song_beat
jsr display_progress
rts
; ----------------------------------------------------------------------------
; Check Spawn Note
; ----------------------------------------------------------------------------
check_spawn_note:
; Check if song has ended
lda song_ended
bne spawn_done
; Get pointer to current position in song
lda song_pos
sta ZP_PTR
lda song_pos_hi
sta ZP_PTR_HI
; Read beat number
ldy #0
lda (ZP_PTR),y
; Check for end marker
cmp #$FF
beq song_end_marker
; Check if this beat matches
cmp song_beat
bne spawn_done
; Spawn this note
iny
lda (ZP_PTR),y ; Track
sta temp_track
iny
lda (ZP_PTR),y ; Frequency
; Find free note slot
ldx #0
find_slot:
lda note_track,x
beq found_slot
inx
cpx #MAX_NOTES
bne find_slot
jmp advance_song_ptr ; No free slot, skip note
found_slot:
lda temp_track
sta note_track,x
lda #NOTE_SPAWN_COL
sta note_col,x
ldy #2
lda (ZP_PTR),y
sta note_freq,x
jsr draw_note
advance_song_ptr:
; Move to next note in song
lda song_pos
clc
adc #3
sta song_pos
lda song_pos_hi
adc #0
sta song_pos_hi
; Check if there are more notes on this beat
jmp check_spawn_note
song_end_marker:
lda #1
sta song_ended
spawn_done:
rts
; ----------------------------------------------------------------------------
; Update Notes
; ----------------------------------------------------------------------------
update_notes:
ldx #0
update_notes_loop:
lda note_track,x
beq update_next_note
; Erase at old position
jsr erase_note
; Move note left
dec note_col,x
; Check if past hit zone (missed)
lda note_col,x
cmp #HIT_ZONE_START
bcs note_still_active
; Note was missed
lda note_track,x
sta miss_track
lda #0
sta note_track,x
jsr handle_miss
jmp update_next_note
note_still_active:
jsr draw_note
update_next_note:
inx
cpx #MAX_NOTES
bne update_notes_loop
rts
; ----------------------------------------------------------------------------
; Draw Note
; ----------------------------------------------------------------------------
draw_note:
lda note_track,x
cmp #1
beq draw_note_t1
cmp #2
beq draw_note_t2
jmp draw_note_t3
draw_note_t1:
lda note_col,x
clc
adc #<(SCREEN + TRACK1_ROW * 40)
sta ZP_PTR
lda #>(SCREEN + TRACK1_ROW * 40)
adc #0
sta ZP_PTR_HI
lda #CHAR_NOTE
ldy #0
sta (ZP_PTR),y
; Set colour
lda note_col,x
clc
adc #<(COLRAM + TRACK1_ROW * 40)
sta ZP_PTR
lda #>(COLRAM + TRACK1_ROW * 40)
adc #0
sta ZP_PTR_HI
lda #TRACK1_NOTE_COL
sta (ZP_PTR),y
rts
draw_note_t2:
lda note_col,x
clc
adc #<(SCREEN + TRACK2_ROW * 40)
sta ZP_PTR
lda #>(SCREEN + TRACK2_ROW * 40)
adc #0
sta ZP_PTR_HI
lda #CHAR_NOTE
ldy #0
sta (ZP_PTR),y
lda note_col,x
clc
adc #<(COLRAM + TRACK2_ROW * 40)
sta ZP_PTR
lda #>(COLRAM + TRACK2_ROW * 40)
adc #0
sta ZP_PTR_HI
lda #TRACK2_NOTE_COL
sta (ZP_PTR),y
rts
draw_note_t3:
lda note_col,x
clc
adc #<(SCREEN + TRACK3_ROW * 40)
sta ZP_PTR
lda #>(SCREEN + TRACK3_ROW * 40)
adc #0
sta ZP_PTR_HI
lda #CHAR_NOTE
ldy #0
sta (ZP_PTR),y
lda note_col,x
clc
adc #<(COLRAM + TRACK3_ROW * 40)
sta ZP_PTR
lda #>(COLRAM + TRACK3_ROW * 40)
adc #0
sta ZP_PTR_HI
lda #TRACK3_NOTE_COL
sta (ZP_PTR),y
rts
; ----------------------------------------------------------------------------
; Erase Note
; ----------------------------------------------------------------------------
erase_note:
lda note_track,x
cmp #1
beq erase_note_t1
cmp #2
beq erase_note_t2
jmp erase_note_t3
erase_note_t1:
lda note_col,x
clc
adc #<(SCREEN + TRACK1_ROW * 40)
sta ZP_PTR
lda #>(SCREEN + TRACK1_ROW * 40)
adc #0
sta ZP_PTR_HI
lda #CHAR_TRACK
ldy #0
sta (ZP_PTR),y
lda note_col,x
clc
adc #<(COLRAM + TRACK1_ROW * 40)
sta ZP_PTR
lda #>(COLRAM + TRACK1_ROW * 40)
adc #0
sta ZP_PTR_HI
lda #TRACK_LINE_COL
sta (ZP_PTR),y
rts
erase_note_t2:
lda note_col,x
clc
adc #<(SCREEN + TRACK2_ROW * 40)
sta ZP_PTR
lda #>(SCREEN + TRACK2_ROW * 40)
adc #0
sta ZP_PTR_HI
lda #CHAR_TRACK
ldy #0
sta (ZP_PTR),y
lda note_col,x
clc
adc #<(COLRAM + TRACK2_ROW * 40)
sta ZP_PTR
lda #>(COLRAM + TRACK2_ROW * 40)
adc #0
sta ZP_PTR_HI
lda #TRACK_LINE_COL
sta (ZP_PTR),y
rts
erase_note_t3:
lda note_col,x
clc
adc #<(SCREEN + TRACK3_ROW * 40)
sta ZP_PTR
lda #>(SCREEN + TRACK3_ROW * 40)
adc #0
sta ZP_PTR_HI
lda #CHAR_TRACK
ldy #0
sta (ZP_PTR),y
lda note_col,x
clc
adc #<(COLRAM + TRACK3_ROW * 40)
sta ZP_PTR
lda #>(COLRAM + TRACK3_ROW * 40)
adc #0
sta ZP_PTR_HI
lda #TRACK_LINE_COL
sta (ZP_PTR),y
rts
; ----------------------------------------------------------------------------
; Handle Miss
; ----------------------------------------------------------------------------
handle_miss:
jsr play_miss_sound
jsr break_combo
; In practice mode, don't decrease health
lda practice_mode
bne skip_health_loss
; Decrease health (using difficulty-adjusted amount)
lda health_miss_amt
jsr decrease_health
skip_health_loss:
; Flash border red
lda #MISS_COL
sta BORDER
lda #8
sta border_flash
; Flash the track where miss happened
lda miss_track
cmp #1
beq flash_miss_t1
cmp #2
beq flash_miss_t2
jmp flash_miss_t3
flash_miss_t1:
ldx #0
lda #MISS_COL
flash_m1_loop:
sta COLRAM + (TRACK1_ROW * 40),x
inx
cpx #38
bne flash_m1_loop
rts
flash_miss_t2:
ldx #0
lda #MISS_COL
flash_m2_loop:
sta COLRAM + (TRACK2_ROW * 40),x
inx
cpx #38
bne flash_m2_loop
rts
flash_miss_t3:
ldx #0
lda #MISS_COL
flash_m3_loop:
sta COLRAM + (TRACK3_ROW * 40),x
inx
cpx #38
bne flash_m3_loop
rts
; ----------------------------------------------------------------------------
; Play Miss Sound
; ----------------------------------------------------------------------------
play_miss_sound:
inc miss_count
jsr display_misses
lda #0
sta SID_V3_FREQ_LO
lda #MISS_FREQ
sta SID_V3_FREQ_HI
lda #MISS_AD
sta SID_V3_AD
lda #MISS_SR
sta SID_V3_SR
lda #MISS_WAVE
ora #$01
sta SID_V3_CTRL
rts
; ----------------------------------------------------------------------------
; Play Perfect Sound
; ----------------------------------------------------------------------------
play_perfect_sound:
lda #0
sta SID_V3_FREQ_LO
lda #PERFECT_SFX_FREQ
sta SID_V3_FREQ_HI
lda #PERFECT_SFX_AD
sta SID_V3_AD
lda #PERFECT_SFX_SR
sta SID_V3_SR
lda #PERFECT_SFX_WAVE
ora #$01
sta SID_V3_CTRL
rts
; ----------------------------------------------------------------------------
; Play Good Sound
; ----------------------------------------------------------------------------
play_good_sound:
lda #0
sta SID_V3_FREQ_LO
lda #GOOD_SFX_FREQ
sta SID_V3_FREQ_HI
lda #GOOD_SFX_AD
sta SID_V3_AD
lda #GOOD_SFX_SR
sta SID_V3_SR
lda #GOOD_SFX_WAVE
ora #$01
sta SID_V3_CTRL
rts
; ----------------------------------------------------------------------------
; Increase Health
; ----------------------------------------------------------------------------
increase_health:
clc
adc health
cmp #HEALTH_MAX
bcc health_ok
lda #HEALTH_MAX
health_ok:
sta health
jsr display_health
rts
; ----------------------------------------------------------------------------
; Decrease Health
; ----------------------------------------------------------------------------
decrease_health:
sta temp_track
lda health
sec
sbc temp_track
bcs health_not_zero
lda #0
health_not_zero:
sta health
jsr display_health
; Check for game over
lda health
bne no_game_over
jsr show_gameover
lda #STATE_GAMEOVER
sta game_state
no_game_over:
rts
; ----------------------------------------------------------------------------
; Display Health Bar
; ----------------------------------------------------------------------------
display_health:
; Calculate filled blocks (health / 4 = blocks, max 16)
lda health
lsr
lsr
sta temp_track
ldx #0
draw_health_bar:
cpx temp_track
bcs draw_empty_health
lda #CHAR_BAR_FULL
jmp store_health_char
draw_empty_health:
lda #CHAR_BAR_EMPTY
store_health_char:
sta SCREEN + (HEALTH_ROW * 40) + 8,x
lda #HEALTH_COL
sta COLRAM + (HEALTH_ROW * 40) + 8,x
inx
cpx #16
bne draw_health_bar
rts
; ----------------------------------------------------------------------------
; Display Progress Bar
; ----------------------------------------------------------------------------
display_progress:
; Calculate progress (song_beat / 4)
lda song_beat
lsr
lsr
sta temp_track
ldx #0
draw_progress_bar:
cpx temp_track
bcs draw_empty_progress
lda #CHAR_BAR_FULL
jmp store_progress_char
draw_empty_progress:
lda #CHAR_BAR_EMPTY
store_progress_char:
sta SCREEN + (PROGRESS_ROW * 40) + 8,x
lda #PROGRESS_COL
sta COLRAM + (PROGRESS_ROW * 40) + 8,x
inx
cpx #PROGRESS_WIDTH
bne draw_progress_bar
rts
; ----------------------------------------------------------------------------
; Combo System
; ----------------------------------------------------------------------------
increment_combo:
inc combo
lda combo
cmp max_combo
bcc combo_no_max
sta max_combo
combo_no_max:
jsr display_combo
rts
break_combo:
lda #0
sta combo
jsr display_combo
rts
display_combo:
; Display combo count
lda combo
ldx #0
combo_div_100:
cmp #100
bcc combo_done_100
sec
sbc #100
inx
jmp combo_div_100
combo_done_100:
pha
txa
ora #$30
sta SCREEN + (COMBO_ROW * 40) + 34
pla
ldx #0
combo_div_10:
cmp #10
bcc combo_done_10
sec
sbc #10
inx
jmp combo_div_10
combo_done_10:
pha
txa
ora #$30
sta SCREEN + (COMBO_ROW * 40) + 35
pla
ora #$30
sta SCREEN + (COMBO_ROW * 40) + 36
; Colour based on multiplier
jsr get_multiplier
cmp #1
beq combo_col_1x
cmp #2
beq combo_col_2x
cmp #3
beq combo_col_3x
jmp combo_col_4x
combo_col_1x:
lda #11 ; Grey
ldx #COMBO_BORDER_1 ; Dark grey border
jmp set_combo_col
combo_col_2x:
lda #7 ; Yellow
ldx #COMBO_BORDER_2 ; Green border
jmp set_combo_col
combo_col_3x:
lda #5 ; Green
ldx #COMBO_BORDER_3 ; Yellow border
jmp set_combo_col
combo_col_4x:
lda #1 ; White
ldx #COMBO_BORDER_4 ; Red border (fire!)
set_combo_col:
sta COLRAM + (COMBO_ROW * 40) + 34
sta COLRAM + (COMBO_ROW * 40) + 35
sta COLRAM + (COMBO_ROW * 40) + 36
; Update border colour for visual feedback
lda combo
beq reset_border ; No combo = black border
stx BORDER ; Set border to tier colour
rts
reset_border:
lda #COMBO_BORDER_0
sta BORDER
rts
get_multiplier:
lda combo
cmp #COMBO_TIER_4
bcs mult_4x
cmp #COMBO_TIER_3
bcs mult_3x
cmp #COMBO_TIER_2
bcs mult_2x
lda #1
rts
mult_2x:
lda #2
rts
mult_3x:
lda #3
rts
mult_4x:
lda #4
rts
; ----------------------------------------------------------------------------
; Reset Track Colours
; ----------------------------------------------------------------------------
reset_track_colours:
ldx #1 ; Start at column 1 (skip label)
reset_col_loop:
lda #TRACK_LINE_COL
sta COLRAM + (TRACK1_ROW * 40),x
sta COLRAM + (TRACK2_ROW * 40),x
sta COLRAM + (TRACK3_ROW * 40),x
inx
cpx #38
bne reset_col_loop
; Restore hit zone colours
lda #HIT_ZONE_COL
sta COLRAM + (TRACK1_ROW * 40) + HIT_ZONE_COLUMN
sta COLRAM + (TRACK2_ROW * 40) + HIT_ZONE_COLUMN
sta COLRAM + (TRACK3_ROW * 40) + HIT_ZONE_COLUMN
; Redraw notes with correct colours
ldx #0
redraw_loop:
lda note_track,x
beq redraw_next
jsr draw_note
redraw_next:
inx
cpx #MAX_NOTES
bne redraw_loop
rts
; ----------------------------------------------------------------------------
; Update Border Flash
; ----------------------------------------------------------------------------
update_border_flash:
lda border_flash
beq border_flash_done
dec border_flash
bne border_flash_done
lda #BORDER_COL
sta BORDER
border_flash_done:
; Update background flash (perfect hit effect)
lda bg_flash
beq bg_flash_done
dec bg_flash
bne bg_flash_done
; Reset background to default
lda #6 ; Blue background
sta BGCOL
bg_flash_done:
; Update beat pulse marker
jsr update_beat_marker
rts
; ----------------------------------------------------------------------------
; Update Beat Marker
; ----------------------------------------------------------------------------
; Shows a pulsing indicator that helps players feel the rhythm.
; Pulses bright on downbeat, fades through the beat.
update_beat_marker:
lda beat_pulse
beq beat_marker_dim
; Pulse is active - show bright marker
dec beat_pulse
lda beat_pulse
lsr ; Divide by 2 for colour selection
and #$03 ; Keep in range 0-3
tax
lda beat_colours,x
sta COLRAM + (HIT_ROW * 40) + 19 ; Centre of hit zone
lda #$51 ; Filled circle character
sta SCREEN + (HIT_ROW * 40) + 19
rts
beat_marker_dim:
; Show dim marker when not pulsing
lda #11 ; Dark grey
sta COLRAM + (HIT_ROW * 40) + 19
lda #$57 ; Empty circle character
sta SCREEN + (HIT_ROW * 40) + 19
rts
beat_colours:
!byte 1 ; White (brightest)
!byte 7 ; Yellow
!byte 5 ; Green
!byte 11 ; Dark grey (dimmest)
; ----------------------------------------------------------------------------
; Check Keys
; ----------------------------------------------------------------------------
check_keys:
lda #$FD
sta CIA1_PRA
lda CIA1_PRB
and #$10
bne check_x_key
lda #1
sta key_pressed
jsr check_hit
bcc check_x_key
jsr play_voice1_note
jsr flash_track1_hit
jsr award_points
check_x_key:
lda #$FB
sta CIA1_PRA
lda CIA1_PRB
and #$80
bne check_c_key
lda #2
sta key_pressed
jsr check_hit
bcc check_c_key
jsr play_voice2_note
jsr flash_track2_hit
jsr award_points
check_c_key:
lda #$FB
sta CIA1_PRA
lda CIA1_PRB
and #$10
bne check_keys_done
lda #3
sta key_pressed
jsr check_hit
bcc check_keys_done
jsr play_voice3_note
jsr flash_track3_hit
jsr award_points
check_keys_done:
lda #$FF
sta CIA1_PRA
rts
; ----------------------------------------------------------------------------
; Check Hit (with difficulty-adjusted timing windows)
; ----------------------------------------------------------------------------
check_hit:
ldx #0
check_hit_loop:
lda note_track,x
beq check_hit_next
cmp key_pressed
bne check_hit_next
; Check if note is in hittable range
lda note_col,x
cmp #HIT_ZONE_START
bcc check_hit_next
cmp #HIT_ZONE_END+1
bcs check_hit_next
; Note is hittable - determine quality based on distance from perfect
lda note_freq,x
sta hit_note_freq
; Calculate distance from perfect column
lda note_col,x
sec
sbc #PERFECT_COL_POS
bcs dist_positive
; Negative distance - make it positive
eor #$FF
clc
adc #1
dist_positive:
; A now contains absolute distance from perfect
; Check if within perfect window
cmp perfect_window
bcc hit_is_perfect
beq hit_is_perfect
; Check if within good window
cmp good_window
bcc hit_is_good
beq hit_is_good
; Outside good window but in hit zone - still counts as good
jmp hit_is_good
hit_is_perfect:
lda #2
sta hit_quality
jmp hit_found
hit_is_good:
lda #1
sta hit_quality
hit_found:
jsr erase_note
lda #0
sta note_track,x
sec
rts
check_hit_next:
inx
cpx #MAX_NOTES
bne check_hit_loop
lda #0
sta hit_quality
clc
rts
; ----------------------------------------------------------------------------
; Check Song End
; ----------------------------------------------------------------------------
check_song_end:
lda song_ended
beq not_ended
; Check if all notes cleared
ldx #0
check_notes_clear:
lda note_track,x
bne not_ended
inx
cpx #MAX_NOTES
bne check_notes_clear
; Add delay before results
inc end_delay
lda end_delay
cmp #END_DELAY_FRAMES
bcc not_ended
; Check for endless mode
lda endless_mode
beq end_song_normal
; Endless mode - loop the song
inc loop_count
jsr display_loop_count
jsr init_song ; Reset song position
lda #0
sta end_delay
sta song_ended
rts
end_song_normal:
; Show results
jsr show_results
lda #STATE_RESULTS
sta game_state
not_ended:
rts
; ----------------------------------------------------------------------------
; Display Loop Count (for Endless Mode)
; ----------------------------------------------------------------------------
display_loop_count:
; Display "LOOP X" in top right during endless mode
; Position: row 1, column 32
lda #'l'
sta SCREEN + (1 * 40) + 32
lda #'o'
sta SCREEN + (1 * 40) + 33
sta SCREEN + (1 * 40) + 34
lda #'p'
sta SCREEN + (1 * 40) + 35
lda #CHAR_SPACE
sta SCREEN + (1 * 40) + 36
; Display loop number (max 9 displayed)
lda loop_count
cmp #10
bcc display_loop_digit
lda #9 ; Cap display at 9
display_loop_digit:
clc
adc #$30 ; Convert to ASCII digit
sta SCREEN + (1 * 40) + 37
; Colour the loop display cyan
lda #3 ; Cyan
sta COLRAM + (1 * 40) + 32
sta COLRAM + (1 * 40) + 33
sta COLRAM + (1 * 40) + 34
sta COLRAM + (1 * 40) + 35
sta COLRAM + (1 * 40) + 37
rts
; ----------------------------------------------------------------------------
; Award Points
; ----------------------------------------------------------------------------
award_points:
jsr increment_combo
inc notes_hit ; Track total hits for accuracy
lda hit_quality
cmp #2
beq award_perfect
; Good hit - resets perfect streak
lda #0
sta perfect_streak
lda #GOOD_SCORE
jsr apply_multiplier
jsr add_score
inc good_count
; Play good sound effect
jsr play_good_sound
lda #GOOD_COL
sta BORDER
lda #4
sta border_flash
lda #HEALTH_GOOD
jsr increase_health
jmp award_done
award_perfect:
; Perfect hit - increment streak
inc perfect_streak
; Check for streak bonus (every STREAK_THRESHOLD perfects)
lda perfect_streak
cmp #STREAK_THRESHOLD
bne no_streak_bonus
; Award streak bonus
lda #STREAK_BONUS
jsr add_score
lda #0
sta perfect_streak ; Reset for next milestone
; Flash border cyan for streak bonus
lda #3 ; Cyan
sta BORDER
no_streak_bonus:
; Update best streak
lda perfect_streak
cmp best_streak
bcc skip_best_update
sta best_streak
skip_best_update:
lda #PERFECT_SCORE
jsr apply_multiplier
jsr add_score
inc perfect_count
; Play perfect sound effect
jsr play_perfect_sound
lda #PERFECT_COL
sta BORDER
lda #6
sta border_flash
; Screen flash effect for perfect hits
lda #0 ; Black background flash
sta BGCOL
lda #3 ; Flash duration
sta bg_flash
lda #HEALTH_PERFECT
jsr increase_health
award_done:
jsr display_score
rts
; ----------------------------------------------------------------------------
; Check Section Bonus
; ----------------------------------------------------------------------------
; Awards bonus at 25%, 50%, 75% of song completion
check_section_bonus:
; Calculate section thresholds based on song_length
; 25% = song_length / 4
; 50% = song_length / 2
; 75% = song_length * 3 / 4
; Check 25% (song_length / 4)
lda song_length
lsr
lsr ; A = song_length / 4
cmp song_beat
bne check_50
; Award 25% section bonus
lda section_bonus
and #$01 ; Check if already awarded
bne section_done
lda section_bonus
ora #$01 ; Mark 25% as awarded
sta section_bonus
jsr award_section_bonus
rts
check_50:
; Check 50% (song_length / 2)
lda song_length
lsr ; A = song_length / 2
cmp song_beat
bne check_75
; Award 50% section bonus
lda section_bonus
and #$02
bne section_done
lda section_bonus
ora #$02
sta section_bonus
jsr award_section_bonus
rts
check_75:
; Check 75% (song_length - song_length/4)
lda song_length
lsr
lsr
sta ZP_TEMP ; song_length / 4
lda song_length
sec
sbc ZP_TEMP ; song_length - song_length/4
cmp song_beat
bne section_done
; Award 75% section bonus
lda section_bonus
and #$04
bne section_done
lda section_bonus
ora #$04
sta section_bonus
jsr award_section_bonus
section_done:
rts
award_section_bonus:
; Add section bonus to score
lda #SECTION_BONUS
jsr add_score
jsr display_score
; Flash border purple for section bonus
lda #4 ; Purple
sta BORDER
lda #8
sta border_flash
rts
; ----------------------------------------------------------------------------
; Apply Multiplier
; ----------------------------------------------------------------------------
apply_multiplier:
sta base_score
jsr get_multiplier
sta current_mult
lda base_score
sta score_add_lo
lda #0
sta score_add_hi
lda current_mult
cmp #1
beq mult_done_apply
dec current_mult
mult_add_loop:
lda score_add_lo
clc
adc base_score
sta score_add_lo
lda score_add_hi
adc #0
sta score_add_hi
dec current_mult
bne mult_add_loop
mult_done_apply:
rts
base_score: !byte 0
current_mult: !byte 0
score_add_lo: !byte 0
score_add_hi: !byte 0
; ----------------------------------------------------------------------------
; Add Score
; ----------------------------------------------------------------------------
add_score:
lda score_lo
clc
adc score_add_lo
sta score_lo
lda score_hi
adc score_add_hi
sta score_hi
rts
; ----------------------------------------------------------------------------
; Check and Update High Score
; ----------------------------------------------------------------------------
; Compares current score against high score for current song/difficulty.
; Sets new_high_score flag if current score is higher and updates table.
check_high_score:
; Clear new high score flag
lda #0
sta new_high_score
; Calculate table index: (selected_song * 3 + difficulty) * 2
lda selected_song
asl ; × 2
clc
adc selected_song ; × 3
clc
adc difficulty ; + difficulty
asl ; × 2 (for 2-byte entries)
tax ; X = table index
; Compare current score with high score
; First compare high bytes
lda score_hi
cmp high_scores+1,x ; Compare high byte
bcc hs_not_higher ; Current < high, not new record
bne hs_is_higher ; Current > high, new record
; High bytes equal, compare low bytes
lda score_lo
cmp high_scores,x ; Compare low byte
bcc hs_not_higher ; Current < high
beq hs_not_higher ; Current = high (not strictly greater)
hs_is_higher:
; New high score! Update table
lda score_lo
sta high_scores,x
lda score_hi
sta high_scores+1,x
; Set flag
lda #1
sta new_high_score
hs_not_higher:
rts
; Get high score for current song/difficulty into work_lo/work_hi
get_high_score:
; Calculate table index: (selected_song * 3 + difficulty) * 2
lda selected_song
asl
clc
adc selected_song
clc
adc difficulty
asl
tax
lda high_scores,x
sta work_lo
lda high_scores+1,x
sta work_hi
rts
; ----------------------------------------------------------------------------
; Display Score
; ----------------------------------------------------------------------------
display_score:
lda score_lo
sta work_lo
lda score_hi
sta work_hi
ldx #0
div_10000:
lda work_lo
sec
sbc #<10000
tay
lda work_hi
sbc #>10000
bcc done_10000
sta work_hi
sty work_lo
inx
jmp div_10000
done_10000:
txa
ora #$30
sta SCREEN + 8
ldx #0
div_1000:
lda work_lo
sec
sbc #<1000
tay
lda work_hi
sbc #>1000
bcc done_1000
sta work_hi
sty work_lo
inx
jmp div_1000
done_1000:
txa
ora #$30
sta SCREEN + 9
ldx #0
div_100:
lda work_lo
sec
sbc #100
bcc done_100
sta work_lo
inx
jmp div_100
done_100:
txa
ora #$30
sta SCREEN + 10
ldx #0
div_10:
lda work_lo
sec
sbc #10
bcc done_10
sta work_lo
inx
jmp div_10
done_10:
txa
ora #$30
sta SCREEN + 11
lda work_lo
ora #$30
sta SCREEN + 12
lda #7
sta COLRAM + 8
sta COLRAM + 9
sta COLRAM + 10
sta COLRAM + 11
sta COLRAM + 12
rts
; ----------------------------------------------------------------------------
; Display Misses
; ----------------------------------------------------------------------------
display_misses:
lda miss_count
ldx #0
miss_div_10:
cmp #10
bcc miss_done_10
sec
sbc #10
inx
jmp miss_div_10
miss_done_10:
pha
txa
ora #$30
sta SCREEN + 21
pla
ora #$30
sta SCREEN + 22
lda #2
sta COLRAM + 21
sta COLRAM + 22
rts
work_lo: !byte 0
work_hi: !byte 0
; ----------------------------------------------------------------------------
; Play Voices (for note playback)
; ----------------------------------------------------------------------------
play_voice1_note:
lda #0
sta SID_V1_FREQ_LO
lda hit_note_freq
sta SID_V1_FREQ_HI
lda #VOICE1_WAVE
ora #$01
sta SID_V1_CTRL
rts
play_voice2_note:
lda #0
sta SID_V2_FREQ_LO
lda hit_note_freq
sta SID_V2_FREQ_HI
lda #VOICE2_WAVE
ora #$01
sta SID_V2_CTRL
rts
play_voice3_note:
lda #0
sta SID_V3_FREQ_LO
lda hit_note_freq
sta SID_V3_FREQ_HI
lda #VOICE3_WAVE
ora #$01
sta SID_V3_CTRL
rts
; ----------------------------------------------------------------------------
; Flash Tracks
; ----------------------------------------------------------------------------
flash_track1_hit:
ldx #0
lda #HIT_COL
flash_t1h_loop:
sta COLRAM + (TRACK1_ROW * 40),x
inx
cpx #38
bne flash_t1h_loop
lda #1
sta COLRAM + (TRACK1_ROW * 40)
rts
flash_track2_hit:
ldx #0
lda #HIT_COL
flash_t2h_loop:
sta COLRAM + (TRACK2_ROW * 40),x
inx
cpx #38
bne flash_t2h_loop
lda #1
sta COLRAM + (TRACK2_ROW * 40)
rts
flash_track3_hit:
ldx #0
lda #HIT_COL
flash_t3h_loop:
sta COLRAM + (TRACK3_ROW * 40),x
inx
cpx #38
bne flash_t3h_loop
lda #1
sta COLRAM + (TRACK3_ROW * 40)
rts
; ----------------------------------------------------------------------------
; Calculate Performance Grade
; ----------------------------------------------------------------------------
; Calculates grade based on perfect hit percentage
; Sets current_grade (screen code) and current_grade_col (colour)
calculate_grade:
; Calculate perfect percentage: (perfect_count * 100) / total_notes
; For simplicity, use perfect_count vs notes_hit ratio
; notes_hit = perfect_count + good_count
; We want: perfect_count / notes_hit * 100
; If no notes hit, give D grade
lda notes_hit
bne calc_grade_continue
lda #'d' ; Screen code for D
sta current_grade
lda #2 ; Red
sta current_grade_col
rts
calc_grade_continue:
; Calculate percentage: perfect_count * 100 / notes_hit
; Use 8-bit approximation for simplicity
; First multiply perfect_count by 100
lda perfect_count
sta work_lo
lda #0
sta work_hi
; Multiply by 100 (64 + 32 + 4 = 100)
; work = perfect * 64
asl work_lo
rol work_hi ; *2
asl work_lo
rol work_hi ; *4
asl work_lo
rol work_hi ; *8
asl work_lo
rol work_hi ; *16
asl work_lo
rol work_hi ; *32
asl work_lo
rol work_hi ; *64
; Save *64 result
lda work_lo
sta ZP_TEMP
lda work_hi
pha ; Save high byte of *64
; Get *32 (shift right from *64)
lsr work_hi
ror work_lo ; *32 in work
; Add *64 + *32 = *96
lda ZP_TEMP
clc
adc work_lo
sta work_lo
pla
adc work_hi
sta work_hi ; work = perfect * 96
; Add *4 to get *100
lda perfect_count
asl
asl ; A = perfect * 4
clc
adc work_lo
sta work_lo
lda #0
adc work_hi
sta work_hi ; work = perfect * 100
; Now divide by notes_hit
; Simple repeated subtraction for small values
lda #0
sta ZP_TEMP ; Quotient (percentage)
grade_div_loop:
; Check if work >= notes_hit
lda work_hi
bne grade_can_sub ; High byte nonzero, can subtract
lda work_lo
cmp notes_hit
bcc grade_div_done ; work < notes_hit, done
grade_can_sub:
; Subtract notes_hit from work
lda work_lo
sec
sbc notes_hit
sta work_lo
lda work_hi
sbc #0
sta work_hi
inc ZP_TEMP ; Increment percentage
lda ZP_TEMP
cmp #101 ; Cap at 100%
bcc grade_div_loop
grade_div_done:
; ZP_TEMP now contains percentage (0-100)
; Determine grade based on thresholds
lda ZP_TEMP
cmp #GRADE_S_THRESHOLD
bcs grade_is_s
cmp #GRADE_A_THRESHOLD
bcs grade_is_a
cmp #GRADE_B_THRESHOLD
bcs grade_is_b
cmp #GRADE_C_THRESHOLD
bcs grade_is_c
; Below C threshold = D
lda #'d'
sta current_grade
lda #2 ; Red
sta current_grade_col
rts
grade_is_s:
lda #'s'
sta current_grade
lda #7 ; Yellow
sta current_grade_col
rts
grade_is_a:
lda #'a'
sta current_grade
lda #5 ; Green
sta current_grade_col
rts
grade_is_b:
lda #'b'
sta current_grade
lda #3 ; Cyan
sta current_grade_col
rts
grade_is_c:
lda #'c'
sta current_grade
lda #15 ; Light grey
sta current_grade_col
rts
; ----------------------------------------------------------------------------
; Show Results Screen
; ----------------------------------------------------------------------------
show_results:
; Check for full combo bonus (no misses)
lda miss_count
bne skip_full_combo
; Award full combo bonus!
lda #FULL_COMBO_BONUS
jsr add_score
skip_full_combo:
; Check if we beat the high score
jsr check_high_score
; Clear screen
ldx #0
lda #CHAR_SPACE
clear_results:
sta SCREEN,x
sta SCREEN+$100,x
sta SCREEN+$200,x
sta SCREEN+$2E8,x
inx
bne clear_results
; Draw "SONG COMPLETE!"
ldx #0
draw_complete:
lda complete_text,x
beq draw_grade
sta SCREEN + (5 * 40) + 13,x
lda #5
sta COLRAM + (5 * 40) + 13,x
inx
jmp draw_complete
draw_grade:
; Calculate and display performance grade
jsr calculate_grade
; Display grade label
ldx #0
draw_grade_label:
lda grade_label,x
beq draw_grade_letter
sta SCREEN + (7 * 40) + 14,x
lda #7
sta COLRAM + (7 * 40) + 14,x
inx
jmp draw_grade_label
draw_grade_letter:
; Grade letter is in A register from calculate_grade
lda current_grade
sta SCREEN + (7 * 40) + 22
; Colour based on grade
ldx current_grade_col
stx COLRAM + (7 * 40) + 22
draw_results_score:
; Draw score label
ldx #0
draw_rs_label:
lda results_score_label,x
beq draw_rs_value
sta SCREEN + (9 * 40) + 12,x
lda #7
sta COLRAM + (9 * 40) + 12,x
inx
jmp draw_rs_label
draw_rs_value:
; Draw score value
lda score_lo
sta work_lo
lda score_hi
sta work_hi
ldx #0
rs_div_10000:
lda work_lo
sec
sbc #<10000
tay
lda work_hi
sbc #>10000
bcc rs_done_10000
sta work_hi
sty work_lo
inx
jmp rs_div_10000
rs_done_10000:
txa
ora #$30
sta SCREEN + (9 * 40) + 23
ldx #0
rs_div_1000:
lda work_lo
sec
sbc #<1000
tay
lda work_hi
sbc #>1000
bcc rs_done_1000
sta work_hi
sty work_lo
inx
jmp rs_div_1000
rs_done_1000:
txa
ora #$30
sta SCREEN + (9 * 40) + 24
ldx #0
rs_div_100:
lda work_lo
sec
sbc #100
bcc rs_done_100
sta work_lo
inx
jmp rs_div_100
rs_done_100:
txa
ora #$30
sta SCREEN + (9 * 40) + 25
ldx #0
rs_div_10:
lda work_lo
sec
sbc #10
bcc rs_done_10
sta work_lo
inx
jmp rs_div_10
rs_done_10:
txa
ora #$30
sta SCREEN + (9 * 40) + 26
lda work_lo
ora #$30
sta SCREEN + (9 * 40) + 27
lda #7
sta COLRAM + (9 * 40) + 23
sta COLRAM + (9 * 40) + 24
sta COLRAM + (9 * 40) + 25
sta COLRAM + (9 * 40) + 26
sta COLRAM + (9 * 40) + 27
; Draw perfect count
ldx #0
draw_perfect_label:
lda perfect_label,x
beq draw_perfect_value
sta SCREEN + (11 * 40) + 12,x
lda #1
sta COLRAM + (11 * 40) + 12,x
inx
jmp draw_perfect_label
draw_perfect_value:
lda perfect_count
ldx #0
pv_div_10:
cmp #10
bcc pv_done_10
sec
sbc #10
inx
jmp pv_div_10
pv_done_10:
pha
txa
ora #$30
sta SCREEN + (11 * 40) + 23
pla
ora #$30
sta SCREEN + (11 * 40) + 24
lda #1
sta COLRAM + (11 * 40) + 23
sta COLRAM + (11 * 40) + 24
; Draw good count
ldx #0
draw_good_label:
lda good_label,x
beq draw_good_value
sta SCREEN + (12 * 40) + 12,x
lda #7
sta COLRAM + (12 * 40) + 12,x
inx
jmp draw_good_label
draw_good_value:
lda good_count
ldx #0
gv_div_10:
cmp #10
bcc gv_done_10
sec
sbc #10
inx
jmp gv_div_10
gv_done_10:
pha
txa
ora #$30
sta SCREEN + (12 * 40) + 23
pla
ora #$30
sta SCREEN + (12 * 40) + 24
lda #7
sta COLRAM + (12 * 40) + 23
sta COLRAM + (12 * 40) + 24
; Draw miss count
ldx #0
draw_miss_label_r:
lda miss_label_r,x
beq draw_miss_value
sta SCREEN + (13 * 40) + 12,x
lda #2
sta COLRAM + (13 * 40) + 12,x
inx
jmp draw_miss_label_r
draw_miss_value:
lda miss_count
ldx #0
mv_div_10:
cmp #10
bcc mv_done_10
sec
sbc #10
inx
jmp mv_div_10
mv_done_10:
pha
txa
ora #$30
sta SCREEN + (13 * 40) + 23
pla
ora #$30
sta SCREEN + (13 * 40) + 24
lda #2
sta COLRAM + (13 * 40) + 23
sta COLRAM + (13 * 40) + 24
; Draw max combo
ldx #0
draw_maxc_label:
lda maxcombo_label,x
beq draw_maxc_value
sta SCREEN + (15 * 40) + 12,x
lda #COMBO_COL
sta COLRAM + (15 * 40) + 12,x
inx
jmp draw_maxc_label
draw_maxc_value:
lda max_combo
ldx #0
mc_div_100:
cmp #100
bcc mc_done_100
sec
sbc #100
inx
jmp mc_div_100
mc_done_100:
pha
txa
ora #$30
sta SCREEN + (15 * 40) + 23
pla
ldx #0
mc_div_10:
cmp #10
bcc mc_done_10
sec
sbc #10
inx
jmp mc_div_10
mc_done_10:
pha
txa
ora #$30
sta SCREEN + (15 * 40) + 24
pla
ora #$30
sta SCREEN + (15 * 40) + 25
lda #COMBO_COL
sta COLRAM + (15 * 40) + 23
sta COLRAM + (15 * 40) + 24
sta COLRAM + (15 * 40) + 25
; Check if this was a new high score
lda new_high_score
beq res_show_prev_hs
; Draw "NEW HIGH SCORE!" in bright cyan
ldx #0
res_draw_new_hs:
lda new_hs_text,x
bne + ; Branch over jump if not zero
jmp res_draw_return ; Far jump when zero
+ sta SCREEN + (17 * 40) + 12,x
lda #3 ; Cyan
sta COLRAM + (17 * 40) + 12,x
inx
jmp res_draw_new_hs
res_show_prev_hs:
; Draw "HIGH SCORE:" label
ldx #0
res_draw_hs_label:
lda high_score_text,x
beq res_draw_hs_value
sta SCREEN + (17 * 40) + 12,x
lda #11 ; Dark grey
sta COLRAM + (17 * 40) + 12,x
inx
jmp res_draw_hs_label
res_draw_hs_value:
; Get high score for current song/difficulty
jsr get_high_score
; Display 5-digit high score
ldx #0
res_hs_div_10000:
lda work_lo
sec
sbc #<10000
tay
lda work_hi
sbc #>10000
bcc res_hs_done_10000
sta work_hi
sty work_lo
inx
jmp res_hs_div_10000
res_hs_done_10000:
txa
ora #$30
sta SCREEN + (17 * 40) + 24
ldx #0
res_hs_div_1000:
lda work_lo
sec
sbc #<1000
tay
lda work_hi
sbc #>1000
bcc res_hs_done_1000
sta work_hi
sty work_lo
inx
jmp res_hs_div_1000
res_hs_done_1000:
txa
ora #$30
sta SCREEN + (17 * 40) + 25
ldx #0
res_hs_div_100:
lda work_lo
sec
sbc #100
bcc res_hs_done_100
sta work_lo
inx
jmp res_hs_div_100
res_hs_done_100:
txa
ora #$30
sta SCREEN + (17 * 40) + 26
ldx #0
res_hs_div_10:
lda work_lo
sec
sbc #10
bcc res_hs_done_10
sta work_lo
inx
jmp res_hs_div_10
res_hs_done_10:
txa
ora #$30
sta SCREEN + (17 * 40) + 27
lda work_lo
ora #$30
sta SCREEN + (17 * 40) + 28
; Colour high score digits
lda #11
sta COLRAM + (17 * 40) + 24
sta COLRAM + (17 * 40) + 25
sta COLRAM + (17 * 40) + 26
sta COLRAM + (17 * 40) + 27
sta COLRAM + (17 * 40) + 28
; Draw best streak on row 19
ldx #0
draw_streak_label:
lda streak_label,x
beq draw_streak_value
sta SCREEN + (19 * 40) + 12,x
lda #3 ; Cyan
sta COLRAM + (19 * 40) + 12,x
inx
jmp draw_streak_label
draw_streak_value:
; Display best_streak as 2-digit number
lda best_streak
ldx #0
streak_div_10:
cmp #10
bcc streak_done_10
sec
sbc #10
inx
jmp streak_div_10
streak_done_10:
pha
txa
ora #$30
sta SCREEN + (19 * 40) + 25
pla
ora #$30
sta SCREEN + (19 * 40) + 26
lda #3
sta COLRAM + (19 * 40) + 25
sta COLRAM + (19 * 40) + 26
res_draw_return:
; Draw "PRESS FIRE" on row 21
ldx #0
draw_return:
lda return_text,x
beq results_done
sta SCREEN + (21 * 40) + 10,x
lda #11
sta COLRAM + (21 * 40) + 10,x
inx
jmp draw_return
results_done:
rts
complete_text:
!scr "song complete!"
!byte 0
results_score_label:
!scr "final score:"
!byte 0
perfect_label:
!scr "perfect:"
!byte 0
good_label:
!scr "good:"
!byte 0
miss_label_r:
!scr "misses:"
!byte 0
grade_label:
!scr "grade:"
!byte 0
streak_label:
!scr "best streak:"
!byte 0
maxcombo_label:
!scr "max combo:"
!byte 0
return_text:
!scr "press fire to continue"
!byte 0
; ----------------------------------------------------------------------------
; Show Game Over Screen
; ----------------------------------------------------------------------------
show_gameover:
; Check if we beat the high score
jsr check_high_score
; Clear screen
ldx #0
lda #CHAR_SPACE
clear_gameover:
sta SCREEN,x
sta SCREEN+$100,x
sta SCREEN+$200,x
sta SCREEN+$2E8,x
inx
bne clear_gameover
; Draw "GAME OVER"
ldx #0
draw_gameover_text:
lda gameover_text,x
beq draw_gameover_score
sta SCREEN + (8 * 40) + 15,x
lda #2
sta COLRAM + (8 * 40) + 15,x
inx
jmp draw_gameover_text
draw_gameover_score:
; Draw score
ldx #0
draw_go_score_label:
lda gameover_score,x
beq draw_go_score_value
sta SCREEN + (12 * 40) + 12,x
lda #7
sta COLRAM + (12 * 40) + 12,x
inx
jmp draw_go_score_label
draw_go_score_value:
lda score_lo
sta work_lo
lda score_hi
sta work_hi
ldx #0
go_div_10000:
lda work_lo
sec
sbc #<10000
tay
lda work_hi
sbc #>10000
bcc go_done_10000
sta work_hi
sty work_lo
inx
jmp go_div_10000
go_done_10000:
txa
ora #$30
sta SCREEN + (12 * 40) + 23
ldx #0
go_div_1000:
lda work_lo
sec
sbc #<1000
tay
lda work_hi
sbc #>1000
bcc go_done_1000
sta work_hi
sty work_lo
inx
jmp go_div_1000
go_done_1000:
txa
ora #$30
sta SCREEN + (12 * 40) + 24
ldx #0
go_div_100:
lda work_lo
sec
sbc #100
bcc go_done_100
sta work_lo
inx
jmp go_div_100
go_done_100:
txa
ora #$30
sta SCREEN + (12 * 40) + 25
ldx #0
go_div_10:
lda work_lo
sec
sbc #10
bcc go_done_10
sta work_lo
inx
jmp go_div_10
go_done_10:
txa
ora #$30
sta SCREEN + (12 * 40) + 26
lda work_lo
ora #$30
sta SCREEN + (12 * 40) + 27
lda #7
sta COLRAM + (12 * 40) + 23
sta COLRAM + (12 * 40) + 24
sta COLRAM + (12 * 40) + 25
sta COLRAM + (12 * 40) + 26
sta COLRAM + (12 * 40) + 27
; Check if this was a new high score
lda new_high_score
beq draw_prev_high
; Draw "NEW HIGH SCORE!" in bright cyan
ldx #0
draw_new_hs:
lda new_hs_text,x
bne + ; Branch over jump if not zero
jmp go_draw_retry ; Far jump when zero
+ sta SCREEN + (14 * 40) + 12,x
lda #3 ; Cyan
sta COLRAM + (14 * 40) + 12,x
inx
jmp draw_new_hs
draw_prev_high:
; Draw "HIGH SCORE:" label
ldx #0
draw_hs_label:
lda high_score_text,x
beq draw_hs_value
sta SCREEN + (14 * 40) + 12,x
lda #11 ; Dark grey
sta COLRAM + (14 * 40) + 12,x
inx
jmp draw_hs_label
draw_hs_value:
; Get current high score into work_lo/work_hi
jsr get_high_score
; Draw 5-digit high score value
ldx #0
hs_div_10000:
lda work_lo
sec
sbc #<10000
tay
lda work_hi
sbc #>10000
bcc hs_done_10000
sta work_hi
sty work_lo
inx
jmp hs_div_10000
hs_done_10000:
txa
ora #$30
sta SCREEN + (14 * 40) + 24
ldx #0
hs_div_1000:
lda work_lo
sec
sbc #<1000
tay
lda work_hi
sbc #>1000
bcc hs_done_1000
sta work_hi
sty work_lo
inx
jmp hs_div_1000
hs_done_1000:
txa
ora #$30
sta SCREEN + (14 * 40) + 25
ldx #0
hs_div_100:
lda work_lo
sec
sbc #100
bcc hs_done_100
sta work_lo
inx
jmp hs_div_100
hs_done_100:
txa
ora #$30
sta SCREEN + (14 * 40) + 26
ldx #0
hs_div_10:
lda work_lo
sec
sbc #10
bcc hs_done_10
sta work_lo
inx
jmp hs_div_10
hs_done_10:
txa
ora #$30
sta SCREEN + (14 * 40) + 27
lda work_lo
ora #$30
sta SCREEN + (14 * 40) + 28
; Colour high score digits
lda #11
sta COLRAM + (14 * 40) + 24
sta COLRAM + (14 * 40) + 25
sta COLRAM + (14 * 40) + 26
sta COLRAM + (14 * 40) + 27
sta COLRAM + (14 * 40) + 28
go_draw_retry:
; Draw retry message
ldx #0
draw_retry:
lda retry_text,x
beq gameover_done
sta SCREEN + (18 * 40) + 10,x
lda #11
sta COLRAM + (18 * 40) + 10,x
inx
jmp draw_retry
gameover_done:
rts
gameover_text:
!scr "game over"
!byte 0
gameover_score:
!scr "your score:"
!byte 0
new_hs_text:
!scr "new high score!"
!byte 0
high_score_text:
!scr "high score:"
!byte 0
retry_text:
!scr "press fire to continue"
!byte 0
; ============================================================================
; SONG 1 DATA - "First Steps" (120 BPM) - Three Difficulty Variants
; ============================================================================
; Easy: Notes only on strong beats (0, 8, 16, 24...) - 8 notes
; Normal: Base pattern - 29 notes
; Hard: Dense pattern with off-beat additions - 45 notes
; --- EASY: Sparse pattern (strong beats only) ---
song1_easy:
!byte 0, 1, $47 ; Beat 0
!byte 8, 2, $27 ; Beat 8
!byte 16, 1, $35 ; Beat 16
!byte 24, 3, $11 ; Beat 24
!byte 32, 2, $2F ; Beat 32
!byte 40, 1, $58 ; Beat 40
!byte 48, 3, $1A ; Beat 48
!byte 56, 1, $47 ; Beat 56
!byte $FF
; --- NORMAL: Base pattern ---
song1_normal:
!byte 0, 1, $47
!byte 2, 2, $2C
!byte 4, 3, $11
!byte 8, 1, $3B
!byte 10, 2, $27
!byte 12, 3, $13
!byte 16, 1, $35
!byte 17, 2, $2C
!byte 18, 1, $3B
!byte 20, 3, $16
!byte 24, 1, $47
!byte 26, 2, $35
!byte 28, 3, $11
!byte 32, 2, $2F
!byte 34, 1, $4F
!byte 36, 3, $17
!byte 40, 1, $58
!byte 42, 2, $2C
!byte 44, 3, $11
!byte 46, 2, $27
!byte 48, 1, $6A
!byte 49, 2, $35
!byte 50, 1, $58
!byte 52, 3, $1A
!byte 54, 2, $2F
!byte 56, 1, $47
!byte 58, 2, $2C
!byte 60, 3, $11
!byte 62, 1, $35
!byte $FF
; --- HARD: Dense pattern (added off-beats) ---
song1_hard:
!byte 0, 1, $47
!byte 1, 3, $16 ; Added
!byte 2, 2, $2C
!byte 3, 1, $35 ; Added
!byte 4, 3, $11
!byte 5, 2, $27 ; Added
!byte 6, 1, $3B ; Added
!byte 8, 1, $3B
!byte 9, 3, $13 ; Added
!byte 10, 2, $27
!byte 11, 1, $35 ; Added
!byte 12, 3, $13
!byte 14, 2, $2C ; Added
!byte 16, 1, $35
!byte 17, 2, $2C
!byte 18, 1, $3B
!byte 19, 3, $11 ; Added
!byte 20, 3, $16
!byte 21, 1, $47 ; Added
!byte 22, 2, $35 ; Added
!byte 24, 1, $47
!byte 25, 3, $16 ; Added
!byte 26, 2, $35
!byte 27, 1, $4F ; Added
!byte 28, 3, $11
!byte 30, 2, $27 ; Added
!byte 32, 2, $2F
!byte 33, 1, $47 ; Added
!byte 34, 1, $4F
!byte 35, 3, $11 ; Added
!byte 36, 3, $17
!byte 38, 2, $2C ; Added
!byte 40, 1, $58
!byte 41, 3, $1A ; Added
!byte 42, 2, $2C
!byte 43, 1, $47 ; Added
!byte 44, 3, $11
!byte 45, 2, $35 ; Added
!byte 46, 2, $27
!byte 47, 1, $4F ; Added
!byte 48, 1, $6A
!byte 49, 2, $35
!byte 50, 1, $58
!byte 51, 3, $16 ; Added
!byte 52, 3, $1A
!byte 53, 1, $47 ; Added
!byte 54, 2, $2F
!byte 55, 3, $11 ; Added
!byte 56, 1, $47
!byte 57, 2, $27 ; Added
!byte 58, 2, $2C
!byte 59, 1, $3B ; Added
!byte 60, 3, $11
!byte 61, 2, $35 ; Added
!byte 62, 1, $35
!byte 63, 3, $16 ; Added
!byte $FF
; ============================================================================
; SONG 2 DATA - "Upbeat Groove" (130 BPM) - Three Difficulty Variants
; ============================================================================
; Easy: Notes only on strong beats - 8 notes
; Normal: Base syncopated pattern - 52 notes
; Hard: Extremely dense pattern - 72 notes
; --- EASY: Sparse pattern (strong beats only) ---
song2_easy:
!byte 0, 1, $47 ; Beat 0
!byte 8, 3, $11 ; Beat 8
!byte 16, 1, $4F ; Beat 16
!byte 24, 2, $47 ; Beat 24
!byte 32, 1, $4F ; Beat 32
!byte 40, 3, $1A ; Beat 40
!byte 48, 3, $11 ; Beat 48
!byte 56, 1, $47 ; Beat 56
!byte $FF
; --- NORMAL: Base syncopated pattern ---
song2_normal:
!byte 0, 1, $47
!byte 1, 2, $35
!byte 3, 3, $16
!byte 4, 1, $4F
!byte 5, 2, $2C
!byte 7, 1, $47
!byte 8, 3, $11
!byte 10, 2, $35
!byte 11, 1, $58
!byte 13, 2, $2C
!byte 14, 3, $1A
!byte 15, 1, $47
!byte 16, 1, $4F
!byte 17, 2, $35
!byte 18, 3, $16
!byte 19, 1, $58
!byte 20, 2, $2C
!byte 22, 1, $6A
!byte 23, 2, $35
!byte 24, 3, $11
!byte 25, 1, $58
!byte 26, 2, $47
!byte 28, 3, $1A
!byte 30, 1, $47
!byte 31, 2, $2C
!byte 32, 1, $4F
!byte 33, 3, $16
!byte 34, 2, $35
!byte 35, 1, $58
!byte 36, 3, $11
!byte 37, 1, $6A
!byte 38, 2, $47
!byte 39, 1, $58
!byte 40, 3, $1A
!byte 41, 2, $35
!byte 42, 1, $4F
!byte 43, 2, $2C
!byte 44, 1, $47
!byte 45, 3, $16
!byte 46, 2, $35
!byte 47, 1, $58
!byte 48, 3, $11
!byte 49, 2, $47
!byte 51, 1, $4F
!byte 52, 3, $1A
!byte 54, 2, $35
!byte 55, 1, $47
!byte 56, 3, $11
!byte 58, 2, $2C
!byte 59, 1, $58
!byte 60, 3, $16
!byte 61, 2, $35
!byte 62, 1, $47
!byte $FF
; --- HARD: Extremely dense pattern ---
song2_hard:
!byte 0, 1, $47
!byte 0, 3, $11 ; Chord
!byte 1, 2, $35
!byte 2, 1, $4F ; Added
!byte 3, 3, $16
!byte 4, 1, $4F
!byte 4, 2, $2C ; Chord
!byte 5, 2, $2C
!byte 6, 3, $1A ; Added
!byte 7, 1, $47
!byte 8, 3, $11
!byte 8, 1, $58 ; Chord
!byte 9, 2, $35 ; Added
!byte 10, 2, $35
!byte 11, 1, $58
!byte 12, 3, $16 ; Added
!byte 13, 2, $2C
!byte 14, 3, $1A
!byte 15, 1, $47
!byte 16, 1, $4F
!byte 16, 3, $11 ; Chord
!byte 17, 2, $35
!byte 18, 3, $16
!byte 19, 1, $58
!byte 20, 2, $2C
!byte 20, 1, $47 ; Chord
!byte 21, 3, $1A ; Added
!byte 22, 1, $6A
!byte 23, 2, $35
!byte 24, 3, $11
!byte 24, 1, $4F ; Chord
!byte 25, 1, $58
!byte 26, 2, $47
!byte 27, 3, $16 ; Added
!byte 28, 3, $1A
!byte 28, 1, $58 ; Chord
!byte 29, 2, $35 ; Added
!byte 30, 1, $47
!byte 31, 2, $2C
!byte 32, 1, $4F
!byte 32, 3, $11 ; Chord
!byte 33, 3, $16
!byte 34, 2, $35
!byte 35, 1, $58
!byte 36, 3, $11
!byte 36, 2, $47 ; Chord
!byte 37, 1, $6A
!byte 38, 2, $47
!byte 39, 1, $58
!byte 40, 3, $1A
!byte 40, 1, $4F ; Chord
!byte 41, 2, $35
!byte 42, 1, $4F
!byte 43, 2, $2C
!byte 44, 1, $47
!byte 44, 3, $11 ; Chord
!byte 45, 3, $16
!byte 46, 2, $35
!byte 47, 1, $58
!byte 48, 3, $11
!byte 48, 1, $6A ; Chord
!byte 49, 2, $47
!byte 50, 1, $58 ; Added
!byte 51, 1, $4F
!byte 52, 3, $1A
!byte 52, 2, $35 ; Chord
!byte 53, 1, $47 ; Added
!byte 54, 2, $35
!byte 55, 1, $47
!byte 56, 3, $11
!byte 56, 1, $4F ; Chord
!byte 57, 2, $47 ; Added
!byte 58, 2, $2C
!byte 59, 1, $58
!byte 60, 3, $16
!byte 60, 1, $47 ; Chord
!byte 61, 2, $35
!byte 62, 1, $47
!byte 63, 3, $11 ; Added
!byte $FF
; ============================================================================
; SONG 3 DATA: "Speed Rush" (150 BPM)
; ============================================================================
; An energetic, fast-paced track designed to test reaction time.
; Higher frequencies and rapid note sequences.
; --- EASY: Strong beats only (8 notes) ---
song3_easy:
!byte 0, 1, $58 ; Beat 0
!byte 8, 2, $35 ; Beat 8
!byte 16, 3, $1A ; Beat 16
!byte 24, 1, $6A ; Beat 24
!byte 32, 2, $47 ; Beat 32
!byte 40, 3, $16 ; Beat 40
!byte 48, 1, $58 ; Beat 48
!byte 56, 2, $35 ; Beat 56
!byte $FF
; --- NORMAL: Base pattern (32 notes) ---
song3_normal:
!byte 0, 1, $58
!byte 2, 2, $35
!byte 4, 3, $1A
!byte 6, 1, $6A
!byte 8, 2, $35
!byte 10, 1, $58
!byte 12, 3, $16
!byte 14, 2, $47
!byte 16, 3, $1A
!byte 18, 1, $6A
!byte 20, 2, $35
!byte 22, 3, $16
!byte 24, 1, $6A
!byte 26, 2, $47
!byte 28, 3, $1A
!byte 30, 1, $58
!byte 32, 2, $47
!byte 34, 1, $58
!byte 36, 3, $16
!byte 38, 2, $35
!byte 40, 3, $16
!byte 42, 1, $6A
!byte 44, 2, $47
!byte 46, 3, $1A
!byte 48, 1, $58
!byte 50, 2, $35
!byte 52, 3, $16
!byte 54, 1, $6A
!byte 56, 2, $35
!byte 58, 3, $1A
!byte 60, 1, $58
!byte 62, 2, $47
!byte $FF
; --- HARD: Dense pattern with rapid-fire sections (56 notes) ---
song3_hard:
!byte 0, 1, $58
!byte 1, 3, $1A ; Added
!byte 2, 2, $35
!byte 3, 1, $6A ; Added
!byte 4, 3, $1A
!byte 5, 2, $47 ; Added
!byte 6, 1, $6A
!byte 7, 3, $16 ; Added
!byte 8, 2, $35
!byte 9, 1, $58 ; Added
!byte 10, 1, $58
!byte 11, 2, $35 ; Added
!byte 12, 3, $16
!byte 13, 1, $6A ; Added
!byte 14, 2, $47
!byte 15, 3, $1A ; Added
!byte 16, 3, $1A
!byte 17, 1, $58 ; Added
!byte 18, 1, $6A
!byte 19, 2, $35 ; Added
!byte 20, 2, $35
!byte 21, 3, $16 ; Added
!byte 22, 3, $16
!byte 23, 1, $58 ; Added
!byte 24, 1, $6A
!byte 25, 2, $47 ; Added
!byte 26, 2, $47
!byte 27, 3, $1A ; Added
!byte 28, 3, $1A
!byte 29, 1, $6A ; Added
!byte 30, 1, $58
!byte 31, 2, $35 ; Added
!byte 32, 2, $47
!byte 33, 3, $16 ; Added
!byte 34, 1, $58
!byte 35, 2, $47 ; Added
!byte 36, 3, $16
!byte 37, 1, $6A ; Added
!byte 38, 2, $35
!byte 39, 3, $1A ; Added
!byte 40, 3, $16
!byte 41, 1, $58 ; Added
!byte 42, 1, $6A
!byte 43, 2, $35 ; Added
!byte 44, 2, $47
!byte 45, 3, $16 ; Added
!byte 46, 3, $1A
!byte 47, 1, $6A ; Added
!byte 48, 1, $58
!byte 49, 2, $47 ; Added
!byte 50, 2, $35
!byte 51, 3, $1A ; Added
!byte 52, 3, $16
!byte 53, 1, $58 ; Added
!byte 54, 1, $6A
!byte 55, 2, $35 ; Added
!byte 56, 2, $35
!byte 57, 3, $16 ; Added
!byte 58, 3, $1A
!byte 59, 1, $6A ; Added
!byte 60, 1, $58
!byte 61, 2, $47 ; Added
!byte 62, 2, $47
!byte 63, 3, $1A ; Added
!byte $FF
; ============================================================================
; SONG 4: "Off-Beat" (125 BPM) - Syncopated rhythms
; ============================================================================
; Syncopation emphasises off-beats. Notes land between expected beats,
; challenging players' sense of rhythm. The pattern feels "pushed" forward.
; --- EASY: Sparse syncopated notes (10 notes) ---
; Only the most prominent off-beat accents
song4_easy:
!byte 1, 1, $47 ; Off-beat accent
!byte 9, 2, $3B ; Pushed note
!byte 17, 3, $27 ; Syncopated hit
!byte 25, 1, $47 ; Off-beat
!byte 33, 2, $3B ; Pushed
!byte 41, 3, $27 ; Syncopated
!byte 49, 1, $47 ; Off-beat
!byte 55, 2, $3B ; Pushed
!byte 59, 3, $27 ; Syncopated
!byte 63, 1, $47 ; Final accent
!byte $FF
; --- NORMAL: Syncopated pattern with anchors (32 notes) ---
; Mix of on-beat anchors and off-beat accents
song4_normal:
!byte 0, 1, $47 ; Anchor
!byte 1, 2, $3B ; Off-beat
!byte 3, 3, $27 ; Syncopated
!byte 4, 1, $47 ; Anchor
!byte 5, 2, $3B ; Off-beat
!byte 7, 3, $27 ; Syncopated
!byte 8, 1, $47 ; Anchor
!byte 9, 2, $3B ; Off-beat
!byte 11, 3, $27 ; Syncopated
!byte 12, 1, $47 ; Anchor
!byte 13, 2, $3B ; Off-beat
!byte 15, 3, $27 ; Syncopated
!byte 16, 1, $47 ; Anchor
!byte 17, 2, $3B ; Off-beat
!byte 19, 3, $27 ; Syncopated
!byte 20, 1, $47 ; Anchor
!byte 21, 2, $3B ; Off-beat
!byte 23, 3, $27 ; Syncopated
!byte 24, 1, $47 ; Anchor
!byte 25, 2, $3B ; Off-beat
!byte 27, 3, $27 ; Syncopated
!byte 28, 1, $47 ; Anchor
!byte 29, 2, $3B ; Off-beat
!byte 31, 3, $27 ; Syncopated
!byte 32, 1, $47 ; Anchor
!byte 33, 2, $3B ; Off-beat
!byte 35, 3, $27 ; Syncopated
!byte 40, 1, $47 ; Anchor
!byte 41, 2, $3B ; Off-beat
!byte 48, 1, $47 ; Anchor
!byte 49, 3, $27 ; Off-beat
!byte 56, 1, $47 ; Final anchor
!byte $FF
; --- HARD: Dense syncopated chaos (56 notes) ---
; Nearly every off-beat filled, minimal anchors
song4_hard:
!byte 0, 1, $47 ; Anchor
!byte 1, 2, $3B ; Off-beat
!byte 1, 3, $27 ; Chord
!byte 3, 1, $47 ; Syncopated
!byte 3, 2, $3B ; Chord
!byte 5, 3, $27 ; Off-beat
!byte 5, 1, $47 ; Chord
!byte 7, 2, $3B ; Syncopated
!byte 7, 3, $27 ; Chord
!byte 8, 1, $47 ; Anchor
!byte 9, 2, $3B ; Off-beat
!byte 9, 3, $27 ; Chord
!byte 11, 1, $47 ; Syncopated
!byte 11, 2, $3B ; Chord
!byte 13, 3, $27 ; Off-beat
!byte 13, 1, $47 ; Chord
!byte 15, 2, $3B ; Syncopated
!byte 15, 3, $27 ; Chord
!byte 16, 1, $47 ; Anchor
!byte 17, 2, $3B ; Off-beat
!byte 17, 3, $27 ; Chord
!byte 19, 1, $47 ; Syncopated
!byte 19, 2, $3B ; Chord
!byte 21, 3, $27 ; Off-beat
!byte 21, 1, $47 ; Chord
!byte 23, 2, $3B ; Syncopated
!byte 23, 3, $27 ; Chord
!byte 24, 1, $47 ; Anchor
!byte 25, 2, $3B ; Off-beat
!byte 25, 3, $27 ; Chord
!byte 27, 1, $47 ; Syncopated
!byte 27, 2, $3B ; Chord
!byte 29, 3, $27 ; Off-beat
!byte 29, 1, $47 ; Chord
!byte 31, 2, $3B ; Syncopated
!byte 31, 3, $27 ; Chord
!byte 32, 1, $47 ; Anchor
!byte 33, 2, $3B ; Off-beat
!byte 35, 3, $27 ; Syncopated
!byte 37, 1, $47 ; Off-beat
!byte 39, 2, $3B ; Syncopated
!byte 40, 1, $47 ; Anchor
!byte 41, 3, $27 ; Off-beat
!byte 43, 2, $3B ; Syncopated
!byte 45, 1, $47 ; Off-beat
!byte 47, 3, $27 ; Syncopated
!byte 48, 1, $47 ; Anchor
!byte 49, 2, $3B ; Off-beat
!byte 51, 3, $27 ; Syncopated
!byte 53, 1, $47 ; Off-beat
!byte 55, 2, $3B ; Syncopated
!byte 56, 1, $47 ; Anchor
!byte 57, 3, $27 ; Off-beat
!byte 59, 2, $3B ; Syncopated
!byte 61, 1, $47 ; Off-beat
!byte 63, 3, $27 ; Final syncopated
!byte $FF
; ============================================================================
; SONG 5: "Chordstorm" (136 BPM) - Polyrhythms
; ============================================================================
; Polyrhythms feature multiple notes on the same beat across different tracks,
; creating chord-like moments that require simultaneous key presses.
; --- EASY: Sparse chords (12 notes) ---
; Simple two-note chords on strong beats
song5_easy:
!byte 0, 1, $47 ; Track 1
!byte 0, 2, $3B ; Track 2 (chord)
!byte 8, 2, $3B ; Single
!byte 16, 1, $47 ; Track 1
!byte 16, 3, $27 ; Track 3 (chord)
!byte 24, 3, $27 ; Single
!byte 32, 1, $47 ; Track 1
!byte 32, 2, $3B ; Track 2 (chord)
!byte 40, 2, $3B ; Single
!byte 48, 2, $3B ; Track 2
!byte 48, 3, $27 ; Track 3 (chord)
!byte 56, 1, $47 ; Single
!byte $FF
; --- NORMAL: Mixed chords and singles (36 notes) ---
; Regular chord patterns with some singles
song5_normal:
!byte 0, 1, $47 ; 3-note chord
!byte 0, 2, $3B
!byte 0, 3, $27
!byte 4, 1, $47 ; Single
!byte 8, 2, $3B ; 2-note chord
!byte 8, 3, $27
!byte 12, 2, $3B ; Single
!byte 16, 1, $47 ; 3-note chord
!byte 16, 2, $3B
!byte 16, 3, $27
!byte 20, 3, $27 ; Single
!byte 24, 1, $47 ; 2-note chord
!byte 24, 2, $3B
!byte 28, 1, $47 ; Single
!byte 32, 2, $3B ; 3-note chord
!byte 32, 1, $47
!byte 32, 3, $27
!byte 36, 2, $3B ; Single
!byte 40, 1, $47 ; 2-note chord
!byte 40, 3, $27
!byte 44, 3, $27 ; Single
!byte 48, 1, $47 ; 3-note chord
!byte 48, 2, $3B
!byte 48, 3, $27
!byte 52, 1, $47 ; Single
!byte 56, 2, $3B ; 2-note chord
!byte 56, 3, $27
!byte 60, 1, $47 ; Single
!byte $FF
; --- HARD: Dense chord patterns (64 notes) ---
; Frequent chords with minimal breaks
song5_hard:
!byte 0, 1, $47 ; 3-note chord
!byte 0, 2, $3B
!byte 0, 3, $27
!byte 2, 1, $47 ; 2-note chord
!byte 2, 2, $3B
!byte 4, 2, $3B ; 3-note chord
!byte 4, 1, $47
!byte 4, 3, $27
!byte 6, 3, $27 ; 2-note chord
!byte 6, 1, $47
!byte 8, 1, $47 ; 3-note chord
!byte 8, 2, $3B
!byte 8, 3, $27
!byte 10, 2, $3B ; Single
!byte 12, 1, $47 ; 2-note chord
!byte 12, 3, $27
!byte 14, 2, $3B ; 3-note chord
!byte 14, 1, $47
!byte 14, 3, $27
!byte 16, 1, $47 ; 3-note chord
!byte 16, 2, $3B
!byte 16, 3, $27
!byte 18, 3, $27 ; 2-note chord
!byte 18, 2, $3B
!byte 20, 1, $47 ; 2-note chord
!byte 20, 2, $3B
!byte 22, 2, $3B ; 3-note chord
!byte 22, 1, $47
!byte 22, 3, $27
!byte 24, 1, $47 ; 3-note chord
!byte 24, 2, $3B
!byte 24, 3, $27
!byte 26, 1, $47 ; Single
!byte 28, 2, $3B ; 2-note chord
!byte 28, 3, $27
!byte 30, 1, $47 ; 3-note chord
!byte 30, 2, $3B
!byte 30, 3, $27
!byte 32, 1, $47 ; 3-note chord
!byte 32, 2, $3B
!byte 32, 3, $27
!byte 34, 2, $3B ; 2-note chord
!byte 34, 3, $27
!byte 36, 1, $47 ; 2-note chord
!byte 36, 2, $3B
!byte 38, 3, $27 ; 3-note chord
!byte 38, 1, $47
!byte 38, 2, $3B
!byte 40, 2, $3B ; 3-note chord
!byte 40, 1, $47
!byte 40, 3, $27
!byte 42, 1, $47 ; Single
!byte 44, 2, $3B ; 2-note chord
!byte 44, 3, $27
!byte 46, 1, $47 ; 3-note chord
!byte 46, 2, $3B
!byte 46, 3, $27
!byte 48, 1, $47 ; 3-note chord
!byte 48, 2, $3B
!byte 48, 3, $27
!byte 52, 2, $3B ; 2-note chord
!byte 52, 1, $47
!byte 56, 1, $47 ; 3-note chord
!byte 56, 2, $3B
!byte 56, 3, $27
!byte 60, 3, $27 ; 2-note chord
!byte 60, 2, $3B
!byte 62, 1, $47 ; Final 3-note chord
!byte 62, 2, $3B
!byte 62, 3, $27
!byte $FF
; ============================================================================
; Song 6 - Fusion (130 BPM)
; ============================================================================
; Combines basic rhythm, syncopation, and polyrhythms
; Tests all skills developed throughout the game
; --- EASY: Learning mixed techniques (16 notes) ---
song6_easy:
!byte 0, 1, $47 ; Strong beat
!byte 4, 2, $3B ; Basic rhythm
!byte 8, 1, $47
!byte 8, 2, $3B ; Simple 2-note chord
!byte 14, 3, $27 ; Off-beat (syncopation)
!byte 16, 1, $47 ; Strong beat
!byte 22, 2, $3B ; Off-beat
!byte 24, 3, $27
!byte 28, 1, $47
!byte 32, 1, $47
!byte 32, 3, $27 ; 2-note chord
!byte 38, 2, $3B ; Off-beat
!byte 40, 1, $47
!byte 46, 3, $27 ; Off-beat
!byte 48, 2, $3B
!byte 56, 1, $47 ; Final note
!byte $FF
; --- NORMAL: Balanced mix (32 notes) ---
song6_normal:
; Section 1: Basic + syncopation
!byte 0, 1, $47 ; Strong downbeat
!byte 2, 2, $3B ; Quick follow
!byte 6, 3, $27 ; Off-beat
!byte 8, 1, $47 ; Beat
!byte 10, 2, $3B
!byte 14, 1, $47 ; Syncopation
; Section 2: Add chords
!byte 16, 1, $47 ; 2-note chord
!byte 16, 2, $3B
!byte 20, 3, $27
!byte 22, 2, $3B ; Off-beat
!byte 24, 1, $47
!byte 26, 3, $27
!byte 30, 2, $3B ; Off-beat
; Section 3: Full mix
!byte 32, 1, $47 ; 3-note chord
!byte 32, 2, $3B
!byte 32, 3, $27
!byte 36, 1, $47
!byte 38, 2, $3B ; Off-beat
!byte 40, 3, $27
!byte 44, 1, $47
!byte 46, 2, $3B ; Off-beat
; Section 4: Climax
!byte 48, 1, $47 ; 2-note chord
!byte 48, 3, $27
!byte 50, 2, $3B
!byte 52, 1, $47
!byte 54, 3, $27 ; Off-beat
!byte 56, 1, $47 ; 2-note chord
!byte 56, 2, $3B
!byte 58, 3, $27
!byte 60, 1, $47
!byte 62, 2, $3B ; Final off-beat
!byte $FF
; --- HARD: All techniques combined (56 notes) ---
song6_hard:
; Section 1: Fast basic + syncopation
!byte 0, 1, $47
!byte 1, 2, $3B
!byte 2, 3, $27
!byte 3, 1, $58 ; Off-beat
!byte 4, 2, $3B
!byte 6, 1, $47 ; Off-beat
!byte 7, 3, $27
!byte 8, 1, $47 ; 2-note chord
!byte 8, 2, $3B
!byte 10, 3, $27
!byte 11, 1, $47 ; Syncopation
!byte 12, 2, $3B
!byte 14, 1, $58 ; Off-beat
!byte 15, 3, $27
; Section 2: Chord-heavy
!byte 16, 1, $47 ; 3-note chord
!byte 16, 2, $3B
!byte 16, 3, $27
!byte 18, 1, $58
!byte 19, 2, $3B ; Off-beat
!byte 20, 1, $47 ; 2-note chord
!byte 20, 3, $27
!byte 22, 2, $3B ; Off-beat
!byte 23, 1, $47
!byte 24, 2, $3B ; 2-note chord
!byte 24, 3, $27
!byte 26, 1, $58
!byte 27, 2, $3B ; Off-beat
!byte 28, 1, $47
!byte 30, 3, $27 ; Off-beat
; Section 3: Maximum challenge
!byte 32, 1, $47 ; 3-note chord
!byte 32, 2, $3B
!byte 32, 3, $27
!byte 34, 1, $58 ; 2-note chord
!byte 34, 2, $3B
!byte 35, 3, $27 ; Off-beat
!byte 36, 1, $47
!byte 38, 2, $3B ; Off-beat
!byte 39, 3, $27
!byte 40, 1, $47 ; 3-note chord
!byte 40, 2, $3B
!byte 40, 3, $27
!byte 42, 1, $58
!byte 43, 2, $3B ; Off-beat
!byte 44, 3, $27 ; 2-note chord
!byte 44, 1, $47
!byte 46, 2, $3B ; Off-beat
; Section 4: Grand finale
!byte 48, 1, $47 ; 3-note chord
!byte 48, 2, $3B
!byte 48, 3, $27
!byte 50, 1, $58
!byte 51, 2, $3B ; Off-beat
!byte 52, 1, $47 ; 2-note chord
!byte 52, 3, $27
!byte 54, 2, $3B
!byte 55, 1, $47 ; Off-beat
!byte 56, 1, $47 ; Final 3-note chord
!byte 56, 2, $3B
!byte 56, 3, $27
!byte $FF
; ----------------------------------------------------------------------------
; Note Arrays
; ----------------------------------------------------------------------------
note_track:
!fill MAX_NOTES, 0
note_col:
!fill MAX_NOTES, 0
note_freq:
!fill MAX_NOTES, 0
; ----------------------------------------------------------------------------
; Game Variables
; ----------------------------------------------------------------------------
score_lo: !byte 0
score_hi: !byte 0
miss_count: !byte 0
perfect_count: !byte 0
good_count: !byte 0
health: !byte 0
combo: !byte 0
max_combo: !byte 0
new_high_score: !byte 0 ; Flag: 1 if current score beat high score
; ----------------------------------------------------------------------------
; High Score Table (6 songs x 3 difficulties = 18 entries, 2 bytes each)
; Index = (song * 3) + difficulty
; ----------------------------------------------------------------------------
high_scores:
; Song 1 (First Steps)
!word 0 ; Easy high score
!word 0 ; Normal high score
!word 0 ; Hard high score
; Song 2 (Upbeat Groove)
!word 0 ; Easy
!word 0 ; Normal
!word 0 ; Hard
; Song 3 (Speed Rush)
!word 0 ; Easy
!word 0 ; Normal
!word 0 ; Hard
; Song 4 (Off-Beat)
!word 0 ; Easy
!word 0 ; Normal
!word 0 ; Hard
; Song 5 (Chordstorm)
!word 0 ; Easy
!word 0 ; Normal
!word 0 ; Hard
; Song 6 (Fusion)
!word 0 ; Easy
!word 0 ; Normal
!word 0 ; Hard
; ============================================================================
; END OF SID SYMPHONY - UNIT 31
; ============================================================================
What’s Coming
With results now showing meaningful performance feedback:
- Unit 32: Phase 2 completion and polish
What You’ve Learnt
- Percentage calculation - Multiplication and division in 8-bit assembly
- Binary multiplication - Using shifts instead of loops for speed
- Repeated subtraction - Simple division for small values
- Grade systems - Translating numbers to meaningful feedback
- Colour coding - Using colour for instant recognition
- Layout design - Organising statistics for readability
Grades transform scores into understanding.
What Changed
Unit 30 → Unit 31
+231-9
| 1 | 1 | ; ============================================================================ | |
| 2 | - | ; SID SYMPHONY - Unit 30: Advanced Scoring Mechanics | |
| 2 | + | ; SID SYMPHONY - Unit 31: Results Screen Enhancements | |
| 3 | 3 | ; ============================================================================ | |
| 4 | - | ; Adding advanced scoring: perfect streak bonuses, section completion rewards, | |
| 5 | - | ; and full combo bonus. Skilled play is now richly rewarded. | |
| 4 | + | ; Enhancing the results screen with performance grades (S/A/B/C/D), accuracy | |
| 5 | + | ; percentage, best streak display, and improved statistics layout. | |
| 6 | 6 | ; | |
| 7 | - | ; New concepts: Streak tracking, milestone bonuses, accuracy rewards | |
| 7 | + | ; New concepts: Grade calculation, percentage display, enhanced UI layout | |
| 8 | 8 | ; | |
| 9 | 9 | ; Controls: Z = Track 1, X = Track 2, C = Track 3 | |
| 10 | 10 | ; Up/Down = Song selection, Left/Right = Difficulty | |
| ... | |||
| 108 | 108 | | |
| 109 | 109 | ; Full combo bonus (no misses) | |
| 110 | 110 | FULL_COMBO_BONUS = 200 ; Bonus if no misses entire song | |
| 111 | + | | |
| 112 | + | ; Performance grade thresholds (based on accuracy percentage) | |
| 113 | + | ; Accuracy = (perfect_count * 100 + good_count * 50) / total_notes | |
| 114 | + | GRADE_S_THRESHOLD = 95 ; 95%+ perfect rate = S rank | |
| 115 | + | GRADE_A_THRESHOLD = 85 ; 85%+ = A rank | |
| 116 | + | GRADE_B_THRESHOLD = 70 ; 70%+ = B rank | |
| 117 | + | GRADE_C_THRESHOLD = 50 ; 50%+ = C rank | |
| 118 | + | ; Below 50% = D rank | |
| 111 | 119 | | |
| 112 | 120 | ; ============================================================================ | |
| 113 | 121 | ; COMBO SETTINGS (BALANCED) | |
| ... | |||
| 339 | 347 | best_streak = $20 ; Best perfect streak this song | |
| 340 | 348 | section_bonus = $21 ; Accumulated section bonus points | |
| 341 | 349 | notes_hit = $22 ; Total notes hit (for accuracy calc) | |
| 350 | + | current_grade = $23 ; Current performance grade letter (screen code) | |
| 351 | + | current_grade_col = $24 ; Colour for current grade | |
| 342 | 352 | | |
| 343 | 353 | ; ---------------------------------------------------------------------------- | |
| 344 | 354 | ; BASIC Stub | |
| ... | |||
| 3688 | 3698 | bne flash_t3h_loop | |
| 3689 | 3699 | lda #1 | |
| 3690 | 3700 | sta COLRAM + (TRACK3_ROW * 40) | |
| 3701 | + | rts | |
| 3702 | + | | |
| 3703 | + | ; ---------------------------------------------------------------------------- | |
| 3704 | + | ; Calculate Performance Grade | |
| 3705 | + | ; ---------------------------------------------------------------------------- | |
| 3706 | + | ; Calculates grade based on perfect hit percentage | |
| 3707 | + | ; Sets current_grade (screen code) and current_grade_col (colour) | |
| 3708 | + | | |
| 3709 | + | calculate_grade: | |
| 3710 | + | ; Calculate perfect percentage: (perfect_count * 100) / total_notes | |
| 3711 | + | ; For simplicity, use perfect_count vs notes_hit ratio | |
| 3712 | + | ; notes_hit = perfect_count + good_count | |
| 3713 | + | ; We want: perfect_count / notes_hit * 100 | |
| 3714 | + | | |
| 3715 | + | ; If no notes hit, give D grade | |
| 3716 | + | lda notes_hit | |
| 3717 | + | bne calc_grade_continue | |
| 3718 | + | lda #'d' ; Screen code for D | |
| 3719 | + | sta current_grade | |
| 3720 | + | lda #2 ; Red | |
| 3721 | + | sta current_grade_col | |
| 3722 | + | rts | |
| 3723 | + | | |
| 3724 | + | calc_grade_continue: | |
| 3725 | + | ; Calculate percentage: perfect_count * 100 / notes_hit | |
| 3726 | + | ; Use 8-bit approximation for simplicity | |
| 3727 | + | | |
| 3728 | + | ; First multiply perfect_count by 100 | |
| 3729 | + | lda perfect_count | |
| 3730 | + | sta work_lo | |
| 3731 | + | lda #0 | |
| 3732 | + | sta work_hi | |
| 3733 | + | | |
| 3734 | + | ; Multiply by 100 (64 + 32 + 4 = 100) | |
| 3735 | + | ; work = perfect * 64 | |
| 3736 | + | asl work_lo | |
| 3737 | + | rol work_hi ; *2 | |
| 3738 | + | asl work_lo | |
| 3739 | + | rol work_hi ; *4 | |
| 3740 | + | asl work_lo | |
| 3741 | + | rol work_hi ; *8 | |
| 3742 | + | asl work_lo | |
| 3743 | + | rol work_hi ; *16 | |
| 3744 | + | asl work_lo | |
| 3745 | + | rol work_hi ; *32 | |
| 3746 | + | asl work_lo | |
| 3747 | + | rol work_hi ; *64 | |
| 3748 | + | | |
| 3749 | + | ; Save *64 result | |
| 3750 | + | lda work_lo | |
| 3751 | + | sta ZP_TEMP | |
| 3752 | + | lda work_hi | |
| 3753 | + | pha ; Save high byte of *64 | |
| 3754 | + | | |
| 3755 | + | ; Get *32 (shift right from *64) | |
| 3756 | + | lsr work_hi | |
| 3757 | + | ror work_lo ; *32 in work | |
| 3758 | + | | |
| 3759 | + | ; Add *64 + *32 = *96 | |
| 3760 | + | lda ZP_TEMP | |
| 3761 | + | clc | |
| 3762 | + | adc work_lo | |
| 3763 | + | sta work_lo | |
| 3764 | + | pla | |
| 3765 | + | adc work_hi | |
| 3766 | + | sta work_hi ; work = perfect * 96 | |
| 3767 | + | | |
| 3768 | + | ; Add *4 to get *100 | |
| 3769 | + | lda perfect_count | |
| 3770 | + | asl | |
| 3771 | + | asl ; A = perfect * 4 | |
| 3772 | + | clc | |
| 3773 | + | adc work_lo | |
| 3774 | + | sta work_lo | |
| 3775 | + | lda #0 | |
| 3776 | + | adc work_hi | |
| 3777 | + | sta work_hi ; work = perfect * 100 | |
| 3778 | + | | |
| 3779 | + | ; Now divide by notes_hit | |
| 3780 | + | ; Simple repeated subtraction for small values | |
| 3781 | + | lda #0 | |
| 3782 | + | sta ZP_TEMP ; Quotient (percentage) | |
| 3783 | + | | |
| 3784 | + | grade_div_loop: | |
| 3785 | + | ; Check if work >= notes_hit | |
| 3786 | + | lda work_hi | |
| 3787 | + | bne grade_can_sub ; High byte nonzero, can subtract | |
| 3788 | + | lda work_lo | |
| 3789 | + | cmp notes_hit | |
| 3790 | + | bcc grade_div_done ; work < notes_hit, done | |
| 3791 | + | grade_can_sub: | |
| 3792 | + | ; Subtract notes_hit from work | |
| 3793 | + | lda work_lo | |
| 3794 | + | sec | |
| 3795 | + | sbc notes_hit | |
| 3796 | + | sta work_lo | |
| 3797 | + | lda work_hi | |
| 3798 | + | sbc #0 | |
| 3799 | + | sta work_hi | |
| 3800 | + | inc ZP_TEMP ; Increment percentage | |
| 3801 | + | lda ZP_TEMP | |
| 3802 | + | cmp #101 ; Cap at 100% | |
| 3803 | + | bcc grade_div_loop | |
| 3804 | + | grade_div_done: | |
| 3805 | + | ; ZP_TEMP now contains percentage (0-100) | |
| 3806 | + | ; Determine grade based on thresholds | |
| 3807 | + | lda ZP_TEMP | |
| 3808 | + | cmp #GRADE_S_THRESHOLD | |
| 3809 | + | bcs grade_is_s | |
| 3810 | + | cmp #GRADE_A_THRESHOLD | |
| 3811 | + | bcs grade_is_a | |
| 3812 | + | cmp #GRADE_B_THRESHOLD | |
| 3813 | + | bcs grade_is_b | |
| 3814 | + | cmp #GRADE_C_THRESHOLD | |
| 3815 | + | bcs grade_is_c | |
| 3816 | + | ; Below C threshold = D | |
| 3817 | + | lda #'d' | |
| 3818 | + | sta current_grade | |
| 3819 | + | lda #2 ; Red | |
| 3820 | + | sta current_grade_col | |
| 3821 | + | rts | |
| 3822 | + | | |
| 3823 | + | grade_is_s: | |
| 3824 | + | lda #'s' | |
| 3825 | + | sta current_grade | |
| 3826 | + | lda #7 ; Yellow | |
| 3827 | + | sta current_grade_col | |
| 3828 | + | rts | |
| 3829 | + | | |
| 3830 | + | grade_is_a: | |
| 3831 | + | lda #'a' | |
| 3832 | + | sta current_grade | |
| 3833 | + | lda #5 ; Green | |
| 3834 | + | sta current_grade_col | |
| 3835 | + | rts | |
| 3836 | + | | |
| 3837 | + | grade_is_b: | |
| 3838 | + | lda #'b' | |
| 3839 | + | sta current_grade | |
| 3840 | + | lda #3 ; Cyan | |
| 3841 | + | sta current_grade_col | |
| 3842 | + | rts | |
| 3843 | + | | |
| 3844 | + | grade_is_c: | |
| 3845 | + | lda #'c' | |
| 3846 | + | sta current_grade | |
| 3847 | + | lda #15 ; Light grey | |
| 3848 | + | sta current_grade_col | |
| 3691 | 3849 | rts | |
| 3692 | 3850 | | |
| 3693 | 3851 | ; ---------------------------------------------------------------------------- | |
| ... | |||
| 3721 | 3879 | ldx #0 | |
| 3722 | 3880 | draw_complete: | |
| 3723 | 3881 | lda complete_text,x | |
| 3724 | - | beq draw_results_score | |
| 3882 | + | beq draw_grade | |
| 3725 | 3883 | sta SCREEN + (5 * 40) + 13,x | |
| 3726 | 3884 | lda #5 | |
| 3727 | 3885 | sta COLRAM + (5 * 40) + 13,x | |
| 3728 | 3886 | inx | |
| 3729 | 3887 | jmp draw_complete | |
| 3888 | + | | |
| 3889 | + | draw_grade: | |
| 3890 | + | ; Calculate and display performance grade | |
| 3891 | + | jsr calculate_grade | |
| 3892 | + | ; Display grade label | |
| 3893 | + | ldx #0 | |
| 3894 | + | draw_grade_label: | |
| 3895 | + | lda grade_label,x | |
| 3896 | + | beq draw_grade_letter | |
| 3897 | + | sta SCREEN + (7 * 40) + 14,x | |
| 3898 | + | lda #7 | |
| 3899 | + | sta COLRAM + (7 * 40) + 14,x | |
| 3900 | + | inx | |
| 3901 | + | jmp draw_grade_label | |
| 3902 | + | | |
| 3903 | + | draw_grade_letter: | |
| 3904 | + | ; Grade letter is in A register from calculate_grade | |
| 3905 | + | lda current_grade | |
| 3906 | + | sta SCREEN + (7 * 40) + 22 | |
| 3907 | + | ; Colour based on grade | |
| 3908 | + | ldx current_grade_col | |
| 3909 | + | stx COLRAM + (7 * 40) + 22 | |
| 3730 | 3910 | | |
| 3731 | 3911 | draw_results_score: | |
| 3732 | 3912 | ; Draw score label | |
| ... | |||
| 4078 | 4258 | sta COLRAM + (17 * 40) + 26 | |
| 4079 | 4259 | sta COLRAM + (17 * 40) + 27 | |
| 4080 | 4260 | sta COLRAM + (17 * 40) + 28 | |
| 4261 | + | | |
| 4262 | + | ; Draw best streak on row 19 | |
| 4263 | + | ldx #0 | |
| 4264 | + | draw_streak_label: | |
| 4265 | + | lda streak_label,x | |
| 4266 | + | beq draw_streak_value | |
| 4267 | + | sta SCREEN + (19 * 40) + 12,x | |
| 4268 | + | lda #3 ; Cyan | |
| 4269 | + | sta COLRAM + (19 * 40) + 12,x | |
| 4270 | + | inx | |
| 4271 | + | jmp draw_streak_label | |
| 4272 | + | | |
| 4273 | + | draw_streak_value: | |
| 4274 | + | ; Display best_streak as 2-digit number | |
| 4275 | + | lda best_streak | |
| 4276 | + | ldx #0 | |
| 4277 | + | streak_div_10: | |
| 4278 | + | cmp #10 | |
| 4279 | + | bcc streak_done_10 | |
| 4280 | + | sec | |
| 4281 | + | sbc #10 | |
| 4282 | + | inx | |
| 4283 | + | jmp streak_div_10 | |
| 4284 | + | streak_done_10: | |
| 4285 | + | pha | |
| 4286 | + | txa | |
| 4287 | + | ora #$30 | |
| 4288 | + | sta SCREEN + (19 * 40) + 25 | |
| 4289 | + | pla | |
| 4290 | + | ora #$30 | |
| 4291 | + | sta SCREEN + (19 * 40) + 26 | |
| 4292 | + | lda #3 | |
| 4293 | + | sta COLRAM + (19 * 40) + 25 | |
| 4294 | + | sta COLRAM + (19 * 40) + 26 | |
| 4081 | 4295 | | |
| 4082 | 4296 | res_draw_return: | |
| 4083 | - | ; Draw "PRESS FIRE" | |
| 4297 | + | ; Draw "PRESS FIRE" on row 21 | |
| 4084 | 4298 | ldx #0 | |
| 4085 | 4299 | draw_return: | |
| 4086 | 4300 | lda return_text,x | |
| 4087 | 4301 | beq results_done | |
| 4088 | - | sta SCREEN + (20 * 40) + 10,x | |
| 4302 | + | sta SCREEN + (21 * 40) + 10,x | |
| 4089 | 4303 | lda #11 | |
| 4090 | - | sta COLRAM + (20 * 40) + 10,x | |
| 4304 | + | sta COLRAM + (21 * 40) + 10,x | |
| 4091 | 4305 | inx | |
| 4092 | 4306 | jmp draw_return | |
| 4093 | 4307 | | |
| ... | |||
| 4112 | 4326 | | |
| 4113 | 4327 | miss_label_r: | |
| 4114 | 4328 | !scr "misses:" | |
| 4329 | + | !byte 0 | |
| 4330 | + | | |
| 4331 | + | grade_label: | |
| 4332 | + | !scr "grade:" | |
| 4333 | + | !byte 0 | |
| 4334 | + | | |
| 4335 | + | streak_label: | |
| 4336 | + | !scr "best streak:" | |
| 4115 | 4337 | !byte 0 | |
| 4116 | 4338 | | |
| 4117 | 4339 | maxcombo_label: | |
| ... | |||
| 5222 | 5444 | !word 0 ; Hard | |
| 5223 | 5445 | | |
| 5224 | 5446 | ; ============================================================================ | |
| 5225 | - | ; END OF SID SYMPHONY - UNIT 30 | |
| 5447 | + | ; END OF SID SYMPHONY - UNIT 31 | |
| 5226 | 5448 | ; ============================================================================ | |
| 5227 | 5449 | |
