Hello Spectrum
Your first ZX Spectrum program. See the game board. Move the cursor. Attributes are your canvas.
The game board is waiting. Eight rows, eight columns, sixty-four cells to claim.
This unit gives you a working ZX Spectrum program immediately. You’ll run it, see the board, move the cursor with the keyboard, and make your first changes to the code. Experience first, explanation after.
Run It
Download the code and assemble it:
pasmonext --tapbas inkwar.asm inkwar.tapLoad the TAP file in Fuse (or your preferred emulator). You’ll see this:

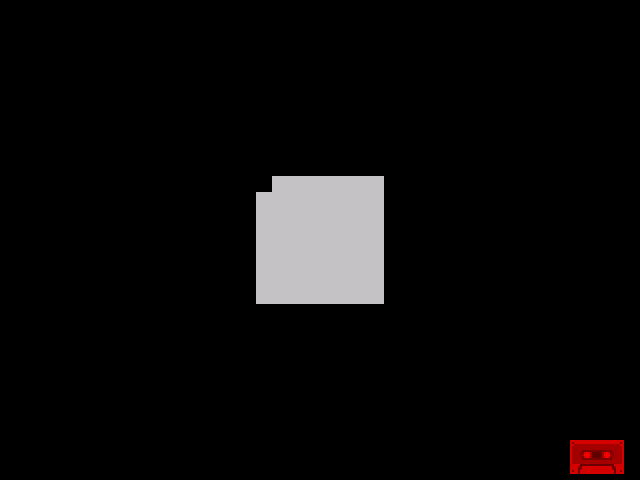

A black screen with a white 8×8 grid in the centre. The top-left cell flashes - that’s your cursor.
Press Q to move up. Press A to move down. Press O to move left. Press P to move right.
The cursor moves around the board. You’re controlling a ZX Spectrum program.
The Complete Code
Here’s everything that makes this work:
; ============================================================================
; INK WAR - Unit 1: Hello Spectrum
; ============================================================================
; A territory control game for the ZX Spectrum
; This scaffold provides: board display, cursor, keyboard movement
;
; Controls: Q=Up, A=Down, O=Left, P=Right
; ============================================================================
org 32768
; ----------------------------------------------------------------------------
; Constants
; ----------------------------------------------------------------------------
ATTR_BASE equ $5800 ; Start of attribute memory
BOARD_ROW equ 8 ; Board starts at row 8
BOARD_COL equ 12 ; Board starts at column 12
BOARD_SIZE equ 8 ; 8x8 playing field
; Attribute colours (FBPPPIII format)
BORDER_ATTR equ %00000000 ; Black on black (border)
EMPTY_ATTR equ %00111000 ; White paper, black ink (empty cell)
CURSOR_ATTR equ %10111000 ; White paper, black ink + FLASH
; Keyboard ports (active low)
KEY_PORT equ $fe
ROW_QAOP equ $fb ; Q W E R T row (bits: T R E W Q)
ROW_ASDF equ $fd ; A S D F G row (bits: G F D S A)
ROW_YUIOP equ $df ; Y U I O P row (bits: P O I U Y)
; ----------------------------------------------------------------------------
; Entry Point
; ----------------------------------------------------------------------------
start:
call init_screen ; Clear screen and set border
call draw_board ; Draw the game board
call draw_cursor ; Show cursor at starting position
main_loop:
halt ; Wait for frame (50Hz timing)
call read_keyboard ; Check for input
call move_cursor ; Update cursor if moved
jp main_loop ; Repeat forever
; ----------------------------------------------------------------------------
; Initialise Screen
; ----------------------------------------------------------------------------
; Clears the screen to black and sets border colour
init_screen:
; Set border to black
xor a ; A = 0 (black)
out (KEY_PORT), a ; Set border colour
; Clear attributes to black
ld hl, ATTR_BASE ; Start of attributes
ld de, ATTR_BASE+1
ld bc, 767 ; 768 bytes - 1
ld (hl), 0 ; Black on black
ldir ; Fill all attributes
ret
; ----------------------------------------------------------------------------
; Draw Board
; ----------------------------------------------------------------------------
; Draws the 8x8 game board with border
draw_board:
; Draw border (10x10 area, black)
; Border is already black from init, so we just draw the cells
; Draw the 8x8 playing field (white cells)
ld b, BOARD_SIZE ; 8 rows
ld c, BOARD_ROW ; Start at row 8
.row_loop:
push bc
ld b, BOARD_SIZE ; 8 columns
ld d, BOARD_COL ; Start at column 12
.col_loop:
push bc
; Calculate attribute address: ATTR_BASE + row*32 + col
ld a, c ; Row
ld l, a
ld h, 0
add hl, hl ; *2
add hl, hl ; *4
add hl, hl ; *8
add hl, hl ; *16
add hl, hl ; *32
ld a, d ; Column
add a, l
ld l, a
ld bc, ATTR_BASE
add hl, bc ; HL = attribute address
ld (hl), EMPTY_ATTR ; Set to white (empty cell)
pop bc
inc d ; Next column
djnz .col_loop
pop bc
inc c ; Next row
djnz .row_loop
ret
; ----------------------------------------------------------------------------
; Draw Cursor
; ----------------------------------------------------------------------------
; Shows the cursor at current position with FLASH attribute
draw_cursor:
; Calculate attribute address for cursor position
ld a, (cursor_row)
add a, BOARD_ROW ; Add board offset
ld l, a
ld h, 0
add hl, hl ; *32
add hl, hl
add hl, hl
add hl, hl
add hl, hl
ld a, (cursor_col)
add a, BOARD_COL ; Add board offset
add a, l
ld l, a
ld bc, ATTR_BASE
add hl, bc
ld (hl), CURSOR_ATTR ; Set FLASH attribute
ret
; ----------------------------------------------------------------------------
; Clear Cursor
; ----------------------------------------------------------------------------
; Removes cursor flash from current position
clear_cursor:
; Calculate attribute address for cursor position
ld a, (cursor_row)
add a, BOARD_ROW
ld l, a
ld h, 0
add hl, hl
add hl, hl
add hl, hl
add hl, hl
add hl, hl
ld a, (cursor_col)
add a, BOARD_COL
add a, l
ld l, a
ld bc, ATTR_BASE
add hl, bc
ld (hl), EMPTY_ATTR ; Remove FLASH, back to white
ret
; ----------------------------------------------------------------------------
; Read Keyboard
; ----------------------------------------------------------------------------
; Checks Q/A/O/P keys and sets direction flags
read_keyboard:
xor a
ld (key_pressed), a ; Clear previous
; Check Q (up) - port $FBFE, bit 0
ld a, ROW_QAOP
in a, (KEY_PORT)
bit 0, a ; Q is bit 0
jr nz, .not_q
ld a, 1 ; Up
ld (key_pressed), a
ret
.not_q:
; Check A (down) - port $FDFE, bit 0
ld a, ROW_ASDF
in a, (KEY_PORT)
bit 0, a ; A is bit 0
jr nz, .not_a
ld a, 2 ; Down
ld (key_pressed), a
ret
.not_a:
; Check O (left) - port $DFFE, bit 1
ld a, ROW_YUIOP
in a, (KEY_PORT)
bit 1, a ; O is bit 1
jr nz, .not_o
ld a, 3 ; Left
ld (key_pressed), a
ret
.not_o:
; Check P (right) - port $DFFE, bit 0
ld a, ROW_YUIOP
in a, (KEY_PORT)
bit 0, a ; P is bit 0
jr nz, .not_p
ld a, 4 ; Right
ld (key_pressed), a
.not_p:
ret
; ----------------------------------------------------------------------------
; Move Cursor
; ----------------------------------------------------------------------------
; Moves cursor based on key_pressed value
move_cursor:
ld a, (key_pressed)
or a
ret z ; No key pressed
call clear_cursor ; Remove old cursor
ld a, (key_pressed)
cp 1 ; Up?
jr nz, .not_up
ld a, (cursor_row)
or a
jr z, .done ; Already at top
dec a
ld (cursor_row), a
jr .done
.not_up:
cp 2 ; Down?
jr nz, .not_down
ld a, (cursor_row)
cp BOARD_SIZE-1
jr z, .done ; Already at bottom
inc a
ld (cursor_row), a
jr .done
.not_down:
cp 3 ; Left?
jr nz, .not_left
ld a, (cursor_col)
or a
jr z, .done ; Already at left
dec a
ld (cursor_col), a
jr .done
.not_left:
cp 4 ; Right?
jr nz, .done
ld a, (cursor_col)
cp BOARD_SIZE-1
jr z, .done ; Already at right
inc a
ld (cursor_col), a
.done:
call draw_cursor ; Draw new cursor
ret
; ----------------------------------------------------------------------------
; Variables
; ----------------------------------------------------------------------------
cursor_row: defb 0 ; Cursor row (0-7)
cursor_col: defb 0 ; Cursor column (0-7)
key_pressed: defb 0 ; Last key: 0=none, 1=up, 2=down, 3=left, 4=right
; ----------------------------------------------------------------------------
; End
; ----------------------------------------------------------------------------
end start
That’s about 200 lines. Don’t worry about understanding all of it yet - we’ll explore each piece. For now, let’s look at the structure and make some changes.
The Main Loop
Every game follows the same pattern: set up, then loop forever.
; ----------------------------------------------------------------------------
; Entry Point
; ----------------------------------------------------------------------------
start:
call init_screen ; Clear screen and set border
call draw_board ; Draw the game board
call draw_cursor ; Show cursor at starting position
main_loop:
halt ; Wait for frame (50Hz timing)
call read_keyboard ; Check for input
call move_cursor ; Update cursor if moved
jp main_loop ; Repeat forever
The halt instruction waits for the next frame - the Spectrum draws the screen 50 times per second, and halt synchronises our code to that rhythm. Without it, the cursor would move impossibly fast.
Try This: Change the Border
Find this line near the top of init_screen:
xor a ; A = 0 (black)
out (KEY_PORT), a ; Set border colourThe xor a sets A to 0 (black). Change it to:
ld a, 1 ; A = 1 (blue)
out (KEY_PORT), a ; Set border colourReassemble and run. The border is now blue.
The Spectrum’s border colour is set by sending a value (0-7) to port $FE. The colours are:
| Value | Colour |
|---|---|
| 0 | Black |
| 1 | Blue |
| 2 | Red |
| 3 | Magenta |
| 4 | Green |
| 5 | Cyan |
| 6 | Yellow |
| 7 | White |
Try different values. See what happens with 2, 4, or 6.
Try This: Change the Board Colour
The board cells are white because of this constant:
EMPTY_ATTR equ %00111000 ; White paper, black ink (empty cell)That binary value %00111000 means:
- Bits 5-3 (PAPER):
111= 7 = white - Bits 2-0 (INK):
000= 0 = black
Change it to cyan paper:
EMPTY_ATTR equ %00101000 ; Cyan paper, black inkThe 101 in bits 5-3 is 5 = cyan. Reassemble and run - the board is now cyan.
Try This: Change the Cursor
The cursor flashes because of the FLASH bit:
CURSOR_ATTR equ %10111000 ; White paper, black ink + FLASHThe 1 at the start (bit 7) enables FLASH. Try changing it to BRIGHT instead:
CURSOR_ATTR equ %01111000 ; White paper, black ink + BRIGHTNow the cursor doesn’t flash - it’s just brighter than the other cells. Which do you prefer?
The Attribute Byte
You’ve been changing attribute values without fully understanding them. Here’s the format:
Bit: 7 6 5 4 3 2 1 0
FLASH BRIGHT PAPER INK- FLASH (bit 7): When set, the cell alternates between normal and inverted colours
- BRIGHT (bit 6): When set, colours are brighter
- PAPER (bits 5-3): Background colour (0-7)
- INK (bits 2-0): Foreground colour (0-7)
So %00111000 means: no flash, no bright, paper=7 (white), ink=0 (black).
And %10111000 means: flash ON, no bright, paper=7, ink=0.
Where Attributes Live
The Spectrum screen has 768 attribute cells arranged in a 32×24 grid. Each cell controls the colours of an 8×8 pixel area.
Attributes start at address $5800 (22528 decimal) and run to $5AFF. To find the attribute for row R, column C:
Address = $5800 + (R × 32) + COur board starts at row 8, column 12, so the top-left board cell is at:
$5800 + (8 × 32) + 12 = $5800 + 256 + 12 = $590CThat’s what the draw_board routine calculates.
The Keyboard
The Spectrum keyboard is arranged in half-rows. Each half-row has its own port address:
| Port | Keys (bit 0 → bit 4) |
|---|---|
| $FEFE | CAPS V C X Z |
| $FDFE | A S D F G |
| $FBFE | Q W E R T |
| $F7FE | 1 2 3 4 5 |
| $EFFE | 0 9 8 7 6 |
| $DFFE | P O I U Y |
| $BFFE | ENTER L K J H |
| $7FFE | SPACE SYM M N B |
To check if Q is pressed, we read port $FBFE and check bit 0. If the bit is 0 (active low), the key is down.
That’s what read_keyboard does for Q, A, O, and P.
What You’ve Learnt
- Running Z80 code - The
org 32768puts code at a safe address;end starttells the assembler where execution begins - The main loop - Setup once, then halt-read-update forever at 50Hz
- Border colour -
out (254), asets the border to colour 0-7 - Attribute memory - $5800-$5AFF, one byte per 8×8 cell
- Attribute format - FBPPPIII: flash, bright, paper colour, ink colour
- Keyboard reading -
in a, (port)reads a half-row; bits are active low
What’s Next
In Unit 2, we’ll add the ability to claim cells. Press Space, and the cell turns your colour. The game begins.
