Game 1 Unit 12 of 64 1 hr learning time
Corner and Edge Strategy
The AI now values strategic positions. Corners get priority, edges matter.
19% of Ink War
The AI now considers adjacency and defense, but it treats all board positions equally. A corner cell scores the same as a centre cell if they have the same neighbours. But in territory games, corners and edges are strategically different — they have fewer adjacent cells, making them easier to secure.
This unit adds positional awareness. Corners get a +2 bonus, edges get +1. The AI now prefers strategic positions, especially in the opening when few cells have neighbours.
Run It
pasmonext --sna inkwar.asm inkwar.sna

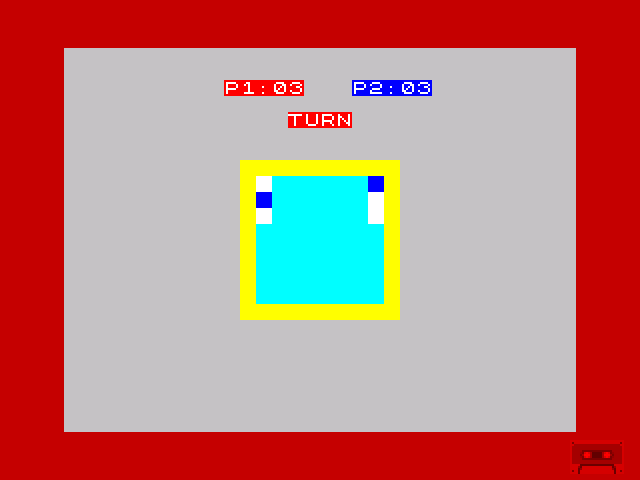

Watch the AI’s opening moves. It now gravitates toward corners and edges rather than claiming random centre cells.
Why Corners Matter
Consider a corner cell at position (0,0):
- Only 2 adjacent cells: (0,1) and (1,0)
- Easier to “secure” — fewer cells needed to surround it
Compare to a centre cell at (3,3):
- 4 adjacent cells: up, down, left, right
- More contested — more ways for opponents to claim adjacent territory
In games like Reversi/Othello, corners are famously valuable because once claimed, they can’t be flipped. Our game doesn’t have flipping, but the strategic principle remains: fewer neighbours means less exposure.
Position Bonus Calculation
The new function determines if a cell is a corner, edge, or centre:
; ----------------------------------------------------------------------------
; Get Position Bonus
; ----------------------------------------------------------------------------
; A = cell index (0-63)
; Returns A = position bonus (corner=2, edge=1, center=0)
get_position_bonus:
; Get row and column from index
ld b, a
and %00000111 ; Column (0-7)
ld c, a
ld a, b
rrca
rrca
rrca
and %00000111 ; Row (0-7)
ld b, a ; B = row, C = col
; Check for corner (row=0 or 7, col=0 or 7)
ld a, b
or a
jr z, .gpb_row_edge ; Row 0
cp 7
jr z, .gpb_row_edge ; Row 7
; Row is not edge
ld a, c
or a
jr z, .gpb_edge ; Col 0, row not edge = edge
cp 7
jr z, .gpb_edge ; Col 7, row not edge = edge
; Neither row nor col is edge = center
xor a ; Return 0
ret
.gpb_row_edge:
; Row is 0 or 7, check column
ld a, c
or a
jr z, .gpb_corner ; Col 0 = corner
cp 7
jr z, .gpb_corner ; Col 7 = corner
; Row edge but not corner
jr .gpb_edge
.gpb_corner:
ld a, 2 ; Corner bonus
ret
.gpb_edge:
ld a, 1 ; Edge bonus
ret
The logic:
- Extract row and column from the cell index
- Check if row is 0 or 7 (top/bottom edge)
- Check if column is 0 or 7 (left/right edge)
- Corner = both row AND column are edges
- Edge = either row OR column is edge (but not both)
- Centre = neither
Combined Scoring
The position bonus adds to the existing adjacency score:
; Empty cell - count adjacent AI cells (offense)
push bc
ld a, c
call count_adjacent_ai
ld b, a ; B = AI adjacent count
; Count adjacent human cells (defense)
ld a, c
call count_adjacent_p1
add a, b ; A = adjacency score
ld b, a ; B = adjacency score
; Add position bonus (corners=2, edges=1)
ld a, c
call get_position_bonus
add a, b ; A = total score
pop bc
; Total score = AI adjacent + P1 adjacent + position bonus
; Example: corner with 1 AI neighbor and 1 P1 neighbor = 1+1+2 = 4
; Example: center with 2 AI neighbors = 2+0+0 = 2
Three factors now contribute to each cell’s value:
- Adjacent AI cells (offense)
- Adjacent human cells (defense)
- Position bonus (strategy)
Opening Game Impact
The position bonus has the biggest impact early in the game:
Without position bonus (Unit 11):
- First AI move is random (no neighbours yet)
- Any empty cell scores 0
- No preference for strategic positions
With position bonus (Unit 12):
- Corner cells score 2 even with no neighbours
- Edge cells score 1
- AI prefers corners > edges > centre
As the game progresses and cells accumulate neighbours, adjacency scores dominate. But the opening moves now show strategic awareness.
The Board Layout
Visualising the position bonuses:
2 1 1 1 1 1 1 2 <- corners (2) and top edge (1)
1 0 0 0 0 0 0 1 <- left/right edges (1), centre (0)
1 0 0 0 0 0 0 1
1 0 0 0 0 0 0 1
1 0 0 0 0 0 0 1
1 0 0 0 0 0 0 1
1 0 0 0 0 0 0 1
2 1 1 1 1 1 1 2 <- corners (2) and bottom edge (1)24 edge cells (including 4 corners) get bonuses. The remaining 40 centre cells get none.
The Complete Code
; ============================================================================
; INK WAR - Unit 12: Corner and Edge Strategy
; ============================================================================
; AI now values strategic positions. Corners get +2 bonus, edges get +1.
; Combined with adjacency scoring for smarter opening moves.
;
; Controls: Q=Up, A=Down, O=Left, P=Right, SPACE=Claim
; 1=Two Player, 2=vs Computer (on title screen)
; ============================================================================
org 32768
; ----------------------------------------------------------------------------
; Constants
; ----------------------------------------------------------------------------
ATTR_BASE equ $5800
DISPLAY_FILE equ $4000
CHAR_SET equ $3C00 ; ROM character set base address
BOARD_ROW equ 8
BOARD_COL equ 12
BOARD_SIZE equ 8
; Display positions
SCORE_ROW equ 2 ; Score display row
P1_SCORE_COL equ 10 ; "P1: nn" column
P2_SCORE_COL equ 18 ; "P2: nn" column
TURN_ROW equ 4 ; Turn indicator row
TURN_COL equ 14 ; Turn indicator column
RESULT_ROW equ 20 ; Winner message row
RESULT_COL equ 11 ; Winner message column
; Game constants
TOTAL_CELLS equ 64 ; 8x8 board
; Customised colours (from Unit 3)
EMPTY_ATTR equ %01101000 ; Cyan paper + BRIGHT
BORDER_ATTR equ %01110000 ; Yellow paper + BRIGHT
CURSOR_ATTR equ %01111000 ; White paper + BRIGHT
P1_ATTR equ %01010000 ; Red paper + BRIGHT
P2_ATTR equ %01001000 ; Blue paper + BRIGHT
P1_CURSOR equ %01111010 ; White paper + Red ink + BRIGHT
P2_CURSOR equ %01111001 ; White paper + Blue ink + BRIGHT
; Text display attributes
TEXT_ATTR equ %00111000 ; White paper, black ink
P1_TEXT equ %01010111 ; Red paper, white ink + BRIGHT
P2_TEXT equ %01001111 ; Blue paper, white ink + BRIGHT
P1_BORDER equ 2
P2_BORDER equ 1
ERROR_BORDER equ 2 ; Red border for errors
; Keyboard ports
KEY_PORT equ $fe
ROW_QAOP equ $fb
ROW_ASDF equ $fd
ROW_YUIOP equ $df
ROW_SPACE equ $7f
; Cell states
STATE_EMPTY equ 0
STATE_P1 equ 1
STATE_P2 equ 2
; Game states (state machine)
GS_TITLE equ 0
GS_PLAYING equ 1
GS_RESULTS equ 2
; Game modes
GM_TWO_PLAYER equ 0
GM_VS_AI equ 1
; AI timing
AI_DELAY equ 25 ; Frames before AI moves (~0.5 sec)
; Title screen positions
TITLE_ROW equ 8
TITLE_COL equ 12 ; "INK WAR" (7 chars) centred: (32-7)/2=12.5
MODE1_ROW equ 14 ; "1 - TWO PLAYER"
MODE1_COL equ 9 ; (32-14)/2 = 9
MODE2_ROW equ 16 ; "2 - VS COMPUTER"
MODE2_COL equ 8 ; (32-15)/2 = 8.5
; Results screen positions
CONTINUE_ROW equ 22 ; "PRESS ANY KEY" after results
CONTINUE_COL equ 9 ; (32-13)/2 = 9.5
; Input timing
KEY_DELAY equ 8 ; Frames between key repeats
; ----------------------------------------------------------------------------
; Entry Point
; ----------------------------------------------------------------------------
start:
; Start at title screen
ld a, GS_TITLE
ld (game_state), a
call init_screen
call draw_title_screen
; Black border for title
xor a
out (KEY_PORT), a
main_loop:
halt
; Dispatch based on game state
ld a, (game_state)
or a
jr z, state_title ; GS_TITLE = 0
cp GS_PLAYING
jr z, state_playing
; Must be GS_RESULTS - handled inline after game over
jp main_loop
; ----------------------------------------------------------------------------
; State: Title
; ----------------------------------------------------------------------------
; Waits for 1 (Two Player) or 2 (vs Computer)
ROW_12345 equ $f7 ; Keyboard row for 1,2,3,4,5
state_title:
; Check for key 1 (Two Player)
ld a, ROW_12345
in a, (KEY_PORT)
bit 0, a ; Key 1
jr z, .st_two_player
; Check for key 2 (vs Computer)
bit 1, a ; Key 2
jr z, .st_vs_ai
jp main_loop ; No valid key - keep waiting
.st_two_player:
xor a ; GM_TWO_PLAYER = 0
ld (game_mode), a
call start_game
jp main_loop
.st_vs_ai:
ld a, GM_VS_AI
ld (game_mode), a
call start_game
jp main_loop
; ----------------------------------------------------------------------------
; State: Playing
; ----------------------------------------------------------------------------
state_playing:
; Check if AI's turn (Player 2 in vs AI mode)
ld a, (game_mode)
or a
jr z, .sp_human ; Two player mode - human controls
; vs AI mode - check if Player 2's turn
ld a, (current_player)
cp 2
jr z, .sp_ai_turn
.sp_human:
; Human player's turn
call read_keyboard
call handle_input
jp main_loop
.sp_ai_turn:
; AI's turn - use delay counter
ld a, (ai_timer)
or a
jr z, .sp_ai_move ; Timer expired, make move
; Still waiting
dec a
ld (ai_timer), a
jp main_loop
.sp_ai_move:
; Reset timer for next AI turn
ld a, AI_DELAY
ld (ai_timer), a
; AI makes a move
call ai_make_move
jp main_loop
; ----------------------------------------------------------------------------
; Start Game
; ----------------------------------------------------------------------------
; Transitions from title to playing state
start_game:
ld a, GS_PLAYING
ld (game_state), a
call init_screen
call init_game
call draw_board_border
call draw_board
call draw_ui
call draw_cursor
call update_border
; Wait for key release before playing
call wait_key_release
ret
; ----------------------------------------------------------------------------
; Initialise Screen
; ----------------------------------------------------------------------------
init_screen:
xor a
out (KEY_PORT), a
; Clear display file (pixels)
ld hl, DISPLAY_FILE
ld de, DISPLAY_FILE+1
ld bc, 6143
ld (hl), 0
ldir
; Clear all attributes to white paper, black ink
ld hl, ATTR_BASE
ld de, ATTR_BASE+1
ld bc, 767
ld (hl), TEXT_ATTR ; White background for text areas
ldir
ret
; ----------------------------------------------------------------------------
; Draw UI
; ----------------------------------------------------------------------------
; Draws score display and turn indicator
draw_ui:
call draw_scores
call draw_turn_indicator
ret
; ----------------------------------------------------------------------------
; Draw Scores
; ----------------------------------------------------------------------------
; Displays "P1: nn P2: nn" with player colours
draw_scores:
; Count cells for each player
call count_cells
; Draw P1 label "P1:"
ld b, SCORE_ROW
ld c, P1_SCORE_COL
ld a, 'P'
call print_char
inc c
ld a, '1'
call print_char
inc c
ld a, ':'
call print_char
inc c
; Print P1 score
ld a, (p1_count)
call print_two_digits
; Set P1 colour attribute
ld a, SCORE_ROW
ld c, P1_SCORE_COL
ld b, 5 ; "P1:nn" = 5 characters
ld e, P1_TEXT
call set_attr_range
; Draw P2 label "P2:"
ld b, SCORE_ROW
ld c, P2_SCORE_COL
ld a, 'P'
call print_char
inc c
ld a, '2'
call print_char
inc c
ld a, ':'
call print_char
inc c
; Print P2 score
ld a, (p2_count)
call print_two_digits
; Set P2 colour attribute
ld a, SCORE_ROW
ld c, P2_SCORE_COL
ld b, 5
ld e, P2_TEXT
call set_attr_range
ret
; ----------------------------------------------------------------------------
; Draw Turn Indicator
; ----------------------------------------------------------------------------
; Shows "TURN" with current player's colour
draw_turn_indicator:
; Print "TURN"
ld b, TURN_ROW
ld c, TURN_COL
ld a, 'T'
call print_char
inc c
ld a, 'U'
call print_char
inc c
ld a, 'R'
call print_char
inc c
ld a, 'N'
call print_char
; Set attribute based on current player
ld a, (current_player)
cp 1
jr z, .dti_p1
ld e, P2_TEXT
jr .dti_set
.dti_p1:
ld e, P1_TEXT
.dti_set:
ld a, TURN_ROW
ld c, TURN_COL
ld b, 4 ; "TURN" = 4 chars
call set_attr_range
ret
; ----------------------------------------------------------------------------
; Print Character
; ----------------------------------------------------------------------------
; A = ASCII character (32-127), B = row (0-23), C = column (0-31)
; Writes character directly to display file using ROM character set
print_char:
push bc
push de
push hl
push af
; Calculate character data address: CHAR_SET + char*8
ld l, a
ld h, 0
add hl, hl
add hl, hl
add hl, hl ; HL = char * 8
ld de, CHAR_SET
add hl, de ; HL = source address
push hl ; Save character data address
; Calculate display file address
; Screen address: high byte varies with row, low byte = column
ld a, b ; A = row (0-23)
and %00011000 ; Get which third (0, 8, 16)
add a, $40 ; Add display file base high byte
ld d, a
ld a, b ; A = row
and %00000111 ; Get line within character row
rrca
rrca
rrca ; Shift to bits 5-7
add a, c ; Add column
ld e, a ; DE = screen address
pop hl ; HL = character data
; Copy 8 bytes (8 pixel rows of character)
ld b, 8
.pc_loop:
ld a, (hl)
ld (de), a
inc hl
inc d ; Next screen line (add 256)
djnz .pc_loop
pop af
pop hl
pop de
pop bc
ret
; ----------------------------------------------------------------------------
; Print Two Digits
; ----------------------------------------------------------------------------
; A = number (0-99), B = row, C = column (will advance by 2)
; Prints number as two digits
print_two_digits:
push bc
; Calculate tens digit
ld d, 0 ; Tens counter
.ptd_tens:
cp 10
jr c, .ptd_print
sub 10
inc d
jr .ptd_tens
.ptd_print:
push af ; Save units digit
; Print tens digit
ld a, d
add a, '0'
call print_char
inc c
; Print units digit
pop af
add a, '0'
call print_char
inc c
pop bc
ret
; ----------------------------------------------------------------------------
; Count Cells
; ----------------------------------------------------------------------------
; Counts cells owned by each player
count_cells:
xor a
ld (p1_count), a
ld (p2_count), a
ld hl, board_state
ld b, 64 ; 64 cells
.cc_loop:
ld a, (hl)
cp STATE_P1
jr nz, .cc_not_p1
ld a, (p1_count)
inc a
ld (p1_count), a
jr .cc_next
.cc_not_p1:
cp STATE_P2
jr nz, .cc_next
ld a, (p2_count)
inc a
ld (p2_count), a
.cc_next:
inc hl
djnz .cc_loop
ret
; ----------------------------------------------------------------------------
; Set Attribute Range
; ----------------------------------------------------------------------------
; A = row, C = start column, B = count, E = attribute
set_attr_range:
push bc
push de
; Calculate start address: ATTR_BASE + row*32 + col
ld l, a
ld h, 0
add hl, hl
add hl, hl
add hl, hl
add hl, hl
add hl, hl ; HL = row * 32
ld a, c
add a, l
ld l, a
ld bc, ATTR_BASE
add hl, bc ; HL = attribute address
pop de ; E = attribute
pop bc ; B = count
.sar_loop:
ld (hl), e
inc hl
djnz .sar_loop
ret
; ----------------------------------------------------------------------------
; Update Border
; ----------------------------------------------------------------------------
update_border:
ld a, (current_player)
cp 1
jr z, .ub_p1
ld a, P2_BORDER
jr .ub_set
.ub_p1:
ld a, P1_BORDER
.ub_set:
out (KEY_PORT), a
ret
; ----------------------------------------------------------------------------
; Initialise Game State
; ----------------------------------------------------------------------------
init_game:
ld hl, board_state
ld b, 64
xor a
.ig_loop:
ld (hl), a
inc hl
djnz .ig_loop
ld a, 1
ld (current_player), a
xor a
ld (cursor_row), a
ld (cursor_col), a
ld (p1_count), a
ld (p2_count), a
ld (last_key), a ; No previous key
ld (key_timer), a ; No delay active
; Initialize AI timer
ld a, AI_DELAY
ld (ai_timer), a
ret
; ----------------------------------------------------------------------------
; Draw Board Border
; ----------------------------------------------------------------------------
draw_board_border:
ld c, BOARD_ROW-1
ld d, BOARD_COL-1
ld b, BOARD_SIZE+2
call draw_border_row
ld c, BOARD_ROW+BOARD_SIZE
ld d, BOARD_COL-1
ld b, BOARD_SIZE+2
call draw_border_row
ld c, BOARD_ROW
ld d, BOARD_COL-1
ld b, BOARD_SIZE
call draw_border_col
ld c, BOARD_ROW
ld d, BOARD_COL+BOARD_SIZE
ld b, BOARD_SIZE
call draw_border_col
ret
draw_border_row:
push bc
.dbr_loop:
push bc
push de
ld a, c
ld l, a
ld h, 0
add hl, hl
add hl, hl
add hl, hl
add hl, hl
add hl, hl
ld a, d
add a, l
ld l, a
ld bc, ATTR_BASE
add hl, bc
ld (hl), BORDER_ATTR
pop de
pop bc
inc d
djnz .dbr_loop
pop bc
ret
draw_border_col:
push bc
.dbc_loop:
push bc
push de
ld a, c
ld l, a
ld h, 0
add hl, hl
add hl, hl
add hl, hl
add hl, hl
add hl, hl
ld a, d
add a, l
ld l, a
ld bc, ATTR_BASE
add hl, bc
ld (hl), BORDER_ATTR
pop de
pop bc
inc c
djnz .dbc_loop
pop bc
ret
; ----------------------------------------------------------------------------
; Draw Board
; ----------------------------------------------------------------------------
draw_board:
ld b, BOARD_SIZE
ld c, BOARD_ROW
.db_row:
push bc
ld b, BOARD_SIZE
ld d, BOARD_COL
.db_col:
push bc
ld a, c
ld l, a
ld h, 0
add hl, hl
add hl, hl
add hl, hl
add hl, hl
add hl, hl
ld a, d
add a, l
ld l, a
ld bc, ATTR_BASE
add hl, bc
ld (hl), EMPTY_ATTR
pop bc
inc d
djnz .db_col
pop bc
inc c
djnz .db_row
ret
; ----------------------------------------------------------------------------
; Draw Cursor
; ----------------------------------------------------------------------------
draw_cursor:
call get_cell_state
cp STATE_P1
jr z, .dc_p1
cp STATE_P2
jr z, .dc_p2
ld a, CURSOR_ATTR
jr .dc_set
.dc_p1:
ld a, P1_CURSOR
jr .dc_set
.dc_p2:
ld a, P2_CURSOR
.dc_set:
push af
ld a, (cursor_row)
add a, BOARD_ROW
ld l, a
ld h, 0
add hl, hl
add hl, hl
add hl, hl
add hl, hl
add hl, hl
ld a, (cursor_col)
add a, BOARD_COL
add a, l
ld l, a
ld bc, ATTR_BASE
add hl, bc
pop af
ld (hl), a
ret
; ----------------------------------------------------------------------------
; Clear Cursor
; ----------------------------------------------------------------------------
clear_cursor:
call get_cell_state
cp STATE_P1
jr z, .clc_p1
cp STATE_P2
jr z, .clc_p2
ld a, EMPTY_ATTR
jr .clc_set
.clc_p1:
ld a, P1_ATTR
jr .clc_set
.clc_p2:
ld a, P2_ATTR
.clc_set:
push af
ld a, (cursor_row)
add a, BOARD_ROW
ld l, a
ld h, 0
add hl, hl
add hl, hl
add hl, hl
add hl, hl
add hl, hl
ld a, (cursor_col)
add a, BOARD_COL
add a, l
ld l, a
ld bc, ATTR_BASE
add hl, bc
pop af
ld (hl), a
ret
; ----------------------------------------------------------------------------
; Get Cell State
; ----------------------------------------------------------------------------
get_cell_state:
ld a, (cursor_row)
add a, a
add a, a
add a, a
ld hl, board_state
ld b, 0
ld c, a
add hl, bc
ld a, (cursor_col)
ld c, a
add hl, bc
ld a, (hl)
ret
; ----------------------------------------------------------------------------
; Read Keyboard
; ----------------------------------------------------------------------------
read_keyboard:
xor a
ld (key_pressed), a
ld a, ROW_QAOP
in a, (KEY_PORT)
bit 0, a
jr nz, .rk_not_q
ld a, 1
ld (key_pressed), a
ret
.rk_not_q:
ld a, ROW_ASDF
in a, (KEY_PORT)
bit 0, a
jr nz, .rk_not_a
ld a, 2
ld (key_pressed), a
ret
.rk_not_a:
ld a, ROW_YUIOP
in a, (KEY_PORT)
bit 1, a
jr nz, .rk_not_o
ld a, 3
ld (key_pressed), a
ret
.rk_not_o:
ld a, ROW_YUIOP
in a, (KEY_PORT)
bit 0, a
jr nz, .rk_not_p
ld a, 4
ld (key_pressed), a
ret
.rk_not_p:
ld a, ROW_SPACE
in a, (KEY_PORT)
bit 0, a
jr nz, .rk_not_space
ld a, 5
ld (key_pressed), a
.rk_not_space:
ret
; ----------------------------------------------------------------------------
; Handle Input
; ----------------------------------------------------------------------------
; Implements key repeat delay for smooth cursor movement
handle_input:
ld a, (key_pressed)
or a
jr nz, .hi_have_key
; No key pressed - reset tracking
xor a
ld (last_key), a
ld (key_timer), a
ret
.hi_have_key:
; Space (claim) always works immediately
cp 5
jr z, try_claim
; Check if same key as last frame
ld b, a ; Save current key
ld a, (last_key)
cp b
jr nz, .hi_new_key
; Same key - check timer
ld a, (key_timer)
or a
jr z, .hi_allow ; Timer expired, allow repeat
dec a
ld (key_timer), a
ret ; Still waiting
.hi_new_key:
; New key pressed - save it and reset timer
ld a, b
ld (last_key), a
ld a, KEY_DELAY
ld (key_timer), a
.hi_allow:
; Process movement
call clear_cursor
ld a, (key_pressed)
cp 1
jr nz, .hi_not_up
ld a, (cursor_row)
or a
jr z, .hi_done
dec a
ld (cursor_row), a
jr .hi_done
.hi_not_up:
cp 2
jr nz, .hi_not_down
ld a, (cursor_row)
cp BOARD_SIZE-1
jr z, .hi_done
inc a
ld (cursor_row), a
jr .hi_done
.hi_not_down:
cp 3
jr nz, .hi_not_left
ld a, (cursor_col)
or a
jr z, .hi_done
dec a
ld (cursor_col), a
jr .hi_done
.hi_not_left:
cp 4
jr nz, .hi_done
ld a, (cursor_col)
cp BOARD_SIZE-1
jr z, .hi_done
inc a
ld (cursor_col), a
.hi_done:
call draw_cursor
ret
; ----------------------------------------------------------------------------
; Try Claim Cell
; ----------------------------------------------------------------------------
try_claim:
call get_cell_state
or a
jr z, .tc_valid
; Cell already claimed - error feedback
call sound_error
call flash_border_error
call update_border ; Restore correct border colour
ret
.tc_valid:
; Valid move - claim the cell
call claim_cell
call sound_claim
ld a, (current_player)
xor 3
ld (current_player), a
call draw_ui ; Update scores and turn indicator
; Check if game is over
call check_game_over
or a
jr z, .tc_continue
; Game over - show results and return to title
call show_results
call victory_celebration
call wait_for_key
; Return to title screen
ld a, GS_TITLE
ld (game_state), a
call init_screen
call draw_title_screen
xor a
out (KEY_PORT), a ; Black border for title
ret
.tc_continue:
call update_border
call draw_cursor
ret
; ----------------------------------------------------------------------------
; Claim Cell
; ----------------------------------------------------------------------------
claim_cell:
ld a, (cursor_row)
add a, a
add a, a
add a, a
ld hl, board_state
ld b, 0
ld c, a
add hl, bc
ld a, (cursor_col)
ld c, a
add hl, bc
ld a, (current_player)
ld (hl), a
push af
ld a, (cursor_row)
add a, BOARD_ROW
ld l, a
ld h, 0
add hl, hl
add hl, hl
add hl, hl
add hl, hl
add hl, hl
ld a, (cursor_col)
add a, BOARD_COL
add a, l
ld l, a
ld bc, ATTR_BASE
add hl, bc
pop af
cp 1
jr z, .clm_is_p1
ld (hl), P2_ATTR
ret
.clm_is_p1:
ld (hl), P1_ATTR
ret
; ----------------------------------------------------------------------------
; Sound - Claim
; ----------------------------------------------------------------------------
sound_claim:
ld hl, 400
ld b, 20
.scl_loop:
push bc
push hl
ld b, h
ld c, l
.scl_tone:
ld a, $10
out (KEY_PORT), a
call .scl_delay
xor a
out (KEY_PORT), a
call .scl_delay
dec bc
ld a, b
or c
jr nz, .scl_tone
pop hl
pop bc
ld de, 20
or a
sbc hl, de
djnz .scl_loop
ret
.scl_delay:
push bc
ld b, 5
.scl_delay_loop:
djnz .scl_delay_loop
pop bc
ret
; ----------------------------------------------------------------------------
; Sound - Error
; ----------------------------------------------------------------------------
; Harsh buzz for invalid move
sound_error:
ld b, 30 ; Duration
.se_loop:
push bc
; Low frequency buzz (longer delay = lower pitch)
ld a, $10
out (KEY_PORT), a
ld c, 80 ; Longer delay for low pitch
.se_delay1:
dec c
jr nz, .se_delay1
xor a
out (KEY_PORT), a
ld c, 80
.se_delay2:
dec c
jr nz, .se_delay2
pop bc
djnz .se_loop
ret
; ----------------------------------------------------------------------------
; Flash Border Error
; ----------------------------------------------------------------------------
; Flash border red briefly to indicate error
flash_border_error:
; Flash red 3 times
ld b, 3
.fbe_loop:
push bc
; Red border
ld a, ERROR_BORDER
out (KEY_PORT), a
; Short delay (about 3 frames)
ld bc, 8000
.fbe_delay1:
dec bc
ld a, b
or c
jr nz, .fbe_delay1
; Black border (brief off)
xor a
out (KEY_PORT), a
; Short delay
ld bc, 4000
.fbe_delay2:
dec bc
ld a, b
or c
jr nz, .fbe_delay2
pop bc
djnz .fbe_loop
ret
; ----------------------------------------------------------------------------
; Check Game Over
; ----------------------------------------------------------------------------
; Returns A=1 if game is over (board full), A=0 otherwise
check_game_over:
; Game is over when p1_count + p2_count == 64
ld a, (p1_count)
ld b, a
ld a, (p2_count)
add a, b
cp TOTAL_CELLS
jr z, .cgo_over
xor a ; Not over
ret
.cgo_over:
ld a, 1 ; Game over
ret
; ----------------------------------------------------------------------------
; Show Results
; ----------------------------------------------------------------------------
; Displays winner message based on scores
show_results:
; Clear turn indicator
ld a, TURN_ROW
ld c, TURN_COL
ld b, 4
ld e, TEXT_ATTR
call set_attr_range
; Determine winner
ld a, (p1_count)
ld b, a
ld a, (p2_count)
cp b
jr c, .sr_p1_wins ; p2 < p1, so p1 wins
jr z, .sr_draw ; p1 == p2, draw
; p2 > p1, p2 wins
jr .sr_p2_wins
.sr_p1_wins:
; Display "P1 WINS!"
ld b, RESULT_ROW
ld c, RESULT_COL
ld hl, msg_p1_wins
ld e, P1_TEXT
call print_message
jr .sr_continue
.sr_p2_wins:
; Display "P2 WINS!"
ld b, RESULT_ROW
ld c, RESULT_COL
ld hl, msg_p2_wins
ld e, P2_TEXT
call print_message
jr .sr_continue
.sr_draw:
; Display "DRAW!"
ld b, RESULT_ROW
ld c, RESULT_COL + 2 ; Centre "DRAW!" better
ld hl, msg_draw
ld e, TEXT_ATTR
call print_message
.sr_continue:
; Display "PRESS ANY KEY" prompt
ld b, CONTINUE_ROW
ld c, CONTINUE_COL
ld hl, msg_continue
ld e, TEXT_ATTR
call print_message
ret
; ----------------------------------------------------------------------------
; Print Message
; ----------------------------------------------------------------------------
; HL = pointer to null-terminated string
; B = row, C = starting column, E = attribute for message area
print_message:
; Save parameters we need later
push de ; Save attribute in E
push bc ; Save row (B) and start column (C)
; Print characters
.pm_loop:
ld a, (hl)
or a
jr z, .pm_done
call print_char
inc hl
inc c
jr .pm_loop
.pm_done:
; C now has end column
; Calculate length: end_col - start_col
ld a, c ; A = end column
pop bc ; B = row, C = start column
sub c ; A = length
ld d, a ; D = length (save it)
; Set up for set_attr_range: A=row, C=start_col, B=count, E=attr
ld a, b ; A = row
ld b, d ; B = count (length)
pop de ; E = attribute
call set_attr_range
ret
; ----------------------------------------------------------------------------
; Victory Celebration
; ----------------------------------------------------------------------------
; Flashes border in winner's colour
victory_celebration:
; Determine winner's border colour
ld a, (p1_count)
ld b, a
ld a, (p2_count)
cp b
jr c, .vc_p1 ; p2 < p1
jr z, .vc_draw ; draw - use white
ld d, P2_BORDER ; p2 wins
jr .vc_flash
.vc_p1:
ld d, P1_BORDER
jr .vc_flash
.vc_draw:
ld d, 7 ; White for draw
.vc_flash:
; Flash border 5 times
ld b, 5
.vc_loop:
push bc
; Winner's colour
ld a, d
out (KEY_PORT), a
; Delay
ld bc, 15000
.vc_delay1:
dec bc
ld a, b
or c
jr nz, .vc_delay1
; Black
xor a
out (KEY_PORT), a
; Delay
ld bc, 10000
.vc_delay2:
dec bc
ld a, b
or c
jr nz, .vc_delay2
pop bc
djnz .vc_loop
ret
; ----------------------------------------------------------------------------
; Draw Title Screen
; ----------------------------------------------------------------------------
; Displays game title and prompt
draw_title_screen:
; Draw "INK WAR" title
ld b, TITLE_ROW
ld c, TITLE_COL
ld hl, msg_title
ld e, TEXT_ATTR
call print_message
; Draw "1 - TWO PLAYER"
ld b, MODE1_ROW
ld c, MODE1_COL
ld hl, msg_mode1
ld e, TEXT_ATTR
call print_message
; Draw "2 - VS COMPUTER"
ld b, MODE2_ROW
ld c, MODE2_COL
ld hl, msg_mode2
ld e, TEXT_ATTR
call print_message
ret
; ----------------------------------------------------------------------------
; Wait Key Release
; ----------------------------------------------------------------------------
; Waits until all keys are released
wait_key_release:
.wkr_loop:
xor a
in a, (KEY_PORT)
cpl ; Invert (keys are active low)
and %00011111 ; Mask to key bits
jr nz, .wkr_loop ; Still holding a key
ret
; ----------------------------------------------------------------------------
; Wait For Key
; ----------------------------------------------------------------------------
; Waits until any key is pressed
wait_for_key:
; First wait for all keys to be released
.wfk_release:
xor a
in a, (KEY_PORT)
cpl ; Invert (keys are active low)
and %00011111 ; Mask to key bits
jr nz, .wfk_release
; Now wait for a key press
.wfk_wait:
halt ; Wait for interrupt
xor a
in a, (KEY_PORT)
cpl
and %00011111
jr z, .wfk_wait
ret
; ----------------------------------------------------------------------------
; AI Make Move
; ----------------------------------------------------------------------------
; AI picks best adjacent cell (or random if none)
ai_make_move:
; Find best cell adjacent to AI territory
call find_best_adjacent_cell
; A = cell index (0-63), or $FF if board full
cp $ff
ret z ; No empty cells (shouldn't happen)
; Convert index to row/col and set cursor
ld b, a
and %00000111 ; Column = index AND 7
ld (cursor_col), a
ld a, b
rrca
rrca
rrca
and %00000111 ; Row = index >> 3
ld (cursor_row), a
; Claim the cell (reuse existing code)
call claim_cell
call sound_claim
; Switch player
ld a, (current_player)
xor 3
ld (current_player), a
call draw_ui
; Check if game is over
call check_game_over
or a
jr z, .aim_continue
; Game over - show results and return to title
call show_results
call victory_celebration
call wait_for_key
; Return to title screen
ld a, GS_TITLE
ld (game_state), a
call init_screen
call draw_title_screen
xor a
out (KEY_PORT), a ; Black border for title
ret
.aim_continue:
call update_border
call draw_cursor
ret
; ----------------------------------------------------------------------------
; Find Best Cell (Offense + Defense + Position)
; ----------------------------------------------------------------------------
; Returns A = index of empty cell with best combined score, or $FF if none
; Score = adjacent AI + adjacent human + position bonus (corner=2, edge=1)
; This makes the AI value strategic positions in addition to adjacency
find_best_adjacent_cell:
; Initialize best tracking
ld a, $ff
ld (best_cell), a ; No best cell yet
xor a
ld (best_score), a ; Best score = 0
; Scan all 64 cells
ld c, 0 ; C = current cell index
.fbac_loop:
; Check if cell is empty
ld hl, board_state
ld d, 0
ld e, c
add hl, de
ld a, (hl)
or a
jr nz, .fbac_next ; Not empty, skip
; Empty cell - count adjacent AI cells (offense)
push bc
ld a, c
call count_adjacent_ai
ld b, a ; B = AI adjacent count
; Count adjacent human cells (defense)
ld a, c
call count_adjacent_p1
add a, b ; A = adjacency score
ld b, a ; B = adjacency score
; Add position bonus (corners=2, edges=1)
ld a, c
call get_position_bonus
add a, b ; A = total score
pop bc
; Compare with best score
ld b, a ; B = this score
ld a, (best_score)
cp b
jr nc, .fbac_next ; Current best >= this score
; New best found
ld a, b
ld (best_score), a
ld a, c
ld (best_cell), a
.fbac_next:
inc c
ld a, c
cp 64
jr c, .fbac_loop ; Continue if c < 64
; Check if we found a good cell
ld a, (best_score)
or a
jr z, .fbac_random ; No scored cells, use random
; Return best cell
ld a, (best_cell)
ret
.fbac_random:
; Fall back to random empty cell
call find_random_empty_cell
ret
best_cell: defb 0
best_score: defb 0
; ----------------------------------------------------------------------------
; Get Position Bonus
; ----------------------------------------------------------------------------
; A = cell index (0-63)
; Returns A = position bonus (corner=2, edge=1, center=0)
get_position_bonus:
; Get row and column from index
ld b, a
and %00000111 ; Column (0-7)
ld c, a
ld a, b
rrca
rrca
rrca
and %00000111 ; Row (0-7)
ld b, a ; B = row, C = col
; Check for corner (row=0 or 7, col=0 or 7)
ld a, b
or a
jr z, .gpb_row_edge ; Row 0
cp 7
jr z, .gpb_row_edge ; Row 7
; Row is not edge
ld a, c
or a
jr z, .gpb_edge ; Col 0, row not edge = edge
cp 7
jr z, .gpb_edge ; Col 7, row not edge = edge
; Neither row nor col is edge = center
xor a ; Return 0
ret
.gpb_row_edge:
; Row is 0 or 7, check column
ld a, c
or a
jr z, .gpb_corner ; Col 0 = corner
cp 7
jr z, .gpb_corner ; Col 7 = corner
; Row edge but not corner
jr .gpb_edge
.gpb_corner:
ld a, 2 ; Corner bonus
ret
.gpb_edge:
ld a, 1 ; Edge bonus
ret
; ----------------------------------------------------------------------------
; Count Adjacent AI Cells
; ----------------------------------------------------------------------------
; A = cell index (0-63)
; Returns A = count of adjacent cells owned by AI (P2)
count_adjacent_ai:
ld (temp_cell), a
xor a
ld (adj_count), a
; Get row and column
ld a, (temp_cell)
ld b, a
and %00000111 ; Column
ld c, a
ld a, b
rrca
rrca
rrca
and %00000111 ; Row
ld b, a ; B = row, C = col
; Check up (row-1)
ld a, b
or a
jr z, .caa_skip_up ; Row 0, no up neighbor
dec a ; Row - 1
push bc
ld b, a
call .caa_check_cell
pop bc
.caa_skip_up:
; Check down (row+1)
ld a, b
cp 7
jr z, .caa_skip_down ; Row 7, no down neighbor
inc a ; Row + 1
push bc
ld b, a
call .caa_check_cell
pop bc
.caa_skip_down:
; Check left (col-1)
ld a, c
or a
jr z, .caa_skip_left ; Col 0, no left neighbor
dec a ; Col - 1
push bc
ld c, a
call .caa_check_cell
pop bc
.caa_skip_left:
; Check right (col+1)
ld a, c
cp 7
jr z, .caa_skip_right ; Col 7, no right neighbor
inc a ; Col + 1
push bc
ld c, a
call .caa_check_cell
pop bc
.caa_skip_right:
ld a, (adj_count)
ret
; Helper: check if cell at (B,C) is AI owned
.caa_check_cell:
; Calculate index: row*8 + col
ld a, b
rlca
rlca
rlca ; Row * 8
add a, c ; + col
ld hl, board_state
ld d, 0
ld e, a
add hl, de
ld a, (hl)
cp STATE_P2 ; AI is Player 2
ret nz ; Not AI cell
; AI cell - increment count
ld a, (adj_count)
inc a
ld (adj_count), a
ret
temp_cell: defb 0
adj_count: defb 0
; ----------------------------------------------------------------------------
; Count Adjacent Human Cells
; ----------------------------------------------------------------------------
; A = cell index (0-63)
; Returns A = count of adjacent cells owned by human (P1)
count_adjacent_p1:
ld (temp_cell), a
xor a
ld (adj_count), a
; Get row and column
ld a, (temp_cell)
ld b, a
and %00000111 ; Column
ld c, a
ld a, b
rrca
rrca
rrca
and %00000111 ; Row
ld b, a ; B = row, C = col
; Check up (row-1)
ld a, b
or a
jr z, .cap_skip_up ; Row 0, no up neighbor
dec a ; Row - 1
push bc
ld b, a
call .cap_check_cell
pop bc
.cap_skip_up:
; Check down (row+1)
ld a, b
cp 7
jr z, .cap_skip_down ; Row 7, no down neighbor
inc a ; Row + 1
push bc
ld b, a
call .cap_check_cell
pop bc
.cap_skip_down:
; Check left (col-1)
ld a, c
or a
jr z, .cap_skip_left ; Col 0, no left neighbor
dec a ; Col - 1
push bc
ld c, a
call .cap_check_cell
pop bc
.cap_skip_left:
; Check right (col+1)
ld a, c
cp 7
jr z, .cap_skip_right ; Col 7, no right neighbor
inc a ; Col + 1
push bc
ld c, a
call .cap_check_cell
pop bc
.cap_skip_right:
ld a, (adj_count)
ret
; Helper: check if cell at (B,C) is human owned
.cap_check_cell:
; Calculate index: row*8 + col
ld a, b
rlca
rlca
rlca ; Row * 8
add a, c ; + col
ld hl, board_state
ld d, 0
ld e, a
add hl, de
ld a, (hl)
cp STATE_P1 ; Human is Player 1
ret nz ; Not human cell
; Human cell - increment count
ld a, (adj_count)
inc a
ld (adj_count), a
ret
; ----------------------------------------------------------------------------
; Find Random Empty Cell
; ----------------------------------------------------------------------------
; Returns A = index of a random empty cell (0-63), or $FF if none
find_random_empty_cell:
; Get random starting position
call get_random
and %00111111 ; Limit to 0-63
ld c, a ; C = start index
ld b, 64 ; B = cells to check
.frec_loop:
; Check if cell at index C is empty
ld hl, board_state
ld d, 0
ld e, c
add hl, de
ld a, (hl)
or a
jr z, .frec_found ; Found empty cell
; Try next cell (wrap around)
inc c
ld a, c
and %00111111 ; Wrap at 64
ld c, a
djnz .frec_loop
; No empty cells found
ld a, $ff
ret
.frec_found:
ld a, c ; Return cell index
ret
; ----------------------------------------------------------------------------
; Get Random
; ----------------------------------------------------------------------------
; Returns A = pseudo-random number using R register
get_random:
ld a, r ; R register changes every instruction
ld b, a
ld a, (random_seed)
add a, b
rlca
xor b
ld (random_seed), a
ret
random_seed: defb $5a ; Seed value
; ----------------------------------------------------------------------------
; Messages
; ----------------------------------------------------------------------------
msg_p1_wins: defb "P1 WINS!", 0
msg_p2_wins: defb "P2 WINS!", 0
msg_draw: defb "DRAW!", 0
msg_title: defb "INK WAR", 0
msg_mode1: defb "1 - TWO PLAYER", 0
msg_mode2: defb "2 - VS COMPUTER", 0
msg_continue: defb "PRESS ANY KEY", 0
; ----------------------------------------------------------------------------
; Variables
; ----------------------------------------------------------------------------
game_state: defb 0 ; 0=title, 1=playing, 2=results
game_mode: defb 0 ; 0=two player, 1=vs AI
cursor_row: defb 0
cursor_col: defb 0
key_pressed: defb 0
last_key: defb 0 ; Previous frame's key for repeat detection
key_timer: defb 0 ; Countdown for key repeat delay
ai_timer: defb 0 ; Countdown before AI moves
current_player: defb 1
p1_count: defb 0
p2_count: defb 0
board_state: defs 64, 0
; ----------------------------------------------------------------------------
; End
; ----------------------------------------------------------------------------
end start
Try This: Higher Corner Value
Make corners even more attractive:
.gpb_corner:
ld a, 4 ; Corner bonus = 4
ret
.gpb_edge:
ld a, 2 ; Edge bonus = 2
retThis makes the AI aggressively pursue corners, even over contested centre cells.
Try This: Centre Preference
Or flip the strategy entirely:
get_position_bonus:
; ... extract row/col ...
; Check if centre (not edge)
ld a, b
or a
jr z, .gpb_edge
cp 7
jr z, .gpb_edge
ld a, c
or a
jr z, .gpb_edge
cp 7
jr z, .gpb_edge
; Centre - give bonus
ld a, 2
ret
.gpb_edge:
xor a
retThis creates an AI that prefers the centre, leaving corners for later.
What You’ve Learnt
- Positional evaluation — Static bonuses based on board location
- Multi-factor scoring — Combining adjacency + defense + position
- Opening strategy — Early moves now show preference
- Edge detection — Checking if values equal 0 or maximum
What’s Next
In Unit 13, we’ll add difficulty levels — letting players choose between easy (random), medium (adjacent), and hard (full strategy) AI opponents.
What Changed
Unit 11 → Unit 12
+68-11
| 1 | 1 | ; ============================================================================ | |
| 2 | - | ; INK WAR - Unit 11: Defensive AI | |
| 2 | + | ; INK WAR - Unit 12: Corner and Edge Strategy | |
| 3 | 3 | ; ============================================================================ | |
| 4 | - | ; AI now considers both offense and defense. Scores cells by: | |
| 5 | - | ; - Adjacent AI cells (expansion) + Adjacent human cells (blocking) | |
| 6 | - | ; Blocks human territory growth while still building its own. | |
| 4 | + | ; AI now values strategic positions. Corners get +2 bonus, edges get +1. | |
| 5 | + | ; Combined with adjacency scoring for smarter opening moves. | |
| 7 | 6 | ; | |
| 8 | 7 | ; Controls: Q=Up, A=Down, O=Left, P=Right, SPACE=Claim | |
| 9 | 8 | ; 1=Two Player, 2=vs Computer (on title screen) | |
| ... | |||
| 1438 | 1437 | ret | |
| 1439 | 1438 | | |
| 1440 | 1439 | ; ---------------------------------------------------------------------------- | |
| 1441 | - | ; Find Best Cell (Offense + Defense) | |
| 1440 | + | ; Find Best Cell (Offense + Defense + Position) | |
| 1442 | 1441 | ; ---------------------------------------------------------------------------- | |
| 1443 | 1442 | ; Returns A = index of empty cell with best combined score, or $FF if none | |
| 1444 | - | ; Score = adjacent AI cells (offense) + adjacent human cells (defense) | |
| 1445 | - | ; This makes the AI both expand territory AND block the human | |
| 1443 | + | ; Score = adjacent AI + adjacent human + position bonus (corner=2, edge=1) | |
| 1444 | + | ; This makes the AI value strategic positions in addition to adjacency | |
| 1446 | 1445 | | |
| 1447 | 1446 | find_best_adjacent_cell: | |
| 1448 | 1447 | ; Initialize best tracking | |
| ... | |||
| 1473 | 1472 | ; Count adjacent human cells (defense) | |
| 1474 | 1473 | ld a, c | |
| 1475 | 1474 | call count_adjacent_p1 | |
| 1476 | - | add a, b ; A = combined score (AI + P1) | |
| 1475 | + | add a, b ; A = adjacency score | |
| 1476 | + | ld b, a ; B = adjacency score | |
| 1477 | + | | |
| 1478 | + | ; Add position bonus (corners=2, edges=1) | |
| 1479 | + | ld a, c | |
| 1480 | + | call get_position_bonus | |
| 1481 | + | add a, b ; A = total score | |
| 1477 | 1482 | pop bc | |
| 1478 | 1483 | | |
| 1479 | 1484 | ; Compare with best score | |
| ... | |||
| 1494 | 1499 | cp 64 | |
| 1495 | 1500 | jr c, .fbac_loop ; Continue if c < 64 | |
| 1496 | 1501 | | |
| 1497 | - | ; Check if we found an adjacent cell | |
| 1502 | + | ; Check if we found a good cell | |
| 1498 | 1503 | ld a, (best_score) | |
| 1499 | 1504 | or a | |
| 1500 | - | jr z, .fbac_random ; No adjacent cells, use random | |
| 1505 | + | jr z, .fbac_random ; No scored cells, use random | |
| 1501 | 1506 | | |
| 1502 | - | ; Return best adjacent cell | |
| 1507 | + | ; Return best cell | |
| 1503 | 1508 | ld a, (best_cell) | |
| 1504 | 1509 | ret | |
| 1505 | 1510 | | |
| ... | |||
| 1510 | 1515 | | |
| 1511 | 1516 | best_cell: defb 0 | |
| 1512 | 1517 | best_score: defb 0 | |
| 1518 | + | | |
| 1519 | + | ; ---------------------------------------------------------------------------- | |
| 1520 | + | ; Get Position Bonus | |
| 1521 | + | ; ---------------------------------------------------------------------------- | |
| 1522 | + | ; A = cell index (0-63) | |
| 1523 | + | ; Returns A = position bonus (corner=2, edge=1, center=0) | |
| 1524 | + | | |
| 1525 | + | get_position_bonus: | |
| 1526 | + | ; Get row and column from index | |
| 1527 | + | ld b, a | |
| 1528 | + | and %00000111 ; Column (0-7) | |
| 1529 | + | ld c, a | |
| 1530 | + | ld a, b | |
| 1531 | + | rrca | |
| 1532 | + | rrca | |
| 1533 | + | rrca | |
| 1534 | + | and %00000111 ; Row (0-7) | |
| 1535 | + | ld b, a ; B = row, C = col | |
| 1536 | + | | |
| 1537 | + | ; Check for corner (row=0 or 7, col=0 or 7) | |
| 1538 | + | ld a, b | |
| 1539 | + | or a | |
| 1540 | + | jr z, .gpb_row_edge ; Row 0 | |
| 1541 | + | cp 7 | |
| 1542 | + | jr z, .gpb_row_edge ; Row 7 | |
| 1543 | + | ; Row is not edge | |
| 1544 | + | ld a, c | |
| 1545 | + | or a | |
| 1546 | + | jr z, .gpb_edge ; Col 0, row not edge = edge | |
| 1547 | + | cp 7 | |
| 1548 | + | jr z, .gpb_edge ; Col 7, row not edge = edge | |
| 1549 | + | ; Neither row nor col is edge = center | |
| 1550 | + | xor a ; Return 0 | |
| 1551 | + | ret | |
| 1552 | + | | |
| 1553 | + | .gpb_row_edge: | |
| 1554 | + | ; Row is 0 or 7, check column | |
| 1555 | + | ld a, c | |
| 1556 | + | or a | |
| 1557 | + | jr z, .gpb_corner ; Col 0 = corner | |
| 1558 | + | cp 7 | |
| 1559 | + | jr z, .gpb_corner ; Col 7 = corner | |
| 1560 | + | ; Row edge but not corner | |
| 1561 | + | jr .gpb_edge | |
| 1562 | + | | |
| 1563 | + | .gpb_corner: | |
| 1564 | + | ld a, 2 ; Corner bonus | |
| 1565 | + | ret | |
| 1566 | + | | |
| 1567 | + | .gpb_edge: | |
| 1568 | + | ld a, 1 ; Edge bonus | |
| 1569 | + | ret | |
| 1513 | 1570 | | |
| 1514 | 1571 | ; ---------------------------------------------------------------------------- | |
| 1515 | 1572 | ; Count Adjacent AI Cells |
