Game 1 Unit 1 of 64 1 hr learning time

Hello NES

Your first NES program — a sprite on screen in minutes.

2% of Neon Nexus

Mark as complete Completed!

What You’re Building

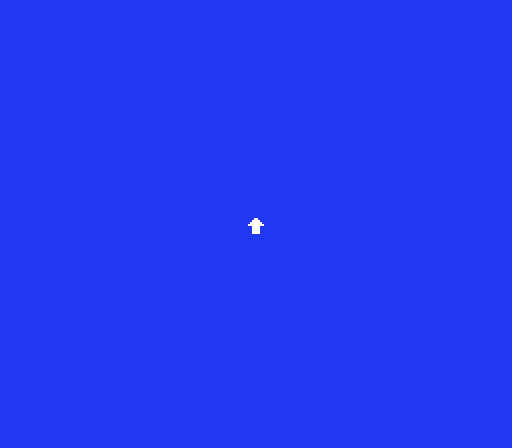

A sprite on a coloured background. Your code, running on the NES.

Hello NES

No theory first. Run it, then change it.

The Code

This is a complete, working NES program:

; =============================================================================
; NEON NEXUS - Unit 1: Hello NES
; =============================================================================
; Your first NES program. A sprite on a coloured background.
; Run it. Change the colours. Move the sprite. Make it yours.
; =============================================================================

; -----------------------------------------------------------------------------
; NES Hardware Addresses
; -----------------------------------------------------------------------------
PPUCTRL   = $2000     ; PPU control register
PPUMASK   = $2001     ; PPU mask register
PPUSTATUS = $2002     ; PPU status register
OAMADDR   = $2003     ; OAM address
PPUADDR   = $2006     ; PPU address
PPUDATA   = $2007     ; PPU data
OAMDMA    = $4014     ; OAM DMA register

; -----------------------------------------------------------------------------
; Game Constants
; -----------------------------------------------------------------------------
; Try changing these values and see what happens!
PLAYER_START_X = 124  ; Player X position (0-247)
PLAYER_START_Y = 116  ; Player Y position (0-231)
PLAYER_TILE    = 1    ; Which tile to use for the player
BG_COLOUR      = $12  ; Background colour (try $01, $21, $31, $0F)

; -----------------------------------------------------------------------------
; Memory Layout
; -----------------------------------------------------------------------------
.segment "ZEROPAGE"
player_x:    .res 1   ; Player X position
player_y:    .res 1   ; Player Y position

.segment "OAM"
oam_buffer:  .res 256 ; Sprite data (copied to PPU each frame)

.segment "BSS"
; General RAM variables go here

; -----------------------------------------------------------------------------
; iNES Header
; -----------------------------------------------------------------------------
.segment "HEADER"
    .byte "NES", $1A  ; iNES identifier
    .byte 2           ; 2x 16KB PRG-ROM = 32KB
    .byte 1           ; 1x 8KB CHR-ROM = 8KB
    .byte $01         ; Mapper 0, vertical mirroring
    .byte $00         ; Mapper 0
    .byte 0,0,0,0,0,0,0,0 ; Padding

; -----------------------------------------------------------------------------
; Code
; -----------------------------------------------------------------------------
.segment "CODE"

; === RESET: Called when NES powers on ===
reset:
    sei              ; Disable interrupts
    cld              ; Clear decimal mode
    ldx #$40
    stx $4017        ; Disable APU frame IRQ
    ldx #$FF
    txs              ; Set up stack
    inx              ; X = 0
    stx PPUCTRL      ; Disable NMI
    stx PPUMASK      ; Disable rendering
    stx $4010        ; Disable DMC IRQs

    ; Wait for PPU to stabilise (first wait)
@vblank1:
    bit PPUSTATUS
    bpl @vblank1

    ; Clear RAM while we wait
    lda #0
@clear_ram:
    sta $0000, x
    sta $0100, x
    sta $0200, x
    sta $0300, x
    sta $0400, x
    sta $0500, x
    sta $0600, x
    sta $0700, x
    inx
    bne @clear_ram

    ; Wait for PPU (second wait)
@vblank2:
    bit PPUSTATUS
    bpl @vblank2

    ; === PPU is ready - set up graphics ===

    ; Load palette
    bit PPUSTATUS    ; Reset PPU address latch
    lda #$3F
    sta PPUADDR
    lda #$00
    sta PPUADDR      ; PPU address = $3F00 (palette)

    ldx #0
@load_palette:
    lda palette_data, x
    sta PPUDATA
    inx
    cpx #32
    bne @load_palette

    ; Set up player sprite
    lda #PLAYER_START_X
    sta player_x
    lda #PLAYER_START_Y
    sta player_y

    ; Initialise sprite in OAM buffer
    lda player_y
    sta oam_buffer+0  ; Y position
    lda #PLAYER_TILE
    sta oam_buffer+1  ; Tile number
    lda #0
    sta oam_buffer+2  ; Attributes (palette 0, no flip)
    lda player_x
    sta oam_buffer+3  ; X position

    ; Hide all other sprites (move off screen)
    lda #$FF
    ldx #4
@hide_sprites:
    sta oam_buffer, x
    inx
    bne @hide_sprites

    ; Enable rendering
    lda #%10010000    ; Enable NMI, sprites from pattern table 1
    sta PPUCTRL
    lda #%00011110    ; Show sprites and background
    sta PPUMASK

    ; === Main Loop ===
main_loop:
    jmp main_loop     ; Wait for NMI (nothing to do yet!)

; === NMI: Called every frame during VBlank ===
nmi:
    pha              ; Save registers
    txa
    pha
    tya
    pha

    ; Copy sprite data to PPU
    lda #0
    sta OAMADDR
    lda #>oam_buffer ; High byte of $0200
    sta OAMDMA       ; Triggers DMA transfer

    ; Update sprite position from variables
    lda player_y
    sta oam_buffer+0
    lda player_x
    sta oam_buffer+3

    pla              ; Restore registers
    tay
    pla
    tax
    pla
    rti

; === IRQ: Not used ===
irq:
    rti

; -----------------------------------------------------------------------------
; Data
; -----------------------------------------------------------------------------

; Palette data: 4 background palettes + 4 sprite palettes
palette_data:
    ; Background palettes
    .byte BG_COLOUR, $00, $10, $20  ; Palette 0 (background colour)
    .byte BG_COLOUR, $00, $10, $20  ; Palette 1
    .byte BG_COLOUR, $00, $10, $20  ; Palette 2
    .byte BG_COLOUR, $00, $10, $20  ; Palette 3
    ; Sprite palettes
    .byte BG_COLOUR, $30, $20, $0F  ; Palette 0 (player: white, red, black)
    .byte BG_COLOUR, $30, $16, $0F  ; Palette 1
    .byte BG_COLOUR, $30, $12, $0F  ; Palette 2
    .byte BG_COLOUR, $30, $14, $0F  ; Palette 3

; -----------------------------------------------------------------------------
; Vectors
; -----------------------------------------------------------------------------
.segment "VECTORS"
    .word nmi        ; NMI vector
    .word reset      ; Reset vector
    .word irq        ; IRQ vector

; -----------------------------------------------------------------------------
; CHR-ROM (Graphics)
; -----------------------------------------------------------------------------
.segment "CHARS"

; Tile 0: Empty (8x8 pixels, all zeros)
.byte $00,$00,$00,$00,$00,$00,$00,$00
.byte $00,$00,$00,$00,$00,$00,$00,$00

; Tile 1: Player sprite (simple arrow shape)
; Each tile is 16 bytes: 8 bytes low plane + 8 bytes high plane
; Colours: 00=transparent, 01=colour 1, 10=colour 2, 11=colour 3
.byte %00011000  ; Row 0
.byte %00111100  ; Row 1
.byte %01111110  ; Row 2
.byte %11111111  ; Row 3
.byte %00111100  ; Row 4
.byte %00111100  ; Row 5
.byte %00111100  ; Row 6
.byte %00111100  ; Row 7
; High plane (all zeros = use colour 1 only)
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000

; Fill rest of CHR-ROM with empty tiles
.res 8192 - 32, $00

Build It

ca65 nexus.asm -o nexus.o
ld65 -C nes.cfg nexus.o -o nexus.nes

Open nexus.nes in an emulator. You should see a white arrow on a blue background.

Make It Yours

Find these lines near the top of the code:

PLAYER_START_X = 124  ; Player X position (0-247)
PLAYER_START_Y = 116  ; Player Y position (0-231)
BG_COLOUR      = $12  ; Background colour

Try changing them:

Move the player — Change PLAYER_START_X to 50. Rebuild. The sprite moves left.
Change the background — Try these values for BG_COLOUR:
- $0F = Black
- $30 = White
- $16 = Red
- $1A = Green
- $12 = Blue (current)
Move to the corner — Set X to 8 and Y to 8. The sprite appears in the top-left.

Every change you make is real. This is your program.

What Just Happened?

You ran NES code. The details of how it works come in Unit 3. For now, know this:

The PPU (Picture Processing Unit) draws everything
Sprites are moveable graphics (like your arrow)
Palettes define colours
The code runs at 60 frames per second

In Unit 2, you’ll make the sprite move with the controller. Real interactivity.
