Moving the Player

Add controller input — move your sprite with the D-pad.

3% of Neon Nexus

Mark as complete Completed!

What You’re Building

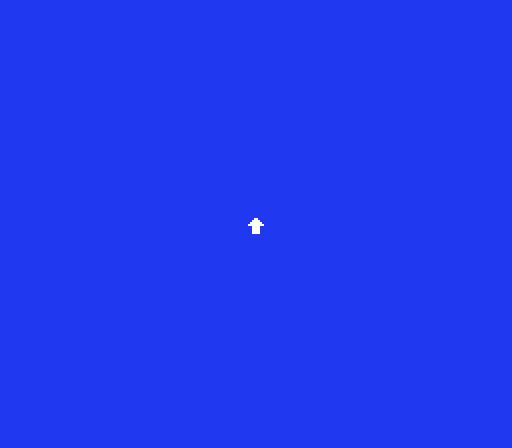

The sprite now moves. Press the D-pad and watch it respond.

Moving Player

This is the moment it becomes a game.

The Code

; =============================================================================
; NEON NEXUS - Unit 2: Moving the Player
; =============================================================================
; The player sprite now moves with the D-pad.
; Press Up, Down, Left, Right to move around the screen.
; =============================================================================

; -----------------------------------------------------------------------------
; NES Hardware Addresses
; -----------------------------------------------------------------------------
PPUCTRL   = $2000
PPUMASK   = $2001
PPUSTATUS = $2002
OAMADDR   = $2003
PPUADDR   = $2006
PPUDATA   = $2007
OAMDMA    = $4014

JOYPAD1   = $4016     ; Controller 1
JOYPAD2   = $4017     ; Controller 2

; Controller button masks
BTN_A      = %10000000
BTN_B      = %01000000
BTN_SELECT = %00100000
BTN_START  = %00010000
BTN_UP     = %00001000
BTN_DOWN   = %00000100
BTN_LEFT   = %00000010
BTN_RIGHT  = %00000001

; -----------------------------------------------------------------------------
; Game Constants
; -----------------------------------------------------------------------------
PLAYER_START_X = 124
PLAYER_START_Y = 116
PLAYER_TILE    = 1
BG_COLOUR      = $12

PLAYER_SPEED   = 2    ; Pixels per frame (try 1, 2, or 3)

; Screen boundaries
SCREEN_LEFT   = 0
SCREEN_RIGHT  = 248   ; 256 - 8 (sprite width)
SCREEN_TOP    = 0
SCREEN_BOTTOM = 224   ; 240 - 16 (sprite height + overscan)

; -----------------------------------------------------------------------------
; Memory Layout
; -----------------------------------------------------------------------------
.segment "ZEROPAGE"
player_x:    .res 1
player_y:    .res 1
buttons:     .res 1   ; Current button state

.segment "OAM"
oam_buffer:  .res 256

.segment "BSS"

; -----------------------------------------------------------------------------
; iNES Header
; -----------------------------------------------------------------------------
.segment "HEADER"
    .byte "NES", $1A
    .byte 2           ; 32KB PRG-ROM
    .byte 1           ; 8KB CHR-ROM
    .byte $01         ; Mapper 0, vertical mirroring
    .byte $00
    .byte 0,0,0,0,0,0,0,0

; -----------------------------------------------------------------------------
; Code
; -----------------------------------------------------------------------------
.segment "CODE"

reset:
    sei
    cld
    ldx #$40
    stx $4017
    ldx #$FF
    txs
    inx
    stx PPUCTRL
    stx PPUMASK
    stx $4010

@vblank1:
    bit PPUSTATUS
    bpl @vblank1

    lda #0
@clear_ram:
    sta $0000, x
    sta $0100, x
    sta $0200, x
    sta $0300, x
    sta $0400, x
    sta $0500, x
    sta $0600, x
    sta $0700, x
    inx
    bne @clear_ram

@vblank2:
    bit PPUSTATUS
    bpl @vblank2

    ; Load palette
    bit PPUSTATUS
    lda #$3F
    sta PPUADDR
    lda #$00
    sta PPUADDR

    ldx #0
@load_palette:
    lda palette_data, x
    sta PPUDATA
    inx
    cpx #32
    bne @load_palette

    ; Set up player
    lda #PLAYER_START_X
    sta player_x
    lda #PLAYER_START_Y
    sta player_y

    ; Initialise player sprite
    lda player_y
    sta oam_buffer+0
    lda #PLAYER_TILE
    sta oam_buffer+1
    lda #0
    sta oam_buffer+2
    lda player_x
    sta oam_buffer+3

    ; Hide other sprites
    lda #$FF
    ldx #4
@hide_sprites:
    sta oam_buffer, x
    inx
    bne @hide_sprites

    ; Enable rendering
    lda #%10010000
    sta PPUCTRL
    lda #%00011110
    sta PPUMASK

; === Main Loop ===
main_loop:
    ; Read controller
    jsr read_controller

    ; Move player based on input
    jsr move_player

    jmp main_loop

; -----------------------------------------------------------------------------
; Read Controller
; -----------------------------------------------------------------------------
read_controller:
    ; Strobe the controller
    lda #1
    sta JOYPAD1
    lda #0
    sta JOYPAD1

    ; Read 8 buttons into 'buttons' variable
    ldx #8
@read_loop:
    lda JOYPAD1
    lsr a           ; Bit 0 -> Carry
    rol buttons     ; Carry -> buttons
    dex
    bne @read_loop

    rts

; -----------------------------------------------------------------------------
; Move Player
; -----------------------------------------------------------------------------
move_player:
    ; Check UP
    lda buttons
    and #BTN_UP
    beq @check_down

    lda player_y
    sec
    sbc #PLAYER_SPEED
    cmp #SCREEN_TOP
    bcc @check_down      ; Don't go above top
    sta player_y

@check_down:
    lda buttons
    and #BTN_DOWN
    beq @check_left

    lda player_y
    clc
    adc #PLAYER_SPEED
    cmp #SCREEN_BOTTOM
    bcs @check_left      ; Don't go below bottom
    sta player_y

@check_left:
    lda buttons
    and #BTN_LEFT
    beq @check_right

    lda player_x
    sec
    sbc #PLAYER_SPEED
    cmp #SCREEN_LEFT
    bcc @check_right     ; Don't go past left edge
    sta player_x

@check_right:
    lda buttons
    and #BTN_RIGHT
    beq @done

    lda player_x
    clc
    adc #PLAYER_SPEED
    cmp #SCREEN_RIGHT
    bcs @done            ; Don't go past right edge
    sta player_x

@done:
    rts

; === NMI ===
nmi:
    pha
    txa
    pha
    tya
    pha

    ; DMA sprites
    lda #0
    sta OAMADDR
    lda #>oam_buffer
    sta OAMDMA

    ; Update sprite from player position
    lda player_y
    sta oam_buffer+0
    lda player_x
    sta oam_buffer+3

    pla
    tay
    pla
    tax
    pla
    rti

irq:
    rti

; -----------------------------------------------------------------------------
; Data
; -----------------------------------------------------------------------------
palette_data:
    .byte BG_COLOUR, $00, $10, $20
    .byte BG_COLOUR, $00, $10, $20
    .byte BG_COLOUR, $00, $10, $20
    .byte BG_COLOUR, $00, $10, $20
    .byte BG_COLOUR, $30, $20, $0F
    .byte BG_COLOUR, $30, $16, $0F
    .byte BG_COLOUR, $30, $12, $0F
    .byte BG_COLOUR, $30, $14, $0F

; -----------------------------------------------------------------------------
; Vectors
; -----------------------------------------------------------------------------
.segment "VECTORS"
    .word nmi
    .word reset
    .word irq

; -----------------------------------------------------------------------------
; CHR-ROM
; -----------------------------------------------------------------------------
.segment "CHARS"

; Tile 0: Empty
.byte $00,$00,$00,$00,$00,$00,$00,$00
.byte $00,$00,$00,$00,$00,$00,$00,$00

; Tile 1: Player sprite
.byte %00011000
.byte %00111100
.byte %01111110
.byte %11111111
.byte %00111100
.byte %00111100
.byte %00111100
.byte %00111100
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000

.res 8192 - 32, $00

Build and Run

ca65 nexus.asm -o nexus.o
ld65 -C nes.cfg nexus.o -o nexus.nes

Use the D-pad (arrow keys in most emulators) to move the sprite around.

What’s New

Two things changed from Unit 1:

1. Reading the Controller

read_controller:
    lda #1
    sta JOYPAD1       ; Strobe controller
    lda #0
    sta JOYPAD1

    ldx #8
@read_loop:
    lda JOYPAD1       ; Read one bit
    lsr a             ; Shift into Carry
    rol buttons       ; Rotate into buttons
    dex
    bne @read_loop
    rts

The NES controller sends button states one bit at a time. Strobe it, then read 8 times.

2. Moving Based on Input

move_player:
    lda buttons
    and #BTN_UP       ; Is UP pressed?
    beq @check_down   ; No? Skip

    lda player_y
    sec
    sbc #PLAYER_SPEED ; Move up
    sta player_y

@check_down:
    ; ... same pattern for other directions

Check each button. If pressed, adjust position. Boundary checks prevent going off screen.

Try This

Change speed — Find PLAYER_SPEED = 2 and try 1 (slow) or 4 (fast)
Remove boundaries — Delete the cmp and bcc/bcs lines. Now you can wrap around the screen.
Invert controls — Swap BTN_UP with BTN_DOWN in the movement code.

The Main Loop

Notice the structure:

main_loop:
    jsr read_controller
    jsr move_player
    jmp main_loop

Read input, update game state, repeat. This is a game loop. Every NES game has one.

Unit 3 explains how all this works — the PPU, VBlank, and why the code is structured this way.

What Changed

Unit 1 → Unit 2

+176-89

1	1		`; =============================================================================`
2		-	`; NEON NEXUS - Unit 1: Hello NES`
	2	+	`; NEON NEXUS - Unit 2: Moving the Player`
3	3		`; =============================================================================`
4		-	`; Your first NES program. A sprite on a coloured background.`
5		-	`; Run it. Change the colours. Move the sprite. Make it yours.`
	4	+	`; The player sprite now moves with the D-pad.`
	5	+	`; Press Up, Down, Left, Right to move around the screen.`
6	6		`; =============================================================================`
7	7
8	8		`; -----------------------------------------------------------------------------`
9	9		`; NES Hardware Addresses`
10	10		`; -----------------------------------------------------------------------------`
11		-	`PPUCTRL = $2000 ; PPU control register`
12		-	`PPUMASK = $2001 ; PPU mask register`
13		-	`PPUSTATUS = $2002 ; PPU status register`
14		-	`OAMADDR = $2003 ; OAM address`
15		-	`PPUADDR = $2006 ; PPU address`
16		-	`PPUDATA = $2007 ; PPU data`
17		-	`OAMDMA = $4014 ; OAM DMA register`
	11	+	`PPUCTRL = $2000`
	12	+	`PPUMASK = $2001`
	13	+	`PPUSTATUS = $2002`
	14	+	`OAMADDR = $2003`
	15	+	`PPUADDR = $2006`
	16	+	`PPUDATA = $2007`
	17	+	`OAMDMA = $4014`
	18	+
	19	+	`JOYPAD1 = $4016 ; Controller 1`
	20	+	`JOYPAD2 = $4017 ; Controller 2`
	21	+
	22	+	`; Controller button masks`
	23	+	`BTN_A = %10000000`
	24	+	`BTN_B = %01000000`
	25	+	`BTN_SELECT = %00100000`
	26	+	`BTN_START = %00010000`
	27	+	`BTN_UP = %00001000`
	28	+	`BTN_DOWN = %00000100`
	29	+	`BTN_LEFT = %00000010`
	30	+	`BTN_RIGHT = %00000001`
18	31
19	32		`; -----------------------------------------------------------------------------`
20	33		`; Game Constants`
21	34		`; -----------------------------------------------------------------------------`
22		-	`; Try changing these values and see what happens!`
23		-	`PLAYER_START_X = 124 ; Player X position (0-247)`
24		-	`PLAYER_START_Y = 116 ; Player Y position (0-231)`
25		-	`PLAYER_TILE = 1 ; Which tile to use for the player`
26		-	`BG_COLOUR = $12 ; Background colour (try $01, $21, $31, $0F)`
	35	+	`PLAYER_START_X = 124`
	36	+	`PLAYER_START_Y = 116`
	37	+	`PLAYER_TILE = 1`
	38	+	`BG_COLOUR = $12`
	39	+
	40	+	`PLAYER_SPEED = 2 ; Pixels per frame (try 1, 2, or 3)`
	41	+
	42	+	`; Screen boundaries`
	43	+	`SCREEN_LEFT = 0`
	44	+	`SCREEN_RIGHT = 248 ; 256 - 8 (sprite width)`
	45	+	`SCREEN_TOP = 0`
	46	+	`SCREEN_BOTTOM = 224 ; 240 - 16 (sprite height + overscan)`
27	47
28	48		`; -----------------------------------------------------------------------------`
29	49		`; Memory Layout`
30	50		`; -----------------------------------------------------------------------------`
31	51		`.segment "ZEROPAGE"`
32		-	`player_x: .res 1 ; Player X position`
33		-	`player_y: .res 1 ; Player Y position`
	52	+	`player_x: .res 1`
	53	+	`player_y: .res 1`
	54	+	`buttons: .res 1 ; Current button state`
34	55
35	56		`.segment "OAM"`
36		-	`oam_buffer: .res 256 ; Sprite data (copied to PPU each frame)`
	57	+	`oam_buffer: .res 256`
37	58
38	59		`.segment "BSS"`
39		-	`; General RAM variables go here`
40	60
41	61		`; -----------------------------------------------------------------------------`
42	62		`; iNES Header`
43	63		`; -----------------------------------------------------------------------------`
44	64		`.segment "HEADER"`
45		-	`.byte "NES", $1A ; iNES identifier`
46		-	`.byte 2 ; 2x 16KB PRG-ROM = 32KB`
47		-	`.byte 1 ; 1x 8KB CHR-ROM = 8KB`
	65	+	`.byte "NES", $1A`
	66	+	`.byte 2 ; 32KB PRG-ROM`
	67	+	`.byte 1 ; 8KB CHR-ROM`
48	68		`.byte $01 ; Mapper 0, vertical mirroring`
49		-	`.byte $00 ; Mapper 0`
50		-	`.byte 0,0,0,0,0,0,0,0 ; Padding`
	69	+	`.byte $00`
	70	+	`.byte 0,0,0,0,0,0,0,0`
51	71
52	72		`; -----------------------------------------------------------------------------`
53	73		`; Code`
54	74		`; -----------------------------------------------------------------------------`
55	75		`.segment "CODE"`
56	76
57		-	`; === RESET: Called when NES powers on ===`
58	77		`reset:`
59		-	`sei ; Disable interrupts`
60		-	`cld ; Clear decimal mode`
	78	+	`sei`
	79	+	`cld`
61	80		`ldx #$40`
62		-	`stx $4017 ; Disable APU frame IRQ`
	81	+	`stx $4017`
63	82		`ldx #$FF`
64		-	`txs ; Set up stack`
65		-	`inx ; X = 0`
66		-	`stx PPUCTRL ; Disable NMI`
67		-	`stx PPUMASK ; Disable rendering`
68		-	`stx $4010 ; Disable DMC IRQs`
	83	+	`txs`
	84	+	`inx`
	85	+	`stx PPUCTRL`
	86	+	`stx PPUMASK`
	87	+	`stx $4010`
69	88
70		-	`; Wait for PPU to stabilise (first wait)`
71	89		`@vblank1:`
72	90		`bit PPUSTATUS`
73	91		`bpl @vblank1`
74	92
75		-	`; Clear RAM while we wait`
76	93		`lda #0`
77	94		`@clear_ram:`
78	95		`sta $0000, x`
			...
86	103		`inx`
87	104		`bne @clear_ram`
88	105
89		-	`; Wait for PPU (second wait)`
90	106		`@vblank2:`
91	107		`bit PPUSTATUS`
92	108		`bpl @vblank2`
93		-
94		-	`; === PPU is ready - set up graphics ===`
95	109
96	110		`; Load palette`
97		-	`bit PPUSTATUS ; Reset PPU address latch`
	111	+	`bit PPUSTATUS`
98	112		`lda #$3F`
99	113		`sta PPUADDR`
100	114		`lda #$00`
101		-	`sta PPUADDR ; PPU address = $3F00 (palette)`
	115	+	`sta PPUADDR`
102	116
103	117		`ldx #0`
104	118		`@load_palette:`
			...
108	122		`cpx #32`
109	123		`bne @load_palette`
110	124
111		-	`; Set up player sprite`
	125	+	`; Set up player`
112	126		`lda #PLAYER_START_X`
113	127		`sta player_x`
114	128		`lda #PLAYER_START_Y`
115	129		`sta player_y`
116	130
117		-	`; Initialise sprite in OAM buffer`
	131	+	`; Initialise player sprite`
118	132		`lda player_y`
119		-	`sta oam_buffer+0 ; Y position`
	133	+	`sta oam_buffer+0`
120	134		`lda #PLAYER_TILE`
121		-	`sta oam_buffer+1 ; Tile number`
	135	+	`sta oam_buffer+1`
122	136		`lda #0`
123		-	`sta oam_buffer+2 ; Attributes (palette 0, no flip)`
	137	+	`sta oam_buffer+2`
124	138		`lda player_x`
125		-	`sta oam_buffer+3 ; X position`
	139	+	`sta oam_buffer+3`
126	140
127		-	`; Hide all other sprites (move off screen)`
	141	+	`; Hide other sprites`
128	142		`lda #$FF`
129	143		`ldx #4`
130	144		`@hide_sprites:`
			...
133	147		`bne @hide_sprites`
134	148
135	149		`; Enable rendering`
136		-	`lda #%10010000 ; Enable NMI, sprites from pattern table 1`
	150	+	`lda #%10010000`
137	151		`sta PPUCTRL`
138		-	`lda #%00011110 ; Show sprites and background`
	152	+	`lda #%00011110`
139	153		`sta PPUMASK`
140	154
141		-	`; === Main Loop ===`
	155	+	`; === Main Loop ===`
142	156		`main_loop:`
143		-	`jmp main_loop ; Wait for NMI (nothing to do yet!)`
	157	+	`; Read controller`
	158	+	`jsr read_controller`
144	159
145		-	`; === NMI: Called every frame during VBlank ===`
	160	+	`; Move player based on input`
	161	+	`jsr move_player`
	162	+
	163	+	`jmp main_loop`
	164	+
	165	+	`; -----------------------------------------------------------------------------`
	166	+	`; Read Controller`
	167	+	`; -----------------------------------------------------------------------------`
	168	+	`read_controller:`
	169	+	`; Strobe the controller`
	170	+	`lda #1`
	171	+	`sta JOYPAD1`
	172	+	`lda #0`
	173	+	`sta JOYPAD1`
	174	+
	175	+	`; Read 8 buttons into 'buttons' variable`
	176	+	`ldx #8`
	177	+	`@read_loop:`
	178	+	`lda JOYPAD1`
	179	+	`lsr a ; Bit 0 -> Carry`
	180	+	`rol buttons ; Carry -> buttons`
	181	+	`dex`
	182	+	`bne @read_loop`
	183	+
	184	+	`rts`
	185	+
	186	+	`; -----------------------------------------------------------------------------`
	187	+	`; Move Player`
	188	+	`; -----------------------------------------------------------------------------`
	189	+	`move_player:`
	190	+	`; Check UP`
	191	+	`lda buttons`
	192	+	`and #BTN_UP`
	193	+	`beq @check_down`
	194	+
	195	+	`lda player_y`
	196	+	`sec`
	197	+	`sbc #PLAYER_SPEED`
	198	+	`cmp #SCREEN_TOP`
	199	+	`bcc @check_down ; Don't go above top`
	200	+	`sta player_y`
	201	+
	202	+	`@check_down:`
	203	+	`lda buttons`
	204	+	`and #BTN_DOWN`
	205	+	`beq @check_left`
	206	+
	207	+	`lda player_y`
	208	+	`clc`
	209	+	`adc #PLAYER_SPEED`
	210	+	`cmp #SCREEN_BOTTOM`
	211	+	`bcs @check_left ; Don't go below bottom`
	212	+	`sta player_y`
	213	+
	214	+	`@check_left:`
	215	+	`lda buttons`
	216	+	`and #BTN_LEFT`
	217	+	`beq @check_right`
	218	+
	219	+	`lda player_x`
	220	+	`sec`
	221	+	`sbc #PLAYER_SPEED`
	222	+	`cmp #SCREEN_LEFT`
	223	+	`bcc @check_right ; Don't go past left edge`
	224	+	`sta player_x`
	225	+
	226	+	`@check_right:`
	227	+	`lda buttons`
	228	+	`and #BTN_RIGHT`
	229	+	`beq @done`
	230	+
	231	+	`lda player_x`
	232	+	`clc`
	233	+	`adc #PLAYER_SPEED`
	234	+	`cmp #SCREEN_RIGHT`
	235	+	`bcs @done ; Don't go past right edge`
	236	+	`sta player_x`
	237	+
	238	+	`@done:`
	239	+	`rts`
	240	+
	241	+	`; === NMI ===`
146	242		`nmi:`
147		-	`pha ; Save registers`
	243	+	`pha`
148	244		`txa`
149	245		`pha`
150	246		`tya`
151	247		`pha`
152	248
153		-	`; Copy sprite data to PPU`
	249	+	`; DMA sprites`
154	250		`lda #0`
155	251		`sta OAMADDR`
156		-	`lda #>oam_buffer ; High byte of $0200`
157		-	`sta OAMDMA ; Triggers DMA transfer`
	252	+	`lda #>oam_buffer`
	253	+	`sta OAMDMA`
158	254
159		-	`; Update sprite position from variables`
	255	+	`; Update sprite from player position`
160	256		`lda player_y`
161	257		`sta oam_buffer+0`
162	258		`lda player_x`
163	259		`sta oam_buffer+3`
164	260
165		-	`pla ; Restore registers`
	261	+	`pla`
166	262		`tay`
167	263		`pla`
168	264		`tax`
169	265		`pla`
170	266		`rti`
171	267
172		-	`; === IRQ: Not used ===`
173	268		`irq:`
174	269		`rti`
175	270
176	271		`; -----------------------------------------------------------------------------`
177	272		`; Data`
178	273		`; -----------------------------------------------------------------------------`
179		-
180		-	`; Palette data: 4 background palettes + 4 sprite palettes`
181	274		`palette_data:`
182		-	`; Background palettes`
183		-	`.byte BG_COLOUR, $00, $10, $20 ; Palette 0 (background colour)`
184		-	`.byte BG_COLOUR, $00, $10, $20 ; Palette 1`
185		-	`.byte BG_COLOUR, $00, $10, $20 ; Palette 2`
186		-	`.byte BG_COLOUR, $00, $10, $20 ; Palette 3`
187		-	`; Sprite palettes`
188		-	`.byte BG_COLOUR, $30, $20, $0F ; Palette 0 (player: white, red, black)`
189		-	`.byte BG_COLOUR, $30, $16, $0F ; Palette 1`
190		-	`.byte BG_COLOUR, $30, $12, $0F ; Palette 2`
191		-	`.byte BG_COLOUR, $30, $14, $0F ; Palette 3`
	275	+	`.byte BG_COLOUR, $00, $10, $20`
	276	+	`.byte BG_COLOUR, $00, $10, $20`
	277	+	`.byte BG_COLOUR, $00, $10, $20`
	278	+	`.byte BG_COLOUR, $00, $10, $20`
	279	+	`.byte BG_COLOUR, $30, $20, $0F`
	280	+	`.byte BG_COLOUR, $30, $16, $0F`
	281	+	`.byte BG_COLOUR, $30, $12, $0F`
	282	+	`.byte BG_COLOUR, $30, $14, $0F`
192	283
193	284		`; -----------------------------------------------------------------------------`
194	285		`; Vectors`
195	286		`; -----------------------------------------------------------------------------`
196	287		`.segment "VECTORS"`
197		-	`.word nmi ; NMI vector`
198		-	`.word reset ; Reset vector`
199		-	`.word irq ; IRQ vector`
	288	+	`.word nmi`
	289	+	`.word reset`
	290	+	`.word irq`
200	291
201	292		`; -----------------------------------------------------------------------------`
202		-	`; CHR-ROM (Graphics)`
	293	+	`; CHR-ROM`
203	294		`; -----------------------------------------------------------------------------`
204	295		`.segment "CHARS"`
205	296
206		-	`; Tile 0: Empty (8x8 pixels, all zeros)`
	297	+	`; Tile 0: Empty`
207	298		`.byte $00,$00,$00,$00,$00,$00,$00,$00`
208	299		`.byte $00,$00,$00,$00,$00,$00,$00,$00`
209	300
210		-	`; Tile 1: Player sprite (simple arrow shape)`
211		-	`; Each tile is 16 bytes: 8 bytes low plane + 8 bytes high plane`
212		-	`; Colours: 00=transparent, 01=colour 1, 10=colour 2, 11=colour 3`
213		-	`.byte %00011000 ; Row 0`
214		-	`.byte %00111100 ; Row 1`
215		-	`.byte %01111110 ; Row 2`
216		-	`.byte %11111111 ; Row 3`
217		-	`.byte %00111100 ; Row 4`
218		-	`.byte %00111100 ; Row 5`
219		-	`.byte %00111100 ; Row 6`
220		-	`.byte %00111100 ; Row 7`
221		-	`; High plane (all zeros = use colour 1 only)`
	301	+	`; Tile 1: Player sprite`
	302	+	`.byte %00011000`
	303	+	`.byte %00111100`
	304	+	`.byte %01111110`
	305	+	`.byte %11111111`
	306	+	`.byte %00111100`
	307	+	`.byte %00111100`
	308	+	`.byte %00111100`
	309	+	`.byte %00111100`
222	310		`.byte %00000000`
223	311		`.byte %00000000`
224	312		`.byte %00000000`
			...
228	316		`.byte %00000000`
229	317		`.byte %00000000`
230	318
231		-	`; Fill rest of CHR-ROM with empty tiles`
232	319		`.res 8192 - 32, $00`
233	320
