Understanding What We Built

How the NES displays graphics — PPU, VBlank, and OAM explained.

5% of Neon Nexus

Mark as complete Completed!

What You’ve Built

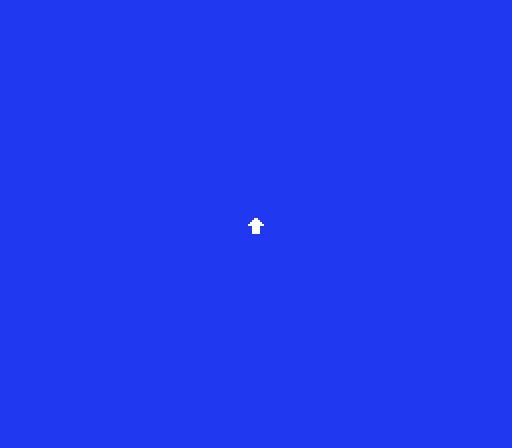

You have a moving sprite. Now let’s understand why the code works.

Understanding the NES

No new code this unit — just understanding.

The CPU and PPU

The NES has two processors:

CPU (6502) — Runs your game logic. Movement, collision, scoring.

PPU (Picture Processing Unit) — Draws the screen. Completely separate from the CPU.

They communicate through memory-mapped registers at $2000-$2007. When you write to these addresses, you’re talking to the PPU.

Why VBlank Matters

The PPU draws the screen line by line, 60 times per second. While it’s drawing, you can’t safely change graphics data.

VBlank is the gap between frames — about 2,273 CPU cycles where the PPU isn’t drawing. This is your window to update graphics.

nmi:
    ; This runs during VBlank
    lda #0
    sta OAMADDR
    lda #>oam_buffer
    sta OAMDMA         ; Safe to update sprites here
    rti

The NMI (Non-Maskable Interrupt) fires at the start of every VBlank. That’s why sprite updates happen in the nmi routine.

Sprites and OAM

The NES can display 64 sprites. Each sprite has 4 bytes:

Byte	Purpose
0	Y position
1	Tile number
2	Attributes (palette, flip)
3	X position

These 256 bytes live in OAM (Object Attribute Memory) inside the PPU.

You can’t write to OAM directly during gameplay. Instead:

Keep a copy in RAM (oam_buffer at $0200)
During VBlank, trigger a DMA transfer

lda #>oam_buffer   ; High byte of $0200
sta OAMDMA         ; Copies 256 bytes to OAM instantly

The Pattern Table

Tile graphics live in CHR-ROM. Each 8×8 tile uses 16 bytes — two bit planes that combine to give 4 colours per pixel.

; Tile 1: Player sprite
.byte %00011000   ; Row 0, low bits
.byte %00111100   ; Row 1
; ... 6 more rows
.byte %00000000   ; Row 0, high bits
.byte %00000000   ; Row 1
; ... 6 more rows

Where both planes have a 1, you get colour 3. Where only the low plane has a 1, colour 1. And so on.

Palettes

The NES has 64 master colours. You select 4 for each palette:

.byte BG_COLOUR, $30, $20, $0F   ; Sprite palette 0

Index 0: Transparent (for sprites)
Index 1: $30 (white)
Index 2: $20 (red)
Index 3: $0F (black)

The Game Loop

Your main loop runs continuously:

main_loop:
    jsr read_controller   ; Get input
    jsr move_player       ; Update state
    jmp main_loop         ; Repeat

Meanwhile, NMI fires 60 times per second to update the display. The two run in parallel.

Memory Map Summary

Address	Purpose
`$0000-$00FF`	Zero page (fast access)
`$0100-$01FF`	Stack
`$0200-$02FF`	OAM buffer (convention)
`$2000-$2007`	PPU registers
`$4014`	OAM DMA
`$4016`	Controller
`$8000-$FFFF`	Your code (PRG-ROM)

The Code (Same as Unit 2)

; =============================================================================
; NEON NEXUS - Unit 2: Moving the Player
; =============================================================================
; The player sprite now moves with the D-pad.
; Press Up, Down, Left, Right to move around the screen.
; =============================================================================

; -----------------------------------------------------------------------------
; NES Hardware Addresses
; -----------------------------------------------------------------------------
PPUCTRL   = $2000
PPUMASK   = $2001
PPUSTATUS = $2002
OAMADDR   = $2003
PPUADDR   = $2006
PPUDATA   = $2007
OAMDMA    = $4014

JOYPAD1   = $4016     ; Controller 1
JOYPAD2   = $4017     ; Controller 2

; Controller button masks
BTN_A      = %10000000
BTN_B      = %01000000
BTN_SELECT = %00100000
BTN_START  = %00010000
BTN_UP     = %00001000
BTN_DOWN   = %00000100
BTN_LEFT   = %00000010
BTN_RIGHT  = %00000001

; -----------------------------------------------------------------------------
; Game Constants
; -----------------------------------------------------------------------------
PLAYER_START_X = 124
PLAYER_START_Y = 116
PLAYER_TILE    = 1
BG_COLOUR      = $12

PLAYER_SPEED   = 2    ; Pixels per frame (try 1, 2, or 3)

; Screen boundaries
SCREEN_LEFT   = 0
SCREEN_RIGHT  = 248   ; 256 - 8 (sprite width)
SCREEN_TOP    = 0
SCREEN_BOTTOM = 224   ; 240 - 16 (sprite height + overscan)

; -----------------------------------------------------------------------------
; Memory Layout
; -----------------------------------------------------------------------------
.segment "ZEROPAGE"
player_x:    .res 1
player_y:    .res 1
buttons:     .res 1   ; Current button state

.segment "OAM"
oam_buffer:  .res 256

.segment "BSS"

; -----------------------------------------------------------------------------
; iNES Header
; -----------------------------------------------------------------------------
.segment "HEADER"
    .byte "NES", $1A
    .byte 2           ; 32KB PRG-ROM
    .byte 1           ; 8KB CHR-ROM
    .byte $01         ; Mapper 0, vertical mirroring
    .byte $00
    .byte 0,0,0,0,0,0,0,0

; -----------------------------------------------------------------------------
; Code
; -----------------------------------------------------------------------------
.segment "CODE"

reset:
    sei
    cld
    ldx #$40
    stx $4017
    ldx #$FF
    txs
    inx
    stx PPUCTRL
    stx PPUMASK
    stx $4010

@vblank1:
    bit PPUSTATUS
    bpl @vblank1

    lda #0
@clear_ram:
    sta $0000, x
    sta $0100, x
    sta $0200, x
    sta $0300, x
    sta $0400, x
    sta $0500, x
    sta $0600, x
    sta $0700, x
    inx
    bne @clear_ram

@vblank2:
    bit PPUSTATUS
    bpl @vblank2

    ; Load palette
    bit PPUSTATUS
    lda #$3F
    sta PPUADDR
    lda #$00
    sta PPUADDR

    ldx #0
@load_palette:
    lda palette_data, x
    sta PPUDATA
    inx
    cpx #32
    bne @load_palette

    ; Set up player
    lda #PLAYER_START_X
    sta player_x
    lda #PLAYER_START_Y
    sta player_y

    ; Initialise player sprite
    lda player_y
    sta oam_buffer+0
    lda #PLAYER_TILE
    sta oam_buffer+1
    lda #0
    sta oam_buffer+2
    lda player_x
    sta oam_buffer+3

    ; Hide other sprites
    lda #$FF
    ldx #4
@hide_sprites:
    sta oam_buffer, x
    inx
    bne @hide_sprites

    ; Enable rendering
    lda #%10010000
    sta PPUCTRL
    lda #%00011110
    sta PPUMASK

; === Main Loop ===
main_loop:
    ; Read controller
    jsr read_controller

    ; Move player based on input
    jsr move_player

    jmp main_loop

; -----------------------------------------------------------------------------
; Read Controller
; -----------------------------------------------------------------------------
read_controller:
    ; Strobe the controller
    lda #1
    sta JOYPAD1
    lda #0
    sta JOYPAD1

    ; Read 8 buttons into 'buttons' variable
    ldx #8
@read_loop:
    lda JOYPAD1
    lsr a           ; Bit 0 -> Carry
    rol buttons     ; Carry -> buttons
    dex
    bne @read_loop

    rts

; -----------------------------------------------------------------------------
; Move Player
; -----------------------------------------------------------------------------
move_player:
    ; Check UP
    lda buttons
    and #BTN_UP
    beq @check_down

    lda player_y
    sec
    sbc #PLAYER_SPEED
    cmp #SCREEN_TOP
    bcc @check_down      ; Don't go above top
    sta player_y

@check_down:
    lda buttons
    and #BTN_DOWN
    beq @check_left

    lda player_y
    clc
    adc #PLAYER_SPEED
    cmp #SCREEN_BOTTOM
    bcs @check_left      ; Don't go below bottom
    sta player_y

@check_left:
    lda buttons
    and #BTN_LEFT
    beq @check_right

    lda player_x
    sec
    sbc #PLAYER_SPEED
    cmp #SCREEN_LEFT
    bcc @check_right     ; Don't go past left edge
    sta player_x

@check_right:
    lda buttons
    and #BTN_RIGHT
    beq @done

    lda player_x
    clc
    adc #PLAYER_SPEED
    cmp #SCREEN_RIGHT
    bcs @done            ; Don't go past right edge
    sta player_x

@done:
    rts

; === NMI ===
nmi:
    pha
    txa
    pha
    tya
    pha

    ; DMA sprites
    lda #0
    sta OAMADDR
    lda #>oam_buffer
    sta OAMDMA

    ; Update sprite from player position
    lda player_y
    sta oam_buffer+0
    lda player_x
    sta oam_buffer+3

    pla
    tay
    pla
    tax
    pla
    rti

irq:
    rti

; -----------------------------------------------------------------------------
; Data
; -----------------------------------------------------------------------------
palette_data:
    .byte BG_COLOUR, $00, $10, $20
    .byte BG_COLOUR, $00, $10, $20
    .byte BG_COLOUR, $00, $10, $20
    .byte BG_COLOUR, $00, $10, $20
    .byte BG_COLOUR, $30, $20, $0F
    .byte BG_COLOUR, $30, $16, $0F
    .byte BG_COLOUR, $30, $12, $0F
    .byte BG_COLOUR, $30, $14, $0F

; -----------------------------------------------------------------------------
; Vectors
; -----------------------------------------------------------------------------
.segment "VECTORS"
    .word nmi
    .word reset
    .word irq

; -----------------------------------------------------------------------------
; CHR-ROM
; -----------------------------------------------------------------------------
.segment "CHARS"

; Tile 0: Empty
.byte $00,$00,$00,$00,$00,$00,$00,$00
.byte $00,$00,$00,$00,$00,$00,$00,$00

; Tile 1: Player sprite
.byte %00011000
.byte %00111100
.byte %01111110
.byte %11111111
.byte %00111100
.byte %00111100
.byte %00111100
.byte %00111100
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000
.byte %00000000

.res 8192 - 32, $00

What’s Next

You understand the foundation. Now we’ll build on it:

Unit 4: Background tiles
Unit 5: Custom graphics
Unit 6: Colour regions
