Game 1 Unit 3 of 64 1 hr learning time

Making It Yours

Customise the board colours, position, and cursor style. Learn the internals by changing them.

5% of Ink War

Mark as complete Completed!

The game works. Now make it yours.

This unit teaches the attribute system by having you change it. You won’t just read about bits and colours - you’ll modify them and see the results. By the end, you’ll understand exactly how the Spectrum’s colour system works because you’ll have bent it to your will.

Run It

Assemble and run:

pasmonext --tapbas inkwar.asm inkwar.tap

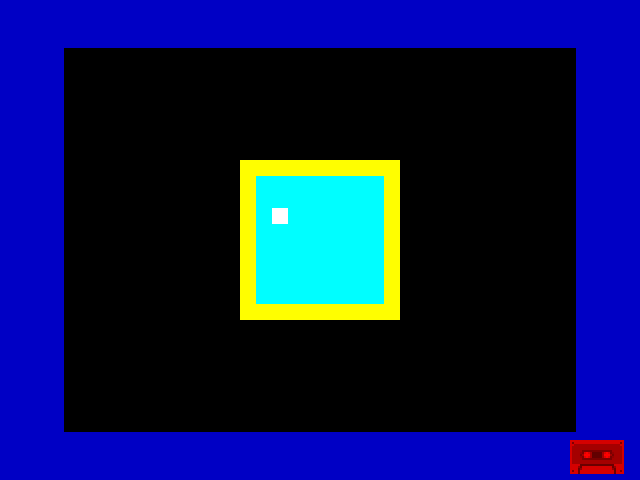

Unit 3 Screenshot

This doesn’t look like the previous versions. The board is cyan instead of white. There’s a yellow border around it. The screen border is blue (because it’s Player 2’s turn). The cursor is bright white, not flashing.

Same game, completely different feel.

The Customisation Section

All the visual changes come from one section at the top of the code:

; ============================================================================
; CUSTOMISATION SECTION - Change these values to personalise your game!
; ============================================================================

; Attribute format: %FBPPPIII
;   F = Flash (bit 7): 1 = flashing
;   B = Bright (bit 6): 1 = brighter colours
;   PPP = Paper colour (bits 5-3): background
;   III = Ink colour (bits 2-0): foreground
;
; Colour values (0-7):
;   0=Black, 1=Blue, 2=Red, 3=Magenta, 4=Green, 5=Cyan, 6=Yellow, 7=White

; Empty cells - CUSTOMISED: cyan instead of white
;   %01101000 = BRIGHT + Paper 5 (cyan) + Ink 0 (black)
EMPTY_ATTR  equ     %01101000       ; Cyan paper, black ink + BRIGHT

; Board border - CUSTOMISED: yellow border around playing area
;   %01110000 = BRIGHT + Paper 6 (yellow) + Ink 0 (black)
BORDER_ATTR equ     %01110000       ; Yellow paper, black ink + BRIGHT

; Cursor - CUSTOMISED: bright white instead of flashing
;   %01111000 = BRIGHT + Paper 7 (white) + Ink 0 (black)
CURSOR_ATTR equ     %01111000       ; White paper + BRIGHT (no flash)

This is your control panel. Change these values, reassemble, and see the difference immediately.

Understanding the Attribute Byte

Let’s decode %01101000 (the cyan cell):

%01101000
 │└┬┘└┬┘
 │ │  └── INK: 000 = black (0)
 │ └───── PAPER: 101 = cyan (5)
 └─────── BRIGHT: 1 = yes, FLASH: 0 = no

The attribute byte packs four pieces of information into 8 bits:

Bits	Name	Values
7	FLASH	0=steady, 1=flashing
6	BRIGHT	0=normal, 1=bright
5-3	PAPER	0-7 (background colour)
2-0	INK	0-7 (foreground colour)

Building Attribute Values

To create an attribute byte, work backwards:

Choose your PAPER colour (0-7)
Choose your INK colour (0-7)
Decide on BRIGHT (add 64 if yes)
Decide on FLASH (add 128 if yes)

Example: Bright yellow paper, blue ink

PAPER = 6 (yellow) → bits 5-3 = 110
INK = 1 (blue) → bits 2-0 = 001
BRIGHT = yes → bit 6 = 1
FLASH = no → bit 7 = 0

Result: %01110001 = 113 decimal

Example: Flashing green paper, white ink

PAPER = 4 (green) → bits 5-3 = 100
INK = 7 (white) → bits 2-0 = 111
BRIGHT = no → bit 6 = 0
FLASH = yes → bit 7 = 1

Result: %10100111 = 167 decimal

Try This: Change the Board Colour

Edit EMPTY_ATTR to try different colours:

; Bright green board
EMPTY_ATTR  equ     %01100000       ; Green paper (4), black ink

; Bright magenta board
EMPTY_ATTR  equ     %01011000       ; Magenta paper (3), black ink

; Yellow board with blue ink
EMPTY_ATTR  equ     %01110001       ; Yellow paper (6), blue ink (1)

Reassemble after each change. Watch the board transform.

The Visible Border

In Units 1 and 2, the border around the board was invisible - black on black. Now we draw it explicitly:

; ----------------------------------------------------------------------------
; Draw Board Border
; ----------------------------------------------------------------------------
; Draws a visible border around the 8x8 playing area

draw_board_border:
            ; Top border (row 7, columns 11-20)
            ld      c, BOARD_ROW-1      ; Row 7
            ld      d, BOARD_COL-1      ; Start at column 11
            ld      b, BOARD_SIZE+2     ; 10 cells wide
            call    draw_border_row

            ; Bottom border (row 16, columns 11-20)
            ld      c, BOARD_ROW+BOARD_SIZE  ; Row 16
            ld      d, BOARD_COL-1
            ld      b, BOARD_SIZE+2
            call    draw_border_row

            ; Left border (rows 8-15, column 11)
            ld      c, BOARD_ROW        ; Start at row 8
            ld      d, BOARD_COL-1      ; Column 11
            ld      b, BOARD_SIZE       ; 8 cells tall
            call    draw_border_col

            ; Right border (rows 8-15, column 20)
            ld      c, BOARD_ROW
            ld      d, BOARD_COL+BOARD_SIZE  ; Column 20
            ld      b, BOARD_SIZE
            call    draw_border_col

            ret

The border is one row above, one row below, and one column on each side of the 8×8 playing area. We draw it as a rectangle of yellow cells.

Try This: Change the Border Colour

; Red border
BORDER_ATTR equ     %01010000       ; Red paper (2)

; White border
BORDER_ATTR equ     %01111000       ; White paper (7)

; Flashing border (dramatic!)
BORDER_ATTR equ     %11110000       ; Flash + Bright + Yellow

Dynamic Screen Border

The screen border (the area outside the main display) changes colour based on whose turn it is:

; Screen border colours for each player
P1_BORDER   equ     2               ; Red border for Player 1's turn
P2_BORDER   equ     1               ; Blue border for Player 2's turn

; ----------------------------------------------------------------------------
; Update Screen Border
; ----------------------------------------------------------------------------
; Sets border colour based on current player

update_border:
            ld      a, (current_player)
            cp      1
            jr      z, .ub_p1
            ld      a, P2_BORDER
            jr      .ub_set
.ub_p1:
            ld      a, P1_BORDER
.ub_set:
            out     (KEY_PORT), a
            ret

This is different from attribute memory. The screen border is set by outputting a value (0-7) to port $FE:

            ld      a, 2            ; Red
            out     ($fe), a        ; Set border

The border colour gives immediate visual feedback about game state.

Try This: Different Turn Colours

; Green for P1, Cyan for P2
P1_BORDER   equ     4               ; Green
P2_BORDER   equ     5               ; Cyan

; Yellow for P1, Magenta for P2
P1_BORDER   equ     6               ; Yellow
P2_BORDER   equ     3               ; Magenta

The Cursor: Flash vs Bright

The original cursor used FLASH (bit 7):

CURSOR_ATTR equ     %10111000       ; Flash + white paper

The FLASH attribute alternates the cell between normal and inverted colours every 16 frames (about 0.32 seconds). It’s automatic - the hardware does it.

The new cursor uses BRIGHT instead:

CURSOR_ATTR equ     %01111000       ; Bright + white paper (no flash)

BRIGHT makes colours more vivid. The cursor now stands out by being brighter than surrounding cells, rather than flashing.

Which do you prefer? Try both.

The Colour Palette

Here’s the complete Spectrum palette:

Value	Normal	Bright
0	Black	Black
1	Blue	Bright Blue
2	Red	Bright Red
3	Magenta	Bright Magenta
4	Green	Bright Green
5	Cyan	Bright Cyan
6	Yellow	Bright Yellow
7	Grey	White

Note that “white” only exists as bright 7. Normal 7 is actually grey.

The Complete Code

; ============================================================================
; INK WAR - Unit 3: Making It Yours
; ============================================================================
; Customised version demonstrating attribute control:
; - Cyan board cells (not white)
; - Yellow border cells around the board
; - Screen border changes colour with current player
; - Bright cursor (not flashing)
;
; Controls: Q=Up, A=Down, O=Left, P=Right, SPACE=Claim
; ============================================================================

            org     32768

; ----------------------------------------------------------------------------
; Constants
; ----------------------------------------------------------------------------

ATTR_BASE   equ     $5800           ; Start of attribute memory
BOARD_ROW   equ     8               ; Board starts at row 8
BOARD_COL   equ     12              ; Board starts at column 12
BOARD_SIZE  equ     8               ; 8x8 playing field

; ============================================================================
; CUSTOMISATION SECTION - Change these values to personalise your game!
; ============================================================================

; Attribute format: %FBPPPIII
;   F = Flash (bit 7): 1 = flashing
;   B = Bright (bit 6): 1 = brighter colours
;   PPP = Paper colour (bits 5-3): background
;   III = Ink colour (bits 2-0): foreground
;
; Colour values (0-7):
;   0=Black, 1=Blue, 2=Red, 3=Magenta, 4=Green, 5=Cyan, 6=Yellow, 7=White

; Empty cells - CUSTOMISED: cyan instead of white
;   %01101000 = BRIGHT + Paper 5 (cyan) + Ink 0 (black)
EMPTY_ATTR  equ     %01101000       ; Cyan paper, black ink + BRIGHT

; Board border - CUSTOMISED: yellow border around playing area
;   %01110000 = BRIGHT + Paper 6 (yellow) + Ink 0 (black)
BORDER_ATTR equ     %01110000       ; Yellow paper, black ink + BRIGHT

; Cursor - CUSTOMISED: bright white instead of flashing
;   %01111000 = BRIGHT + Paper 7 (white) + Ink 0 (black)
CURSOR_ATTR equ     %01111000       ; White paper + BRIGHT (no flash)

; Player 1 - Red (unchanged)
P1_ATTR     equ     %01010000       ; Red paper + BRIGHT
P1_CURSOR   equ     %01111010       ; White paper + Red ink + BRIGHT

; Player 2 - Blue (unchanged)
P2_ATTR     equ     %01001000       ; Blue paper + BRIGHT
P2_CURSOR   equ     %01111001       ; White paper + Blue ink + BRIGHT

; Screen border colours for each player
P1_BORDER   equ     2               ; Red border for Player 1's turn
P2_BORDER   equ     1               ; Blue border for Player 2's turn

; ============================================================================
; End of customisation section
; ============================================================================

; Keyboard ports (active low)
KEY_PORT    equ     $fe
ROW_QAOP    equ     $fb
ROW_ASDF    equ     $fd
ROW_YUIOP   equ     $df
ROW_SPACE   equ     $7f

; Game states
STATE_EMPTY equ     0
STATE_P1    equ     1
STATE_P2    equ     2

; ----------------------------------------------------------------------------
; Entry Point
; ----------------------------------------------------------------------------

start:
            call    init_screen
            call    init_game
            call    draw_board_border   ; NEW: Draw visible border
            call    draw_board
            call    draw_cursor
            call    update_border       ; Set initial border colour

main_loop:
            halt

            call    read_keyboard
            call    handle_input

            jp      main_loop

; ----------------------------------------------------------------------------
; Initialise Screen
; ----------------------------------------------------------------------------

init_screen:
            xor     a
            out     (KEY_PORT), a

            ld      hl, ATTR_BASE
            ld      de, ATTR_BASE+1
            ld      bc, 767
            ld      (hl), 0
            ldir

            ret

; ----------------------------------------------------------------------------
; Update Screen Border
; ----------------------------------------------------------------------------
; Sets border colour based on current player

update_border:
            ld      a, (current_player)
            cp      1
            jr      z, .ub_p1
            ld      a, P2_BORDER
            jr      .ub_set
.ub_p1:
            ld      a, P1_BORDER
.ub_set:
            out     (KEY_PORT), a
            ret

; ----------------------------------------------------------------------------
; Initialise Game State
; ----------------------------------------------------------------------------

init_game:
            ld      hl, board_state
            ld      b, 64
            xor     a
.clear_loop:
            ld      (hl), a
            inc     hl
            djnz    .clear_loop

            ld      a, 1
            ld      (current_player), a

            xor     a
            ld      (cursor_row), a
            ld      (cursor_col), a

            ret

; ----------------------------------------------------------------------------
; Draw Board Border
; ----------------------------------------------------------------------------
; Draws a visible border around the 8x8 playing area

draw_board_border:
            ; Top border (row 7, columns 11-20)
            ld      c, BOARD_ROW-1      ; Row 7
            ld      d, BOARD_COL-1      ; Start at column 11
            ld      b, BOARD_SIZE+2     ; 10 cells wide
            call    draw_border_row

            ; Bottom border (row 16, columns 11-20)
            ld      c, BOARD_ROW+BOARD_SIZE  ; Row 16
            ld      d, BOARD_COL-1
            ld      b, BOARD_SIZE+2
            call    draw_border_row

            ; Left border (rows 8-15, column 11)
            ld      c, BOARD_ROW        ; Start at row 8
            ld      d, BOARD_COL-1      ; Column 11
            ld      b, BOARD_SIZE       ; 8 cells tall
            call    draw_border_col

            ; Right border (rows 8-15, column 20)
            ld      c, BOARD_ROW
            ld      d, BOARD_COL+BOARD_SIZE  ; Column 20
            ld      b, BOARD_SIZE
            call    draw_border_col

            ret

; Draw horizontal border row
; C = row, D = start column, B = width
draw_border_row:
            push    bc
.row_loop:
            push    bc
            push    de

            ; Calculate attribute address
            ld      a, c
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            ld      a, d
            add     a, l
            ld      l, a
            ld      bc, ATTR_BASE
            add     hl, bc

            ld      (hl), BORDER_ATTR

            pop     de
            pop     bc
            inc     d
            djnz    .row_loop
            pop     bc
            ret

; Draw vertical border column
; C = start row, D = column, B = height
draw_border_col:
            push    bc
.col_loop:
            push    bc
            push    de

            ; Calculate attribute address
            ld      a, c
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            ld      a, d
            add     a, l
            ld      l, a
            ld      bc, ATTR_BASE
            add     hl, bc

            ld      (hl), BORDER_ATTR

            pop     de
            pop     bc
            inc     c
            djnz    .col_loop
            pop     bc
            ret

; ----------------------------------------------------------------------------
; Draw Board
; ----------------------------------------------------------------------------

draw_board:
            ld      b, BOARD_SIZE
            ld      c, BOARD_ROW

.db_row:
            push    bc

            ld      b, BOARD_SIZE
            ld      d, BOARD_COL

.db_col:
            push    bc

            ld      a, c
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            ld      a, d
            add     a, l
            ld      l, a
            ld      bc, ATTR_BASE
            add     hl, bc

            ld      (hl), EMPTY_ATTR

            pop     bc
            inc     d
            djnz    .db_col

            pop     bc
            inc     c
            djnz    .db_row

            ret

; ----------------------------------------------------------------------------
; Draw Cursor
; ----------------------------------------------------------------------------

draw_cursor:
            call    get_cell_state

            cp      STATE_P1
            jr      z, .dc_p1
            cp      STATE_P2
            jr      z, .dc_p2

            ld      a, CURSOR_ATTR
            jr      .dc_set

.dc_p1:
            ld      a, P1_CURSOR
            jr      .dc_set

.dc_p2:
            ld      a, P2_CURSOR

.dc_set:
            push    af

            ld      a, (cursor_row)
            add     a, BOARD_ROW
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            ld      a, (cursor_col)
            add     a, BOARD_COL
            add     a, l
            ld      l, a
            ld      bc, ATTR_BASE
            add     hl, bc

            pop     af
            ld      (hl), a

            ret

; ----------------------------------------------------------------------------
; Clear Cursor
; ----------------------------------------------------------------------------

clear_cursor:
            call    get_cell_state

            cp      STATE_P1
            jr      z, .cc_p1
            cp      STATE_P2
            jr      z, .cc_p2

            ld      a, EMPTY_ATTR
            jr      .cc_set

.cc_p1:
            ld      a, P1_ATTR
            jr      .cc_set

.cc_p2:
            ld      a, P2_ATTR

.cc_set:
            push    af

            ld      a, (cursor_row)
            add     a, BOARD_ROW
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            ld      a, (cursor_col)
            add     a, BOARD_COL
            add     a, l
            ld      l, a
            ld      bc, ATTR_BASE
            add     hl, bc

            pop     af
            ld      (hl), a

            ret

; ----------------------------------------------------------------------------
; Get Cell State
; ----------------------------------------------------------------------------

get_cell_state:
            ld      a, (cursor_row)
            add     a, a
            add     a, a
            add     a, a
            ld      hl, board_state
            ld      b, 0
            ld      c, a
            add     hl, bc
            ld      a, (cursor_col)
            ld      c, a
            add     hl, bc
            ld      a, (hl)
            ret

; ----------------------------------------------------------------------------
; Read Keyboard
; ----------------------------------------------------------------------------

read_keyboard:
            xor     a
            ld      (key_pressed), a

            ld      a, ROW_QAOP
            in      a, (KEY_PORT)
            bit     0, a
            jr      nz, .not_q
            ld      a, 1
            ld      (key_pressed), a
            ret
.not_q:
            ld      a, ROW_ASDF
            in      a, (KEY_PORT)
            bit     0, a
            jr      nz, .not_a
            ld      a, 2
            ld      (key_pressed), a
            ret
.not_a:
            ld      a, ROW_YUIOP
            in      a, (KEY_PORT)
            bit     1, a
            jr      nz, .not_o
            ld      a, 3
            ld      (key_pressed), a
            ret
.not_o:
            ld      a, ROW_YUIOP
            in      a, (KEY_PORT)
            bit     0, a
            jr      nz, .not_p
            ld      a, 4
            ld      (key_pressed), a
            ret
.not_p:
            ld      a, ROW_SPACE
            in      a, (KEY_PORT)
            bit     0, a
            jr      nz, .not_space
            ld      a, 5
            ld      (key_pressed), a
.not_space:
            ret

; ----------------------------------------------------------------------------
; Handle Input
; ----------------------------------------------------------------------------

handle_input:
            ld      a, (key_pressed)
            or      a
            ret     z

            cp      5
            jr      z, try_claim

            call    clear_cursor

            ld      a, (key_pressed)

            cp      1
            jr      nz, .not_up
            ld      a, (cursor_row)
            or      a
            jr      z, .done
            dec     a
            ld      (cursor_row), a
            jr      .done
.not_up:
            cp      2
            jr      nz, .not_down
            ld      a, (cursor_row)
            cp      BOARD_SIZE-1
            jr      z, .done
            inc     a
            ld      (cursor_row), a
            jr      .done
.not_down:
            cp      3
            jr      nz, .not_left
            ld      a, (cursor_col)
            or      a
            jr      z, .done
            dec     a
            ld      (cursor_col), a
            jr      .done
.not_left:
            cp      4
            jr      nz, .done
            ld      a, (cursor_col)
            cp      BOARD_SIZE-1
            jr      z, .done
            inc     a
            ld      (cursor_col), a

.done:
            call    draw_cursor
            ret

; ----------------------------------------------------------------------------
; Try Claim Cell
; ----------------------------------------------------------------------------

try_claim:
            call    get_cell_state
            or      a
            ret     nz

            call    claim_cell
            call    sound_claim

            ld      a, (current_player)
            xor     3
            ld      (current_player), a

            call    update_border       ; Update border for new player
            call    draw_cursor

            ret

; ----------------------------------------------------------------------------
; Claim Cell
; ----------------------------------------------------------------------------

claim_cell:
            ld      a, (cursor_row)
            add     a, a
            add     a, a
            add     a, a
            ld      hl, board_state
            ld      b, 0
            ld      c, a
            add     hl, bc
            ld      a, (cursor_col)
            ld      c, a
            add     hl, bc

            ld      a, (current_player)
            ld      (hl), a

            push    af

            ld      a, (cursor_row)
            add     a, BOARD_ROW
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            ld      a, (cursor_col)
            add     a, BOARD_COL
            add     a, l
            ld      l, a
            ld      bc, ATTR_BASE
            add     hl, bc

            pop     af
            cp      1
            jr      z, .cc_is_p1
            ld      (hl), P2_ATTR
            ret
.cc_is_p1:
            ld      (hl), P1_ATTR
            ret

; ----------------------------------------------------------------------------
; Sound - Claim
; ----------------------------------------------------------------------------

sound_claim:
            ld      hl, 400
            ld      b, 20

.loop:
            push    bc
            push    hl

            ld      b, h
            ld      c, l
.tone_loop:
            ld      a, $10
            out     (KEY_PORT), a
            call    .delay
            xor     a
            out     (KEY_PORT), a
            call    .delay
            dec     bc
            ld      a, b
            or      c
            jr      nz, .tone_loop

            pop     hl
            pop     bc

            ld      de, 20
            or      a
            sbc     hl, de

            djnz    .loop
            ret

.delay:
            push    bc
            ld      b, 5
.delay_loop:
            djnz    .delay_loop
            pop     bc
            ret

; ----------------------------------------------------------------------------
; Variables
; ----------------------------------------------------------------------------

cursor_row:     defb    0
cursor_col:     defb    0
key_pressed:    defb    0
current_player: defb    1
board_state:    defs    64, 0

; ----------------------------------------------------------------------------
; End
; ----------------------------------------------------------------------------

            end     start

Challenge: Create Your Theme

Design a complete colour scheme:

Choose a board colour that looks good
Choose a contrasting border colour
Pick screen border colours that clearly indicate whose turn it is
Decide between flash and bright for the cursor
Make sure player colours (red/blue) still stand out

Document your choices in comments. Share your theme.

What You’ve Learnt

Attribute byte format - FBPPPIII: flash, bright, paper, ink packed into 8 bits
Calculating attributes - Shift paper left 3, add ink, optionally add 64 (bright) or 128 (flash)
Screen border - OUT ($FE), A sets the border to colours 0-7
FLASH vs BRIGHT - Flash alternates automatically; bright intensifies colours
Colour palette - 8 colours × 2 brightness levels, but black stays black

What’s Next

In Unit 4, we’ll add score and turn display - text on screen showing whose turn it is and how many cells each player controls.

What Changed

Unit 2 → Unit 3

+203-86

1	1		`; ============================================================================`
2		-	`; INK WAR - Unit 2: Claiming Cells`
	2	+	`; INK WAR - Unit 3: Making It Yours`
3	3		`; ============================================================================`
4		-	`; Two players take turns claiming cells on the board.`
5		-	`; Press Space to claim the cell under the cursor.`
	4	+	`; Customised version demonstrating attribute control:`
	5	+	`; - Cyan board cells (not white)`
	6	+	`; - Yellow border cells around the board`
	7	+	`; - Screen border changes colour with current player`
	8	+	`; - Bright cursor (not flashing)`
6	9		`;`
7	10		`; Controls: Q=Up, A=Down, O=Left, P=Right, SPACE=Claim`
8	11		`; ============================================================================`
			...
18	21		`BOARD_COL equ 12 ; Board starts at column 12`
19	22		`BOARD_SIZE equ 8 ; 8x8 playing field`
20	23
21		-	`; Attribute colours (FBPPPIII format)`
22		-	`BORDER_ATTR equ %00000000 ; Black on black (border)`
23		-	`EMPTY_ATTR equ %00111000 ; White paper, black ink (empty cell)`
24		-	`CURSOR_ATTR equ %10111000 ; White paper, black ink + FLASH`
25		-	`P1_ATTR equ %01010000 ; Red paper, black ink + BRIGHT (Player 1)`
26		-	`P2_ATTR equ %01001000 ; Blue paper, black ink + BRIGHT (Player 2)`
27		-	`P1_CURSOR equ %11010000 ; Red paper + FLASH (Player 1 cursor on own cell)`
28		-	`P2_CURSOR equ %11001000 ; Blue paper + FLASH (Player 2 cursor on own cell)`
	24	+	`; ============================================================================`
	25	+	`; CUSTOMISATION SECTION - Change these values to personalise your game!`
	26	+	`; ============================================================================`
	27	+
	28	+	`; Attribute format: %FBPPPIII`
	29	+	`; F = Flash (bit 7): 1 = flashing`
	30	+	`; B = Bright (bit 6): 1 = brighter colours`
	31	+	`; PPP = Paper colour (bits 5-3): background`
	32	+	`; III = Ink colour (bits 2-0): foreground`
	33	+	`;`
	34	+	`; Colour values (0-7):`
	35	+	`; 0=Black, 1=Blue, 2=Red, 3=Magenta, 4=Green, 5=Cyan, 6=Yellow, 7=White`
	36	+
	37	+	`; Empty cells - CUSTOMISED: cyan instead of white`
	38	+	`; %01101000 = BRIGHT + Paper 5 (cyan) + Ink 0 (black)`
	39	+	`EMPTY_ATTR equ %01101000 ; Cyan paper, black ink + BRIGHT`
	40	+
	41	+	`; Board border - CUSTOMISED: yellow border around playing area`
	42	+	`; %01110000 = BRIGHT + Paper 6 (yellow) + Ink 0 (black)`
	43	+	`BORDER_ATTR equ %01110000 ; Yellow paper, black ink + BRIGHT`
	44	+
	45	+	`; Cursor - CUSTOMISED: bright white instead of flashing`
	46	+	`; %01111000 = BRIGHT + Paper 7 (white) + Ink 0 (black)`
	47	+	`CURSOR_ATTR equ %01111000 ; White paper + BRIGHT (no flash)`
	48	+
	49	+	`; Player 1 - Red (unchanged)`
	50	+	`P1_ATTR equ %01010000 ; Red paper + BRIGHT`
	51	+	`P1_CURSOR equ %01111010 ; White paper + Red ink + BRIGHT`
	52	+
	53	+	`; Player 2 - Blue (unchanged)`
	54	+	`P2_ATTR equ %01001000 ; Blue paper + BRIGHT`
	55	+	`P2_CURSOR equ %01111001 ; White paper + Blue ink + BRIGHT`
	56	+
	57	+	`; Screen border colours for each player`
	58	+	`P1_BORDER equ 2 ; Red border for Player 1's turn`
	59	+	`P2_BORDER equ 1 ; Blue border for Player 2's turn`
	60	+
	61	+	`; ============================================================================`
	62	+	`; End of customisation section`
	63	+	`; ============================================================================`
29	64
30	65		`; Keyboard ports (active low)`
31	66		`KEY_PORT equ $fe`
32		-	`ROW_QAOP equ $fb ; Q W E R T row`
33		-	`ROW_ASDF equ $fd ; A S D F G row`
34		-	`ROW_YUIOP equ $df ; Y U I O P row`
35		-	`ROW_SPACE equ $7f ; SPACE SYM M N B row`
	67	+	`ROW_QAOP equ $fb`
	68	+	`ROW_ASDF equ $fd`
	69	+	`ROW_YUIOP equ $df`
	70	+	`ROW_SPACE equ $7f`
36	71
37	72		`; Game states`
38	73		`STATE_EMPTY equ 0`
			...
44	79		`; ----------------------------------------------------------------------------`
45	80
46	81		`start:`
47		-	`call init_screen ; Clear screen and set border`
48		-	`call init_game ; Initialise game state`
49		-	`call draw_board ; Draw the game board`
50		-	`call draw_cursor ; Show cursor at starting position`
	82	+	`call init_screen`
	83	+	`call init_game`
	84	+	`call draw_board_border ; NEW: Draw visible border`
	85	+	`call draw_board`
	86	+	`call draw_cursor`
	87	+	`call update_border ; Set initial border colour`
51	88
52	89		`main_loop:`
53		-	`halt ; Wait for frame (50Hz timing)`
	90	+	`halt`
54	91
55		-	`call read_keyboard ; Check for input`
56		-	`call handle_input ; Process movement or claim`
	92	+	`call read_keyboard`
	93	+	`call handle_input`
57	94
58		-	`jp main_loop ; Repeat forever`
	95	+	`jp main_loop`
59	96
60	97		`; ----------------------------------------------------------------------------`
61	98		`; Initialise Screen`
			...
63	100
64	101		`init_screen:`
65	102		`xor a`
66		-	`out (KEY_PORT), a ; Black border`
	103	+	`out (KEY_PORT), a`
67	104
68	105		`ld hl, ATTR_BASE`
69	106		`ld de, ATTR_BASE+1`
70	107		`ld bc, 767`
71	108		`ld (hl), 0`
72	109		`ldir`
	110	+
	111	+	`ret`
	112	+
	113	+	`; ----------------------------------------------------------------------------`
	114	+	`; Update Screen Border`
	115	+	`; ----------------------------------------------------------------------------`
	116	+	`; Sets border colour based on current player`
73	117
	118	+	`update_border:`
	119	+	`ld a, (current_player)`
	120	+	`cp 1`
	121	+	`jr z, .ub_p1`
	122	+	`ld a, P2_BORDER`
	123	+	`jr .ub_set`
	124	+	`.ub_p1:`
	125	+	`ld a, P1_BORDER`
	126	+	`.ub_set:`
	127	+	`out (KEY_PORT), a`
74	128		`ret`
75	129
76	130		`; ----------------------------------------------------------------------------`
			...
78	132		`; ----------------------------------------------------------------------------`
79	133
80	134		`init_game:`
81		-	`; Clear board state (all empty)`
82	135		`ld hl, board_state`
83	136		`ld b, 64`
84	137		`xor a`
			...
87	140		`inc hl`
88	141		`djnz .clear_loop`
89	142
90		-	`; Player 1 starts`
91	143		`ld a, 1`
92	144		`ld (current_player), a`
93	145
94		-	`; Cursor at top-left`
95	146		`xor a`
96	147		`ld (cursor_row), a`
97	148		`ld (cursor_col), a`
	149	+
	150	+	`ret`
	151	+
	152	+	`; ----------------------------------------------------------------------------`
	153	+	`; Draw Board Border`
	154	+	`; ----------------------------------------------------------------------------`
	155	+	`; Draws a visible border around the 8x8 playing area`
	156	+
	157	+	`draw_board_border:`
	158	+	`; Top border (row 7, columns 11-20)`
	159	+	`ld c, BOARD_ROW-1 ; Row 7`
	160	+	`ld d, BOARD_COL-1 ; Start at column 11`
	161	+	`ld b, BOARD_SIZE+2 ; 10 cells wide`
	162	+	`call draw_border_row`
	163	+
	164	+	`; Bottom border (row 16, columns 11-20)`
	165	+	`ld c, BOARD_ROW+BOARD_SIZE ; Row 16`
	166	+	`ld d, BOARD_COL-1`
	167	+	`ld b, BOARD_SIZE+2`
	168	+	`call draw_border_row`
	169	+
	170	+	`; Left border (rows 8-15, column 11)`
	171	+	`ld c, BOARD_ROW ; Start at row 8`
	172	+	`ld d, BOARD_COL-1 ; Column 11`
	173	+	`ld b, BOARD_SIZE ; 8 cells tall`
	174	+	`call draw_border_col`
	175	+
	176	+	`; Right border (rows 8-15, column 20)`
	177	+	`ld c, BOARD_ROW`
	178	+	`ld d, BOARD_COL+BOARD_SIZE ; Column 20`
	179	+	`ld b, BOARD_SIZE`
	180	+	`call draw_border_col`
	181	+
	182	+	`ret`
	183	+
	184	+	`; Draw horizontal border row`
	185	+	`; C = row, D = start column, B = width`
	186	+	`draw_border_row:`
	187	+	`push bc`
	188	+	`.row_loop:`
	189	+	`push bc`
	190	+	`push de`
	191	+
	192	+	`; Calculate attribute address`
	193	+	`ld a, c`
	194	+	`ld l, a`
	195	+	`ld h, 0`
	196	+	`add hl, hl`
	197	+	`add hl, hl`
	198	+	`add hl, hl`
	199	+	`add hl, hl`
	200	+	`add hl, hl`
	201	+	`ld a, d`
	202	+	`add a, l`
	203	+	`ld l, a`
	204	+	`ld bc, ATTR_BASE`
	205	+	`add hl, bc`
	206	+
	207	+	`ld (hl), BORDER_ATTR`
	208	+
	209	+	`pop de`
	210	+	`pop bc`
	211	+	`inc d`
	212	+	`djnz .row_loop`
	213	+	`pop bc`
	214	+	`ret`
	215	+
	216	+	`; Draw vertical border column`
	217	+	`; C = start row, D = column, B = height`
	218	+	`draw_border_col:`
	219	+	`push bc`
	220	+	`.col_loop:`
	221	+	`push bc`
	222	+	`push de`
	223	+
	224	+	`; Calculate attribute address`
	225	+	`ld a, c`
	226	+	`ld l, a`
	227	+	`ld h, 0`
	228	+	`add hl, hl`
	229	+	`add hl, hl`
	230	+	`add hl, hl`
	231	+	`add hl, hl`
	232	+	`add hl, hl`
	233	+	`ld a, d`
	234	+	`add a, l`
	235	+	`ld l, a`
	236	+	`ld bc, ATTR_BASE`
	237	+	`add hl, bc`
	238	+
	239	+	`ld (hl), BORDER_ATTR`
98	240
	241	+	`pop de`
	242	+	`pop bc`
	243	+	`inc c`
	244	+	`djnz .col_loop`
	245	+	`pop bc`
99	246		`ret`
100	247
101	248		`; ----------------------------------------------------------------------------`
			...
106	253		`ld b, BOARD_SIZE`
107	254		`ld c, BOARD_ROW`
108	255
109		-	`.row_loop:`
	256	+	`.db_row:`
110	257		`push bc`
111	258
112	259		`ld b, BOARD_SIZE`
113	260		`ld d, BOARD_COL`
114	261
115		-	`.col_loop:`
	262	+	`.db_col:`
116	263		`push bc`
117	264
118		-	`; Calculate attribute address`
119	265		`ld a, c`
120	266		`ld l, a`
121	267		`ld h, 0`
			...
134	280
135	281		`pop bc`
136	282		`inc d`
137		-	`djnz .col_loop`
	283	+	`djnz .db_col`
138	284
139	285		`pop bc`
140	286		`inc c`
141		-	`djnz .row_loop`
	287	+	`djnz .db_row`
142	288
143	289		`ret`
144	290
145	291		`; ----------------------------------------------------------------------------`
146	292		`; Draw Cursor`
147	293		`; ----------------------------------------------------------------------------`
148		-	`; Shows cursor with appropriate colour based on cell state`
149	294
150	295		`draw_cursor:`
151		-	`; Get cell state at cursor position`
152		-	`call get_cell_state ; A = state at cursor`
	296	+	`call get_cell_state`
153	297
154		-	`; Determine cursor attribute based on state`
155	298		`cp STATE_P1`
156	299		`jr z, .dc_p1`
157	300		`cp STATE_P2`
158	301		`jr z, .dc_p2`
159	302
160		-	`; Empty cell - use standard cursor`
161	303		`ld a, CURSOR_ATTR`
162	304		`jr .dc_set`
163	305
			...
169	311		`ld a, P2_CURSOR`
170	312
171	313		`.dc_set:`
172		-	`push af ; Save attribute`
	314	+	`push af`
173	315
174		-	`; Calculate attribute address`
175	316		`ld a, (cursor_row)`
176	317		`add a, BOARD_ROW`
177	318		`ld l, a`
			...
188	329		`ld bc, ATTR_BASE`
189	330		`add hl, bc`
190	331
191		-	`pop af ; Restore attribute`
	332	+	`pop af`
192	333		`ld (hl), a`
193	334
194	335		`ret`
			...
196	337		`; ----------------------------------------------------------------------------`
197	338		`; Clear Cursor`
198	339		`; ----------------------------------------------------------------------------`
199		-	`; Restores cell to its proper colour (empty, P1, or P2)`
200	340
201	341		`clear_cursor:`
202		-	`; Get cell state`
203	342		`call get_cell_state`
204	343
205		-	`; Determine attribute based on state`
206	344		`cp STATE_P1`
207	345		`jr z, .cc_p1`
208	346		`cp STATE_P2`
209	347		`jr z, .cc_p2`
210	348
211		-	`; Empty cell`
212	349		`ld a, EMPTY_ATTR`
213	350		`jr .cc_set`
214	351
			...
222	359		`.cc_set:`
223	360		`push af`
224	361
225		-	`; Calculate attribute address`
226	362		`ld a, (cursor_row)`
227	363		`add a, BOARD_ROW`
228	364		`ld l, a`
			...
247	383		`; ----------------------------------------------------------------------------`
248	384		`; Get Cell State`
249	385		`; ----------------------------------------------------------------------------`
250		-	`; Returns: A = state at cursor position (0=empty, 1=P1, 2=P2)`
251	386
252	387		`get_cell_state:`
253	388		`ld a, (cursor_row)`
254		-	`add a, a ; *2`
255		-	`add a, a ; *4`
256		-	`add a, a ; *8`
	389	+	`add a, a`
	390	+	`add a, a`
	391	+	`add a, a`
257	392		`ld hl, board_state`
258	393		`ld b, 0`
259	394		`ld c, a`
260	395		`add hl, bc`
261	396		`ld a, (cursor_col)`
262	397		`ld c, a`
263		-	`add hl, bc ; HL = &board_state[row*8+col]`
	398	+	`add hl, bc`
264	399		`ld a, (hl)`
265	400		`ret`
266	401
			...
272	407		`xor a`
273	408		`ld (key_pressed), a`
274	409
275		-	`; Check Q (up)`
276	410		`ld a, ROW_QAOP`
277	411		`in a, (KEY_PORT)`
278	412		`bit 0, a`
			...
281	415		`ld (key_pressed), a`
282	416		`ret`
283	417		`.not_q:`
284		-	`; Check A (down)`
285	418		`ld a, ROW_ASDF`
286	419		`in a, (KEY_PORT)`
287	420		`bit 0, a`
			...
290	423		`ld (key_pressed), a`
291	424		`ret`
292	425		`.not_a:`
293		-	`; Check O (left)`
294	426		`ld a, ROW_YUIOP`
295	427		`in a, (KEY_PORT)`
296	428		`bit 1, a`
			...
299	431		`ld (key_pressed), a`
300	432		`ret`
301	433		`.not_o:`
302		-	`; Check P (right)`
303	434		`ld a, ROW_YUIOP`
304	435		`in a, (KEY_PORT)`
305	436		`bit 0, a`
			...
308	439		`ld (key_pressed), a`
309	440		`ret`
310	441		`.not_p:`
311		-	`; Check SPACE (claim)`
312	442		`ld a, ROW_SPACE`
313	443		`in a, (KEY_PORT)`
314	444		`bit 0, a`
			...
325	455		`handle_input:`
326	456		`ld a, (key_pressed)`
327	457		`or a`
328		-	`ret z ; No key`
	458	+	`ret z`
329	459
330		-	`cp 5 ; Space?`
	460	+	`cp 5`
331	461		`jr z, try_claim`
332	462
333		-	`; Movement key - use existing move logic`
334	463		`call clear_cursor`
335	464
336	465		`ld a, (key_pressed)`
337	466
338		-	`cp 1 ; Up?`
	467	+	`cp 1`
339	468		`jr nz, .not_up`
340	469		`ld a, (cursor_row)`
341	470		`or a`
			...
344	473		`ld (cursor_row), a`
345	474		`jr .done`
346	475		`.not_up:`
347		-	`cp 2 ; Down?`
	476	+	`cp 2`
348	477		`jr nz, .not_down`
349	478		`ld a, (cursor_row)`
350	479		`cp BOARD_SIZE-1`
			...
353	482		`ld (cursor_row), a`
354	483		`jr .done`
355	484		`.not_down:`
356		-	`cp 3 ; Left?`
	485	+	`cp 3`
357	486		`jr nz, .not_left`
358	487		`ld a, (cursor_col)`
359	488		`or a`
			...
362	491		`ld (cursor_col), a`
363	492		`jr .done`
364	493		`.not_left:`
365		-	`cp 4 ; Right?`
	494	+	`cp 4`
366	495		`jr nz, .done`
367	496		`ld a, (cursor_col)`
368	497		`cp BOARD_SIZE-1`
			...
379	508		`; ----------------------------------------------------------------------------`
380	509
381	510		`try_claim:`
382		-	`; Check if cell is empty`
383	511		`call get_cell_state`
384	512		`or a`
385		-	`ret nz ; Not empty - can't claim`
	513	+	`ret nz`
386	514
387		-	`; Claim the cell`
388	515		`call claim_cell`
389		-
390		-	`; Play success sound`
391	516		`call sound_claim`
392	517
393		-	`; Switch player`
394	518		`ld a, (current_player)`
395		-	`xor 3 ; Toggle between 1 and 2`
	519	+	`xor 3`
396	520		`ld (current_player), a`
397	521
398		-	`; Redraw cursor with new state`
	522	+	`call update_border ; Update border for new player`
399	523		`call draw_cursor`
400	524
401	525		`ret`
			...
403	527		`; ----------------------------------------------------------------------------`
404	528		`; Claim Cell`
405	529		`; ----------------------------------------------------------------------------`
406		-	`; Claims current cell for current player`
407	530
408	531		`claim_cell:`
409		-	`; Calculate board state index`
410	532		`ld a, (cursor_row)`
411	533		`add a, a`
412	534		`add a, a`
			...
417	539		`add hl, bc`
418	540		`ld a, (cursor_col)`
419	541		`ld c, a`
420		-	`add hl, bc ; HL = &board_state[row*8+col]`
	542	+	`add hl, bc`
421	543
422		-	`; Set to current player`
423	544		`ld a, (current_player)`
424	545		`ld (hl), a`
425	546
426		-	`; Update attribute colour`
427	547		`push af`
428	548
429	549		`ld a, (cursor_row)`
			...
444	564
445	565		`pop af`
446	566		`cp 1`
447		-	`jr z, .player1`
	567	+	`jr z, .cc_is_p1`
448	568		`ld (hl), P2_ATTR`
449	569		`ret`
450		-	`.player1:`
	570	+	`.cc_is_p1:`
451	571		`ld (hl), P1_ATTR`
452	572		`ret`
453	573
454	574		`; ----------------------------------------------------------------------------`
455	575		`; Sound - Claim`
456	576		`; ----------------------------------------------------------------------------`
457		-	`; Short rising tone for successful claim`
458	577
459	578		`sound_claim:`
460		-	`ld hl, 400 ; Starting pitch`
461		-	`ld b, 20 ; Duration`
	579	+	`ld hl, 400`
	580	+	`ld b, 20`
462	581
463	582		`.loop:`
464	583		`push bc`
465	584		`push hl`
466	585
467		-	`; Generate tone`
468	586		`ld b, h`
469	587		`ld c, l`
470	588		`.tone_loop:`
471		-	`ld a, $10 ; Speaker bit on`
	589	+	`ld a, $10`
472	590		`out (KEY_PORT), a`
473	591		`call .delay`
474		-	`xor a ; Speaker bit off`
	592	+	`xor a`
475	593		`out (KEY_PORT), a`
476	594		`call .delay`
477	595		`dec bc`
			...
482	600		`pop hl`
483	601		`pop bc`
484	602
485		-	`; Increase pitch (lower delay = higher frequency)`
486	603		`ld de, 20`
487	604		`or a`
488	605		`sbc hl, de`
			...
505	622		`cursor_row: defb 0`
506	623		`cursor_col: defb 0`
507	624		`key_pressed: defb 0`
508		-	`current_player: defb 1 ; 1 = Player 1 (Red), 2 = Player 2 (Blue)`
509		-	`board_state: defs 64, 0 ; 64 bytes, all initialised to 0`
	625	+	`current_player: defb 1`
	626	+	`board_state: defs 64, 0`
510	627
511	628		`; ----------------------------------------------------------------------------`
512	629		`; End`
