Game 1 Unit 4 of 64 1 hr learning time

Score and Turn Display

Count cells, display scores, show whose turn it is. The game gets a proper UI.

6% of Ink War

Mark as complete Completed!

Players need to know the score. They need to know whose turn it is.

This unit adds a proper user interface: score display showing how many cells each player owns, and a turn indicator that changes colour with each move. The game starts to feel complete.

Run It

pasmonext --sna inkwar.asm inkwar.sna

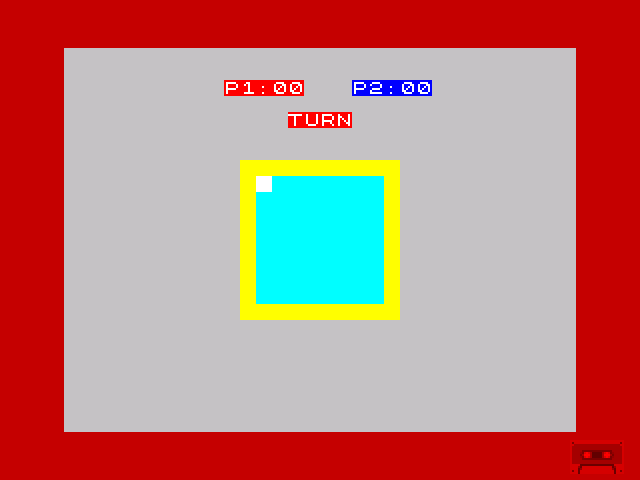

Unit 4 Screenshot

Above the board you’ll see:

P1:00 with a score (red background)
P2:00 with a score (blue background)
TURN indicator in the current player’s colour

Claim some cells. Watch the scores update. Watch the turn indicator change colour.

Counting Cells

To display scores, we first need to count them:

; ----------------------------------------------------------------------------
; Count Cells
; ----------------------------------------------------------------------------
; Counts cells owned by each player

count_cells:
            xor     a
            ld      (p1_count), a
            ld      (p2_count), a

            ld      hl, board_state
            ld      b, 64               ; 64 cells

.count_loop:
            ld      a, (hl)
            cp      STATE_P1
            jr      nz, .not_p1
            ld      a, (p1_count)
            inc     a
            ld      (p1_count), a
            jr      .next
.not_p1:
            cp      STATE_P2
            jr      nz, .next
            ld      a, (p2_count)
            inc     a
            ld      (p2_count), a
.next:
            inc     hl
            djnz    .count_loop

            ret

This iterates through all 64 cells of board_state, counting how many belong to each player. The djnz instruction (Decrement and Jump if Not Zero) is perfect for loops - it decrements B and jumps back if B isn’t zero yet.

We store the counts in p1_count and p2_count for display.

Printing Characters

Rather than wrestling with the ROM’s print routines (which need careful system variable setup), we write our own character printing routine. This gives us complete control and teaches more about how the Spectrum works.

; ----------------------------------------------------------------------------
; Print Character
; ----------------------------------------------------------------------------
; A = ASCII character (32-127), B = row (0-23), C = column (0-31)
; Writes character directly to display file using ROM character set

print_char:
            push    bc
            push    de
            push    hl
            push    af

            ; Calculate character data address: CHAR_SET + char*8
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl          ; HL = char * 8
            ld      de, CHAR_SET
            add     hl, de          ; HL = source address

            push    hl              ; Save character data address

            ; Calculate display file address
            ; Screen address: high byte varies with row, low byte = column
            ld      a, b            ; A = row (0-23)
            and     %00011000       ; Get which third (0, 8, 16)
            add     a, $40          ; Add display file base high byte
            ld      d, a

            ld      a, b            ; A = row
            and     %00000111       ; Get line within character row
            rrca
            rrca
            rrca                    ; Shift to bits 5-7
            add     a, c            ; Add column
            ld      e, a            ; DE = screen address

            pop     hl              ; HL = character data

            ; Copy 8 bytes (8 pixel rows of character)
            ld      b, 8
.pc_loop:
            ld      a, (hl)
            ld      (de), a
            inc     hl
            inc     d               ; Next screen line (add 256)
            djnz    .pc_loop

            pop     af
            pop     hl
            pop     de
            pop     bc
            ret

The routine:

Looks up the character’s pixel data in the ROM character set at $3C00
Calculates where on screen to draw it using the Spectrum’s quirky display layout
Copies 8 bytes (one per pixel row) to the display file

The Spectrum’s Screen Layout

The Spectrum’s display file at $4000 has a complex layout. For each character position at row R, column C:

; High byte = $40 + (row/8)*8 + pixel_line
; Low byte = (row%8)*32 + column

The screen is divided into thirds (rows 0-7, 8-15, 16-23), with each pixel row 256 bytes apart. Our print_char routine handles this complexity.

Converting Numbers to Text

Scores are numbers (0-64), but we print characters. To convert:

; ----------------------------------------------------------------------------
; Print Two Digits
; ----------------------------------------------------------------------------
; A = number (0-99), B = row, C = column (will advance by 2)
; Prints number as two digits

print_two_digits:
            push    bc

            ; Calculate tens digit
            ld      d, 0            ; Tens counter
.ptd_tens:
            cp      10
            jr      c, .ptd_print
            sub     10
            inc     d
            jr      .ptd_tens

.ptd_print:
            push    af              ; Save units digit

            ; Print tens digit
            ld      a, d
            add     a, '0'
            call    print_char
            inc     c

            ; Print units digit
            pop     af
            add     a, '0'
            call    print_char
            inc     c

            pop     bc
            ret

The conversion is simple: subtract 10 repeatedly to get the tens digit, then add ASCII ‘0’ (48 decimal) to convert digits to printable characters.

For example, the number 23:

Subtract 10 twice: 23 → 13 → 3 (tens = 2, remainder = 3)
Tens digit: 2 + ‘0’ = ‘2’ (ASCII 50)
Units digit: 3 + ‘0’ = ‘3’ (ASCII 51)

The Turn Indicator

A simple “TURN” label that changes colour based on whose turn it is:

; ----------------------------------------------------------------------------
; Draw Turn Indicator
; ----------------------------------------------------------------------------
; Shows "TURN" with current player's colour

draw_turn_indicator:
            ; Print "TURN"
            ld      b, TURN_ROW
            ld      c, TURN_COL
            ld      a, 'T'
            call    print_char
            inc     c
            ld      a, 'U'
            call    print_char
            inc     c
            ld      a, 'R'
            call    print_char
            inc     c
            ld      a, 'N'
            call    print_char

            ; Set attribute based on current player
            ld      a, (current_player)
            cp      1
            jr      z, .dti_p1
            ld      e, P2_TEXT
            jr      .dti_set
.dti_p1:
            ld      e, P1_TEXT

.dti_set:
            ld      a, TURN_ROW
            ld      c, TURN_COL
            ld      b, 4                ; "TURN" = 4 chars
            call    set_attr_range

            ret

We print the text first, then set the attributes afterwards. The text stays the same - only the background colour changes.

Setting Attribute Ranges

We colour the text by setting attributes for multiple consecutive cells:

set_attr_range:
            ; A = row, C = start column, B = count, E = attribute
            ; Calculate address, then write E to B consecutive bytes

This lets us create coloured “badges” for the score labels - red background for P1, blue for P2.

UI Layout Constants

The display positions are defined as constants at the top:

SCORE_ROW   equ     2               ; Score display row
P1_SCORE_COL equ    10              ; "P1: nn" column
P2_SCORE_COL equ    18              ; "P2: nn" column
TURN_ROW    equ     4               ; Turn indicator row
TURN_COL    equ     14              ; Turn indicator column

Changing these moves the entire UI. Want scores at the bottom? Change SCORE_ROW to 20.

Updating After Claims

When a cell is claimed, we update the display:

try_claim:
            ; ... claim the cell ...

            call    draw_ui         ; Update scores and turn indicator
            call    update_border
            call    draw_cursor

The draw_ui routine calls count_cells to recalculate, then redraws the score display and turn indicator. Every claim triggers an update.

The Complete Code

; ============================================================================
; INK WAR - Unit 4: Score and Turn Display
; ============================================================================
; Adds score display and turn indicator to the game.
; Shows "P1: nn  P2: nn" and indicates whose turn it is.
;
; Controls: Q=Up, A=Down, O=Left, P=Right, SPACE=Claim
; ============================================================================

            org     32768

; ----------------------------------------------------------------------------
; Constants
; ----------------------------------------------------------------------------

ATTR_BASE   equ     $5800
DISPLAY_FILE equ    $4000
CHAR_SET    equ     $3C00           ; ROM character set base address

BOARD_ROW   equ     8
BOARD_COL   equ     12
BOARD_SIZE  equ     8

; Display positions
SCORE_ROW   equ     2               ; Score display row
P1_SCORE_COL equ    10              ; "P1: nn" column
P2_SCORE_COL equ    18              ; "P2: nn" column
TURN_ROW    equ     4               ; Turn indicator row
TURN_COL    equ     14              ; Turn indicator column

; Customised colours (from Unit 3)
EMPTY_ATTR  equ     %01101000       ; Cyan paper + BRIGHT
BORDER_ATTR equ     %01110000       ; Yellow paper + BRIGHT
CURSOR_ATTR equ     %01111000       ; White paper + BRIGHT

P1_ATTR     equ     %01010000       ; Red paper + BRIGHT
P2_ATTR     equ     %01001000       ; Blue paper + BRIGHT
P1_CURSOR   equ     %01111010       ; White paper + Red ink + BRIGHT
P2_CURSOR   equ     %01111001       ; White paper + Blue ink + BRIGHT

; Text display attributes
TEXT_ATTR   equ     %00111000       ; White paper, black ink
P1_TEXT     equ     %01010111       ; Red paper, white ink + BRIGHT
P2_TEXT     equ     %01001111       ; Blue paper, white ink + BRIGHT

P1_BORDER   equ     2
P2_BORDER   equ     1

; Keyboard ports
KEY_PORT    equ     $fe
ROW_QAOP    equ     $fb
ROW_ASDF    equ     $fd
ROW_YUIOP   equ     $df
ROW_SPACE   equ     $7f

; Game states
STATE_EMPTY equ     0
STATE_P1    equ     1
STATE_P2    equ     2

; ----------------------------------------------------------------------------
; Entry Point
; ----------------------------------------------------------------------------

start:
            call    init_screen
            call    init_game
            call    draw_board_border
            call    draw_board
            call    draw_ui             ; Draw score and turn display
            call    draw_cursor
            call    update_border

main_loop:
            halt

            call    read_keyboard
            call    handle_input

            jp      main_loop

; ----------------------------------------------------------------------------
; Initialise Screen
; ----------------------------------------------------------------------------

init_screen:
            xor     a
            out     (KEY_PORT), a

            ; Clear display file (pixels)
            ld      hl, DISPLAY_FILE
            ld      de, DISPLAY_FILE+1
            ld      bc, 6143
            ld      (hl), 0
            ldir

            ; Clear all attributes to white paper, black ink
            ld      hl, ATTR_BASE
            ld      de, ATTR_BASE+1
            ld      bc, 767
            ld      (hl), TEXT_ATTR     ; White background for text areas
            ldir

            ret

; ----------------------------------------------------------------------------
; Draw UI
; ----------------------------------------------------------------------------
; Draws score display and turn indicator

draw_ui:
            call    draw_scores
            call    draw_turn_indicator
            ret

; ----------------------------------------------------------------------------
; Draw Scores
; ----------------------------------------------------------------------------
; Displays "P1: nn  P2: nn" with player colours

draw_scores:
            ; Count cells for each player
            call    count_cells

            ; Draw P1 label "P1:"
            ld      b, SCORE_ROW
            ld      c, P1_SCORE_COL
            ld      a, 'P'
            call    print_char
            inc     c
            ld      a, '1'
            call    print_char
            inc     c
            ld      a, ':'
            call    print_char
            inc     c

            ; Print P1 score
            ld      a, (p1_count)
            call    print_two_digits

            ; Set P1 colour attribute
            ld      a, SCORE_ROW
            ld      c, P1_SCORE_COL
            ld      b, 5                ; "P1:nn" = 5 characters
            ld      e, P1_TEXT
            call    set_attr_range

            ; Draw P2 label "P2:"
            ld      b, SCORE_ROW
            ld      c, P2_SCORE_COL
            ld      a, 'P'
            call    print_char
            inc     c
            ld      a, '2'
            call    print_char
            inc     c
            ld      a, ':'
            call    print_char
            inc     c

            ; Print P2 score
            ld      a, (p2_count)
            call    print_two_digits

            ; Set P2 colour attribute
            ld      a, SCORE_ROW
            ld      c, P2_SCORE_COL
            ld      b, 5
            ld      e, P2_TEXT
            call    set_attr_range

            ret

; ----------------------------------------------------------------------------
; Draw Turn Indicator
; ----------------------------------------------------------------------------
; Shows "TURN" with current player's colour

draw_turn_indicator:
            ; Print "TURN"
            ld      b, TURN_ROW
            ld      c, TURN_COL
            ld      a, 'T'
            call    print_char
            inc     c
            ld      a, 'U'
            call    print_char
            inc     c
            ld      a, 'R'
            call    print_char
            inc     c
            ld      a, 'N'
            call    print_char

            ; Set attribute based on current player
            ld      a, (current_player)
            cp      1
            jr      z, .dti_p1
            ld      e, P2_TEXT
            jr      .dti_set
.dti_p1:
            ld      e, P1_TEXT

.dti_set:
            ld      a, TURN_ROW
            ld      c, TURN_COL
            ld      b, 4                ; "TURN" = 4 chars
            call    set_attr_range

            ret

; ----------------------------------------------------------------------------
; Print Character
; ----------------------------------------------------------------------------
; A = ASCII character (32-127), B = row (0-23), C = column (0-31)
; Writes character directly to display file using ROM character set

print_char:
            push    bc
            push    de
            push    hl
            push    af

            ; Calculate character data address: CHAR_SET + char*8
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl          ; HL = char * 8
            ld      de, CHAR_SET
            add     hl, de          ; HL = source address

            push    hl              ; Save character data address

            ; Calculate display file address
            ; Screen address: high byte varies with row, low byte = column
            ld      a, b            ; A = row (0-23)
            and     %00011000       ; Get which third (0, 8, 16)
            add     a, $40          ; Add display file base high byte
            ld      d, a

            ld      a, b            ; A = row
            and     %00000111       ; Get line within character row
            rrca
            rrca
            rrca                    ; Shift to bits 5-7
            add     a, c            ; Add column
            ld      e, a            ; DE = screen address

            pop     hl              ; HL = character data

            ; Copy 8 bytes (8 pixel rows of character)
            ld      b, 8
.pc_loop:
            ld      a, (hl)
            ld      (de), a
            inc     hl
            inc     d               ; Next screen line (add 256)
            djnz    .pc_loop

            pop     af
            pop     hl
            pop     de
            pop     bc
            ret

; ----------------------------------------------------------------------------
; Print Two Digits
; ----------------------------------------------------------------------------
; A = number (0-99), B = row, C = column (will advance by 2)
; Prints number as two digits

print_two_digits:
            push    bc

            ; Calculate tens digit
            ld      d, 0            ; Tens counter
.ptd_tens:
            cp      10
            jr      c, .ptd_print
            sub     10
            inc     d
            jr      .ptd_tens

.ptd_print:
            push    af              ; Save units digit

            ; Print tens digit
            ld      a, d
            add     a, '0'
            call    print_char
            inc     c

            ; Print units digit
            pop     af
            add     a, '0'
            call    print_char
            inc     c

            pop     bc
            ret

; ----------------------------------------------------------------------------
; Count Cells
; ----------------------------------------------------------------------------
; Counts cells owned by each player

count_cells:
            xor     a
            ld      (p1_count), a
            ld      (p2_count), a

            ld      hl, board_state
            ld      b, 64               ; 64 cells

.cc_loop:
            ld      a, (hl)
            cp      STATE_P1
            jr      nz, .cc_not_p1
            ld      a, (p1_count)
            inc     a
            ld      (p1_count), a
            jr      .cc_next
.cc_not_p1:
            cp      STATE_P2
            jr      nz, .cc_next
            ld      a, (p2_count)
            inc     a
            ld      (p2_count), a
.cc_next:
            inc     hl
            djnz    .cc_loop

            ret

; ----------------------------------------------------------------------------
; Set Attribute Range
; ----------------------------------------------------------------------------
; A = row, C = start column, B = count, E = attribute

set_attr_range:
            push    bc
            push    de

            ; Calculate start address: ATTR_BASE + row*32 + col
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl          ; HL = row * 32
            ld      a, c
            add     a, l
            ld      l, a
            ld      bc, ATTR_BASE
            add     hl, bc          ; HL = attribute address

            pop     de              ; E = attribute
            pop     bc              ; B = count

.sar_loop:
            ld      (hl), e
            inc     hl
            djnz    .sar_loop

            ret

; ----------------------------------------------------------------------------
; Update Border
; ----------------------------------------------------------------------------

update_border:
            ld      a, (current_player)
            cp      1
            jr      z, .ub_p1
            ld      a, P2_BORDER
            jr      .ub_set
.ub_p1:
            ld      a, P1_BORDER
.ub_set:
            out     (KEY_PORT), a
            ret

; ----------------------------------------------------------------------------
; Initialise Game State
; ----------------------------------------------------------------------------

init_game:
            ld      hl, board_state
            ld      b, 64
            xor     a
.ig_loop:
            ld      (hl), a
            inc     hl
            djnz    .ig_loop

            ld      a, 1
            ld      (current_player), a

            xor     a
            ld      (cursor_row), a
            ld      (cursor_col), a
            ld      (p1_count), a
            ld      (p2_count), a

            ret

; ----------------------------------------------------------------------------
; Draw Board Border
; ----------------------------------------------------------------------------

draw_board_border:
            ld      c, BOARD_ROW-1
            ld      d, BOARD_COL-1
            ld      b, BOARD_SIZE+2
            call    draw_border_row

            ld      c, BOARD_ROW+BOARD_SIZE
            ld      d, BOARD_COL-1
            ld      b, BOARD_SIZE+2
            call    draw_border_row

            ld      c, BOARD_ROW
            ld      d, BOARD_COL-1
            ld      b, BOARD_SIZE
            call    draw_border_col

            ld      c, BOARD_ROW
            ld      d, BOARD_COL+BOARD_SIZE
            ld      b, BOARD_SIZE
            call    draw_border_col

            ret

draw_border_row:
            push    bc
.dbr_loop:
            push    bc
            push    de

            ld      a, c
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            ld      a, d
            add     a, l
            ld      l, a
            ld      bc, ATTR_BASE
            add     hl, bc

            ld      (hl), BORDER_ATTR

            pop     de
            pop     bc
            inc     d
            djnz    .dbr_loop
            pop     bc
            ret

draw_border_col:
            push    bc
.dbc_loop:
            push    bc
            push    de

            ld      a, c
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            ld      a, d
            add     a, l
            ld      l, a
            ld      bc, ATTR_BASE
            add     hl, bc

            ld      (hl), BORDER_ATTR

            pop     de
            pop     bc
            inc     c
            djnz    .dbc_loop
            pop     bc
            ret

; ----------------------------------------------------------------------------
; Draw Board
; ----------------------------------------------------------------------------

draw_board:
            ld      b, BOARD_SIZE
            ld      c, BOARD_ROW

.db_row:
            push    bc

            ld      b, BOARD_SIZE
            ld      d, BOARD_COL

.db_col:
            push    bc

            ld      a, c
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            ld      a, d
            add     a, l
            ld      l, a
            ld      bc, ATTR_BASE
            add     hl, bc

            ld      (hl), EMPTY_ATTR

            pop     bc
            inc     d
            djnz    .db_col

            pop     bc
            inc     c
            djnz    .db_row

            ret

; ----------------------------------------------------------------------------
; Draw Cursor
; ----------------------------------------------------------------------------

draw_cursor:
            call    get_cell_state

            cp      STATE_P1
            jr      z, .dc_p1
            cp      STATE_P2
            jr      z, .dc_p2

            ld      a, CURSOR_ATTR
            jr      .dc_set

.dc_p1:
            ld      a, P1_CURSOR
            jr      .dc_set

.dc_p2:
            ld      a, P2_CURSOR

.dc_set:
            push    af

            ld      a, (cursor_row)
            add     a, BOARD_ROW
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            ld      a, (cursor_col)
            add     a, BOARD_COL
            add     a, l
            ld      l, a
            ld      bc, ATTR_BASE
            add     hl, bc

            pop     af
            ld      (hl), a

            ret

; ----------------------------------------------------------------------------
; Clear Cursor
; ----------------------------------------------------------------------------

clear_cursor:
            call    get_cell_state

            cp      STATE_P1
            jr      z, .clc_p1
            cp      STATE_P2
            jr      z, .clc_p2

            ld      a, EMPTY_ATTR
            jr      .clc_set

.clc_p1:
            ld      a, P1_ATTR
            jr      .clc_set

.clc_p2:
            ld      a, P2_ATTR

.clc_set:
            push    af

            ld      a, (cursor_row)
            add     a, BOARD_ROW
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            ld      a, (cursor_col)
            add     a, BOARD_COL
            add     a, l
            ld      l, a
            ld      bc, ATTR_BASE
            add     hl, bc

            pop     af
            ld      (hl), a

            ret

; ----------------------------------------------------------------------------
; Get Cell State
; ----------------------------------------------------------------------------

get_cell_state:
            ld      a, (cursor_row)
            add     a, a
            add     a, a
            add     a, a
            ld      hl, board_state
            ld      b, 0
            ld      c, a
            add     hl, bc
            ld      a, (cursor_col)
            ld      c, a
            add     hl, bc
            ld      a, (hl)
            ret

; ----------------------------------------------------------------------------
; Read Keyboard
; ----------------------------------------------------------------------------

read_keyboard:
            xor     a
            ld      (key_pressed), a

            ld      a, ROW_QAOP
            in      a, (KEY_PORT)
            bit     0, a
            jr      nz, .rk_not_q
            ld      a, 1
            ld      (key_pressed), a
            ret
.rk_not_q:
            ld      a, ROW_ASDF
            in      a, (KEY_PORT)
            bit     0, a
            jr      nz, .rk_not_a
            ld      a, 2
            ld      (key_pressed), a
            ret
.rk_not_a:
            ld      a, ROW_YUIOP
            in      a, (KEY_PORT)
            bit     1, a
            jr      nz, .rk_not_o
            ld      a, 3
            ld      (key_pressed), a
            ret
.rk_not_o:
            ld      a, ROW_YUIOP
            in      a, (KEY_PORT)
            bit     0, a
            jr      nz, .rk_not_p
            ld      a, 4
            ld      (key_pressed), a
            ret
.rk_not_p:
            ld      a, ROW_SPACE
            in      a, (KEY_PORT)
            bit     0, a
            jr      nz, .rk_not_space
            ld      a, 5
            ld      (key_pressed), a
.rk_not_space:
            ret

; ----------------------------------------------------------------------------
; Handle Input
; ----------------------------------------------------------------------------

handle_input:
            ld      a, (key_pressed)
            or      a
            ret     z

            cp      5
            jr      z, try_claim

            call    clear_cursor

            ld      a, (key_pressed)

            cp      1
            jr      nz, .hi_not_up
            ld      a, (cursor_row)
            or      a
            jr      z, .hi_done
            dec     a
            ld      (cursor_row), a
            jr      .hi_done
.hi_not_up:
            cp      2
            jr      nz, .hi_not_down
            ld      a, (cursor_row)
            cp      BOARD_SIZE-1
            jr      z, .hi_done
            inc     a
            ld      (cursor_row), a
            jr      .hi_done
.hi_not_down:
            cp      3
            jr      nz, .hi_not_left
            ld      a, (cursor_col)
            or      a
            jr      z, .hi_done
            dec     a
            ld      (cursor_col), a
            jr      .hi_done
.hi_not_left:
            cp      4
            jr      nz, .hi_done
            ld      a, (cursor_col)
            cp      BOARD_SIZE-1
            jr      z, .hi_done
            inc     a
            ld      (cursor_col), a

.hi_done:
            call    draw_cursor
            ret

; ----------------------------------------------------------------------------
; Try Claim Cell
; ----------------------------------------------------------------------------

try_claim:
            call    get_cell_state
            or      a
            ret     nz

            call    claim_cell
            call    sound_claim

            ld      a, (current_player)
            xor     3
            ld      (current_player), a

            call    draw_ui             ; Update scores and turn indicator
            call    update_border
            call    draw_cursor

            ret

; ----------------------------------------------------------------------------
; Claim Cell
; ----------------------------------------------------------------------------

claim_cell:
            ld      a, (cursor_row)
            add     a, a
            add     a, a
            add     a, a
            ld      hl, board_state
            ld      b, 0
            ld      c, a
            add     hl, bc
            ld      a, (cursor_col)
            ld      c, a
            add     hl, bc

            ld      a, (current_player)
            ld      (hl), a

            push    af

            ld      a, (cursor_row)
            add     a, BOARD_ROW
            ld      l, a
            ld      h, 0
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            add     hl, hl
            ld      a, (cursor_col)
            add     a, BOARD_COL
            add     a, l
            ld      l, a
            ld      bc, ATTR_BASE
            add     hl, bc

            pop     af
            cp      1
            jr      z, .clm_is_p1
            ld      (hl), P2_ATTR
            ret
.clm_is_p1:
            ld      (hl), P1_ATTR
            ret

; ----------------------------------------------------------------------------
; Sound - Claim
; ----------------------------------------------------------------------------

sound_claim:
            ld      hl, 400
            ld      b, 20

.scl_loop:
            push    bc
            push    hl

            ld      b, h
            ld      c, l
.scl_tone:
            ld      a, $10
            out     (KEY_PORT), a
            call    .scl_delay
            xor     a
            out     (KEY_PORT), a
            call    .scl_delay
            dec     bc
            ld      a, b
            or      c
            jr      nz, .scl_tone

            pop     hl
            pop     bc

            ld      de, 20
            or      a
            sbc     hl, de

            djnz    .scl_loop
            ret

.scl_delay:
            push    bc
            ld      b, 5
.scl_delay_loop:
            djnz    .scl_delay_loop
            pop     bc
            ret

; ----------------------------------------------------------------------------
; Variables
; ----------------------------------------------------------------------------

cursor_row:     defb    0
cursor_col:     defb    0
key_pressed:    defb    0
current_player: defb    1
p1_count:       defb    0
p2_count:       defb    0
board_state:    defs    64, 0

; ----------------------------------------------------------------------------
; End
; ----------------------------------------------------------------------------

            end     start

Try This: Move the UI

Change the position constants:

; Scores at the bottom
SCORE_ROW   equ     21

; Turn indicator on the left
TURN_ROW    equ     12
TURN_COL    equ     2

Try This: Different Colour Scheme

; Green for P1, Magenta for P2
P1_TEXT     equ     %01100111       ; Green paper, white ink
P2_TEXT     equ     %01011111       ; Magenta paper, white ink

What You’ve Learnt

Custom print routine - Direct screen memory access gives full control
ROM character set - Character data at $3C00, each character is 8 bytes
Display file layout - Screen memory has complex interleaved addressing
Number to ASCII - Add ‘0’ (48) to convert a digit to its character code
Cell counting - Iterate with DJNZ, compare and branch to count categories
Attribute ranges - Set consecutive attributes to create coloured text backgrounds

What’s Next

In Unit 5, we’ll add proper move validation with feedback - error sounds and visual cues when you try to claim an already-occupied cell.

What Changed

Unit 3 → Unit 4

+367-117

1	1		`; ============================================================================`
2		-	`; INK WAR - Unit 3: Making It Yours`
	2	+	`; INK WAR - Unit 4: Score and Turn Display`
3	3		`; ============================================================================`
4		-	`; Customised version demonstrating attribute control:`
5		-	`; - Cyan board cells (not white)`
6		-	`; - Yellow border cells around the board`
7		-	`; - Screen border changes colour with current player`
8		-	`; - Bright cursor (not flashing)`
	4	+	`; Adds score display and turn indicator to the game.`
	5	+	`; Shows "P1: nn P2: nn" and indicates whose turn it is.`
9	6		`;`
10	7		`; Controls: Q=Up, A=Down, O=Left, P=Right, SPACE=Claim`
11	8		`; ============================================================================`
			...
15	12		`; ----------------------------------------------------------------------------`
16	13		`; Constants`
17	14		`; ----------------------------------------------------------------------------`
18		-
19		-	`ATTR_BASE equ $5800 ; Start of attribute memory`
20		-	`BOARD_ROW equ 8 ; Board starts at row 8`
21		-	`BOARD_COL equ 12 ; Board starts at column 12`
22		-	`BOARD_SIZE equ 8 ; 8x8 playing field`
23		-
24		-	`; ============================================================================`
25		-	`; CUSTOMISATION SECTION - Change these values to personalise your game!`
26		-	`; ============================================================================`
27	15
28		-	`; Attribute format: %FBPPPIII`
29		-	`; F = Flash (bit 7): 1 = flashing`
30		-	`; B = Bright (bit 6): 1 = brighter colours`
31		-	`; PPP = Paper colour (bits 5-3): background`
32		-	`; III = Ink colour (bits 2-0): foreground`
33		-	`;`
34		-	`; Colour values (0-7):`
35		-	`; 0=Black, 1=Blue, 2=Red, 3=Magenta, 4=Green, 5=Cyan, 6=Yellow, 7=White`
	16	+	`ATTR_BASE equ $5800`
	17	+	`DISPLAY_FILE equ $4000`
	18	+	`CHAR_SET equ $3C00 ; ROM character set base address`
36	19
37		-	`; Empty cells - CUSTOMISED: cyan instead of white`
38		-	`; %01101000 = BRIGHT + Paper 5 (cyan) + Ink 0 (black)`
39		-	`EMPTY_ATTR equ %01101000 ; Cyan paper, black ink + BRIGHT`
	20	+	`BOARD_ROW equ 8`
	21	+	`BOARD_COL equ 12`
	22	+	`BOARD_SIZE equ 8`
40	23
41		-	`; Board border - CUSTOMISED: yellow border around playing area`
42		-	`; %01110000 = BRIGHT + Paper 6 (yellow) + Ink 0 (black)`
43		-	`BORDER_ATTR equ %01110000 ; Yellow paper, black ink + BRIGHT`
	24	+	`; Display positions`
	25	+	`SCORE_ROW equ 2 ; Score display row`
	26	+	`P1_SCORE_COL equ 10 ; "P1: nn" column`
	27	+	`P2_SCORE_COL equ 18 ; "P2: nn" column`
	28	+	`TURN_ROW equ 4 ; Turn indicator row`
	29	+	`TURN_COL equ 14 ; Turn indicator column`
44	30
45		-	`; Cursor - CUSTOMISED: bright white instead of flashing`
46		-	`; %01111000 = BRIGHT + Paper 7 (white) + Ink 0 (black)`
47		-	`CURSOR_ATTR equ %01111000 ; White paper + BRIGHT (no flash)`
	31	+	`; Customised colours (from Unit 3)`
	32	+	`EMPTY_ATTR equ %01101000 ; Cyan paper + BRIGHT`
	33	+	`BORDER_ATTR equ %01110000 ; Yellow paper + BRIGHT`
	34	+	`CURSOR_ATTR equ %01111000 ; White paper + BRIGHT`
48	35
49		-	`; Player 1 - Red (unchanged)`
50	36		`P1_ATTR equ %01010000 ; Red paper + BRIGHT`
51		-	`P1_CURSOR equ %01111010 ; White paper + Red ink + BRIGHT`
52		-
53		-	`; Player 2 - Blue (unchanged)`
54	37		`P2_ATTR equ %01001000 ; Blue paper + BRIGHT`
	38	+	`P1_CURSOR equ %01111010 ; White paper + Red ink + BRIGHT`
55	39		`P2_CURSOR equ %01111001 ; White paper + Blue ink + BRIGHT`
56	40
57		-	`; Screen border colours for each player`
58		-	`P1_BORDER equ 2 ; Red border for Player 1's turn`
59		-	`P2_BORDER equ 1 ; Blue border for Player 2's turn`
	41	+	`; Text display attributes`
	42	+	`TEXT_ATTR equ %00111000 ; White paper, black ink`
	43	+	`P1_TEXT equ %01010111 ; Red paper, white ink + BRIGHT`
	44	+	`P2_TEXT equ %01001111 ; Blue paper, white ink + BRIGHT`
60	45
61		-	`; ============================================================================`
62		-	`; End of customisation section`
63		-	`; ============================================================================`
	46	+	`P1_BORDER equ 2`
	47	+	`P2_BORDER equ 1`
64	48
65		-	`; Keyboard ports (active low)`
	49	+	`; Keyboard ports`
66	50		`KEY_PORT equ $fe`
67	51		`ROW_QAOP equ $fb`
68	52		`ROW_ASDF equ $fd`
			...
81	65		`start:`
82	66		`call init_screen`
83	67		`call init_game`
84		-	`call draw_board_border ; NEW: Draw visible border`
	68	+	`call draw_board_border`
85	69		`call draw_board`
	70	+	`call draw_ui ; Draw score and turn display`
86	71		`call draw_cursor`
87		-	`call update_border ; Set initial border colour`
	72	+	`call update_border`
88	73
89	74		`main_loop:`
90	75		`halt`
			...
101	86		`init_screen:`
102	87		`xor a`
103	88		`out (KEY_PORT), a`
	89	+
	90	+	`; Clear display file (pixels)`
	91	+	`ld hl, DISPLAY_FILE`
	92	+	`ld de, DISPLAY_FILE+1`
	93	+	`ld bc, 6143`
	94	+	`ld (hl), 0`
	95	+	`ldir`
104	96
	97	+	`; Clear all attributes to white paper, black ink`
105	98		`ld hl, ATTR_BASE`
106	99		`ld de, ATTR_BASE+1`
107	100		`ld bc, 767`
108		-	`ld (hl), 0`
	101	+	`ld (hl), TEXT_ATTR ; White background for text areas`
109	102		`ldir`
110	103
111	104		`ret`
112	105
113	106		`; ----------------------------------------------------------------------------`
114		-	`; Update Screen Border`
	107	+	`; Draw UI`
115	108		`; ----------------------------------------------------------------------------`
116		-	`; Sets border colour based on current player`
	109	+	`; Draws score display and turn indicator`
	110	+
	111	+	`draw_ui:`
	112	+	`call draw_scores`
	113	+	`call draw_turn_indicator`
	114	+	`ret`
	115	+
	116	+	`; ----------------------------------------------------------------------------`
	117	+	`; Draw Scores`
	118	+	`; ----------------------------------------------------------------------------`
	119	+	`; Displays "P1: nn P2: nn" with player colours`
	120	+
	121	+	`draw_scores:`
	122	+	`; Count cells for each player`
	123	+	`call count_cells`
	124	+
	125	+	`; Draw P1 label "P1:"`
	126	+	`ld b, SCORE_ROW`
	127	+	`ld c, P1_SCORE_COL`
	128	+	`ld a, 'P'`
	129	+	`call print_char`
	130	+	`inc c`
	131	+	`ld a, '1'`
	132	+	`call print_char`
	133	+	`inc c`
	134	+	`ld a, ':'`
	135	+	`call print_char`
	136	+	`inc c`
	137	+
	138	+	`; Print P1 score`
	139	+	`ld a, (p1_count)`
	140	+	`call print_two_digits`
	141	+
	142	+	`; Set P1 colour attribute`
	143	+	`ld a, SCORE_ROW`
	144	+	`ld c, P1_SCORE_COL`
	145	+	`ld b, 5 ; "P1:nn" = 5 characters`
	146	+	`ld e, P1_TEXT`
	147	+	`call set_attr_range`
	148	+
	149	+	`; Draw P2 label "P2:"`
	150	+	`ld b, SCORE_ROW`
	151	+	`ld c, P2_SCORE_COL`
	152	+	`ld a, 'P'`
	153	+	`call print_char`
	154	+	`inc c`
	155	+	`ld a, '2'`
	156	+	`call print_char`
	157	+	`inc c`
	158	+	`ld a, ':'`
	159	+	`call print_char`
	160	+	`inc c`
	161	+
	162	+	`; Print P2 score`
	163	+	`ld a, (p2_count)`
	164	+	`call print_two_digits`
	165	+
	166	+	`; Set P2 colour attribute`
	167	+	`ld a, SCORE_ROW`
	168	+	`ld c, P2_SCORE_COL`
	169	+	`ld b, 5`
	170	+	`ld e, P2_TEXT`
	171	+	`call set_attr_range`
	172	+
	173	+	`ret`
	174	+
	175	+	`; ----------------------------------------------------------------------------`
	176	+	`; Draw Turn Indicator`
	177	+	`; ----------------------------------------------------------------------------`
	178	+	`; Shows "TURN" with current player's colour`
	179	+
	180	+	`draw_turn_indicator:`
	181	+	`; Print "TURN"`
	182	+	`ld b, TURN_ROW`
	183	+	`ld c, TURN_COL`
	184	+	`ld a, 'T'`
	185	+	`call print_char`
	186	+	`inc c`
	187	+	`ld a, 'U'`
	188	+	`call print_char`
	189	+	`inc c`
	190	+	`ld a, 'R'`
	191	+	`call print_char`
	192	+	`inc c`
	193	+	`ld a, 'N'`
	194	+	`call print_char`
	195	+
	196	+	`; Set attribute based on current player`
	197	+	`ld a, (current_player)`
	198	+	`cp 1`
	199	+	`jr z, .dti_p1`
	200	+	`ld e, P2_TEXT`
	201	+	`jr .dti_set`
	202	+	`.dti_p1:`
	203	+	`ld e, P1_TEXT`
	204	+
	205	+	`.dti_set:`
	206	+	`ld a, TURN_ROW`
	207	+	`ld c, TURN_COL`
	208	+	`ld b, 4 ; "TURN" = 4 chars`
	209	+	`call set_attr_range`
	210	+
	211	+	`ret`
	212	+
	213	+	`; ----------------------------------------------------------------------------`
	214	+	`; Print Character`
	215	+	`; ----------------------------------------------------------------------------`
	216	+	`; A = ASCII character (32-127), B = row (0-23), C = column (0-31)`
	217	+	`; Writes character directly to display file using ROM character set`
	218	+
	219	+	`print_char:`
	220	+	`push bc`
	221	+	`push de`
	222	+	`push hl`
	223	+	`push af`
	224	+
	225	+	`; Calculate character data address: CHAR_SET + char*8`
	226	+	`ld l, a`
	227	+	`ld h, 0`
	228	+	`add hl, hl`
	229	+	`add hl, hl`
	230	+	`add hl, hl ; HL = char * 8`
	231	+	`ld de, CHAR_SET`
	232	+	`add hl, de ; HL = source address`
	233	+
	234	+	`push hl ; Save character data address`
	235	+
	236	+	`; Calculate display file address`
	237	+	`; Screen address: high byte varies with row, low byte = column`
	238	+	`ld a, b ; A = row (0-23)`
	239	+	`and %00011000 ; Get which third (0, 8, 16)`
	240	+	`add a, $40 ; Add display file base high byte`
	241	+	`ld d, a`
	242	+
	243	+	`ld a, b ; A = row`
	244	+	`and %00000111 ; Get line within character row`
	245	+	`rrca`
	246	+	`rrca`
	247	+	`rrca ; Shift to bits 5-7`
	248	+	`add a, c ; Add column`
	249	+	`ld e, a ; DE = screen address`
	250	+
	251	+	`pop hl ; HL = character data`
	252	+
	253	+	`; Copy 8 bytes (8 pixel rows of character)`
	254	+	`ld b, 8`
	255	+	`.pc_loop:`
	256	+	`ld a, (hl)`
	257	+	`ld (de), a`
	258	+	`inc hl`
	259	+	`inc d ; Next screen line (add 256)`
	260	+	`djnz .pc_loop`
	261	+
	262	+	`pop af`
	263	+	`pop hl`
	264	+	`pop de`
	265	+	`pop bc`
	266	+	`ret`
	267	+
	268	+	`; ----------------------------------------------------------------------------`
	269	+	`; Print Two Digits`
	270	+	`; ----------------------------------------------------------------------------`
	271	+	`; A = number (0-99), B = row, C = column (will advance by 2)`
	272	+	`; Prints number as two digits`
	273	+
	274	+	`print_two_digits:`
	275	+	`push bc`
	276	+
	277	+	`; Calculate tens digit`
	278	+	`ld d, 0 ; Tens counter`
	279	+	`.ptd_tens:`
	280	+	`cp 10`
	281	+	`jr c, .ptd_print`
	282	+	`sub 10`
	283	+	`inc d`
	284	+	`jr .ptd_tens`
	285	+
	286	+	`.ptd_print:`
	287	+	`push af ; Save units digit`
	288	+
	289	+	`; Print tens digit`
	290	+	`ld a, d`
	291	+	`add a, '0'`
	292	+	`call print_char`
	293	+	`inc c`
	294	+
	295	+	`; Print units digit`
	296	+	`pop af`
	297	+	`add a, '0'`
	298	+	`call print_char`
	299	+	`inc c`
	300	+
	301	+	`pop bc`
	302	+	`ret`
	303	+
	304	+	`; ----------------------------------------------------------------------------`
	305	+	`; Count Cells`
	306	+	`; ----------------------------------------------------------------------------`
	307	+	`; Counts cells owned by each player`
	308	+
	309	+	`count_cells:`
	310	+	`xor a`
	311	+	`ld (p1_count), a`
	312	+	`ld (p2_count), a`
	313	+
	314	+	`ld hl, board_state`
	315	+	`ld b, 64 ; 64 cells`
	316	+
	317	+	`.cc_loop:`
	318	+	`ld a, (hl)`
	319	+	`cp STATE_P1`
	320	+	`jr nz, .cc_not_p1`
	321	+	`ld a, (p1_count)`
	322	+	`inc a`
	323	+	`ld (p1_count), a`
	324	+	`jr .cc_next`
	325	+	`.cc_not_p1:`
	326	+	`cp STATE_P2`
	327	+	`jr nz, .cc_next`
	328	+	`ld a, (p2_count)`
	329	+	`inc a`
	330	+	`ld (p2_count), a`
	331	+	`.cc_next:`
	332	+	`inc hl`
	333	+	`djnz .cc_loop`
	334	+
	335	+	`ret`
	336	+
	337	+	`; ----------------------------------------------------------------------------`
	338	+	`; Set Attribute Range`
	339	+	`; ----------------------------------------------------------------------------`
	340	+	`; A = row, C = start column, B = count, E = attribute`
	341	+
	342	+	`set_attr_range:`
	343	+	`push bc`
	344	+	`push de`
	345	+
	346	+	`; Calculate start address: ATTR_BASE + row*32 + col`
	347	+	`ld l, a`
	348	+	`ld h, 0`
	349	+	`add hl, hl`
	350	+	`add hl, hl`
	351	+	`add hl, hl`
	352	+	`add hl, hl`
	353	+	`add hl, hl ; HL = row * 32`
	354	+	`ld a, c`
	355	+	`add a, l`
	356	+	`ld l, a`
	357	+	`ld bc, ATTR_BASE`
	358	+	`add hl, bc ; HL = attribute address`
	359	+
	360	+	`pop de ; E = attribute`
	361	+	`pop bc ; B = count`
	362	+
	363	+	`.sar_loop:`
	364	+	`ld (hl), e`
	365	+	`inc hl`
	366	+	`djnz .sar_loop`
	367	+
	368	+	`ret`
	369	+
	370	+	`; ----------------------------------------------------------------------------`
	371	+	`; Update Border`
	372	+	`; ----------------------------------------------------------------------------`
117	373
118	374		`update_border:`
119	375		`ld a, (current_player)`
			...
135	391		`ld hl, board_state`
136	392		`ld b, 64`
137	393		`xor a`
138		-	`.clear_loop:`
	394	+	`.ig_loop:`
139	395		`ld (hl), a`
140	396		`inc hl`
141		-	`djnz .clear_loop`
	397	+	`djnz .ig_loop`
142	398
143	399		`ld a, 1`
144	400		`ld (current_player), a`
			...
146	402		`xor a`
147	403		`ld (cursor_row), a`
148	404		`ld (cursor_col), a`
	405	+	`ld (p1_count), a`
	406	+	`ld (p2_count), a`
149	407
150	408		`ret`
151	409
152	410		`; ----------------------------------------------------------------------------`
153	411		`; Draw Board Border`
154	412		`; ----------------------------------------------------------------------------`
155		-	`; Draws a visible border around the 8x8 playing area`
156	413
157	414		`draw_board_border:`
158		-	`; Top border (row 7, columns 11-20)`
159		-	`ld c, BOARD_ROW-1 ; Row 7`
160		-	`ld d, BOARD_COL-1 ; Start at column 11`
161		-	`ld b, BOARD_SIZE+2 ; 10 cells wide`
	415	+	`ld c, BOARD_ROW-1`
	416	+	`ld d, BOARD_COL-1`
	417	+	`ld b, BOARD_SIZE+2`
162	418		`call draw_border_row`
163	419
164		-	`; Bottom border (row 16, columns 11-20)`
165		-	`ld c, BOARD_ROW+BOARD_SIZE ; Row 16`
	420	+	`ld c, BOARD_ROW+BOARD_SIZE`
166	421		`ld d, BOARD_COL-1`
167	422		`ld b, BOARD_SIZE+2`
168	423		`call draw_border_row`
169	424
170		-	`; Left border (rows 8-15, column 11)`
171		-	`ld c, BOARD_ROW ; Start at row 8`
172		-	`ld d, BOARD_COL-1 ; Column 11`
173		-	`ld b, BOARD_SIZE ; 8 cells tall`
	425	+	`ld c, BOARD_ROW`
	426	+	`ld d, BOARD_COL-1`
	427	+	`ld b, BOARD_SIZE`
174	428		`call draw_border_col`
175	429
176		-	`; Right border (rows 8-15, column 20)`
177	430		`ld c, BOARD_ROW`
178		-	`ld d, BOARD_COL+BOARD_SIZE ; Column 20`
	431	+	`ld d, BOARD_COL+BOARD_SIZE`
179	432		`ld b, BOARD_SIZE`
180	433		`call draw_border_col`
181	434
182	435		`ret`
183	436
184		-	`; Draw horizontal border row`
185		-	`; C = row, D = start column, B = width`
186	437		`draw_border_row:`
187	438		`push bc`
188		-	`.row_loop:`
	439	+	`.dbr_loop:`
189	440		`push bc`
190	441		`push de`
191	442
192		-	`; Calculate attribute address`
193	443		`ld a, c`
194	444		`ld l, a`
195	445		`ld h, 0`
			...
209	459		`pop de`
210	460		`pop bc`
211	461		`inc d`
212		-	`djnz .row_loop`
	462	+	`djnz .dbr_loop`
213	463		`pop bc`
214	464		`ret`
215	465
216		-	`; Draw vertical border column`
217		-	`; C = start row, D = column, B = height`
218	466		`draw_border_col:`
219	467		`push bc`
220		-	`.col_loop:`
	468	+	`.dbc_loop:`
221	469		`push bc`
222	470		`push de`
223	471
224		-	`; Calculate attribute address`
225	472		`ld a, c`
226	473		`ld l, a`
227	474		`ld h, 0`
			...
241	488		`pop de`
242	489		`pop bc`
243	490		`inc c`
244		-	`djnz .col_loop`
	491	+	`djnz .dbc_loop`
245	492		`pop bc`
246	493		`ret`
247	494
			...
342	589		`call get_cell_state`
343	590
344	591		`cp STATE_P1`
345		-	`jr z, .cc_p1`
	592	+	`jr z, .clc_p1`
346	593		`cp STATE_P2`
347		-	`jr z, .cc_p2`
	594	+	`jr z, .clc_p2`
348	595
349	596		`ld a, EMPTY_ATTR`
350		-	`jr .cc_set`
	597	+	`jr .clc_set`
351	598
352		-	`.cc_p1:`
	599	+	`.clc_p1:`
353	600		`ld a, P1_ATTR`
354		-	`jr .cc_set`
	601	+	`jr .clc_set`
355	602
356		-	`.cc_p2:`
	603	+	`.clc_p2:`
357	604		`ld a, P2_ATTR`
358	605
359		-	`.cc_set:`
	606	+	`.clc_set:`
360	607		`push af`
361	608
362	609		`ld a, (cursor_row)`
			...
410	657		`ld a, ROW_QAOP`
411	658		`in a, (KEY_PORT)`
412	659		`bit 0, a`
413		-	`jr nz, .not_q`
	660	+	`jr nz, .rk_not_q`
414	661		`ld a, 1`
415	662		`ld (key_pressed), a`
416	663		`ret`
417		-	`.not_q:`
	664	+	`.rk_not_q:`
418	665		`ld a, ROW_ASDF`
419	666		`in a, (KEY_PORT)`
420	667		`bit 0, a`
421		-	`jr nz, .not_a`
	668	+	`jr nz, .rk_not_a`
422	669		`ld a, 2`
423	670		`ld (key_pressed), a`
424	671		`ret`
425		-	`.not_a:`
	672	+	`.rk_not_a:`
426	673		`ld a, ROW_YUIOP`
427	674		`in a, (KEY_PORT)`
428	675		`bit 1, a`
429		-	`jr nz, .not_o`
	676	+	`jr nz, .rk_not_o`
430	677		`ld a, 3`
431	678		`ld (key_pressed), a`
432	679		`ret`
433		-	`.not_o:`
	680	+	`.rk_not_o:`
434	681		`ld a, ROW_YUIOP`
435	682		`in a, (KEY_PORT)`
436	683		`bit 0, a`
437		-	`jr nz, .not_p`
	684	+	`jr nz, .rk_not_p`
438	685		`ld a, 4`
439	686		`ld (key_pressed), a`
440	687		`ret`
441		-	`.not_p:`
	688	+	`.rk_not_p:`
442	689		`ld a, ROW_SPACE`
443	690		`in a, (KEY_PORT)`
444	691		`bit 0, a`
445		-	`jr nz, .not_space`
	692	+	`jr nz, .rk_not_space`
446	693		`ld a, 5`
447	694		`ld (key_pressed), a`
448		-	`.not_space:`
	695	+	`.rk_not_space:`
449	696		`ret`
450	697
451	698		`; ----------------------------------------------------------------------------`
			...
465	712		`ld a, (key_pressed)`
466	713
467	714		`cp 1`
468		-	`jr nz, .not_up`
	715	+	`jr nz, .hi_not_up`
469	716		`ld a, (cursor_row)`
470	717		`or a`
471		-	`jr z, .done`
	718	+	`jr z, .hi_done`
472	719		`dec a`
473	720		`ld (cursor_row), a`
474		-	`jr .done`
475		-	`.not_up:`
	721	+	`jr .hi_done`
	722	+	`.hi_not_up:`
476	723		`cp 2`
477		-	`jr nz, .not_down`
	724	+	`jr nz, .hi_not_down`
478	725		`ld a, (cursor_row)`
479	726		`cp BOARD_SIZE-1`
480		-	`jr z, .done`
	727	+	`jr z, .hi_done`
481	728		`inc a`
482	729		`ld (cursor_row), a`
483		-	`jr .done`
484		-	`.not_down:`
	730	+	`jr .hi_done`
	731	+	`.hi_not_down:`
485	732		`cp 3`
486		-	`jr nz, .not_left`
	733	+	`jr nz, .hi_not_left`
487	734		`ld a, (cursor_col)`
488	735		`or a`
489		-	`jr z, .done`
	736	+	`jr z, .hi_done`
490	737		`dec a`
491	738		`ld (cursor_col), a`
492		-	`jr .done`
493		-	`.not_left:`
	739	+	`jr .hi_done`
	740	+	`.hi_not_left:`
494	741		`cp 4`
495		-	`jr nz, .done`
	742	+	`jr nz, .hi_done`
496	743		`ld a, (cursor_col)`
497	744		`cp BOARD_SIZE-1`
498		-	`jr z, .done`
	745	+	`jr z, .hi_done`
499	746		`inc a`
500	747		`ld (cursor_col), a`
501	748
502		-	`.done:`
	749	+	`.hi_done:`
503	750		`call draw_cursor`
504	751		`ret`
505	752
			...
519	766		`xor 3`
520	767		`ld (current_player), a`
521	768
522		-	`call update_border ; Update border for new player`
	769	+	`call draw_ui ; Update scores and turn indicator`
	770	+	`call update_border`
523	771		`call draw_cursor`
524	772
525	773		`ret`
			...
564	812
565	813		`pop af`
566	814		`cp 1`
567		-	`jr z, .cc_is_p1`
	815	+	`jr z, .clm_is_p1`
568	816		`ld (hl), P2_ATTR`
569	817		`ret`
570		-	`.cc_is_p1:`
	818	+	`.clm_is_p1:`
571	819		`ld (hl), P1_ATTR`
572	820		`ret`
573	821
			...
579	827		`ld hl, 400`
580	828		`ld b, 20`
581	829
582		-	`.loop:`
	830	+	`.scl_loop:`
583	831		`push bc`
584	832		`push hl`
585	833
586	834		`ld b, h`
587	835		`ld c, l`
588		-	`.tone_loop:`
	836	+	`.scl_tone:`
589	837		`ld a, $10`
590	838		`out (KEY_PORT), a`
591		-	`call .delay`
	839	+	`call .scl_delay`
592	840		`xor a`
593	841		`out (KEY_PORT), a`
594		-	`call .delay`
	842	+	`call .scl_delay`
595	843		`dec bc`
596	844		`ld a, b`
597	845		`or c`
598		-	`jr nz, .tone_loop`
	846	+	`jr nz, .scl_tone`
599	847
600	848		`pop hl`
601	849		`pop bc`
			...
604	852		`or a`
605	853		`sbc hl, de`
606	854
607		-	`djnz .loop`
	855	+	`djnz .scl_loop`
608	856		`ret`
609	857
610		-	`.delay:`
	858	+	`.scl_delay:`
611	859		`push bc`
612	860		`ld b, 5`
613		-	`.delay_loop:`
614		-	`djnz .delay_loop`
	861	+	`.scl_delay_loop:`
	862	+	`djnz .scl_delay_loop`
615	863		`pop bc`
616	864		`ret`
617	865
			...
623	871		`cursor_col: defb 0`
624	872		`key_pressed: defb 0`
625	873		`current_player: defb 1`
	874	+	`p1_count: defb 0`
	875	+	`p2_count: defb 0`
626	876		`board_state: defs 64, 0`
627	877
628	878		`; ----------------------------------------------------------------------------`
