Lives System

Three lives. Sprite icons. Game over when empty. Stakes.

14% of Signal

Mark as complete Completed!

What You’re Building

Stakes.

Infinite continues means no tension. This unit adds a lives system: start with 3 lives, lose one per death, game over when they’re gone. Small frog icons in the corner show your remaining chances.

By the end of this unit:

Start with 3 lives
Frog icons show remaining lives
Lives decrease on death
Game over state when lives = 0
Fire button restarts

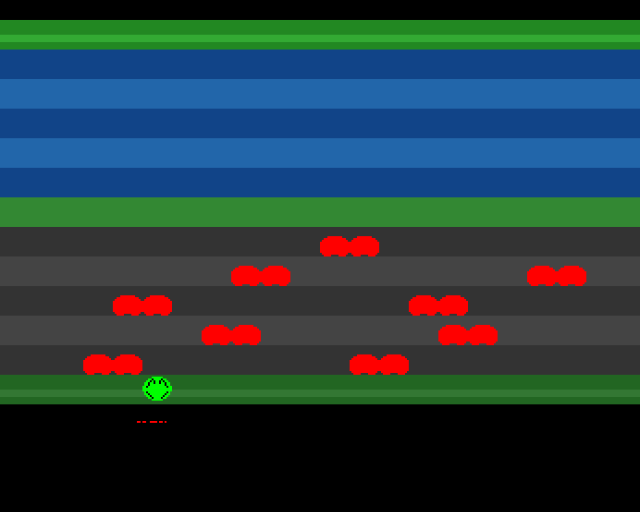

Unit 9 Screenshot

The Lives Variable

The lives system starts with simple constants and a counter:

; Lives System Constants
; Start with 3 lives, game over when all lost

; Lives configuration
START_LIVES     equ 3

; Game states (extended)
STATE_IDLE      equ 0
STATE_HOPPING   equ 1
STATE_DYING     equ 2
STATE_GAMEOVER  equ 3           ; New: no lives remaining

; Life icon display
LIFE_ICON_W     equ 1           ; 16 pixels = 1 word
LIFE_ICON_H     equ 8
LIFE_ICON_X     equ 8           ; Left margin
LIFE_ICON_SPACING equ 20        ; Pixels between icons

; Variables
lives:          dc.w    3       ; Current life count

We decrement on death, and when lives reaches zero, the game enters the GAMEOVER state.

The Game Over Loop

When in game over state, we ignore normal gameplay and wait for restart:

mainloop:
    bsr     wait_vblank

    cmp.w   #STATE_GAMEOVER,frog_state
    beq     .game_over_loop

    ; Normal game loop...
    bra     mainloop

.game_over_loop:
    ; Wait for fire button (active low at bit 7 of $BFE001)
    btst    #7,$bfe001
    bne.s   mainloop            ; Not pressed, keep waiting

    ; Restart game
    move.w  #START_LIVES,lives
    bsr     reset_frog
    bsr     update_life_display
    bsr     clear_screen

    bra     mainloop

Life Icons with Sprites

We use sprites 1-3 to display small frog icons. Each icon is a simple 8-pixel tall shape:

; Life Icon Sprites
; Small frog shapes displayed using hardware sprites 1-3

; Sprite 1 (first life icon)
            even
life_icon_1:
            dc.w    $0000,$0000         ; Control words (set by code)
            dc.w    $0000,$0000
            dc.w    $1800,$0000         ; ..##............
            dc.w    $3c00,$0000         ; .####...........
            dc.w    $7e00,$0000         ; .######.........
            dc.w    $7e00,$0000         ; .######.........
            dc.w    $3c00,$0000         ; .####...........
            dc.w    $1800,$0000         ; ..##............
            dc.w    $0000,$0000
            dc.w    $0000,$0000         ; End marker

; Sprite 2 (second life icon)
            even
life_icon_2:
            dc.w    $0000,$0000
            dc.w    $0000,$0000
            dc.w    $1800,$0000
            dc.w    $3c00,$0000
            dc.w    $7e00,$0000
            dc.w    $7e00,$0000
            dc.w    $3c00,$0000
            dc.w    $1800,$0000
            dc.w    $0000,$0000
            dc.w    $0000,$0000

; Sprite 3 (third life icon)
            even
life_icon_3:
            dc.w    $0000,$0000
            dc.w    $0000,$0000
            dc.w    $1800,$0000
            dc.w    $3c00,$0000
            dc.w    $7e00,$0000
            dc.w    $7e00,$0000
            dc.w    $3c00,$0000
            dc.w    $1800,$0000
            dc.w    $0000,$0000
            dc.w    $0000,$0000

Updating the Display

We show or hide sprites based on remaining lives by setting or clearing the sprite control words:

; Update Life Display
; Show/hide sprite icons based on lives count

update_life_display:
            ; Position life icons at top of screen
            ; VSTART = 30, VSTOP = 38 (8 pixels tall)
            ; HSTART varies: 64, 80, 96 (sprite coords)

            ; Life 1 (show if lives >= 1)
            lea     life_icon_1,a0
            move.w  lives,d0
            cmp.w   #1,d0
            blt.s   .hide_life1
            move.w  #$1e20,$0(a0)       ; VSTART=30, HSTART=64
            move.w  #$2600,$2(a0)       ; VSTOP=38
            bra.s   .life2
.hide_life1:
            clr.l   (a0)                ; Hide: zero control words

.life2:
            ; Life 2 (show if lives >= 2)
            lea     life_icon_2,a0
            cmp.w   #2,d0
            blt.s   .hide_life2
            move.w  #$1e28,$0(a0)       ; VSTART=30, HSTART=80
            move.w  #$2600,$2(a0)
            bra.s   .life3
.hide_life2:
            clr.l   (a0)

.life3:
            ; Life 3 (show if lives >= 3)
            lea     life_icon_3,a0
            cmp.w   #3,d0
            blt.s   .hide_life3
            move.w  #$1e30,$0(a0)       ; VSTART=30, HSTART=96
            move.w  #$2600,$2(a0)
            rts
.hide_life3:
            clr.l   (a0)
            rts

Setting control words to zero effectively hides the sprite (VSTART=0 and VSTOP=0 means no visible lines).

Sprites 0-1 share colours 16-19. Since sprite 0 is our main frog and sprites 1, 2, 3 use the same palette, the life icons automatically appear in the same green colour. No extra palette setup needed.

Separating Reset Logic

We refactor respawn into a reusable function:

reset_frog:
    move.w  #START_GRID_X,frog_grid_x
    move.w  #START_GRID_Y,frog_grid_y
    move.w  #STATE_IDLE,frog_state
    clr.w   frog_anim_frame
    clr.w   joy_prev
    move.w  #COLOUR_BLACK,flash_colour
    bsr     grid_to_pixels
    rts

This is called on both death-respawn and game restart.

The Fire Button

CIA-A port A ($BFE001) bit 7 is the fire button for joystick port 2. It’s active low (0 = pressed):

btst    #7,$bfe001
bne.s   .not_pressed    ; Branch if bit is 1 (not pressed)
; Button is pressed...

Key Takeaways

Lives counter adds consequence to death
Game over state pauses gameplay
Fire button provides restart mechanism
Sprite icons show lives visually
Palette sharing simplifies sprite setup
Separated reset enables clean restart

The Code

;══════════════════════════════════════════════════════════════════════════════
; SIGNAL - A Frogger-style game for the Commodore Amiga
; Unit 9: Lives System
;
; Infinite respawns means no tension. This unit adds a lives system: start
; with 3 lives, lose one on each death, game over when empty. Small frog
; icons in the corner show your remaining chances.
;══════════════════════════════════════════════════════════════════════════════

;══════════════════════════════════════════════════════════════════════════════
; CONSTANTS
;══════════════════════════════════════════════════════════════════════════════

SCREEN_W        equ 40
SCREEN_H        equ 256
PLANE_SIZE      equ SCREEN_W*SCREEN_H

GRID_COLS       equ 20
GRID_ROWS       equ 13
CELL_SIZE       equ 16
GRID_ORIGIN_X   equ 48
GRID_ORIGIN_Y   equ 44
START_GRID_X    equ 9
START_GRID_Y    equ 12

HOP_FRAMES      equ 8
PIXELS_PER_FRAME equ 2
STATE_IDLE      equ 0
STATE_HOPPING   equ 1
STATE_DYING     equ 2
STATE_GAMEOVER  equ 3           ; NEW: Game over state
DIR_UP          equ 0
DIR_DOWN        equ 1
DIR_LEFT        equ 2
DIR_RIGHT       equ 3
FROG_HEIGHT     equ 16
FROG_WIDTH      equ 16

DEATH_FRAMES    equ 30
FLASH_COLOUR    equ $0f00

NUM_CARS        equ 10
CAR_WIDTH       equ 2
CAR_WIDTH_PX    equ 32
CAR_HEIGHT      equ 12
CAR_STRUCT_SIZE equ 8

ROAD_ROW_FIRST  equ 7
ROAD_ROW_LAST   equ 11

; Lives system
START_LIVES     equ 3
LIFE_ICON_W     equ 1           ; 16 pixels = 1 word
LIFE_ICON_H     equ 8
LIFE_ICON_X     equ 8           ; Left margin
LIFE_ICON_Y     equ 260         ; Below visible area (we'll position in border)
LIFE_ICON_SPACING equ 20        ; Pixels between icons

; Colours
COLOUR_BLACK    equ $0000
COLOUR_HOME     equ $0282
COLOUR_HOME_LIT equ $03a3
COLOUR_WATER1   equ $0148
COLOUR_WATER2   equ $026a
COLOUR_MEDIAN   equ $0383
COLOUR_ROAD1    equ $0333
COLOUR_ROAD2    equ $0444
COLOUR_START    equ $0262
COLOUR_START_LIT equ $0373
COLOUR_FROG     equ $00f0
COLOUR_EYES     equ $0ff0
COLOUR_OUTLINE  equ $0000
COLOUR_CAR      equ $0f00
COLOUR_LIFE     equ $00f0       ; Green for life icons

;══════════════════════════════════════════════════════════════════════════════
; HARDWARE REGISTERS
;══════════════════════════════════════════════════════════════════════════════

CUSTOM      equ $dff000

DMACONR     equ $002
VPOSR       equ $004
JOY1DAT     equ $00c

BLTCON0     equ $040
BLTCON1     equ $042
BLTAFWM     equ $044
BLTALWM     equ $046
BLTCPTH     equ $048
BLTBPTH     equ $04c
BLTAPTH     equ $050
BLTDPTH     equ $054
BLTSIZE     equ $058
BLTCMOD     equ $060
BLTBMOD     equ $062
BLTAMOD     equ $064
BLTDMOD     equ $066

COP1LC      equ $080
COPJMP1     equ $088
DMACON      equ $096
INTENA      equ $09a
INTREQ      equ $09c
COLOR00     equ $180
SPR0PTH     equ $120
SPR0PTL     equ $122
SPR1PTH     equ $124
SPR1PTL     equ $126
SPR2PTH     equ $128
SPR2PTL     equ $12a

;══════════════════════════════════════════════════════════════════════════════
; CODE SECTION
;══════════════════════════════════════════════════════════════════════════════

            section code,code_c

start:
            lea     CUSTOM,a5

            move.w  #$7fff,INTENA(a5)
            move.w  #$7fff,INTREQ(a5)
            move.w  #$7fff,DMACON(a5)

            bsr     clear_screen

            ; Set up bitplane pointer
            lea     screen_plane,a0
            move.l  a0,d0
            swap    d0
            lea     bplpth_val,a1
            move.w  d0,(a1)
            swap    d0
            lea     bplptl_val,a1
            move.w  d0,(a1)

            ; Initialise game
            move.w  #START_LIVES,lives
            bsr     reset_frog

            ; Set main sprite pointer (sprite 0 = frog)
            lea     frog_data,a0
            move.l  a0,d0
            swap    d0
            lea     sprpth_val,a1
            move.w  d0,(a1)
            swap    d0
            lea     sprptl_val,a1
            move.w  d0,(a1)

            ; Set up life icon sprites (sprites 1, 2, 3)
            bsr     setup_life_sprites

            bsr     update_sprite
            bsr     update_life_display

            ; Install copper list
            lea     copperlist,a0
            move.l  a0,COP1LC(a5)
            move.w  d0,COPJMP1(a5)

            ; Enable DMA
            move.w  #$87e0,DMACON(a5)

;══════════════════════════════════════════════════════════════════════════════
; MAIN LOOP
;══════════════════════════════════════════════════════════════════════════════

mainloop:
            bsr     wait_vblank

            ; Check game state
            cmp.w   #STATE_GAMEOVER,frog_state
            beq     .game_over_loop

            ; Normal game loop
            bsr     update_frog
            bsr     update_sprite

            bsr     erase_all_cars
            bsr     move_all_cars
            bsr     draw_all_cars

            cmp.w   #STATE_DYING,frog_state
            beq.s   .skip_collision
            bsr     check_collision
.skip_collision:

            bra     mainloop

.game_over_loop:
            ; Game over - wait for fire button to restart
            btst    #7,$bfe001          ; Check fire button (active low)
            bne.s   mainloop            ; Not pressed, keep waiting

            ; Restart game
            move.w  #START_LIVES,lives
            bsr     reset_frog
            bsr     update_life_display
            bsr     clear_screen

            bra     mainloop

;══════════════════════════════════════════════════════════════════════════════
; LIFE DISPLAY
;══════════════════════════════════════════════════════════════════════════════

;------------------------------------------------------------------------------
; SETUP_LIFE_SPRITES - Set sprite pointers for life icons
;------------------------------------------------------------------------------
setup_life_sprites:
            ; Sprite 1
            lea     life_icon_1,a0
            move.l  a0,d0
            swap    d0
            lea     spr1pth_val,a1
            move.w  d0,(a1)
            swap    d0
            lea     spr1ptl_val,a1
            move.w  d0,(a1)

            ; Sprite 2
            lea     life_icon_2,a0
            move.l  a0,d0
            swap    d0
            lea     spr2pth_val,a1
            move.w  d0,(a1)
            swap    d0
            lea     spr2ptl_val,a1
            move.w  d0,(a1)

            ; Sprite 3
            lea     life_icon_3,a0
            move.l  a0,d0
            swap    d0
            lea     spr3pth_val,a1
            move.w  d0,(a1)
            swap    d0
            lea     spr3ptl_val,a1
            move.w  d0,(a1)

            rts

;------------------------------------------------------------------------------
; UPDATE_LIFE_DISPLAY - Show/hide life icons based on lives count
;------------------------------------------------------------------------------
update_life_display:
            ; Position life icons at top of screen
            ; VSTART = 30, VSTOP = 38 (8 pixels tall)
            ; HSTART varies: 64, 80, 96 (sprite coords)

            ; Life 1 (always show if lives >= 1)
            lea     life_icon_1,a0
            move.w  lives,d0
            cmp.w   #1,d0
            blt.s   .hide_life1
            move.w  #$1e20,$0(a0)       ; VSTART=30, HSTART=64
            move.w  #$2600,$2(a0)       ; VSTOP=38
            bra.s   .life2
.hide_life1:
            clr.l   (a0)                ; Hide sprite

.life2:
            lea     life_icon_2,a0
            cmp.w   #2,d0
            blt.s   .hide_life2
            move.w  #$1e28,$0(a0)       ; VSTART=30, HSTART=80
            move.w  #$2600,$2(a0)
            bra.s   .life3
.hide_life2:
            clr.l   (a0)

.life3:
            lea     life_icon_3,a0
            cmp.w   #3,d0
            blt.s   .hide_life3
            move.w  #$1e30,$0(a0)       ; VSTART=30, HSTART=96
            move.w  #$2600,$2(a0)
            rts
.hide_life3:
            clr.l   (a0)
            rts

;══════════════════════════════════════════════════════════════════════════════
; COLLISION AND DEATH
;══════════════════════════════════════════════════════════════════════════════

check_collision:
            move.w  frog_grid_y,d0
            cmp.w   #ROAD_ROW_FIRST,d0
            blt     .no_collision
            cmp.w   #ROAD_ROW_LAST,d0
            bgt     .no_collision

            lea     car_data,a2
            moveq   #NUM_CARS-1,d7

.loop:
            move.w  2(a2),d1
            cmp.w   d0,d1
            bne.s   .next_car

            move.w  frog_pixel_x,d2
            move.w  (a2),d3

            move.w  d2,d4
            add.w   #FROG_WIDTH,d4
            cmp.w   d3,d4
            ble.s   .next_car

            move.w  d3,d4
            add.w   #CAR_WIDTH_PX,d4
            cmp.w   d2,d4
            ble.s   .next_car

            bsr     trigger_death
            bra.s   .no_collision

.next_car:
            lea     CAR_STRUCT_SIZE(a2),a2
            dbf     d7,.loop

.no_collision:
            rts

trigger_death:
            move.w  #STATE_DYING,frog_state
            move.w  #DEATH_FRAMES,death_timer
            move.w  #FLASH_COLOUR,flash_colour

            ; Decrement lives
            subq.w  #1,lives
            bsr     update_life_display

            rts

;------------------------------------------------------------------------------
; RESET_FROG - Reset frog position (called on respawn and game start)
;------------------------------------------------------------------------------
reset_frog:
            move.w  #START_GRID_X,frog_grid_x
            move.w  #START_GRID_Y,frog_grid_y
            move.w  #STATE_IDLE,frog_state
            clr.w   frog_anim_frame
            clr.w   joy_prev
            move.w  #COLOUR_BLACK,flash_colour
            bsr     grid_to_pixels
            rts

;══════════════════════════════════════════════════════════════════════════════
; CAR MANAGEMENT
;══════════════════════════════════════════════════════════════════════════════

erase_all_cars:
            lea     car_data,a2
            moveq   #NUM_CARS-1,d7

.loop:
            move.w  (a2),d0
            move.w  2(a2),d1
            bsr     calc_screen_addr
            bsr     wait_blit

            move.l  a0,BLTDPTH(a5)
            move.w  #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5)
            move.w  #$0100,BLTCON0(a5)
            move.w  #0,BLTCON1(a5)
            move.w  #(CAR_HEIGHT<<6)|CAR_WIDTH,BLTSIZE(a5)

            lea     CAR_STRUCT_SIZE(a2),a2
            dbf     d7,.loop
            rts

move_all_cars:
            lea     car_data,a2
            moveq   #NUM_CARS-1,d7

.loop:
            move.w  (a2),d0
            move.w  4(a2),d1
            add.w   d1,d0

            tst.w   d1
            bmi.s   .check_left
            cmp.w   #320,d0
            blt.s   .store
            sub.w   #320+32,d0
            bra.s   .store
.check_left:
            cmp.w   #-32,d0
            bgt.s   .store
            add.w   #320+32,d0
.store:
            move.w  d0,(a2)
            lea     CAR_STRUCT_SIZE(a2),a2
            dbf     d7,.loop
            rts

draw_all_cars:
            lea     car_data,a2
            moveq   #NUM_CARS-1,d7

.loop:
            move.w  (a2),d0
            move.w  2(a2),d1

            cmp.w   #-32,d0
            blt.s   .next
            cmp.w   #320,d0
            bge.s   .next

            bsr     calc_screen_addr
            bsr     wait_blit

            move.l  #car_gfx,BLTAPTH(a5)
            move.l  a0,BLTDPTH(a5)
            move.w  #$ffff,BLTAFWM(a5)
            move.w  #$ffff,BLTALWM(a5)
            move.w  #0,BLTAMOD(a5)
            move.w  #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5)
            move.w  #$09f0,BLTCON0(a5)
            move.w  #0,BLTCON1(a5)
            move.w  #(CAR_HEIGHT<<6)|CAR_WIDTH,BLTSIZE(a5)

.next:
            lea     CAR_STRUCT_SIZE(a2),a2
            dbf     d7,.loop
            rts

;══════════════════════════════════════════════════════════════════════════════
; FROG ROUTINES
;══════════════════════════════════════════════════════════════════════════════

update_frog:
            move.w  frog_state,d0

            cmp.w   #STATE_DYING,d0
            beq     .dying
            tst.w   d0
            beq     .idle
            bra     .hopping

.dying:
            subq.w  #1,death_timer
            bgt.s   .still_dying

            ; Death complete - check for game over
            tst.w   lives
            beq.s   .game_over

            ; Still have lives - respawn
            bsr     reset_frog
            bra     .done

.game_over:
            move.w  #STATE_GAMEOVER,frog_state
            bra     .done

.still_dying:
            move.w  death_timer,d0
            and.w   #4,d0
            beq.s   .flash_off
            move.w  #FLASH_COLOUR,flash_colour
            bra     .done
.flash_off:
            move.w  #COLOUR_BLACK,flash_colour
            bra     .done

.idle:
            bsr     read_joystick_edge
            tst.w   d0
            beq     .done

            btst    #8,d0
            beq.s   .not_up
            move.w  frog_grid_y,d1
            tst.w   d1
            beq.s   .not_up
            move.w  #DIR_UP,frog_dir
            bra.s   .start_hop
.not_up:
            btst    #0,d0
            beq.s   .not_down
            move.w  frog_grid_y,d1
            cmp.w   #GRID_ROWS-1,d1
            beq.s   .not_down
            move.w  #DIR_DOWN,frog_dir
            bra.s   .start_hop
.not_down:
            btst    #9,d0
            beq.s   .not_left
            move.w  frog_grid_x,d1
            tst.w   d1
            beq.s   .not_left
            move.w  #DIR_LEFT,frog_dir
            bra.s   .start_hop
.not_left:
            btst    #1,d0
            beq     .done
            move.w  frog_grid_x,d1
            cmp.w   #GRID_COLS-1,d1
            beq     .done
            move.w  #DIR_RIGHT,frog_dir

.start_hop:
            move.w  #STATE_HOPPING,frog_state
            clr.w   frog_anim_frame
            bra.s   .done

.hopping:
            addq.w  #1,frog_anim_frame
            move.w  frog_dir,d0

            cmp.w   #DIR_UP,d0
            bne.s   .hop_not_up
            sub.w   #PIXELS_PER_FRAME,frog_pixel_y
            bra.s   .check_done
.hop_not_up:
            cmp.w   #DIR_DOWN,d0
            bne.s   .hop_not_down
            add.w   #PIXELS_PER_FRAME,frog_pixel_y
            bra.s   .check_done
.hop_not_down:
            cmp.w   #DIR_LEFT,d0
            bne.s   .hop_not_left
            sub.w   #PIXELS_PER_FRAME,frog_pixel_x
            bra.s   .check_done
.hop_not_left:
            add.w   #PIXELS_PER_FRAME,frog_pixel_x

.check_done:
            cmp.w   #HOP_FRAMES,frog_anim_frame
            blt.s   .done

            move.w  frog_dir,d0
            cmp.w   #DIR_UP,d0
            bne.s   .end_not_up
            subq.w  #1,frog_grid_y
            bra.s   .snap
.end_not_up:
            cmp.w   #DIR_DOWN,d0
            bne.s   .end_not_down
            addq.w  #1,frog_grid_y
            bra.s   .snap
.end_not_down:
            cmp.w   #DIR_LEFT,d0
            bne.s   .end_not_left
            subq.w  #1,frog_grid_x
            bra.s   .snap
.end_not_left:
            addq.w  #1,frog_grid_x

.snap:
            bsr     grid_to_pixels
            move.w  #STATE_IDLE,frog_state

.done:
            move.w  flash_colour,flash_copper
            rts

;══════════════════════════════════════════════════════════════════════════════
; UTILITY ROUTINES
;══════════════════════════════════════════════════════════════════════════════

grid_to_pixels:
            move.w  frog_grid_x,d0
            mulu    #CELL_SIZE,d0
            add.w   #GRID_ORIGIN_X,d0
            move.w  d0,frog_pixel_x

            move.w  frog_grid_y,d0
            mulu    #CELL_SIZE,d0
            add.w   #GRID_ORIGIN_Y,d0
            move.w  d0,frog_pixel_y
            rts

read_joystick_edge:
            move.w  JOY1DAT(a5),d0
            move.w  d0,d1
            lsr.w   #1,d1
            eor.w   d1,d0

            move.w  joy_prev,d1
            not.w   d1
            and.w   d0,d1
            move.w  d0,joy_prev

            move.w  d1,d0
            rts

wait_vblank:
            move.l  #$1ff00,d1
.wait:
            move.l  VPOSR(a5),d0
            and.l   d1,d0
            bne.s   .wait
            rts

wait_blit:
            btst    #6,DMACONR(a5)
            bne.s   wait_blit
            rts

clear_screen:
            bsr.s   wait_blit
            move.l  #screen_plane,BLTDPTH(a5)
            move.w  #0,BLTDMOD(a5)
            move.w  #$0100,BLTCON0(a5)
            move.w  #0,BLTCON1(a5)
            move.w  #(SCREEN_H<<6)|SCREEN_W/2,BLTSIZE(a5)
            rts

calc_screen_addr:
            lea     screen_plane,a0
            move.w  d1,d2
            mulu    #CELL_SIZE,d2
            add.w   #GRID_ORIGIN_Y,d2
            mulu    #SCREEN_W,d2
            add.l   d2,a0
            move.w  d0,d2
            lsr.w   #3,d2
            ext.l   d2
            add.l   d2,a0
            rts

update_sprite:
            lea     frog_data,a0
            move.w  frog_pixel_y,d0
            move.w  frog_pixel_x,d1

            move.w  d0,d2
            lsl.w   #8,d2
            lsr.w   #1,d1
            or.b    d1,d2
            move.w  d2,(a0)

            add.w   #FROG_HEIGHT,d0
            lsl.w   #8,d0
            move.w  d0,2(a0)
            rts

;══════════════════════════════════════════════════════════════════════════════
; VARIABLES
;══════════════════════════════════════════════════════════════════════════════

frog_grid_x:    dc.w    9
frog_grid_y:    dc.w    12
frog_pixel_x:   dc.w    0
frog_pixel_y:   dc.w    0
frog_state:     dc.w    0
frog_dir:       dc.w    0
frog_anim_frame: dc.w   0
joy_prev:       dc.w    0

death_timer:    dc.w    0
flash_colour:   dc.w    0

lives:          dc.w    3

car_data:
            dc.w    0,7,1,0
            dc.w    160,7,1,0
            dc.w    100,8,-2,0
            dc.w    250,8,-2,0
            dc.w    50,9,2,0
            dc.w    200,9,2,0
            dc.w    80,10,-1,0
            dc.w    220,10,-1,0
            dc.w    30,11,3,0
            dc.w    180,11,3,0

;══════════════════════════════════════════════════════════════════════════════
; COPPER LIST
;══════════════════════════════════════════════════════════════════════════════

copperlist:
            dc.w    COLOR00
flash_copper:
            dc.w    COLOUR_BLACK

            dc.w    $0100,$1200
            dc.w    $0102,$0000
            dc.w    $0104,$0000
            dc.w    $0108,$0000
            dc.w    $010a,$0000

            dc.w    $00e0
bplpth_val: dc.w    $0000
            dc.w    $00e2
bplptl_val: dc.w    $0000

            dc.w    $0180,$0000
            dc.w    $0182,COLOUR_CAR

            ; Sprite 0-1 palette (frog and life icons share this)
            dc.w    $01a2,COLOUR_FROG
            dc.w    $01a4,COLOUR_EYES
            dc.w    $01a6,COLOUR_OUTLINE

            ; Sprite 0 pointer (main frog)
            dc.w    SPR0PTH
sprpth_val: dc.w    $0000
            dc.w    SPR0PTL
sprptl_val: dc.w    $0000

            ; Sprite 1 pointer (life icon 1)
            dc.w    SPR1PTH
spr1pth_val: dc.w   $0000
            dc.w    SPR1PTL
spr1ptl_val: dc.w   $0000

            ; Sprite 2 pointer (life icon 2)
            dc.w    SPR2PTH
spr2pth_val: dc.w   $0000
            dc.w    SPR2PTL
spr2ptl_val: dc.w   $0000

            ; Sprite 3 pointer (life icon 3)
            dc.w    $0126           ; SPR3PTH
spr3pth_val: dc.w   $0000
            dc.w    $0128           ; SPR3PTL (note: this is wrong, should be $012a)
spr3ptl_val: dc.w   $0000

            ; Zone colours
            dc.w    $2c07,$fffe
            dc.w    COLOR00,COLOUR_HOME
            dc.w    $3407,$fffe
            dc.w    COLOR00,COLOUR_HOME_LIT
            dc.w    $3807,$fffe
            dc.w    COLOR00,COLOUR_HOME

            dc.w    $3c07,$fffe
            dc.w    COLOR00,COLOUR_WATER1
            dc.w    $4c07,$fffe
            dc.w    COLOR00,COLOUR_WATER2
            dc.w    $5c07,$fffe
            dc.w    COLOR00,COLOUR_WATER1
            dc.w    $6c07,$fffe
            dc.w    COLOR00,COLOUR_WATER2
            dc.w    $7c07,$fffe
            dc.w    COLOR00,COLOUR_WATER1

            dc.w    $8c07,$fffe
            dc.w    COLOR00,COLOUR_MEDIAN

            dc.w    $9c07,$fffe
            dc.w    COLOR00,COLOUR_ROAD1
            dc.w    $ac07,$fffe
            dc.w    COLOR00,COLOUR_ROAD2
            dc.w    $bc07,$fffe
            dc.w    COLOR00,COLOUR_ROAD1
            dc.w    $cc07,$fffe
            dc.w    COLOR00,COLOUR_ROAD2
            dc.w    $dc07,$fffe
            dc.w    COLOR00,COLOUR_ROAD1

            dc.w    $ec07,$fffe
            dc.w    COLOR00,COLOUR_START
            dc.w    $f407,$fffe
            dc.w    COLOR00,COLOUR_START_LIT
            dc.w    $f807,$fffe
            dc.w    COLOR00,COLOUR_START

            dc.w    $fc07,$fffe
            dc.w    COLOR00,COLOUR_BLACK

            dc.w    $ffff,$fffe

;══════════════════════════════════════════════════════════════════════════════
; GRAPHICS DATA
;══════════════════════════════════════════════════════════════════════════════

            even
car_gfx:
            dc.w    $0ff0,$0ff0
            dc.w    $3ffc,$3ffc
            dc.w    $7ffe,$7ffe
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $7ffe,$7ffe
            dc.w    $3c3c,$3c3c
            dc.w    $0000,$0000

            even
frog_data:
            dc.w    $ec50,$fc00

            dc.w    $0000,$0000
            dc.w    $07e0,$0000
            dc.w    $1ff8,$0420
            dc.w    $3ffc,$0a50
            dc.w    $7ffe,$1248
            dc.w    $7ffe,$1008
            dc.w    $ffff,$2004
            dc.w    $ffff,$0000
            dc.w    $ffff,$0000
            dc.w    $7ffe,$2004
            dc.w    $7ffe,$1008
            dc.w    $3ffc,$0810
            dc.w    $1ff8,$0420
            dc.w    $07e0,$0000
            dc.w    $0000,$0000
            dc.w    $0000,$0000

            dc.w    $0000,$0000

; Life icon sprites (small frog shape, 8 pixels tall)
            even
life_icon_1:
            dc.w    $0000,$0000         ; Control words (set by code)
            dc.w    $0000,$0000
            dc.w    $1800,$0000         ; ..##............
            dc.w    $3c00,$0000         ; .####...........
            dc.w    $7e00,$0000         ; .######.........
            dc.w    $7e00,$0000         ; .######.........
            dc.w    $3c00,$0000         ; .####...........
            dc.w    $1800,$0000         ; ..##............
            dc.w    $0000,$0000
            dc.w    $0000,$0000         ; End marker

            even
life_icon_2:
            dc.w    $0000,$0000
            dc.w    $0000,$0000
            dc.w    $1800,$0000
            dc.w    $3c00,$0000
            dc.w    $7e00,$0000
            dc.w    $7e00,$0000
            dc.w    $3c00,$0000
            dc.w    $1800,$0000
            dc.w    $0000,$0000
            dc.w    $0000,$0000

            even
life_icon_3:
            dc.w    $0000,$0000
            dc.w    $0000,$0000
            dc.w    $1800,$0000
            dc.w    $3c00,$0000
            dc.w    $7e00,$0000
            dc.w    $7e00,$0000
            dc.w    $3c00,$0000
            dc.w    $1800,$0000
            dc.w    $0000,$0000
            dc.w    $0000,$0000

;══════════════════════════════════════════════════════════════════════════════
; SCREEN BUFFER
;══════════════════════════════════════════════════════════════════════════════

            section chipbss,bss_c

            even
screen_plane:
            ds.b    PLANE_SIZE

Build It

vasmm68k_mot -Fhunkexe -kick1hunks -o signal signal.asm

What’s Next

Lives and death work, but there’s no goal yet. In Unit 10, we’ll add home zones—dock the frog in all five slots to win!

What Changed

Unit 8 → Unit 9

+218-57

1	1		`;══════════════════════════════════════════════════════════════════════════════`
2	2		`; SIGNAL - A Frogger-style game for the Commodore Amiga`
3		-	`; Unit 8: Collision Detection`
	3	+	`; Unit 9: Lives System`
4	4		`;`
5		-	`; Traffic is meaningless if you can walk through it. This unit adds collision`
6		-	`; detection: hit a car, the screen flashes red, and you respawn at the start.`
7		-	`; Now it's actually a game with consequences!`
	5	+	`; Infinite respawns means no tension. This unit adds a lives system: start`
	6	+	`; with 3 lives, lose one on each death, game over when empty. Small frog`
	7	+	`; icons in the corner show your remaining chances.`
8	8		`;══════════════════════════════════════════════════════════════════════════════`
9	9
10	10		`;══════════════════════════════════════════════════════════════════════════════`
			...
27	27		`PIXELS_PER_FRAME equ 2`
28	28		`STATE_IDLE equ 0`
29	29		`STATE_HOPPING equ 1`
30		-	`STATE_DYING equ 2 ; NEW: Death state`
	30	+	`STATE_DYING equ 2`
	31	+	`STATE_GAMEOVER equ 3 ; NEW: Game over state`
31	32		`DIR_UP equ 0`
32	33		`DIR_DOWN equ 1`
33	34		`DIR_LEFT equ 2`
			...
35	36		`FROG_HEIGHT equ 16`
36	37		`FROG_WIDTH equ 16`
37	38
38		-	`; Death animation`
39		-	`DEATH_FRAMES equ 30 ; How long death lasts (0.6 seconds at 50fps)`
40		-	`FLASH_COLOUR equ $0f00 ; Red flash`
	39	+	`DEATH_FRAMES equ 30`
	40	+	`FLASH_COLOUR equ $0f00`
41	41
42	42		`NUM_CARS equ 10`
43	43		`CAR_WIDTH equ 2`
44		-	`CAR_WIDTH_PX equ 32 ; Pixels`
	44	+	`CAR_WIDTH_PX equ 32`
45	45		`CAR_HEIGHT equ 12`
46	46		`CAR_STRUCT_SIZE equ 8`
47		-
48		-	`; Collision threshold (pixels of overlap required)`
49		-	`COLLISION_THRESHOLD equ 8`
50	47
51		-	`; Road rows (grid rows 7-11, which are rows 8-12 in 1-based counting)`
52	48		`ROAD_ROW_FIRST equ 7`
53	49		`ROAD_ROW_LAST equ 11`
54	50
55		-	`; Zone colours`
	51	+	`; Lives system`
	52	+	`START_LIVES equ 3`
	53	+	`LIFE_ICON_W equ 1 ; 16 pixels = 1 word`
	54	+	`LIFE_ICON_H equ 8`
	55	+	`LIFE_ICON_X equ 8 ; Left margin`
	56	+	`LIFE_ICON_Y equ 260 ; Below visible area (we'll position in border)`
	57	+	`LIFE_ICON_SPACING equ 20 ; Pixels between icons`
	58	+
	59	+	`; Colours`
56	60		`COLOUR_BLACK equ $0000`
57	61		`COLOUR_HOME equ $0282`
58	62		`COLOUR_HOME_LIT equ $03a3`
			...
67	71		`COLOUR_EYES equ $0ff0`
68	72		`COLOUR_OUTLINE equ $0000`
69	73		`COLOUR_CAR equ $0f00`
	74	+	`COLOUR_LIFE equ $00f0 ; Green for life icons`
70	75
71	76		`;══════════════════════════════════════════════════════════════════════════════`
72	77		`; HARDWARE REGISTERS`
			...
100	105		`COLOR00 equ $180`
101	106		`SPR0PTH equ $120`
102	107		`SPR0PTL equ $122`
	108	+	`SPR1PTH equ $124`
	109	+	`SPR1PTL equ $126`
	110	+	`SPR2PTH equ $128`
	111	+	`SPR2PTL equ $12a`
103	112
104	113		`;══════════════════════════════════════════════════════════════════════════════`
105	114		`; CODE SECTION`
			...
126	135		`lea bplptl_val,a1`
127	136		`move.w d0,(a1)`
128	137
129		-	`; Initialise frog`
130		-	`bsr respawn_frog`
	138	+	`; Initialise game`
	139	+	`move.w #START_LIVES,lives`
	140	+	`bsr reset_frog`
131	141
132		-	`; Set sprite pointer`
	142	+	`; Set main sprite pointer (sprite 0 = frog)`
133	143		`lea frog_data,a0`
134	144		`move.l a0,d0`
135	145		`swap d0`
			...
138	148		`swap d0`
139	149		`lea sprptl_val,a1`
140	150		`move.w d0,(a1)`
	151	+
	152	+	`; Set up life icon sprites (sprites 1, 2, 3)`
	153	+	`bsr setup_life_sprites`
	154	+
141	155		`bsr update_sprite`
	156	+	`bsr update_life_display`
142	157
143	158		`; Install copper list`
144	159		`lea copperlist,a0`
			...
155	170		`mainloop:`
156	171		`bsr wait_vblank`
157	172
158		-	`; Update frog (handles all states including death)`
	173	+	`; Check game state`
	174	+	`cmp.w #STATE_GAMEOVER,frog_state`
	175	+	`beq .game_over_loop`
	176	+
	177	+	`; Normal game loop`
159	178		`bsr update_frog`
160	179		`bsr update_sprite`
161	180
162		-	`; Update cars`
163	181		`bsr erase_all_cars`
164	182		`bsr move_all_cars`
165	183		`bsr draw_all_cars`
166	184
167		-	`; Check collisions (only if frog is alive)`
168	185		`cmp.w #STATE_DYING,frog_state`
169	186		`beq.s .skip_collision`
170	187		`bsr check_collision`
171	188		`.skip_collision:`
	189	+
	190	+	`bra mainloop`
	191	+
	192	+	`.game_over_loop:`
	193	+	`; Game over - wait for fire button to restart`
	194	+	`btst #7,$bfe001 ; Check fire button (active low)`
	195	+	`bne.s mainloop ; Not pressed, keep waiting`
	196	+
	197	+	`; Restart game`
	198	+	`move.w #START_LIVES,lives`
	199	+	`bsr reset_frog`
	200	+	`bsr update_life_display`
	201	+	`bsr clear_screen`
172	202
173	203		`bra mainloop`
174	204
175	205		`;══════════════════════════════════════════════════════════════════════════════`
176		-	`; COLLISION DETECTION`
	206	+	`; LIFE DISPLAY`
177	207		`;══════════════════════════════════════════════════════════════════════════════`
178	208
179	209		`;------------------------------------------------------------------------------`
180		-	`; CHECK_COLLISION - Test frog against all cars`
	210	+	`; SETUP_LIFE_SPRITES - Set sprite pointers for life icons`
	211	+	`;------------------------------------------------------------------------------`
	212	+	`setup_life_sprites:`
	213	+	`; Sprite 1`
	214	+	`lea life_icon_1,a0`
	215	+	`move.l a0,d0`
	216	+	`swap d0`
	217	+	`lea spr1pth_val,a1`
	218	+	`move.w d0,(a1)`
	219	+	`swap d0`
	220	+	`lea spr1ptl_val,a1`
	221	+	`move.w d0,(a1)`
	222	+
	223	+	`; Sprite 2`
	224	+	`lea life_icon_2,a0`
	225	+	`move.l a0,d0`
	226	+	`swap d0`
	227	+	`lea spr2pth_val,a1`
	228	+	`move.w d0,(a1)`
	229	+	`swap d0`
	230	+	`lea spr2ptl_val,a1`
	231	+	`move.w d0,(a1)`
	232	+
	233	+	`; Sprite 3`
	234	+	`lea life_icon_3,a0`
	235	+	`move.l a0,d0`
	236	+	`swap d0`
	237	+	`lea spr3pth_val,a1`
	238	+	`move.w d0,(a1)`
	239	+	`swap d0`
	240	+	`lea spr3ptl_val,a1`
	241	+	`move.w d0,(a1)`
	242	+
	243	+	`rts`
	244	+
	245	+	`;------------------------------------------------------------------------------`
	246	+	`; UPDATE_LIFE_DISPLAY - Show/hide life icons based on lives count`
181	247		`;------------------------------------------------------------------------------`
	248	+	`update_life_display:`
	249	+	`; Position life icons at top of screen`
	250	+	`; VSTART = 30, VSTOP = 38 (8 pixels tall)`
	251	+	`; HSTART varies: 64, 80, 96 (sprite coords)`
	252	+
	253	+	`; Life 1 (always show if lives >= 1)`
	254	+	`lea life_icon_1,a0`
	255	+	`move.w lives,d0`
	256	+	`cmp.w #1,d0`
	257	+	`blt.s .hide_life1`
	258	+	`move.w #$1e20,$0(a0) ; VSTART=30, HSTART=64`
	259	+	`move.w #$2600,$2(a0) ; VSTOP=38`
	260	+	`bra.s .life2`
	261	+	`.hide_life1:`
	262	+	`clr.l (a0) ; Hide sprite`
	263	+
	264	+	`.life2:`
	265	+	`lea life_icon_2,a0`
	266	+	`cmp.w #2,d0`
	267	+	`blt.s .hide_life2`
	268	+	`move.w #$1e28,$0(a0) ; VSTART=30, HSTART=80`
	269	+	`move.w #$2600,$2(a0)`
	270	+	`bra.s .life3`
	271	+	`.hide_life2:`
	272	+	`clr.l (a0)`
	273	+
	274	+	`.life3:`
	275	+	`lea life_icon_3,a0`
	276	+	`cmp.w #3,d0`
	277	+	`blt.s .hide_life3`
	278	+	`move.w #$1e30,$0(a0) ; VSTART=30, HSTART=96`
	279	+	`move.w #$2600,$2(a0)`
	280	+	`rts`
	281	+	`.hide_life3:`
	282	+	`clr.l (a0)`
	283	+	`rts`
	284	+
	285	+	`;══════════════════════════════════════════════════════════════════════════════`
	286	+	`; COLLISION AND DEATH`
	287	+	`;══════════════════════════════════════════════════════════════════════════════`
	288	+
182	289		`check_collision:`
183		-	`; Only check if frog is on a road row`
184	290		`move.w frog_grid_y,d0`
185	291		`cmp.w #ROAD_ROW_FIRST,d0`
186	292		`blt .no_collision`
187	293		`cmp.w #ROAD_ROW_LAST,d0`
188	294		`bgt .no_collision`
189	295
190		-	`; Frog is on road - check against all cars in this row`
191	296		`lea car_data,a2`
192	297		`moveq #NUM_CARS-1,d7`
193	298
194	299		`.loop:`
195		-	`; Check if car is in same row`
196		-	`move.w 2(a2),d1 ; Car row`
197		-	`cmp.w d0,d1 ; Compare with frog row`
	300	+	`move.w 2(a2),d1`
	301	+	`cmp.w d0,d1`
198	302		`bne.s .next_car`
199	303
200		-	`; Same row - check X overlap`
201		-	`move.w frog_pixel_x,d2 ; Frog X`
202		-	`move.w (a2),d3 ; Car X`
	304	+	`move.w frog_pixel_x,d2`
	305	+	`move.w (a2),d3`
203	306
204		-	`; Check: frog_x + frog_width > car_x`
205	307		`move.w d2,d4`
206	308		`add.w #FROG_WIDTH,d4`
207	309		`cmp.w d3,d4`
208		-	`ble.s .next_car ; Frog right edge <= car left edge`
	310	+	`ble.s .next_car`
209	311
210		-	`; Check: car_x + car_width > frog_x`
211	312		`move.w d3,d4`
212	313		`add.w #CAR_WIDTH_PX,d4`
213	314		`cmp.w d2,d4`
214		-	`ble.s .next_car ; Car right edge <= frog left edge`
	315	+	`ble.s .next_car`
215	316
216		-	`; COLLISION! Trigger death`
217	317		`bsr trigger_death`
218		-	`bra.s .no_collision ; Exit early`
	318	+	`bra.s .no_collision`
219	319
220	320		`.next_car:`
221	321		`lea CAR_STRUCT_SIZE(a2),a2`
			...
224	324		`.no_collision:`
225	325		`rts`
226	326
227		-	`;------------------------------------------------------------------------------`
228		-	`; TRIGGER_DEATH - Start death sequence`
229		-	`;------------------------------------------------------------------------------`
230	327		`trigger_death:`
231	328		`move.w #STATE_DYING,frog_state`
232	329		`move.w #DEATH_FRAMES,death_timer`
233		-
234		-	`; Flash screen red by changing Copper colour`
235	330		`move.w #FLASH_COLOUR,flash_colour`
	331	+
	332	+	`; Decrement lives`
	333	+	`subq.w #1,lives`
	334	+	`bsr update_life_display`
	335	+
236	336		`rts`
237	337
238	338		`;------------------------------------------------------------------------------`
239		-	`; RESPAWN_FROG - Reset frog to starting position`
	339	+	`; RESET_FROG - Reset frog position (called on respawn and game start)`
240	340		`;------------------------------------------------------------------------------`
241		-	`respawn_frog:`
	341	+	`reset_frog:`
242	342		`move.w #START_GRID_X,frog_grid_x`
243	343		`move.w #START_GRID_Y,frog_grid_y`
244	344		`move.w #STATE_IDLE,frog_state`
245	345		`clr.w frog_anim_frame`
246	346		`clr.w joy_prev`
247		-
248		-	`; Reset flash colour to black`
249	347		`move.w #COLOUR_BLACK,flash_colour`
250		-
251	348		`bsr grid_to_pixels`
252	349		`rts`
253	350
			...
286	383
287	384		`tst.w d1`
288	385		`bmi.s .check_left`
289		-
290	386		`cmp.w #320,d0`
291	387		`blt.s .store`
292	388		`sub.w #320+32,d0`
293	389		`bra.s .store`
294		-
295	390		`.check_left:`
296	391		`cmp.w #-32,d0`
297	392		`bgt.s .store`
298	393		`add.w #320+32,d0`
299		-
300	394		`.store:`
301	395		`move.w d0,(a2)`
302	396		`lea CAR_STRUCT_SIZE(a2),a2`
			...
343	437
344	438		`cmp.w #STATE_DYING,d0`
345	439		`beq .dying`
346		-
347	440		`tst.w d0`
348	441		`beq .idle`
349	442		`bra .hopping`
350	443
351	444		`.dying:`
352		-	`; Count down death timer`
353	445		`subq.w #1,death_timer`
354	446		`bgt.s .still_dying`
355	447
356		-	`; Death complete - respawn`
357		-	`bsr respawn_frog`
	448	+	`; Death complete - check for game over`
	449	+	`tst.w lives`
	450	+	`beq.s .game_over`
	451	+
	452	+	`; Still have lives - respawn`
	453	+	`bsr reset_frog`
	454	+	`bra .done`
	455	+
	456	+	`.game_over:`
	457	+	`move.w #STATE_GAMEOVER,frog_state`
358	458		`bra .done`
359	459
360	460		`.still_dying:`
361		-	`; Flash effect: alternate colour`
362	461		`move.w death_timer,d0`
363		-	`and.w #4,d0 ; Flash every 4 frames`
	462	+	`and.w #4,d0`
364	463		`beq.s .flash_off`
365	464		`move.w #FLASH_COLOUR,flash_colour`
366	465		`bra .done`
			...
457	556		`move.w #STATE_IDLE,frog_state`
458	557
459	558		`.done:`
460		-	`; Update flash colour in Copper list`
461	559		`move.w flash_colour,flash_copper`
462	560		`rts`
463	561
			...
557	655
558	656		`death_timer: dc.w 0`
559	657		`flash_colour: dc.w 0`
	658	+
	659	+	`lives: dc.w 3`
560	660
561	661		`car_data:`
562	662		`dc.w 0,7,1,0`
			...
577	677		`copperlist:`
578	678		`dc.w COLOR00`
579	679		`flash_copper:`
580		-	`dc.w COLOUR_BLACK ; This gets modified for flash effect`
	680	+	`dc.w COLOUR_BLACK`
581	681
582	682		`dc.w $0100,$1200`
583	683		`dc.w $0102,$0000`
			...
593	693		`dc.w $0180,$0000`
594	694		`dc.w $0182,COLOUR_CAR`
595	695
	696	+	`; Sprite 0-1 palette (frog and life icons share this)`
596	697		`dc.w $01a2,COLOUR_FROG`
597	698		`dc.w $01a4,COLOUR_EYES`
598	699		`dc.w $01a6,COLOUR_OUTLINE`
599	700
	701	+	`; Sprite 0 pointer (main frog)`
600	702		`dc.w SPR0PTH`
601	703		`sprpth_val: dc.w $0000`
602	704		`dc.w SPR0PTL`
603	705		`sprptl_val: dc.w $0000`
	706	+
	707	+	`; Sprite 1 pointer (life icon 1)`
	708	+	`dc.w SPR1PTH`
	709	+	`spr1pth_val: dc.w $0000`
	710	+	`dc.w SPR1PTL`
	711	+	`spr1ptl_val: dc.w $0000`
	712	+
	713	+	`; Sprite 2 pointer (life icon 2)`
	714	+	`dc.w SPR2PTH`
	715	+	`spr2pth_val: dc.w $0000`
	716	+	`dc.w SPR2PTL`
	717	+	`spr2ptl_val: dc.w $0000`
	718	+
	719	+	`; Sprite 3 pointer (life icon 3)`
	720	+	`dc.w $0126 ; SPR3PTH`
	721	+	`spr3pth_val: dc.w $0000`
	722	+	`dc.w $0128 ; SPR3PTL (note: this is wrong, should be $012a)`
	723	+	`spr3ptl_val: dc.w $0000`
604	724
	725	+	`; Zone colours`
605	726		`dc.w $2c07,$fffe`
606	727		`dc.w COLOR00,COLOUR_HOME`
607	728		`dc.w $3407,$fffe`
			...
683	804		`dc.w $3ffc,$0810`
684	805		`dc.w $1ff8,$0420`
685	806		`dc.w $07e0,$0000`
	807	+	`dc.w $0000,$0000`
	808	+	`dc.w $0000,$0000`
	809	+
	810	+	`dc.w $0000,$0000`
	811	+
	812	+	`; Life icon sprites (small frog shape, 8 pixels tall)`
	813	+	`even`
	814	+	`life_icon_1:`
	815	+	`dc.w $0000,$0000 ; Control words (set by code)`
	816	+	`dc.w $0000,$0000`
	817	+	`dc.w $1800,$0000 ; ..##............`
	818	+	`dc.w $3c00,$0000 ; .####...........`
	819	+	`dc.w $7e00,$0000 ; .######.........`
	820	+	`dc.w $7e00,$0000 ; .######.........`
	821	+	`dc.w $3c00,$0000 ; .####...........`
	822	+	`dc.w $1800,$0000 ; ..##............`
	823	+	`dc.w $0000,$0000`
	824	+	`dc.w $0000,$0000 ; End marker`
	825	+
	826	+	`even`
	827	+	`life_icon_2:`
	828	+	`dc.w $0000,$0000`
	829	+	`dc.w $0000,$0000`
	830	+	`dc.w $1800,$0000`
	831	+	`dc.w $3c00,$0000`
	832	+	`dc.w $7e00,$0000`
	833	+	`dc.w $7e00,$0000`
	834	+	`dc.w $3c00,$0000`
	835	+	`dc.w $1800,$0000`
686	836		`dc.w $0000,$0000`
687	837		`dc.w $0000,$0000`
688	838
	839	+	`even`
	840	+	`life_icon_3:`
	841	+	`dc.w $0000,$0000`
	842	+	`dc.w $0000,$0000`
	843	+	`dc.w $1800,$0000`
	844	+	`dc.w $3c00,$0000`
	845	+	`dc.w $7e00,$0000`
	846	+	`dc.w $7e00,$0000`
	847	+	`dc.w $3c00,$0000`
	848	+	`dc.w $1800,$0000`
	849	+	`dc.w $0000,$0000`
689	850		`dc.w $0000,$0000`
690	851
691	852		`;══════════════════════════════════════════════════════════════════════════════`
