What You’re Building

Consequences.

Traffic that you can walk through isn’t traffic—it’s decoration. This unit adds collision detection: touch a car and the screen flashes red, then you respawn at the start. Now the game has stakes.

By the end of this unit:

Frog-car collisions detected
Screen flashes red on death
Brief pause (0.6 seconds)
Frog respawns at starting position

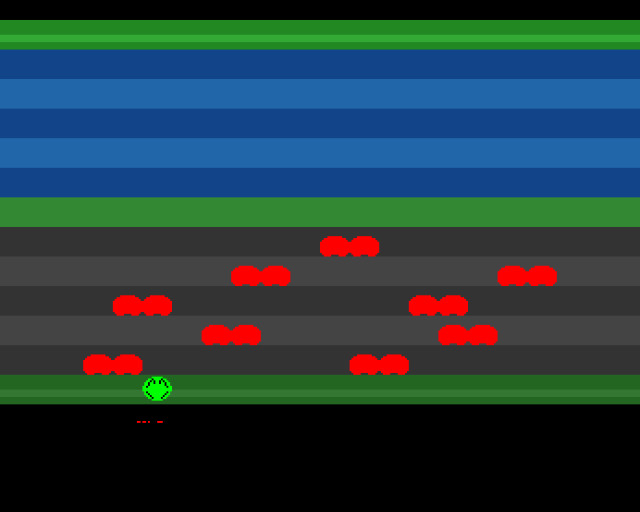

Unit 8 Screenshot

Bounding Box Collision

The simplest collision detection: treat both objects as rectangles and check for overlap.

Two rectangles overlap if ALL of these are true:

Frog’s right edge > Car’s left edge
Car’s right edge > Frog’s left edge
Frog’s bottom edge > Car’s top edge
Car’s bottom edge > Frog’s top edge

Since our frog and cars are on a grid, we can simplify: only check cars in the same row as the frog.

First, the constants that define collision boundaries:

; Collision Detection Constants
; Frog and car dimensions for bounding box checks

; Frog dimensions
FROG_HEIGHT     equ 16
FROG_WIDTH      equ 16

; Car dimensions
CAR_WIDTH_PX    equ 32          ; Pixels (not words!)
CAR_HEIGHT      equ 12

; Death animation
DEATH_FRAMES    equ 30          ; 0.6 seconds at 50fps
FLASH_COLOUR    equ $0f00       ; Red flash

; Road boundaries (grid rows)
ROAD_ROW_FIRST  equ 7
ROAD_ROW_LAST   equ 11

; Frog states
STATE_IDLE      equ 0
STATE_HOPPING   equ 1
STATE_DYING     equ 2           ; New state for death animation

The Collision Test

The full collision check filters by row first, then tests X overlap using AABB (Axis-Aligned Bounding Box) logic:

; Bounding Box Collision Test
; AABB overlap: two boxes collide if all four edges overlap

check_collision:
            ; Only check if frog is on a road row
            move.w  frog_grid_y,d0
            cmp.w   #ROAD_ROW_FIRST,d0
            blt     .no_collision
            cmp.w   #ROAD_ROW_LAST,d0
            bgt     .no_collision

            ; Frog is on road - check against all cars
            lea     car_data,a2
            moveq   #NUM_CARS-1,d7

.loop:
            ; Check if car is in same row
            move.w  2(a2),d1            ; Car row
            cmp.w   d0,d1
            bne.s   .next_car

            ; Same row - check X overlap using AABB test
            move.w  frog_pixel_x,d2     ; Frog X
            move.w  (a2),d3             ; Car X

            ; Test 1: frog_right > car_left
            move.w  d2,d4
            add.w   #FROG_WIDTH,d4      ; d4 = frog right edge
            cmp.w   d3,d4
            ble.s   .next_car           ; Frog right <= car left: no collision

            ; Test 2: car_right > frog_left
            move.w  d3,d4
            add.w   #CAR_WIDTH_PX,d4    ; d4 = car right edge
            cmp.w   d2,d4
            ble.s   .next_car           ; Car right <= frog left: no collision

            ; COLLISION! Both tests passed
            bsr     trigger_death
            bra.s   .no_collision       ; Exit early

.next_car:
            lea     CAR_STRUCT_SIZE(a2),a2
            dbf     d7,.loop

.no_collision:
            rts

The checks use ble (branch if less or equal) rather than blt because we want to skip if edges are exactly touching—that’s not a collision.

The Death State

We add a third state to our frog state machine. When dying, the frog ignores input and counts down a timer while flashing the screen:

; Death State and Flash Effect
; Screen flashes red by modifying Copper colour register

trigger_death:
            move.w  #STATE_DYING,frog_state
            move.w  #DEATH_FRAMES,death_timer
            move.w  #FLASH_COLOUR,flash_colour
            rts

; In update_frog, handle dying state:
.dying:
            ; Count down death timer
            subq.w  #1,death_timer
            bgt.s   .still_dying

            ; Death complete - respawn
            bsr     respawn_frog
            bra     .done

.still_dying:
            ; Flash effect: alternate colour every 4 frames
            move.w  death_timer,d0
            and.w   #4,d0               ; Bit 2 toggles every 4 frames
            beq.s   .flash_off
            move.w  #FLASH_COLOUR,flash_colour
            bra     .done
.flash_off:
            move.w  #COLOUR_BLACK,flash_colour
            bra     .done

; At end of update_frog, copy flash colour to Copper list:
.done:
            move.w  flash_colour,flash_copper
            rts

The flash effect modifies the Copper list’s background colour. We alternate the colour every 4 frames, creating a flashing effect at about 6Hz—noticeable but not seizure-inducing.

Respawn Logic

When death is complete, we reset the frog:

respawn_frog:
    move.w  #START_GRID_X,frog_grid_x
    move.w  #START_GRID_Y,frog_grid_y
    move.w  #STATE_IDLE,frog_state
    clr.w   frog_anim_frame
    clr.w   joy_prev

    ; Clear flash
    move.w  #COLOUR_BLACK,flash_colour

    bsr     grid_to_pixels
    rts

Note that we clear joy_prev—this prevents a held joystick direction from immediately moving the respawned frog.

When to Check Collisions

We only check collisions when the frog is alive:

mainloop:
    bsr     wait_vblank
    bsr     update_frog
    bsr     update_sprite

    bsr     erase_all_cars
    bsr     move_all_cars
    bsr     draw_all_cars

    ; Only check if not already dying
    cmp.w   #STATE_DYING,frog_state
    beq.s   .skip_collision
    bsr     check_collision
.skip_collision:

    bra     mainloop

Checking during death would immediately trigger another death on respawn if a car happened to be at the start position.

Collision Timing

An important subtlety: we check collision after updating cars and after the frog has finished moving. This means:

Frog starts hop
Frog animates through hop (8 frames)
Frog lands on new cell
Collision check happens
If car overlaps, death triggers

The frog can hop “through” a fast car if it passes during the hop animation. This is actually how classic Frogger works—you’re only vulnerable when stationary.

Key Takeaways

Bounding box collision checks rectangle overlap
Row filtering reduces unnecessary checks
Death state prevents input during animation
Copper modification creates screen flash effect
State cleanup on respawn prevents input glitches
Collision timing affects gameplay feel

The Code

;══════════════════════════════════════════════════════════════════════════════
; SIGNAL - A Frogger-style game for the Commodore Amiga
; Unit 8: Collision Detection
;
; Traffic is meaningless if you can walk through it. This unit adds collision
; detection: hit a car, the screen flashes red, and you respawn at the start.
; Now it's actually a game with consequences!
;══════════════════════════════════════════════════════════════════════════════

;══════════════════════════════════════════════════════════════════════════════
; CONSTANTS
;══════════════════════════════════════════════════════════════════════════════

SCREEN_W        equ 40
SCREEN_H        equ 256
PLANE_SIZE      equ SCREEN_W*SCREEN_H

GRID_COLS       equ 20
GRID_ROWS       equ 13
CELL_SIZE       equ 16
GRID_ORIGIN_X   equ 48
GRID_ORIGIN_Y   equ 44
START_GRID_X    equ 9
START_GRID_Y    equ 12

HOP_FRAMES      equ 8
PIXELS_PER_FRAME equ 2
STATE_IDLE      equ 0
STATE_HOPPING   equ 1
STATE_DYING     equ 2           ; NEW: Death state
DIR_UP          equ 0
DIR_DOWN        equ 1
DIR_LEFT        equ 2
DIR_RIGHT       equ 3
FROG_HEIGHT     equ 16
FROG_WIDTH      equ 16

; Death animation
DEATH_FRAMES    equ 30          ; How long death lasts (0.6 seconds at 50fps)
FLASH_COLOUR    equ $0f00       ; Red flash

NUM_CARS        equ 10
CAR_WIDTH       equ 2
CAR_WIDTH_PX    equ 32          ; Pixels
CAR_HEIGHT      equ 12
CAR_STRUCT_SIZE equ 8

; Collision threshold (pixels of overlap required)
COLLISION_THRESHOLD equ 8

; Road rows (grid rows 7-11, which are rows 8-12 in 1-based counting)
ROAD_ROW_FIRST  equ 7
ROAD_ROW_LAST   equ 11

; Zone colours
COLOUR_BLACK    equ $0000
COLOUR_HOME     equ $0282
COLOUR_HOME_LIT equ $03a3
COLOUR_WATER1   equ $0148
COLOUR_WATER2   equ $026a
COLOUR_MEDIAN   equ $0383
COLOUR_ROAD1    equ $0333
COLOUR_ROAD2    equ $0444
COLOUR_START    equ $0262
COLOUR_START_LIT equ $0373
COLOUR_FROG     equ $00f0
COLOUR_EYES     equ $0ff0
COLOUR_OUTLINE  equ $0000
COLOUR_CAR      equ $0f00

;══════════════════════════════════════════════════════════════════════════════
; HARDWARE REGISTERS
;══════════════════════════════════════════════════════════════════════════════

CUSTOM      equ $dff000

DMACONR     equ $002
VPOSR       equ $004
JOY1DAT     equ $00c

BLTCON0     equ $040
BLTCON1     equ $042
BLTAFWM     equ $044
BLTALWM     equ $046
BLTCPTH     equ $048
BLTBPTH     equ $04c
BLTAPTH     equ $050
BLTDPTH     equ $054
BLTSIZE     equ $058
BLTCMOD     equ $060
BLTBMOD     equ $062
BLTAMOD     equ $064
BLTDMOD     equ $066

COP1LC      equ $080
COPJMP1     equ $088
DMACON      equ $096
INTENA      equ $09a
INTREQ      equ $09c
COLOR00     equ $180
SPR0PTH     equ $120
SPR0PTL     equ $122

;══════════════════════════════════════════════════════════════════════════════
; CODE SECTION
;══════════════════════════════════════════════════════════════════════════════

            section code,code_c

start:
            lea     CUSTOM,a5

            move.w  #$7fff,INTENA(a5)
            move.w  #$7fff,INTREQ(a5)
            move.w  #$7fff,DMACON(a5)

            bsr     clear_screen

            ; Set up bitplane pointer
            lea     screen_plane,a0
            move.l  a0,d0
            swap    d0
            lea     bplpth_val,a1
            move.w  d0,(a1)
            swap    d0
            lea     bplptl_val,a1
            move.w  d0,(a1)

            ; Initialise frog
            bsr     respawn_frog

            ; Set sprite pointer
            lea     frog_data,a0
            move.l  a0,d0
            swap    d0
            lea     sprpth_val,a1
            move.w  d0,(a1)
            swap    d0
            lea     sprptl_val,a1
            move.w  d0,(a1)
            bsr     update_sprite

            ; Install copper list
            lea     copperlist,a0
            move.l  a0,COP1LC(a5)
            move.w  d0,COPJMP1(a5)

            ; Enable DMA
            move.w  #$87e0,DMACON(a5)

;══════════════════════════════════════════════════════════════════════════════
; MAIN LOOP
;══════════════════════════════════════════════════════════════════════════════

mainloop:
            bsr     wait_vblank

            ; Update frog (handles all states including death)
            bsr     update_frog
            bsr     update_sprite

            ; Update cars
            bsr     erase_all_cars
            bsr     move_all_cars
            bsr     draw_all_cars

            ; Check collisions (only if frog is alive)
            cmp.w   #STATE_DYING,frog_state
            beq.s   .skip_collision
            bsr     check_collision
.skip_collision:

            bra     mainloop

;══════════════════════════════════════════════════════════════════════════════
; COLLISION DETECTION
;══════════════════════════════════════════════════════════════════════════════

;------------------------------------------------------------------------------
; CHECK_COLLISION - Test frog against all cars
;------------------------------------------------------------------------------
check_collision:
            ; Only check if frog is on a road row
            move.w  frog_grid_y,d0
            cmp.w   #ROAD_ROW_FIRST,d0
            blt     .no_collision
            cmp.w   #ROAD_ROW_LAST,d0
            bgt     .no_collision

            ; Frog is on road - check against all cars in this row
            lea     car_data,a2
            moveq   #NUM_CARS-1,d7

.loop:
            ; Check if car is in same row
            move.w  2(a2),d1            ; Car row
            cmp.w   d0,d1               ; Compare with frog row
            bne.s   .next_car

            ; Same row - check X overlap
            move.w  frog_pixel_x,d2     ; Frog X
            move.w  (a2),d3             ; Car X

            ; Check: frog_x + frog_width > car_x
            move.w  d2,d4
            add.w   #FROG_WIDTH,d4
            cmp.w   d3,d4
            ble.s   .next_car           ; Frog right edge <= car left edge

            ; Check: car_x + car_width > frog_x
            move.w  d3,d4
            add.w   #CAR_WIDTH_PX,d4
            cmp.w   d2,d4
            ble.s   .next_car           ; Car right edge <= frog left edge

            ; COLLISION! Trigger death
            bsr     trigger_death
            bra.s   .no_collision       ; Exit early

.next_car:
            lea     CAR_STRUCT_SIZE(a2),a2
            dbf     d7,.loop

.no_collision:
            rts

;------------------------------------------------------------------------------
; TRIGGER_DEATH - Start death sequence
;------------------------------------------------------------------------------
trigger_death:
            move.w  #STATE_DYING,frog_state
            move.w  #DEATH_FRAMES,death_timer

            ; Flash screen red by changing Copper colour
            move.w  #FLASH_COLOUR,flash_colour
            rts

;------------------------------------------------------------------------------
; RESPAWN_FROG - Reset frog to starting position
;------------------------------------------------------------------------------
respawn_frog:
            move.w  #START_GRID_X,frog_grid_x
            move.w  #START_GRID_Y,frog_grid_y
            move.w  #STATE_IDLE,frog_state
            clr.w   frog_anim_frame
            clr.w   joy_prev

            ; Reset flash colour to black
            move.w  #COLOUR_BLACK,flash_colour

            bsr     grid_to_pixels
            rts

;══════════════════════════════════════════════════════════════════════════════
; CAR MANAGEMENT
;══════════════════════════════════════════════════════════════════════════════

erase_all_cars:
            lea     car_data,a2
            moveq   #NUM_CARS-1,d7

.loop:
            move.w  (a2),d0
            move.w  2(a2),d1
            bsr     calc_screen_addr
            bsr     wait_blit

            move.l  a0,BLTDPTH(a5)
            move.w  #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5)
            move.w  #$0100,BLTCON0(a5)
            move.w  #0,BLTCON1(a5)
            move.w  #(CAR_HEIGHT<<6)|CAR_WIDTH,BLTSIZE(a5)

            lea     CAR_STRUCT_SIZE(a2),a2
            dbf     d7,.loop
            rts

move_all_cars:
            lea     car_data,a2
            moveq   #NUM_CARS-1,d7

.loop:
            move.w  (a2),d0
            move.w  4(a2),d1
            add.w   d1,d0

            tst.w   d1
            bmi.s   .check_left

            cmp.w   #320,d0
            blt.s   .store
            sub.w   #320+32,d0
            bra.s   .store

.check_left:
            cmp.w   #-32,d0
            bgt.s   .store
            add.w   #320+32,d0

.store:
            move.w  d0,(a2)
            lea     CAR_STRUCT_SIZE(a2),a2
            dbf     d7,.loop
            rts

draw_all_cars:
            lea     car_data,a2
            moveq   #NUM_CARS-1,d7

.loop:
            move.w  (a2),d0
            move.w  2(a2),d1

            cmp.w   #-32,d0
            blt.s   .next
            cmp.w   #320,d0
            bge.s   .next

            bsr     calc_screen_addr
            bsr     wait_blit

            move.l  #car_gfx,BLTAPTH(a5)
            move.l  a0,BLTDPTH(a5)
            move.w  #$ffff,BLTAFWM(a5)
            move.w  #$ffff,BLTALWM(a5)
            move.w  #0,BLTAMOD(a5)
            move.w  #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5)
            move.w  #$09f0,BLTCON0(a5)
            move.w  #0,BLTCON1(a5)
            move.w  #(CAR_HEIGHT<<6)|CAR_WIDTH,BLTSIZE(a5)

.next:
            lea     CAR_STRUCT_SIZE(a2),a2
            dbf     d7,.loop
            rts

;══════════════════════════════════════════════════════════════════════════════
; FROG ROUTINES
;══════════════════════════════════════════════════════════════════════════════

update_frog:
            move.w  frog_state,d0

            cmp.w   #STATE_DYING,d0
            beq     .dying

            tst.w   d0
            beq     .idle
            bra     .hopping

.dying:
            ; Count down death timer
            subq.w  #1,death_timer
            bgt.s   .still_dying

            ; Death complete - respawn
            bsr     respawn_frog
            bra     .done

.still_dying:
            ; Flash effect: alternate colour
            move.w  death_timer,d0
            and.w   #4,d0               ; Flash every 4 frames
            beq.s   .flash_off
            move.w  #FLASH_COLOUR,flash_colour
            bra     .done
.flash_off:
            move.w  #COLOUR_BLACK,flash_colour
            bra     .done

.idle:
            bsr     read_joystick_edge
            tst.w   d0
            beq     .done

            btst    #8,d0
            beq.s   .not_up
            move.w  frog_grid_y,d1
            tst.w   d1
            beq.s   .not_up
            move.w  #DIR_UP,frog_dir
            bra.s   .start_hop
.not_up:
            btst    #0,d0
            beq.s   .not_down
            move.w  frog_grid_y,d1
            cmp.w   #GRID_ROWS-1,d1
            beq.s   .not_down
            move.w  #DIR_DOWN,frog_dir
            bra.s   .start_hop
.not_down:
            btst    #9,d0
            beq.s   .not_left
            move.w  frog_grid_x,d1
            tst.w   d1
            beq.s   .not_left
            move.w  #DIR_LEFT,frog_dir
            bra.s   .start_hop
.not_left:
            btst    #1,d0
            beq     .done
            move.w  frog_grid_x,d1
            cmp.w   #GRID_COLS-1,d1
            beq     .done
            move.w  #DIR_RIGHT,frog_dir

.start_hop:
            move.w  #STATE_HOPPING,frog_state
            clr.w   frog_anim_frame
            bra.s   .done

.hopping:
            addq.w  #1,frog_anim_frame
            move.w  frog_dir,d0

            cmp.w   #DIR_UP,d0
            bne.s   .hop_not_up
            sub.w   #PIXELS_PER_FRAME,frog_pixel_y
            bra.s   .check_done
.hop_not_up:
            cmp.w   #DIR_DOWN,d0
            bne.s   .hop_not_down
            add.w   #PIXELS_PER_FRAME,frog_pixel_y
            bra.s   .check_done
.hop_not_down:
            cmp.w   #DIR_LEFT,d0
            bne.s   .hop_not_left
            sub.w   #PIXELS_PER_FRAME,frog_pixel_x
            bra.s   .check_done
.hop_not_left:
            add.w   #PIXELS_PER_FRAME,frog_pixel_x

.check_done:
            cmp.w   #HOP_FRAMES,frog_anim_frame
            blt.s   .done

            move.w  frog_dir,d0
            cmp.w   #DIR_UP,d0
            bne.s   .end_not_up
            subq.w  #1,frog_grid_y
            bra.s   .snap
.end_not_up:
            cmp.w   #DIR_DOWN,d0
            bne.s   .end_not_down
            addq.w  #1,frog_grid_y
            bra.s   .snap
.end_not_down:
            cmp.w   #DIR_LEFT,d0
            bne.s   .end_not_left
            subq.w  #1,frog_grid_x
            bra.s   .snap
.end_not_left:
            addq.w  #1,frog_grid_x

.snap:
            bsr     grid_to_pixels
            move.w  #STATE_IDLE,frog_state

.done:
            ; Update flash colour in Copper list
            move.w  flash_colour,flash_copper
            rts

;══════════════════════════════════════════════════════════════════════════════
; UTILITY ROUTINES
;══════════════════════════════════════════════════════════════════════════════

grid_to_pixels:
            move.w  frog_grid_x,d0
            mulu    #CELL_SIZE,d0
            add.w   #GRID_ORIGIN_X,d0
            move.w  d0,frog_pixel_x

            move.w  frog_grid_y,d0
            mulu    #CELL_SIZE,d0
            add.w   #GRID_ORIGIN_Y,d0
            move.w  d0,frog_pixel_y
            rts

read_joystick_edge:
            move.w  JOY1DAT(a5),d0
            move.w  d0,d1
            lsr.w   #1,d1
            eor.w   d1,d0

            move.w  joy_prev,d1
            not.w   d1
            and.w   d0,d1
            move.w  d0,joy_prev

            move.w  d1,d0
            rts

wait_vblank:
            move.l  #$1ff00,d1
.wait:
            move.l  VPOSR(a5),d0
            and.l   d1,d0
            bne.s   .wait
            rts

wait_blit:
            btst    #6,DMACONR(a5)
            bne.s   wait_blit
            rts

clear_screen:
            bsr.s   wait_blit
            move.l  #screen_plane,BLTDPTH(a5)
            move.w  #0,BLTDMOD(a5)
            move.w  #$0100,BLTCON0(a5)
            move.w  #0,BLTCON1(a5)
            move.w  #(SCREEN_H<<6)|SCREEN_W/2,BLTSIZE(a5)
            rts

calc_screen_addr:
            lea     screen_plane,a0
            move.w  d1,d2
            mulu    #CELL_SIZE,d2
            add.w   #GRID_ORIGIN_Y,d2
            mulu    #SCREEN_W,d2
            add.l   d2,a0
            move.w  d0,d2
            lsr.w   #3,d2
            ext.l   d2
            add.l   d2,a0
            rts

update_sprite:
            lea     frog_data,a0
            move.w  frog_pixel_y,d0
            move.w  frog_pixel_x,d1

            move.w  d0,d2
            lsl.w   #8,d2
            lsr.w   #1,d1
            or.b    d1,d2
            move.w  d2,(a0)

            add.w   #FROG_HEIGHT,d0
            lsl.w   #8,d0
            move.w  d0,2(a0)
            rts

;══════════════════════════════════════════════════════════════════════════════
; VARIABLES
;══════════════════════════════════════════════════════════════════════════════

frog_grid_x:    dc.w    9
frog_grid_y:    dc.w    12
frog_pixel_x:   dc.w    0
frog_pixel_y:   dc.w    0
frog_state:     dc.w    0
frog_dir:       dc.w    0
frog_anim_frame: dc.w   0
joy_prev:       dc.w    0

death_timer:    dc.w    0
flash_colour:   dc.w    0

car_data:
            dc.w    0,7,1,0
            dc.w    160,7,1,0
            dc.w    100,8,-2,0
            dc.w    250,8,-2,0
            dc.w    50,9,2,0
            dc.w    200,9,2,0
            dc.w    80,10,-1,0
            dc.w    220,10,-1,0
            dc.w    30,11,3,0
            dc.w    180,11,3,0

;══════════════════════════════════════════════════════════════════════════════
; COPPER LIST
;══════════════════════════════════════════════════════════════════════════════

copperlist:
            dc.w    COLOR00
flash_copper:
            dc.w    COLOUR_BLACK        ; This gets modified for flash effect

            dc.w    $0100,$1200
            dc.w    $0102,$0000
            dc.w    $0104,$0000
            dc.w    $0108,$0000
            dc.w    $010a,$0000

            dc.w    $00e0
bplpth_val: dc.w    $0000
            dc.w    $00e2
bplptl_val: dc.w    $0000

            dc.w    $0180,$0000
            dc.w    $0182,COLOUR_CAR

            dc.w    $01a2,COLOUR_FROG
            dc.w    $01a4,COLOUR_EYES
            dc.w    $01a6,COLOUR_OUTLINE

            dc.w    SPR0PTH
sprpth_val: dc.w    $0000
            dc.w    SPR0PTL
sprptl_val: dc.w    $0000

            dc.w    $2c07,$fffe
            dc.w    COLOR00,COLOUR_HOME
            dc.w    $3407,$fffe
            dc.w    COLOR00,COLOUR_HOME_LIT
            dc.w    $3807,$fffe
            dc.w    COLOR00,COLOUR_HOME

            dc.w    $3c07,$fffe
            dc.w    COLOR00,COLOUR_WATER1
            dc.w    $4c07,$fffe
            dc.w    COLOR00,COLOUR_WATER2
            dc.w    $5c07,$fffe
            dc.w    COLOR00,COLOUR_WATER1
            dc.w    $6c07,$fffe
            dc.w    COLOR00,COLOUR_WATER2
            dc.w    $7c07,$fffe
            dc.w    COLOR00,COLOUR_WATER1

            dc.w    $8c07,$fffe
            dc.w    COLOR00,COLOUR_MEDIAN

            dc.w    $9c07,$fffe
            dc.w    COLOR00,COLOUR_ROAD1
            dc.w    $ac07,$fffe
            dc.w    COLOR00,COLOUR_ROAD2
            dc.w    $bc07,$fffe
            dc.w    COLOR00,COLOUR_ROAD1
            dc.w    $cc07,$fffe
            dc.w    COLOR00,COLOUR_ROAD2
            dc.w    $dc07,$fffe
            dc.w    COLOR00,COLOUR_ROAD1

            dc.w    $ec07,$fffe
            dc.w    COLOR00,COLOUR_START
            dc.w    $f407,$fffe
            dc.w    COLOR00,COLOUR_START_LIT
            dc.w    $f807,$fffe
            dc.w    COLOR00,COLOUR_START

            dc.w    $fc07,$fffe
            dc.w    COLOR00,COLOUR_BLACK

            dc.w    $ffff,$fffe

;══════════════════════════════════════════════════════════════════════════════
; GRAPHICS DATA
;══════════════════════════════════════════════════════════════════════════════

            even
car_gfx:
            dc.w    $0ff0,$0ff0
            dc.w    $3ffc,$3ffc
            dc.w    $7ffe,$7ffe
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $7ffe,$7ffe
            dc.w    $3c3c,$3c3c
            dc.w    $0000,$0000

            even
frog_data:
            dc.w    $ec50,$fc00

            dc.w    $0000,$0000
            dc.w    $07e0,$0000
            dc.w    $1ff8,$0420
            dc.w    $3ffc,$0a50
            dc.w    $7ffe,$1248
            dc.w    $7ffe,$1008
            dc.w    $ffff,$2004
            dc.w    $ffff,$0000
            dc.w    $ffff,$0000
            dc.w    $7ffe,$2004
            dc.w    $7ffe,$1008
            dc.w    $3ffc,$0810
            dc.w    $1ff8,$0420
            dc.w    $07e0,$0000
            dc.w    $0000,$0000
            dc.w    $0000,$0000

            dc.w    $0000,$0000

;══════════════════════════════════════════════════════════════════════════════
; SCREEN BUFFER
;══════════════════════════════════════════════════════════════════════════════

            section chipbss,bss_c

            even
screen_plane:
            ds.b    PLANE_SIZE

Build It

vasmm68k_mot -Fhunkexe -kick1hunks -o signal signal.asm

What’s Next

Death happens, but there’s no limit. In Unit 9, we’ll add a lives system—three lives before game over.

What Changed

Unit 7 → Unit 8

+188-103

1	1		`;══════════════════════════════════════════════════════════════════════════════`
2	2		`; SIGNAL - A Frogger-style game for the Commodore Amiga`
3		-	`; Unit 7: Cars on the Road`
	3	+	`; Unit 8: Collision Detection`
4	4		`;`
5		-	`; One car isn't traffic. This unit adds multiple cars across all five road`
6		-	`; lanes, each moving at different speeds. Some go left, some go right.`
7		-	`; The Blitter draws them all efficiently using a loop.`
	5	+	`; Traffic is meaningless if you can walk through it. This unit adds collision`
	6	+	`; detection: hit a car, the screen flashes red, and you respawn at the start.`
	7	+	`; Now it's actually a game with consequences!`
8	8		`;══════════════════════════════════════════════════════════════════════════════`
9	9
10	10		`;══════════════════════════════════════════════════════════════════════════════`
11	11		`; CONSTANTS`
12	12		`;══════════════════════════════════════════════════════════════════════════════`
13	13
14		-	`; Screen setup`
15	14		`SCREEN_W equ 40`
16	15		`SCREEN_H equ 256`
17	16		`PLANE_SIZE equ SCREEN_W*SCREEN_H`
18	17
19		-	`; Grid constants`
20	18		`GRID_COLS equ 20`
21	19		`GRID_ROWS equ 13`
22	20		`CELL_SIZE equ 16`
			...
25	23		`START_GRID_X equ 9`
26	24		`START_GRID_Y equ 12`
27	25
28		-	`; Frog animation`
29	26		`HOP_FRAMES equ 8`
30	27		`PIXELS_PER_FRAME equ 2`
31	28		`STATE_IDLE equ 0`
32	29		`STATE_HOPPING equ 1`
	30	+	`STATE_DYING equ 2 ; NEW: Death state`
33	31		`DIR_UP equ 0`
34	32		`DIR_DOWN equ 1`
35	33		`DIR_LEFT equ 2`
36	34		`DIR_RIGHT equ 3`
37	35		`FROG_HEIGHT equ 16`
	36	+	`FROG_WIDTH equ 16`
38	37
39		-	`; Car constants`
40		-	`NUM_CARS equ 10 ; Total cars`
41		-	`CAR_WIDTH equ 2 ; 32 pixels = 2 words`
	38	+	`; Death animation`
	39	+	`DEATH_FRAMES equ 30 ; How long death lasts (0.6 seconds at 50fps)`
	40	+	`FLASH_COLOUR equ $0f00 ; Red flash`
	41	+
	42	+	`NUM_CARS equ 10`
	43	+	`CAR_WIDTH equ 2`
	44	+	`CAR_WIDTH_PX equ 32 ; Pixels`
42	45		`CAR_HEIGHT equ 12`
43		-	`CAR_STRUCT_SIZE equ 8 ; Bytes per car: x(2), row(2), speed(2), pad(2)`
	46	+	`CAR_STRUCT_SIZE equ 8`
	47	+
	48	+	`; Collision threshold (pixels of overlap required)`
	49	+	`COLLISION_THRESHOLD equ 8`
	50	+
	51	+	`; Road rows (grid rows 7-11, which are rows 8-12 in 1-based counting)`
	52	+	`ROAD_ROW_FIRST equ 7`
	53	+	`ROAD_ROW_LAST equ 11`
44	54
45	55		`; Zone colours`
46	56		`COLOUR_BLACK equ $0000`
			...
53	63		`COLOUR_ROAD2 equ $0444`
54	64		`COLOUR_START equ $0262`
55	65		`COLOUR_START_LIT equ $0373`
56		-
57		-	`; Sprite and car colours`
58	66		`COLOUR_FROG equ $00f0`
59	67		`COLOUR_EYES equ $0ff0`
60	68		`COLOUR_OUTLINE equ $0000`
			...
102	110		`start:`
103	111		`lea CUSTOM,a5`
104	112
105		-	`; --- System takeover ---`
106	113		`move.w #$7fff,INTENA(a5)`
107	114		`move.w #$7fff,INTREQ(a5)`
108	115		`move.w #$7fff,DMACON(a5)`
109	116
110		-	`; --- Clear screen ---`
111	117		`bsr clear_screen`
112	118
113		-	`; --- Set up bitplane pointer ---`
	119	+	`; Set up bitplane pointer`
114	120		`lea screen_plane,a0`
115	121		`move.l a0,d0`
116	122		`swap d0`
			...
120	126		`lea bplptl_val,a1`
121	127		`move.w d0,(a1)`
122	128
123		-	`; --- Initialise frog ---`
124		-	`move.w #START_GRID_X,frog_grid_x`
125		-	`move.w #START_GRID_Y,frog_grid_y`
126		-	`move.w #STATE_IDLE,frog_state`
127		-	`clr.w joy_prev`
128		-	`bsr grid_to_pixels`
	129	+	`; Initialise frog`
	130	+	`bsr respawn_frog`
129	131
130		-	`; --- Set sprite pointer ---`
	132	+	`; Set sprite pointer`
131	133		`lea frog_data,a0`
132	134		`move.l a0,d0`
133	135		`swap d0`
			...
138	140		`move.w d0,(a1)`
139	141		`bsr update_sprite`
140	142
141		-	`; --- Install copper list ---`
	143	+	`; Install copper list`
142	144		`lea copperlist,a0`
143	145		`move.l a0,COP1LC(a5)`
144	146		`move.w d0,COPJMP1(a5)`
145	147
146		-	`; --- Enable DMA ---`
	148	+	`; Enable DMA`
147	149		`move.w #$87e0,DMACON(a5)`
148	150
149	151		`;══════════════════════════════════════════════════════════════════════════════`
			...
153	155		`mainloop:`
154	156		`bsr wait_vblank`
155	157
156		-	`; --- Update frog ---`
	158	+	`; Update frog (handles all states including death)`
157	159		`bsr update_frog`
158	160		`bsr update_sprite`
159	161
160		-	`; --- Update cars ---`
	162	+	`; Update cars`
161	163		`bsr erase_all_cars`
162	164		`bsr move_all_cars`
163	165		`bsr draw_all_cars`
	166	+
	167	+	`; Check collisions (only if frog is alive)`
	168	+	`cmp.w #STATE_DYING,frog_state`
	169	+	`beq.s .skip_collision`
	170	+	`bsr check_collision`
	171	+	`.skip_collision:`
164	172
165	173		`bra mainloop`
166	174
167	175		`;══════════════════════════════════════════════════════════════════════════════`
168		-	`; CAR MANAGEMENT`
	176	+	`; COLLISION DETECTION`
169	177		`;══════════════════════════════════════════════════════════════════════════════`
170	178
171	179		`;------------------------------------------------------------------------------`
172		-	`; ERASE_ALL_CARS - Clear all cars from screen`
	180	+	`; CHECK_COLLISION - Test frog against all cars`
173	181		`;------------------------------------------------------------------------------`
174		-	`erase_all_cars:`
	182	+	`check_collision:`
	183	+	`; Only check if frog is on a road row`
	184	+	`move.w frog_grid_y,d0`
	185	+	`cmp.w #ROAD_ROW_FIRST,d0`
	186	+	`blt .no_collision`
	187	+	`cmp.w #ROAD_ROW_LAST,d0`
	188	+	`bgt .no_collision`
	189	+
	190	+	`; Frog is on road - check against all cars in this row`
175	191		`lea car_data,a2`
176	192		`moveq #NUM_CARS-1,d7`
177	193
178	194		`.loop:`
179		-	`move.w (a2),d0 ; X position`
180		-	`move.w 2(a2),d1 ; Row`
	195	+	`; Check if car is in same row`
	196	+	`move.w 2(a2),d1 ; Car row`
	197	+	`cmp.w d0,d1 ; Compare with frog row`
	198	+	`bne.s .next_car`
	199	+
	200	+	`; Same row - check X overlap`
	201	+	`move.w frog_pixel_x,d2 ; Frog X`
	202	+	`move.w (a2),d3 ; Car X`
	203	+
	204	+	`; Check: frog_x + frog_width > car_x`
	205	+	`move.w d2,d4`
	206	+	`add.w #FROG_WIDTH,d4`
	207	+	`cmp.w d3,d4`
	208	+	`ble.s .next_car ; Frog right edge <= car left edge`
	209	+
	210	+	`; Check: car_x + car_width > frog_x`
	211	+	`move.w d3,d4`
	212	+	`add.w #CAR_WIDTH_PX,d4`
	213	+	`cmp.w d2,d4`
	214	+	`ble.s .next_car ; Car right edge <= frog left edge`
	215	+
	216	+	`; COLLISION! Trigger death`
	217	+	`bsr trigger_death`
	218	+	`bra.s .no_collision ; Exit early`
	219	+
	220	+	`.next_car:`
	221	+	`lea CAR_STRUCT_SIZE(a2),a2`
	222	+	`dbf d7,.loop`
	223	+
	224	+	`.no_collision:`
	225	+	`rts`
	226	+
	227	+	`;------------------------------------------------------------------------------`
	228	+	`; TRIGGER_DEATH - Start death sequence`
	229	+	`;------------------------------------------------------------------------------`
	230	+	`trigger_death:`
	231	+	`move.w #STATE_DYING,frog_state`
	232	+	`move.w #DEATH_FRAMES,death_timer`
	233	+
	234	+	`; Flash screen red by changing Copper colour`
	235	+	`move.w #FLASH_COLOUR,flash_colour`
	236	+	`rts`
	237	+
	238	+	`;------------------------------------------------------------------------------`
	239	+	`; RESPAWN_FROG - Reset frog to starting position`
	240	+	`;------------------------------------------------------------------------------`
	241	+	`respawn_frog:`
	242	+	`move.w #START_GRID_X,frog_grid_x`
	243	+	`move.w #START_GRID_Y,frog_grid_y`
	244	+	`move.w #STATE_IDLE,frog_state`
	245	+	`clr.w frog_anim_frame`
	246	+	`clr.w joy_prev`
	247	+
	248	+	`; Reset flash colour to black`
	249	+	`move.w #COLOUR_BLACK,flash_colour`
	250	+
	251	+	`bsr grid_to_pixels`
	252	+	`rts`
	253	+
	254	+	`;══════════════════════════════════════════════════════════════════════════════`
	255	+	`; CAR MANAGEMENT`
	256	+	`;══════════════════════════════════════════════════════════════════════════════`
	257	+
	258	+	`erase_all_cars:`
	259	+	`lea car_data,a2`
	260	+	`moveq #NUM_CARS-1,d7`
181	261
	262	+	`.loop:`
	263	+	`move.w (a2),d0`
	264	+	`move.w 2(a2),d1`
182	265		`bsr calc_screen_addr`
183	266		`bsr wait_blit`
184	267
			...
192	275		`dbf d7,.loop`
193	276		`rts`
194	277
195		-	`;------------------------------------------------------------------------------`
196		-	`; MOVE_ALL_CARS - Update all car positions`
197		-	`;------------------------------------------------------------------------------`
198	278		`move_all_cars:`
199	279		`lea car_data,a2`
200	280		`moveq #NUM_CARS-1,d7`
201	281
202	282		`.loop:`
203		-	`move.w (a2),d0 ; X position`
204		-	`move.w 4(a2),d1 ; Speed (signed)`
205		-	`add.w d1,d0 ; Move`
	283	+	`move.w (a2),d0`
	284	+	`move.w 4(a2),d1`
	285	+	`add.w d1,d0`
206	286
207		-	`; --- Wrap at screen edges ---`
208		-	`tst.w d1 ; Check direction`
	287	+	`tst.w d1`
209	288		`bmi.s .check_left`
210	289
211		-	`; Moving right`
212	290		`cmp.w #320,d0`
213	291		`blt.s .store`
214		-	`sub.w #320+32,d0 ; Wrap from right to left`
	292	+	`sub.w #320+32,d0`
215	293		`bra.s .store`
216	294
217	295		`.check_left:`
218		-	`; Moving left`
219	296		`cmp.w #-32,d0`
220	297		`bgt.s .store`
221		-	`add.w #320+32,d0 ; Wrap from left to right`
	298	+	`add.w #320+32,d0`
222	299
223	300		`.store:`
224		-	`move.w d0,(a2) ; Store new X`
225		-
	301	+	`move.w d0,(a2)`
226	302		`lea CAR_STRUCT_SIZE(a2),a2`
227	303		`dbf d7,.loop`
228	304		`rts`
229	305
230		-	`;------------------------------------------------------------------------------`
231		-	`; DRAW_ALL_CARS - Draw all cars to screen`
232		-	`;------------------------------------------------------------------------------`
233	306		`draw_all_cars:`
234	307		`lea car_data,a2`
235	308		`moveq #NUM_CARS-1,d7`
236	309
237	310		`.loop:`
238		-	`move.w (a2),d0 ; X position`
239		-	`move.w 2(a2),d1 ; Row`
	311	+	`move.w (a2),d0`
	312	+	`move.w 2(a2),d1`
240	313
241		-	`; Skip if offscreen`
242	314		`cmp.w #-32,d0`
243	315		`blt.s .next`
244	316		`cmp.w #320,d0`
			...
263	335		`rts`
264	336
265	337		`;══════════════════════════════════════════════════════════════════════════════`
266		-	`; BLITTER UTILITIES`
	338	+	`; FROG ROUTINES`
267	339		`;══════════════════════════════════════════════════════════════════════════════`
268		-
269		-	`wait_blit:`
270		-	`btst #6,DMACONR(a5)`
271		-	`bne.s wait_blit`
272		-	`rts`
273	340
274		-	`clear_screen:`
275		-	`bsr.s wait_blit`
276		-	`move.l #screen_plane,BLTDPTH(a5)`
277		-	`move.w #0,BLTDMOD(a5)`
278		-	`move.w #$0100,BLTCON0(a5)`
279		-	`move.w #0,BLTCON1(a5)`
280		-	`move.w #(SCREEN_H<<6)\|SCREEN_W/2,BLTSIZE(a5)`
281		-	`rts`
	341	+	`update_frog:`
	342	+	`move.w frog_state,d0`
282	343
283		-	`calc_screen_addr:`
284		-	`; D0 = pixel X, D1 = row number -> A0 = screen address`
285		-	`lea screen_plane,a0`
	344	+	`cmp.w #STATE_DYING,d0`
	345	+	`beq .dying`
286	346
287		-	`move.w d1,d2`
288		-	`mulu #CELL_SIZE,d2`
289		-	`add.w #GRID_ORIGIN_Y,d2`
290		-	`mulu #SCREEN_W,d2`
291		-	`add.l d2,a0`
	347	+	`tst.w d0`
	348	+	`beq .idle`
	349	+	`bra .hopping`
292	350
293		-	`move.w d0,d2`
294		-	`lsr.w #3,d2`
295		-	`ext.l d2`
296		-	`add.l d2,a0`
297		-	`rts`
	351	+	`.dying:`
	352	+	`; Count down death timer`
	353	+	`subq.w #1,death_timer`
	354	+	`bgt.s .still_dying`
298	355
299		-	`;══════════════════════════════════════════════════════════════════════════════`
300		-	`; FROG ROUTINES`
301		-	`;══════════════════════════════════════════════════════════════════════════════`
	356	+	`; Death complete - respawn`
	357	+	`bsr respawn_frog`
	358	+	`bra .done`
302	359
303		-	`update_frog:`
304		-	`tst.w frog_state`
305		-	`beq .idle`
306		-	`bra .hopping`
	360	+	`.still_dying:`
	361	+	`; Flash effect: alternate colour`
	362	+	`move.w death_timer,d0`
	363	+	`and.w #4,d0 ; Flash every 4 frames`
	364	+	`beq.s .flash_off`
	365	+	`move.w #FLASH_COLOUR,flash_colour`
	366	+	`bra .done`
	367	+	`.flash_off:`
	368	+	`move.w #COLOUR_BLACK,flash_colour`
	369	+	`bra .done`
307	370
308	371		`.idle:`
309	372		`bsr read_joystick_edge`
			...
394	457		`move.w #STATE_IDLE,frog_state`
395	458
396	459		`.done:`
	460	+	`; Update flash colour in Copper list`
	461	+	`move.w flash_colour,flash_copper`
397	462		`rts`
	463	+
	464	+	`;══════════════════════════════════════════════════════════════════════════════`
	465	+	`; UTILITY ROUTINES`
	466	+	`;══════════════════════════════════════════════════════════════════════════════`
398	467
399	468		`grid_to_pixels:`
400	469		`move.w frog_grid_x,d0`
			...
428	497		`move.l VPOSR(a5),d0`
429	498		`and.l d1,d0`
430	499		`bne.s .wait`
	500	+	`rts`
	501	+
	502	+	`wait_blit:`
	503	+	`btst #6,DMACONR(a5)`
	504	+	`bne.s wait_blit`
	505	+	`rts`
	506	+
	507	+	`clear_screen:`
	508	+	`bsr.s wait_blit`
	509	+	`move.l #screen_plane,BLTDPTH(a5)`
	510	+	`move.w #0,BLTDMOD(a5)`
	511	+	`move.w #$0100,BLTCON0(a5)`
	512	+	`move.w #0,BLTCON1(a5)`
	513	+	`move.w #(SCREEN_H<<6)\|SCREEN_W/2,BLTSIZE(a5)`
	514	+	`rts`
	515	+
	516	+	`calc_screen_addr:`
	517	+	`lea screen_plane,a0`
	518	+	`move.w d1,d2`
	519	+	`mulu #CELL_SIZE,d2`
	520	+	`add.w #GRID_ORIGIN_Y,d2`
	521	+	`mulu #SCREEN_W,d2`
	522	+	`add.l d2,a0`
	523	+	`move.w d0,d2`
	524	+	`lsr.w #3,d2`
	525	+	`ext.l d2`
	526	+	`add.l d2,a0`
431	527		`rts`
432	528
433	529		`update_sprite:`
			...
459	555		`frog_anim_frame: dc.w 0`
460	556		`joy_prev: dc.w 0`
461	557
462		-	`; Car data: X position, Row, Speed, (padding)`
463		-	`; Row 7 = road lane 1 (rows 7-11 are road lanes)`
	558	+	`death_timer: dc.w 0`
	559	+	`flash_colour: dc.w 0`
	560	+
464	561		`car_data:`
465		-	`; Lane 1 (row 7) - moving right, speed 1`
466	562		`dc.w 0,7,1,0`
467	563		`dc.w 160,7,1,0`
468		-
469		-	`; Lane 2 (row 8) - moving left, speed -2`
470	564		`dc.w 100,8,-2,0`
471	565		`dc.w 250,8,-2,0`
472		-
473		-	`; Lane 3 (row 9) - moving right, speed 2`
474	566		`dc.w 50,9,2,0`
475	567		`dc.w 200,9,2,0`
476		-
477		-	`; Lane 4 (row 10) - moving left, speed -1`
478	568		`dc.w 80,10,-1,0`
479	569		`dc.w 220,10,-1,0`
480		-
481		-	`; Lane 5 (row 11) - moving right, speed 3`
482	570		`dc.w 30,11,3,0`
483	571		`dc.w 180,11,3,0`
484	572
			...
487	575		`;══════════════════════════════════════════════════════════════════════════════`
488	576
489	577		`copperlist:`
490		-	`dc.w COLOR00,COLOUR_BLACK`
	578	+	`dc.w COLOR00`
	579	+	`flash_copper:`
	580	+	`dc.w COLOUR_BLACK ; This gets modified for flash effect`
491	581
492	582		`dc.w $0100,$1200`
493	583		`dc.w $0102,$0000`
			...
512	602		`dc.w SPR0PTL`
513	603		`sprptl_val: dc.w $0000`
514	604
515		-	`; ROW 1: HOME ZONE`
516	605		`dc.w $2c07,$fffe`
517	606		`dc.w COLOR00,COLOUR_HOME`
518	607		`dc.w $3407,$fffe`
			...
520	609		`dc.w $3807,$fffe`
521	610		`dc.w COLOR00,COLOUR_HOME`
522	611
523		-	`; ROWS 2-6: WATER ZONE`
524	612		`dc.w $3c07,$fffe`
525	613		`dc.w COLOR00,COLOUR_WATER1`
526	614		`dc.w $4c07,$fffe`
			...
532	620		`dc.w $7c07,$fffe`
533	621		`dc.w COLOR00,COLOUR_WATER1`
534	622
535		-	`; ROW 7: MEDIAN`
536	623		`dc.w $8c07,$fffe`
537	624		`dc.w COLOR00,COLOUR_MEDIAN`
538	625
539		-	`; ROWS 8-12: ROAD ZONE`
540	626		`dc.w $9c07,$fffe`
541	627		`dc.w COLOR00,COLOUR_ROAD1`
542	628		`dc.w $ac07,$fffe`
			...
548	634		`dc.w $dc07,$fffe`
549	635		`dc.w COLOR00,COLOUR_ROAD1`
550	636
551		-	`; ROW 13: START ZONE`
552	637		`dc.w $ec07,$fffe`
553	638		`dc.w COLOR00,COLOUR_START`
554	639		`dc.w $f407,$fffe`
