Game 1 Unit 7 of 64 1 hr learning time

Cars on the Road

Blitter-drawn cars. Multiple lanes. Different speeds. Traffic.

11% of Signal

Mark as complete Completed!

What You’re Building

Traffic.

One car doesn’t make a game. This unit adds ten cars across all five road lanes, each moving at different speeds. Some go left, some go right. The result: a busy road that’s challenging to cross.

By the end of this unit:

10 cars across 5 road lanes
2 cars per lane, staggered positions
Different speeds per lane
Bidirectional traffic
Screen wrapping at edges

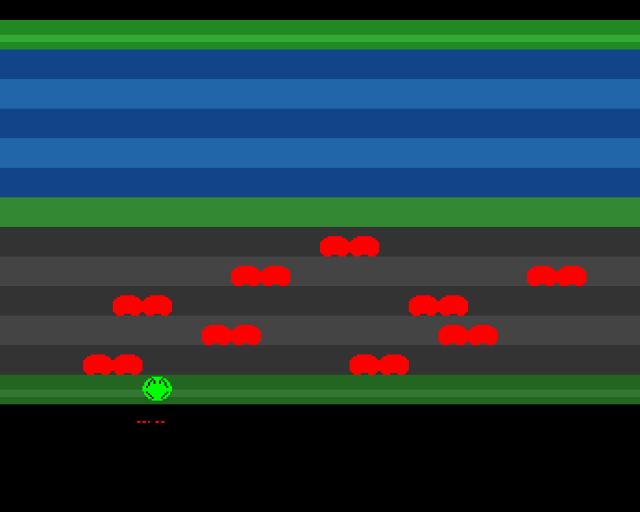

Unit 7 Screenshot

Object Data Structures

Each car needs several properties. We store them in a simple array:

; Car Data Structure
; 8 bytes per car: X position, row, speed, padding

; Constants
NUM_CARS        equ 10          ; Total cars
CAR_STRUCT_SIZE equ 8           ; Bytes per car

; Structure layout:
;   Offset 0: X position (word) - pixel position 0-319
;   Offset 2: Row (word) - grid row 7-11 (road lanes)
;   Offset 4: Speed (word) - signed: positive=right, negative=left
;   Offset 6: Reserved (word) - padding for alignment

car_data:
            ; Lane 1 (row 7) - moving right, speed 1
            dc.w    0,7,1,0
            dc.w    160,7,1,0

            ; Lane 2 (row 8) - moving left, speed -2
            dc.w    100,8,-2,0
            dc.w    250,8,-2,0

            ; Lane 3 (row 9) - moving right, speed 2
            dc.w    50,9,2,0
            dc.w    200,9,2,0

            ; Lane 4 (row 10) - moving left, speed -1
            dc.w    80,10,-1,0
            dc.w    220,10,-1,0

            ; Lane 5 (row 11) - moving right, speed 3
            dc.w    30,11,3,0
            dc.w    180,11,3,0

Speed is signed: positive values move right, negative values move left.

The Car Loop

Each frame, we process all cars in three passes:

mainloop:
    bsr     wait_vblank
    bsr     update_frog
    bsr     update_sprite

    bsr     erase_all_cars      ; Pass 1: Clear old positions
    bsr     move_all_cars       ; Pass 2: Update positions
    bsr     draw_all_cars       ; Pass 3: Draw new positions

    bra     mainloop

Why three passes? Erasing all cars first prevents visual glitches where a fast car might be drawn before a slow car in the same area is erased.

Processing All Cars

We use a register as a pointer to walk through the car array. The movement routine also handles screen wrapping:

; Move All Cars with Screen Wrapping
; Update each car's X position, wrap at screen edges

move_all_cars:
            lea     car_data,a2
            moveq   #NUM_CARS-1,d7

.loop:
            move.w  (a2),d0             ; X position
            move.w  4(a2),d1            ; Speed (signed)
            add.w   d1,d0               ; Move

            ; --- Wrap at screen edges ---
            tst.w   d1                  ; Check direction
            bmi.s   .check_left

            ; Moving right: wrap when past right edge
            cmp.w   #320,d0
            blt.s   .store
            sub.w   #320+32,d0          ; Wrap from right to left
            bra.s   .store

.check_left:
            ; Moving left: wrap when past left edge
            cmp.w   #-32,d0
            bgt.s   .store
            add.w   #320+32,d0          ; Wrap from left to right

.store:
            move.w  d0,(a2)             ; Store new X

            lea     CAR_STRUCT_SIZE(a2),a2
            dbf     d7,.loop
            rts

The dbf instruction (Decrement and Branch if False) is the 68000’s loop primitive. It decrements the counter and branches if the result isn’t -1.

We wrap at -32 and 320 to account for the car’s 32-pixel width. This ensures cars fully exit before reappearing.

Lane Configuration

Each lane has its own character:

Lane	Row	Speed	Direction	Feel
1	7	1	Right	Slow and steady
2	8	2	Left	Quick, watch out
3	9	2	Right	Quick matching
4	10	1	Left	Slow return
5	11	3	Right	Fast and dangerous

The mix of speeds and directions creates interesting patterns for the player to navigate.

Skipping Offscreen Cars

When drawing, we skip cars that are completely offscreen:

; Draw All Cars with Blitter
; Loop through car data, skip offscreen, draw visible cars

draw_all_cars:
            lea     car_data,a2
            moveq   #NUM_CARS-1,d7

.loop:
            move.w  (a2),d0             ; X position
            move.w  2(a2),d1            ; Row

            ; Skip if offscreen
            cmp.w   #-32,d0
            blt.s   .next
            cmp.w   #320,d0
            bge.s   .next

            ; Calculate screen address and draw
            bsr     calc_screen_addr
            bsr     wait_blit

            ; Set up Blitter for A→D copy
            move.l  #car_gfx,BLTAPTH(a5)
            move.l  a0,BLTDPTH(a5)
            move.w  #$ffff,BLTAFWM(a5)
            move.w  #$ffff,BLTALWM(a5)
            move.w  #0,BLTAMOD(a5)
            move.w  #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5)
            move.w  #$09f0,BLTCON0(a5)  ; A→D copy
            move.w  #0,BLTCON1(a5)
            move.w  #(CAR_HEIGHT<<6)|CAR_WIDTH,BLTSIZE(a5)

.next:
            lea     CAR_STRUCT_SIZE(a2),a2
            dbf     d7,.loop
            rts

This is a small optimisation, but more importantly it prevents drawing into invalid screen memory.

The Blitter Cost

Ten cars means ten blitter operations per frame for erasing, plus ten for drawing—twenty total. Each blit of a 32×12 car takes approximately:

Words per blit: 2 × 12 = 24 words
Cycles per word: ~4 DMA cycles
Total: ~96 DMA cycles per blit
20 blits: ~1920 DMA cycles

The Amiga has plenty of DMA bandwidth for this. We could easily have 50+ cars before running into trouble.

Why Not Use Sprites?

We’re using the frog as a sprite (which makes collision detection easier later). For cars, the Blitter approach works well because:

All cars look the same: We reuse one graphic
Cars move horizontally: Easy screen address calculation
Many cars needed: More than 8 sprites would require multiplexing
No transparency needed: Cars don’t overlap each other (much)

Key Takeaways

Object arrays store multiple similar entities
Three-pass update (erase, move, draw) prevents visual glitches
Signed speed enables bidirectional movement
Screen wrapping creates continuous traffic flow
Offscreen culling prevents invalid memory access
Blitter loops handle many objects efficiently

The Code

;══════════════════════════════════════════════════════════════════════════════
; SIGNAL - A Frogger-style game for the Commodore Amiga
; Unit 7: Cars on the Road
;
; One car isn't traffic. This unit adds multiple cars across all five road
; lanes, each moving at different speeds. Some go left, some go right.
; The Blitter draws them all efficiently using a loop.
;══════════════════════════════════════════════════════════════════════════════

;══════════════════════════════════════════════════════════════════════════════
; CONSTANTS
;══════════════════════════════════════════════════════════════════════════════

; Screen setup
SCREEN_W        equ 40
SCREEN_H        equ 256
PLANE_SIZE      equ SCREEN_W*SCREEN_H

; Grid constants
GRID_COLS       equ 20
GRID_ROWS       equ 13
CELL_SIZE       equ 16
GRID_ORIGIN_X   equ 48
GRID_ORIGIN_Y   equ 44
START_GRID_X    equ 9
START_GRID_Y    equ 12

; Frog animation
HOP_FRAMES      equ 8
PIXELS_PER_FRAME equ 2
STATE_IDLE      equ 0
STATE_HOPPING   equ 1
DIR_UP          equ 0
DIR_DOWN        equ 1
DIR_LEFT        equ 2
DIR_RIGHT       equ 3
FROG_HEIGHT     equ 16

; Car constants
NUM_CARS        equ 10          ; Total cars
CAR_WIDTH       equ 2           ; 32 pixels = 2 words
CAR_HEIGHT      equ 12
CAR_STRUCT_SIZE equ 8           ; Bytes per car: x(2), row(2), speed(2), pad(2)

; Zone colours
COLOUR_BLACK    equ $0000
COLOUR_HOME     equ $0282
COLOUR_HOME_LIT equ $03a3
COLOUR_WATER1   equ $0148
COLOUR_WATER2   equ $026a
COLOUR_MEDIAN   equ $0383
COLOUR_ROAD1    equ $0333
COLOUR_ROAD2    equ $0444
COLOUR_START    equ $0262
COLOUR_START_LIT equ $0373

; Sprite and car colours
COLOUR_FROG     equ $00f0
COLOUR_EYES     equ $0ff0
COLOUR_OUTLINE  equ $0000
COLOUR_CAR      equ $0f00

;══════════════════════════════════════════════════════════════════════════════
; HARDWARE REGISTERS
;══════════════════════════════════════════════════════════════════════════════

CUSTOM      equ $dff000

DMACONR     equ $002
VPOSR       equ $004
JOY1DAT     equ $00c

BLTCON0     equ $040
BLTCON1     equ $042
BLTAFWM     equ $044
BLTALWM     equ $046
BLTCPTH     equ $048
BLTBPTH     equ $04c
BLTAPTH     equ $050
BLTDPTH     equ $054
BLTSIZE     equ $058
BLTCMOD     equ $060
BLTBMOD     equ $062
BLTAMOD     equ $064
BLTDMOD     equ $066

COP1LC      equ $080
COPJMP1     equ $088
DMACON      equ $096
INTENA      equ $09a
INTREQ      equ $09c
COLOR00     equ $180
SPR0PTH     equ $120
SPR0PTL     equ $122

;══════════════════════════════════════════════════════════════════════════════
; CODE SECTION
;══════════════════════════════════════════════════════════════════════════════

            section code,code_c

start:
            lea     CUSTOM,a5

            ; --- System takeover ---
            move.w  #$7fff,INTENA(a5)
            move.w  #$7fff,INTREQ(a5)
            move.w  #$7fff,DMACON(a5)

            ; --- Clear screen ---
            bsr     clear_screen

            ; --- Set up bitplane pointer ---
            lea     screen_plane,a0
            move.l  a0,d0
            swap    d0
            lea     bplpth_val,a1
            move.w  d0,(a1)
            swap    d0
            lea     bplptl_val,a1
            move.w  d0,(a1)

            ; --- Initialise frog ---
            move.w  #START_GRID_X,frog_grid_x
            move.w  #START_GRID_Y,frog_grid_y
            move.w  #STATE_IDLE,frog_state
            clr.w   joy_prev
            bsr     grid_to_pixels

            ; --- Set sprite pointer ---
            lea     frog_data,a0
            move.l  a0,d0
            swap    d0
            lea     sprpth_val,a1
            move.w  d0,(a1)
            swap    d0
            lea     sprptl_val,a1
            move.w  d0,(a1)
            bsr     update_sprite

            ; --- Install copper list ---
            lea     copperlist,a0
            move.l  a0,COP1LC(a5)
            move.w  d0,COPJMP1(a5)

            ; --- Enable DMA ---
            move.w  #$87e0,DMACON(a5)

;══════════════════════════════════════════════════════════════════════════════
; MAIN LOOP
;══════════════════════════════════════════════════════════════════════════════

mainloop:
            bsr     wait_vblank

            ; --- Update frog ---
            bsr     update_frog
            bsr     update_sprite

            ; --- Update cars ---
            bsr     erase_all_cars
            bsr     move_all_cars
            bsr     draw_all_cars

            bra     mainloop

;══════════════════════════════════════════════════════════════════════════════
; CAR MANAGEMENT
;══════════════════════════════════════════════════════════════════════════════

;------------------------------------------------------------------------------
; ERASE_ALL_CARS - Clear all cars from screen
;------------------------------------------------------------------------------
erase_all_cars:
            lea     car_data,a2
            moveq   #NUM_CARS-1,d7

.loop:
            move.w  (a2),d0             ; X position
            move.w  2(a2),d1            ; Row

            bsr     calc_screen_addr
            bsr     wait_blit

            move.l  a0,BLTDPTH(a5)
            move.w  #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5)
            move.w  #$0100,BLTCON0(a5)
            move.w  #0,BLTCON1(a5)
            move.w  #(CAR_HEIGHT<<6)|CAR_WIDTH,BLTSIZE(a5)

            lea     CAR_STRUCT_SIZE(a2),a2
            dbf     d7,.loop
            rts

;------------------------------------------------------------------------------
; MOVE_ALL_CARS - Update all car positions
;------------------------------------------------------------------------------
move_all_cars:
            lea     car_data,a2
            moveq   #NUM_CARS-1,d7

.loop:
            move.w  (a2),d0             ; X position
            move.w  4(a2),d1            ; Speed (signed)
            add.w   d1,d0               ; Move

            ; --- Wrap at screen edges ---
            tst.w   d1                  ; Check direction
            bmi.s   .check_left

            ; Moving right
            cmp.w   #320,d0
            blt.s   .store
            sub.w   #320+32,d0          ; Wrap from right to left
            bra.s   .store

.check_left:
            ; Moving left
            cmp.w   #-32,d0
            bgt.s   .store
            add.w   #320+32,d0          ; Wrap from left to right

.store:
            move.w  d0,(a2)             ; Store new X

            lea     CAR_STRUCT_SIZE(a2),a2
            dbf     d7,.loop
            rts

;------------------------------------------------------------------------------
; DRAW_ALL_CARS - Draw all cars to screen
;------------------------------------------------------------------------------
draw_all_cars:
            lea     car_data,a2
            moveq   #NUM_CARS-1,d7

.loop:
            move.w  (a2),d0             ; X position
            move.w  2(a2),d1            ; Row

            ; Skip if offscreen
            cmp.w   #-32,d0
            blt.s   .next
            cmp.w   #320,d0
            bge.s   .next

            bsr     calc_screen_addr
            bsr     wait_blit

            move.l  #car_gfx,BLTAPTH(a5)
            move.l  a0,BLTDPTH(a5)
            move.w  #$ffff,BLTAFWM(a5)
            move.w  #$ffff,BLTALWM(a5)
            move.w  #0,BLTAMOD(a5)
            move.w  #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5)
            move.w  #$09f0,BLTCON0(a5)
            move.w  #0,BLTCON1(a5)
            move.w  #(CAR_HEIGHT<<6)|CAR_WIDTH,BLTSIZE(a5)

.next:
            lea     CAR_STRUCT_SIZE(a2),a2
            dbf     d7,.loop
            rts

;══════════════════════════════════════════════════════════════════════════════
; BLITTER UTILITIES
;══════════════════════════════════════════════════════════════════════════════

wait_blit:
            btst    #6,DMACONR(a5)
            bne.s   wait_blit
            rts

clear_screen:
            bsr.s   wait_blit
            move.l  #screen_plane,BLTDPTH(a5)
            move.w  #0,BLTDMOD(a5)
            move.w  #$0100,BLTCON0(a5)
            move.w  #0,BLTCON1(a5)
            move.w  #(SCREEN_H<<6)|SCREEN_W/2,BLTSIZE(a5)
            rts

calc_screen_addr:
            ; D0 = pixel X, D1 = row number -> A0 = screen address
            lea     screen_plane,a0

            move.w  d1,d2
            mulu    #CELL_SIZE,d2
            add.w   #GRID_ORIGIN_Y,d2
            mulu    #SCREEN_W,d2
            add.l   d2,a0

            move.w  d0,d2
            lsr.w   #3,d2
            ext.l   d2
            add.l   d2,a0
            rts

;══════════════════════════════════════════════════════════════════════════════
; FROG ROUTINES
;══════════════════════════════════════════════════════════════════════════════

update_frog:
            tst.w   frog_state
            beq     .idle
            bra     .hopping

.idle:
            bsr     read_joystick_edge
            tst.w   d0
            beq     .done

            btst    #8,d0
            beq.s   .not_up
            move.w  frog_grid_y,d1
            tst.w   d1
            beq.s   .not_up
            move.w  #DIR_UP,frog_dir
            bra.s   .start_hop
.not_up:
            btst    #0,d0
            beq.s   .not_down
            move.w  frog_grid_y,d1
            cmp.w   #GRID_ROWS-1,d1
            beq.s   .not_down
            move.w  #DIR_DOWN,frog_dir
            bra.s   .start_hop
.not_down:
            btst    #9,d0
            beq.s   .not_left
            move.w  frog_grid_x,d1
            tst.w   d1
            beq.s   .not_left
            move.w  #DIR_LEFT,frog_dir
            bra.s   .start_hop
.not_left:
            btst    #1,d0
            beq     .done
            move.w  frog_grid_x,d1
            cmp.w   #GRID_COLS-1,d1
            beq     .done
            move.w  #DIR_RIGHT,frog_dir

.start_hop:
            move.w  #STATE_HOPPING,frog_state
            clr.w   frog_anim_frame
            bra.s   .done

.hopping:
            addq.w  #1,frog_anim_frame
            move.w  frog_dir,d0

            cmp.w   #DIR_UP,d0
            bne.s   .hop_not_up
            sub.w   #PIXELS_PER_FRAME,frog_pixel_y
            bra.s   .check_done
.hop_not_up:
            cmp.w   #DIR_DOWN,d0
            bne.s   .hop_not_down
            add.w   #PIXELS_PER_FRAME,frog_pixel_y
            bra.s   .check_done
.hop_not_down:
            cmp.w   #DIR_LEFT,d0
            bne.s   .hop_not_left
            sub.w   #PIXELS_PER_FRAME,frog_pixel_x
            bra.s   .check_done
.hop_not_left:
            add.w   #PIXELS_PER_FRAME,frog_pixel_x

.check_done:
            cmp.w   #HOP_FRAMES,frog_anim_frame
            blt.s   .done

            move.w  frog_dir,d0
            cmp.w   #DIR_UP,d0
            bne.s   .end_not_up
            subq.w  #1,frog_grid_y
            bra.s   .snap
.end_not_up:
            cmp.w   #DIR_DOWN,d0
            bne.s   .end_not_down
            addq.w  #1,frog_grid_y
            bra.s   .snap
.end_not_down:
            cmp.w   #DIR_LEFT,d0
            bne.s   .end_not_left
            subq.w  #1,frog_grid_x
            bra.s   .snap
.end_not_left:
            addq.w  #1,frog_grid_x

.snap:
            bsr     grid_to_pixels
            move.w  #STATE_IDLE,frog_state

.done:
            rts

grid_to_pixels:
            move.w  frog_grid_x,d0
            mulu    #CELL_SIZE,d0
            add.w   #GRID_ORIGIN_X,d0
            move.w  d0,frog_pixel_x

            move.w  frog_grid_y,d0
            mulu    #CELL_SIZE,d0
            add.w   #GRID_ORIGIN_Y,d0
            move.w  d0,frog_pixel_y
            rts

read_joystick_edge:
            move.w  JOY1DAT(a5),d0
            move.w  d0,d1
            lsr.w   #1,d1
            eor.w   d1,d0

            move.w  joy_prev,d1
            not.w   d1
            and.w   d0,d1
            move.w  d0,joy_prev

            move.w  d1,d0
            rts

wait_vblank:
            move.l  #$1ff00,d1
.wait:
            move.l  VPOSR(a5),d0
            and.l   d1,d0
            bne.s   .wait
            rts

update_sprite:
            lea     frog_data,a0
            move.w  frog_pixel_y,d0
            move.w  frog_pixel_x,d1

            move.w  d0,d2
            lsl.w   #8,d2
            lsr.w   #1,d1
            or.b    d1,d2
            move.w  d2,(a0)

            add.w   #FROG_HEIGHT,d0
            lsl.w   #8,d0
            move.w  d0,2(a0)
            rts

;══════════════════════════════════════════════════════════════════════════════
; VARIABLES
;══════════════════════════════════════════════════════════════════════════════

frog_grid_x:    dc.w    9
frog_grid_y:    dc.w    12
frog_pixel_x:   dc.w    0
frog_pixel_y:   dc.w    0
frog_state:     dc.w    0
frog_dir:       dc.w    0
frog_anim_frame: dc.w   0
joy_prev:       dc.w    0

; Car data: X position, Row, Speed, (padding)
; Row 7 = road lane 1 (rows 7-11 are road lanes)
car_data:
            ; Lane 1 (row 7) - moving right, speed 1
            dc.w    0,7,1,0
            dc.w    160,7,1,0

            ; Lane 2 (row 8) - moving left, speed -2
            dc.w    100,8,-2,0
            dc.w    250,8,-2,0

            ; Lane 3 (row 9) - moving right, speed 2
            dc.w    50,9,2,0
            dc.w    200,9,2,0

            ; Lane 4 (row 10) - moving left, speed -1
            dc.w    80,10,-1,0
            dc.w    220,10,-1,0

            ; Lane 5 (row 11) - moving right, speed 3
            dc.w    30,11,3,0
            dc.w    180,11,3,0

;══════════════════════════════════════════════════════════════════════════════
; COPPER LIST
;══════════════════════════════════════════════════════════════════════════════

copperlist:
            dc.w    COLOR00,COLOUR_BLACK

            dc.w    $0100,$1200
            dc.w    $0102,$0000
            dc.w    $0104,$0000
            dc.w    $0108,$0000
            dc.w    $010a,$0000

            dc.w    $00e0
bplpth_val: dc.w    $0000
            dc.w    $00e2
bplptl_val: dc.w    $0000

            dc.w    $0180,$0000
            dc.w    $0182,COLOUR_CAR

            dc.w    $01a2,COLOUR_FROG
            dc.w    $01a4,COLOUR_EYES
            dc.w    $01a6,COLOUR_OUTLINE

            dc.w    SPR0PTH
sprpth_val: dc.w    $0000
            dc.w    SPR0PTL
sprptl_val: dc.w    $0000

            ; ROW 1: HOME ZONE
            dc.w    $2c07,$fffe
            dc.w    COLOR00,COLOUR_HOME
            dc.w    $3407,$fffe
            dc.w    COLOR00,COLOUR_HOME_LIT
            dc.w    $3807,$fffe
            dc.w    COLOR00,COLOUR_HOME

            ; ROWS 2-6: WATER ZONE
            dc.w    $3c07,$fffe
            dc.w    COLOR00,COLOUR_WATER1
            dc.w    $4c07,$fffe
            dc.w    COLOR00,COLOUR_WATER2
            dc.w    $5c07,$fffe
            dc.w    COLOR00,COLOUR_WATER1
            dc.w    $6c07,$fffe
            dc.w    COLOR00,COLOUR_WATER2
            dc.w    $7c07,$fffe
            dc.w    COLOR00,COLOUR_WATER1

            ; ROW 7: MEDIAN
            dc.w    $8c07,$fffe
            dc.w    COLOR00,COLOUR_MEDIAN

            ; ROWS 8-12: ROAD ZONE
            dc.w    $9c07,$fffe
            dc.w    COLOR00,COLOUR_ROAD1
            dc.w    $ac07,$fffe
            dc.w    COLOR00,COLOUR_ROAD2
            dc.w    $bc07,$fffe
            dc.w    COLOR00,COLOUR_ROAD1
            dc.w    $cc07,$fffe
            dc.w    COLOR00,COLOUR_ROAD2
            dc.w    $dc07,$fffe
            dc.w    COLOR00,COLOUR_ROAD1

            ; ROW 13: START ZONE
            dc.w    $ec07,$fffe
            dc.w    COLOR00,COLOUR_START
            dc.w    $f407,$fffe
            dc.w    COLOR00,COLOUR_START_LIT
            dc.w    $f807,$fffe
            dc.w    COLOR00,COLOUR_START

            dc.w    $fc07,$fffe
            dc.w    COLOR00,COLOUR_BLACK

            dc.w    $ffff,$fffe

;══════════════════════════════════════════════════════════════════════════════
; GRAPHICS DATA
;══════════════════════════════════════════════════════════════════════════════

            even
car_gfx:
            dc.w    $0ff0,$0ff0
            dc.w    $3ffc,$3ffc
            dc.w    $7ffe,$7ffe
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $ffff,$ffff
            dc.w    $7ffe,$7ffe
            dc.w    $3c3c,$3c3c
            dc.w    $0000,$0000

            even
frog_data:
            dc.w    $ec50,$fc00

            dc.w    $0000,$0000
            dc.w    $07e0,$0000
            dc.w    $1ff8,$0420
            dc.w    $3ffc,$0a50
            dc.w    $7ffe,$1248
            dc.w    $7ffe,$1008
            dc.w    $ffff,$2004
            dc.w    $ffff,$0000
            dc.w    $ffff,$0000
            dc.w    $7ffe,$2004
            dc.w    $7ffe,$1008
            dc.w    $3ffc,$0810
            dc.w    $1ff8,$0420
            dc.w    $07e0,$0000
            dc.w    $0000,$0000
            dc.w    $0000,$0000

            dc.w    $0000,$0000

;══════════════════════════════════════════════════════════════════════════════
; SCREEN BUFFER
;══════════════════════════════════════════════════════════════════════════════

            section chipbss,bss_c

            even
screen_plane:
            ds.b    PLANE_SIZE

Build It

vasmm68k_mot -Fhunkexe -kick1hunks -o signal signal.asm

What’s Next

Traffic fills the road, but the frog can walk right through it! In Unit 8, we’ll add collision detection—finally making the game dangerous.

What Changed

Unit 6 → Unit 7

+156-133

1	1		`;══════════════════════════════════════════════════════════════════════════════`
2	2		`; SIGNAL - A Frogger-style game for the Commodore Amiga`
3		-	`; Unit 6: The Blitter Introduction`
4		-	`;`
5		-	`; Hardware sprites are limited to 8. A Frogger game needs dozens of moving`
6		-	`; objects: cars, trucks, logs, turtles. The solution? The Blitter—a DMA`
7		-	`; coprocessor that copies rectangular blocks of memory at high speed.`
	3	+	`; Unit 7: Cars on the Road`
8	4		`;`
9		-	`; This unit introduces the Blitter with a simple demonstration: one car`
10		-	`; driving across the road, drawn using the Blitter instead of sprites.`
	5	+	`; One car isn't traffic. This unit adds multiple cars across all five road`
	6	+	`; lanes, each moving at different speeds. Some go left, some go right.`
	7	+	`; The Blitter draws them all efficiently using a loop.`
11	8		`;══════════════════════════════════════════════════════════════════════════════`
12	9
13	10		`;══════════════════════════════════════════════════════════════════════════════`
			...
15	12		`;══════════════════════════════════════════════════════════════════════════════`
16	13
17	14		`; Screen setup`
18		-	`SCREEN_W equ 40 ; 320 pixels = 40 bytes per line`
19		-	`SCREEN_H equ 256 ; PAL lines`
20		-	`PLANE_SIZE equ SCREEN_W*SCREEN_H ; 10240 bytes per bitplane`
	15	+	`SCREEN_W equ 40`
	16	+	`SCREEN_H equ 256`
	17	+	`PLANE_SIZE equ SCREEN_W*SCREEN_H`
21	18
22		-	`; Grid constants (from Unit 5)`
	19	+	`; Grid constants`
23	20		`GRID_COLS equ 20`
24	21		`GRID_ROWS equ 13`
25	22		`CELL_SIZE equ 16`
			...
28	25		`START_GRID_X equ 9`
29	26		`START_GRID_Y equ 12`
30	27
31		-	`; Animation`
	28	+	`; Frog animation`
32	29		`HOP_FRAMES equ 8`
33	30		`PIXELS_PER_FRAME equ 2`
34	31		`STATE_IDLE equ 0`
			...
40	37		`FROG_HEIGHT equ 16`
41	38
42	39		`; Car constants`
	40	+	`NUM_CARS equ 10 ; Total cars`
43	41		`CAR_WIDTH equ 2 ; 32 pixels = 2 words`
44		-	`CAR_HEIGHT equ 12 ; 12 lines tall`
45		-	`CAR_SPEED equ 2 ; Pixels per frame`
46		-	`CAR_ROW equ 10 ; Road lane (row 10 = scanline 204)`
	42	+	`CAR_HEIGHT equ 12`
	43	+	`CAR_STRUCT_SIZE equ 8 ; Bytes per car: x(2), row(2), speed(2), pad(2)`
47	44
48	45		`; Zone colours`
49	46		`COLOUR_BLACK equ $0000`
			...
57	54		`COLOUR_START equ $0262`
58	55		`COLOUR_START_LIT equ $0373`
59	56
60		-	`; Sprite and playfield colours`
	57	+	`; Sprite and car colours`
61	58		`COLOUR_FROG equ $00f0`
62	59		`COLOUR_EYES equ $0ff0`
63	60		`COLOUR_OUTLINE equ $0000`
64		-	`COLOUR_CAR equ $0f00 ; Red car on bitplane`
	61	+	`COLOUR_CAR equ $0f00`
65	62
66	63		`;══════════════════════════════════════════════════════════════════════════════`
67	64		`; HARDWARE REGISTERS`
			...
73	70		`VPOSR equ $004`
74	71		`JOY1DAT equ $00c`
75	72
76		-	`; Blitter registers`
77	73		`BLTCON0 equ $040`
78	74		`BLTCON1 equ $042`
79	75		`BLTAFWM equ $044`
			...
114	110		`; --- Clear screen ---`
115	111		`bsr clear_screen`
116	112
117		-	`; --- Set up bitplane pointer in copper list ---`
	113	+	`; --- Set up bitplane pointer ---`
118	114		`lea screen_plane,a0`
119	115		`move.l a0,d0`
120	116		`swap d0`
			...
140	136		`swap d0`
141	137		`lea sprptl_val,a1`
142	138		`move.w d0,(a1)`
143		-
144	139		`bsr update_sprite`
145		-
146		-	`; --- Initialise car ---`
147		-	`clr.w car_x`
148	140
149	141		`; --- Install copper list ---`
150	142		`lea copperlist,a0`
151	143		`move.l a0,COP1LC(a5)`
152	144		`move.w d0,COPJMP1(a5)`
153	145
154		-	`; --- Enable DMA (including Blitter) ---`
155		-	`move.w #$87e0,DMACON(a5) ; Master + blit + copper + bitplane + sprite`
	146	+	`; --- Enable DMA ---`
	147	+	`move.w #$87e0,DMACON(a5)`
156	148
157	149		`;══════════════════════════════════════════════════════════════════════════════`
158	150		`; MAIN LOOP`
			...
165	157		`bsr update_frog`
166	158		`bsr update_sprite`
167	159
168		-	`; --- Update car ---`
169		-	`bsr erase_car ; Erase at old position`
170		-	`bsr move_car ; Update position`
171		-	`bsr draw_car ; Draw at new position`
	160	+	`; --- Update cars ---`
	161	+	`bsr erase_all_cars`
	162	+	`bsr move_all_cars`
	163	+	`bsr draw_all_cars`
172	164
173	165		`bra mainloop`
174	166
175	167		`;══════════════════════════════════════════════════════════════════════════════`
176		-	`; BLITTER ROUTINES`
	168	+	`; CAR MANAGEMENT`
177	169		`;══════════════════════════════════════════════════════════════════════════════`
178	170
179	171		`;------------------------------------------------------------------------------`
180		-	`; WAIT_BLIT - Wait for Blitter to finish`
	172	+	`; ERASE_ALL_CARS - Clear all cars from screen`
181	173		`;------------------------------------------------------------------------------`
182		-	`wait_blit:`
183		-	`btst #6,DMACONR(a5) ; Test BBUSY flag`
184		-	`bne.s wait_blit ; Loop while busy`
185		-	`rts`
	174	+	`erase_all_cars:`
	175	+	`lea car_data,a2`
	176	+	`moveq #NUM_CARS-1,d7`
186	177
187		-	`;------------------------------------------------------------------------------`
188		-	`; CLEAR_SCREEN - Clear the screen buffer using Blitter`
189		-	`;------------------------------------------------------------------------------`
190		-	`clear_screen:`
191		-	`bsr.s wait_blit`
	178	+	`.loop:`
	179	+	`move.w (a2),d0 ; X position`
	180	+	`move.w 2(a2),d1 ; Row`
192	181
193		-	`; Clear entire plane: D channel only, minterm = 0`
194		-	`move.l #screen_plane,BLTDPTH(a5)`
195		-	`move.w #0,BLTDMOD(a5) ; No modulo (continuous)`
196		-	`move.w #$0100,BLTCON0(a5) ; D only, minterm 0 (clear)`
	182	+	`bsr calc_screen_addr`
	183	+	`bsr wait_blit`
	184	+
	185	+	`move.l a0,BLTDPTH(a5)`
	186	+	`move.w #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5)`
	187	+	`move.w #$0100,BLTCON0(a5)`
197	188		`move.w #0,BLTCON1(a5)`
198		-	`move.w #(SCREEN_H<<6)\|SCREEN_W/2,BLTSIZE(a5) ; Trigger!`
	189	+	`move.w #(CAR_HEIGHT<<6)\|CAR_WIDTH,BLTSIZE(a5)`
199	190
	191	+	`lea CAR_STRUCT_SIZE(a2),a2`
	192	+	`dbf d7,.loop`
200	193		`rts`
201	194
202	195		`;------------------------------------------------------------------------------`
203		-	`; ERASE_CAR - Clear car at current position`
	196	+	`; MOVE_ALL_CARS - Update all car positions`
204	197		`;------------------------------------------------------------------------------`
205		-	`erase_car:`
206		-	`bsr.s wait_blit`
	198	+	`move_all_cars:`
	199	+	`lea car_data,a2`
	200	+	`moveq #NUM_CARS-1,d7`
207	201
208		-	`; Calculate screen address for car position`
209		-	`move.w car_x,d0`
210		-	`move.w #CAR_ROW,d1`
211		-	`bsr calc_screen_addr ; A0 = destination`
	202	+	`.loop:`
	203	+	`move.w (a2),d0 ; X position`
	204	+	`move.w 4(a2),d1 ; Speed (signed)`
	205	+	`add.w d1,d0 ; Move`
212	206
213		-	`; Erase: D channel only, minterm 0`
214		-	`move.l a0,BLTDPTH(a5)`
215		-	`move.w #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5)`
216		-	`move.w #$0100,BLTCON0(a5)`
217		-	`move.w #0,BLTCON1(a5)`
218		-	`move.w #(CAR_HEIGHT<<6)\|CAR_WIDTH,BLTSIZE(a5)`
	207	+	`; --- Wrap at screen edges ---`
	208	+	`tst.w d1 ; Check direction`
	209	+	`bmi.s .check_left`
	210	+
	211	+	`; Moving right`
	212	+	`cmp.w #320,d0`
	213	+	`blt.s .store`
	214	+	`sub.w #320+32,d0 ; Wrap from right to left`
	215	+	`bra.s .store`
	216	+
	217	+	`.check_left:`
	218	+	`; Moving left`
	219	+	`cmp.w #-32,d0`
	220	+	`bgt.s .store`
	221	+	`add.w #320+32,d0 ; Wrap from left to right`
	222	+
	223	+	`.store:`
	224	+	`move.w d0,(a2) ; Store new X`
219	225
	226	+	`lea CAR_STRUCT_SIZE(a2),a2`
	227	+	`dbf d7,.loop`
220	228		`rts`
221	229
222	230		`;------------------------------------------------------------------------------`
223		-	`; DRAW_CAR - Draw car at current position using Blitter`
	231	+	`; DRAW_ALL_CARS - Draw all cars to screen`
224	232		`;------------------------------------------------------------------------------`
225		-	`draw_car:`
226		-	`bsr.s wait_blit`
	233	+	`draw_all_cars:`
	234	+	`lea car_data,a2`
	235	+	`moveq #NUM_CARS-1,d7`
227	236
228		-	`; Calculate screen address`
229		-	`move.w car_x,d0`
230		-	`move.w #CAR_ROW,d1`
231		-	`bsr calc_screen_addr ; A0 = destination`
	237	+	`.loop:`
	238	+	`move.w (a2),d0 ; X position`
	239	+	`move.w 2(a2),d1 ; Row`
232	240
233		-	`; Copy A→D: source graphics to screen`
	241	+	`; Skip if offscreen`
	242	+	`cmp.w #-32,d0`
	243	+	`blt.s .next`
	244	+	`cmp.w #320,d0`
	245	+	`bge.s .next`
	246	+
	247	+	`bsr calc_screen_addr`
	248	+	`bsr wait_blit`
	249	+
234	250		`move.l #car_gfx,BLTAPTH(a5)`
235	251		`move.l a0,BLTDPTH(a5)`
236		-
237		-	`move.w #$ffff,BLTAFWM(a5) ; No masking`
	252	+	`move.w #$ffff,BLTAFWM(a5)`
238	253		`move.w #$ffff,BLTALWM(a5)`
239		-	`move.w #0,BLTAMOD(a5) ; Source: no gaps`
240		-	`move.w #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5) ; Dest: screen width`
241		-	`move.w #$09f0,BLTCON0(a5) ; A→D, D=A`
	254	+	`move.w #0,BLTAMOD(a5)`
	255	+	`move.w #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5)`
	256	+	`move.w #$09f0,BLTCON0(a5)`
242	257		`move.w #0,BLTCON1(a5)`
243		-	`move.w #(CAR_HEIGHT<<6)\|CAR_WIDTH,BLTSIZE(a5) ; Trigger!`
	258	+	`move.w #(CAR_HEIGHT<<6)\|CAR_WIDTH,BLTSIZE(a5)`
244	259
	260	+	`.next:`
	261	+	`lea CAR_STRUCT_SIZE(a2),a2`
	262	+	`dbf d7,.loop`
245	263		`rts`
246	264
247		-	`;------------------------------------------------------------------------------`
248		-	`; CALC_SCREEN_ADDR - Calculate screen address from grid position`
249		-	`;------------------------------------------------------------------------------`
250		-	`; Input: D0 = pixel X, D1 = row number`
251		-	`; Output: A0 = screen address`
	265	+	`;══════════════════════════════════════════════════════════════════════════════`
	266	+	`; BLITTER UTILITIES`
	267	+	`;══════════════════════════════════════════════════════════════════════════════`
	268	+
	269	+	`wait_blit:`
	270	+	`btst #6,DMACONR(a5)`
	271	+	`bne.s wait_blit`
	272	+	`rts`
	273	+
	274	+	`clear_screen:`
	275	+	`bsr.s wait_blit`
	276	+	`move.l #screen_plane,BLTDPTH(a5)`
	277	+	`move.w #0,BLTDMOD(a5)`
	278	+	`move.w #$0100,BLTCON0(a5)`
	279	+	`move.w #0,BLTCON1(a5)`
	280	+	`move.w #(SCREEN_H<<6)\|SCREEN_W/2,BLTSIZE(a5)`
	281	+	`rts`
252	282
253	283		`calc_screen_addr:`
	284	+	`; D0 = pixel X, D1 = row number -> A0 = screen address`
254	285		`lea screen_plane,a0`
255	286
256		-	`; Calculate Y offset: row × CELL_SIZE × SCREEN_W`
257	287		`move.w d1,d2`
258		-	`mulu #CELL_SIZE,d2 ; D2 = row in pixels (from top of grid)`
259		-	`add.w #GRID_ORIGIN_Y,d2 ; Add top margin`
260		-	`mulu #SCREEN_W,d2 ; D2 = byte offset for Y`
	288	+	`mulu #CELL_SIZE,d2`
	289	+	`add.w #GRID_ORIGIN_Y,d2`
	290	+	`mulu #SCREEN_W,d2`
261	291		`add.l d2,a0`
262	292
263		-	`; Calculate X offset: pixel_x / 8 (convert to bytes)`
264	293		`move.w d0,d2`
265		-	`lsr.w #3,d2 ; D2 = X in bytes`
	294	+	`lsr.w #3,d2`
266	295		`ext.l d2`
267	296		`add.l d2,a0`
268		-
269		-	`rts`
270		-
271		-	`;------------------------------------------------------------------------------`
272		-	`; MOVE_CAR - Update car position`
273		-	`;------------------------------------------------------------------------------`
274		-	`move_car:`
275		-	`add.w #CAR_SPEED,car_x`
276		-	`cmp.w #320,car_x`
277		-	`blt.s .no_wrap`
278		-	`clr.w car_x`
279		-	`.no_wrap:`
280	297		`rts`
281	298
282	299		`;══════════════════════════════════════════════════════════════════════════════`
283		-	`; FROG ROUTINES (from Unit 5)`
	300	+	`; FROG ROUTINES`
284	301		`;══════════════════════════════════════════════════════════════════════════════`
285	302
286	303		`update_frog:`
			...
404	421
405	422		`move.w d1,d0`
406	423		`rts`
407		-
408		-	`;══════════════════════════════════════════════════════════════════════════════`
409		-	`; UTILITY ROUTINES`
410		-	`;══════════════════════════════════════════════════════════════════════════════`
411	424
412	425		`wait_vblank:`
413	426		`move.l #$1ff00,d1`
			...
446	459		`frog_anim_frame: dc.w 0`
447	460		`joy_prev: dc.w 0`
448	461
449		-	`car_x: dc.w 0`
	462	+	`; Car data: X position, Row, Speed, (padding)`
	463	+	`; Row 7 = road lane 1 (rows 7-11 are road lanes)`
	464	+	`car_data:`
	465	+	`; Lane 1 (row 7) - moving right, speed 1`
	466	+	`dc.w 0,7,1,0`
	467	+	`dc.w 160,7,1,0`
	468	+
	469	+	`; Lane 2 (row 8) - moving left, speed -2`
	470	+	`dc.w 100,8,-2,0`
	471	+	`dc.w 250,8,-2,0`
	472	+
	473	+	`; Lane 3 (row 9) - moving right, speed 2`
	474	+	`dc.w 50,9,2,0`
	475	+	`dc.w 200,9,2,0`
	476	+
	477	+	`; Lane 4 (row 10) - moving left, speed -1`
	478	+	`dc.w 80,10,-1,0`
	479	+	`dc.w 220,10,-1,0`
	480	+
	481	+	`; Lane 5 (row 11) - moving right, speed 3`
	482	+	`dc.w 30,11,3,0`
	483	+	`dc.w 180,11,3,0`
450	484
451	485		`;══════════════════════════════════════════════════════════════════════════════`
452	486		`; COPPER LIST`
			...
455	489		`copperlist:`
456	490		`dc.w COLOR00,COLOUR_BLACK`
457	491
458		-	`; --- Bitplane control: 1 plane, colour on ---`
459		-	`dc.w $0100,$1200 ; BPLCON0: 1 plane`
460		-	`dc.w $0102,$0000 ; BPLCON1: no scroll`
461		-	`dc.w $0104,$0000 ; BPLCON2: default priority`
462		-	`dc.w $0108,$0000 ; BPL1MOD`
463		-	`dc.w $010a,$0000 ; BPL2MOD`
	492	+	`dc.w $0100,$1200`
	493	+	`dc.w $0102,$0000`
	494	+	`dc.w $0104,$0000`
	495	+	`dc.w $0108,$0000`
	496	+	`dc.w $010a,$0000`
464	497
465		-	`; --- Bitplane pointer ---`
466		-	`dc.w $00e0 ; BPL1PTH`
	498	+	`dc.w $00e0`
467	499		`bplpth_val: dc.w $0000`
468		-	`dc.w $00e2 ; BPL1PTL`
	500	+	`dc.w $00e2`
469	501		`bplptl_val: dc.w $0000`
470	502
471		-	`; --- Playfield colours ---`
472		-	`dc.w $0180,$0000 ; Colour 0: transparent (shows Copper bg)`
473		-	`dc.w $0182,COLOUR_CAR ; Colour 1: red (car from bitplane)`
	503	+	`dc.w $0180,$0000`
	504	+	`dc.w $0182,COLOUR_CAR`
474	505
475		-	`; --- Sprite palette ---`
476	506		`dc.w $01a2,COLOUR_FROG`
477	507		`dc.w $01a4,COLOUR_EYES`
478	508		`dc.w $01a6,COLOUR_OUTLINE`
479	509
480		-	`; --- Sprite 0 pointer ---`
481	510		`dc.w SPR0PTH`
482	511		`sprpth_val: dc.w $0000`
483	512		`dc.w SPR0PTL`
			...
527	556		`dc.w $f807,$fffe`
528	557		`dc.w COLOR00,COLOUR_START`
529	558
530		-	`; BOTTOM BORDER`
531	559		`dc.w $fc07,$fffe`
532	560		`dc.w COLOR00,COLOUR_BLACK`
533	561
			...
539	567
540	568		`even`
541	569		`car_gfx:`
542		-	`; 32×12 pixel car (2 words wide × 12 lines)`
543		-	`dc.w $0ff0,$0ff0 ; ..####....####..`
544		-	`dc.w $3ffc,$3ffc ; ##########..####`
545		-	`dc.w $7ffe,$7ffe ; ##############..`
546		-	`dc.w $ffff,$ffff ; ################`
547		-	`dc.w $ffff,$ffff ; ################`
548		-	`dc.w $ffff,$ffff ; ################`
549		-	`dc.w $ffff,$ffff ; ################`
550		-	`dc.w $ffff,$ffff ; ################`
551		-	`dc.w $ffff,$ffff ; ################`
552		-	`dc.w $7ffe,$7ffe ; ##############..`
553		-	`dc.w $3c3c,$3c3c ; Wheels`
	570	+	`dc.w $0ff0,$0ff0`
	571	+	`dc.w $3ffc,$3ffc`
	572	+	`dc.w $7ffe,$7ffe`
	573	+	`dc.w $ffff,$ffff`
	574	+	`dc.w $ffff,$ffff`
	575	+	`dc.w $ffff,$ffff`
	576	+	`dc.w $ffff,$ffff`
	577	+	`dc.w $ffff,$ffff`
	578	+	`dc.w $ffff,$ffff`
	579	+	`dc.w $7ffe,$7ffe`
	580	+	`dc.w $3c3c,$3c3c`
554	581		`dc.w $0000,$0000`
555		-
556		-	`;══════════════════════════════════════════════════════════════════════════════`
557		-	`; SPRITE DATA`
558		-	`;══════════════════════════════════════════════════════════════════════════════`
559	582
560	583		`even`
561	584		`frog_data:`
			...
581	604		`dc.w $0000,$0000`
582	605
583	606		`;══════════════════════════════════════════════════════════════════════════════`
584		-	`; SCREEN BUFFER (Chip RAM)`
	607	+	`; SCREEN BUFFER`
585	608		`;══════════════════════════════════════════════════════════════════════════════`
586	609
587	610		`section chipbss,bss_c`
