The Blitter Introduction

Why 8 sprites isn't enough. DMA graphics engine. BOBs for cars.

9% of Signal

Mark as complete Completed!

What You’re Building

The Blitter.

Hardware sprites are wonderful—automatic, fast, zero CPU cost. But the Amiga only has 8 of them. A Frogger game needs dozens of moving objects: five lanes of cars, five lanes of logs and turtles, plus the frog. Eight sprites won’t cut it.

The solution? The Blitter—a DMA coprocessor that copies rectangular blocks of memory at blazing speed.

By the end of this unit:

One car drives across the road
Drawn using Blitter, not sprites
You understand BOBs vs sprites
Foundation for many moving objects

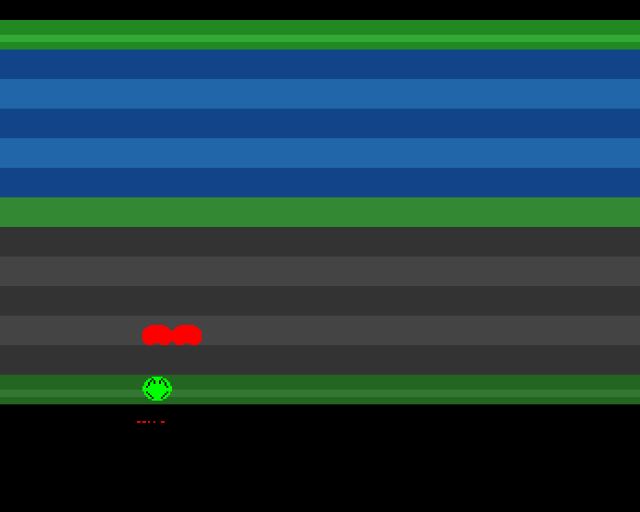

Unit 6 Screenshot

Why Not Just More Sprites?

The Amiga’s 8 hardware sprites have limitations:

Only 16 pixels wide (though they can be any height)
3 colours each (plus transparent)
Multiplexing is tricky (reusing sprites mid-screen)

For a game with many similar objects moving horizontally, the Blitter is often easier.

What Is the Blitter?

The Block Image Transferrer is a DMA coprocessor. It copies rectangular regions of memory without CPU involvement. While the Blitter works, the CPU can do other things.

Key capabilities:

Copy graphics from one place to another
Combine multiple sources using logic operations
Shift data for pixel-precise positioning
Fill areas with solid colour
Draw lines (yes, hardware line drawing!)

We’ll start with simple copying.

Setting Up Bitplanes

Unlike our sprite-only previous units, we now need screen memory:

SCREEN_W        equ 40          ; 320 pixels = 40 bytes per line
SCREEN_H        equ 256         ; PAL lines
PLANE_SIZE      equ SCREEN_W*SCREEN_H   ; 10240 bytes

; In chip BSS section
screen_plane:   ds.b    PLANE_SIZE

The Copper points at this memory, and the Blitter draws into it.

Blitter Registers

The Blitter has four channels: A, B, C, and D (destination). For a simple copy, we use A (source) and D (destination):

Register	Purpose
BLTCON0	Control: which channels, what operation
BLTCON1	Control: shift amount, special modes
BLTAPTH	Source A pointer (high word)
BLTDPTH	Destination D pointer (high word)
BLTAMOD	Source A modulo (bytes to skip per row)
BLTDMOD	Destination D modulo
BLTSIZE	Size and trigger—writing here starts the blit

A Simple Copy

To copy our car graphics to the screen:

; Draw Car with Blitter
; A→D copy: source graphics to screen

draw_car:
            bsr     wait_blit

            ; Calculate screen destination
            move.w  car_x,d0
            move.w  #CAR_ROW,d1
            bsr     calc_screen_addr        ; A0 = destination

            ; Set up channels
            move.l  #car_gfx,BLTAPTH(a5)    ; A = source graphics
            move.l  a0,BLTDPTH(a5)          ; D = screen

            ; Masks: no masking needed (full words)
            move.w  #$ffff,BLTAFWM(a5)
            move.w  #$ffff,BLTALWM(a5)

            ; Modulos
            move.w  #0,BLTAMOD(a5)                      ; Source: no gaps
            move.w  #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5)   ; Dest: screen stride

            ; BLTCON0: A→D copy, D=A minterm
            ; $09f0 = use A+D channels, minterm F0 (copy A)
            move.w  #$09f0,BLTCON0(a5)
            move.w  #0,BLTCON1(a5)

            ; Size: 12 lines × 2 words wide
            move.w  #(CAR_HEIGHT<<6)|CAR_WIDTH,BLTSIZE(a5)

            rts

Understanding BLTCON0

The value $09f0 breaks down as:

$09f0 = %0000 1001 1111 0000
              │  │ ││││
              │  │ └┴┴┴─ Minterm: $F0 = D = A
              │  └────── USEA: Use channel A
              └───────── USED: Use channel D (always for output)

The minterm is a 4-bit pattern that specifies how to combine A, B, and C. $F0 means “D = A”—just copy A to D.

Understanding BLTSIZE

move.w  #(CAR_HEIGHT<<6)|CAR_WIDTH,BLTSIZE(a5)

BLTSIZE encodes both dimensions:

Bits 15-6: Height in lines (max 1024)
Bits 5-0: Width in words (max 64 words = 1024 pixels)

Writing to BLTSIZE triggers the blit immediately.

Waiting for the Blitter

The Blitter runs asynchronously. Before starting a new blit or reading results, we must wait:

wait_blit:
    btst    #6,DMACONR(a5)      ; Test BBUSY flag
    bne.s   wait_blit           ; Loop while busy
    rts

Bit 6 of DMACONR is the “blitter busy” flag.

Erasing the Car

Before drawing at the new position, we erase at the old position. We use the clear_screen approach which uses the Blitter with minterm 0:

; Clear Screen with Blitter
; D channel only, minterm 0 = all zeros

clear_screen:
            bsr     wait_blit           ; Must wait before setting up

            ; Destination pointer
            move.l  #screen_plane,BLTDPTH(a5)

            ; Modulo: 0 = continuous (no gaps between rows)
            move.w  #0,BLTDMOD(a5)

            ; BLTCON0: D channel only, minterm 0 (clear)
            ; $0100 = use D, minterms all 0
            move.w  #$0100,BLTCON0(a5)
            move.w  #0,BLTCON1(a5)

            ; Size: trigger the blit!
            ; Format: [height << 6] | [width_in_words]
            ; 256 lines × 20 words = full PAL screen
            move.w  #(256<<6)|20,BLTSIZE(a5)

            rts

Minterm $00 (via BLTCON0 = $0100) means “D = 0”—clear the destination.

The Animation Loop

Each frame:

Wait for VBlank
Erase car at old position
Update car position
Draw car at new position

mainloop:
    bsr     wait_vblank
    bsr     update_frog
    bsr     update_sprite

    bsr     erase_car       ; Clear old
    bsr     move_car        ; Update position
    bsr     draw_car        ; Draw new

    bra     mainloop

BOBs vs Sprites

What we’ve created is called a BOB (Blitter Object):

Feature	Hardware Sprite	BOB
Count	8 maximum	Unlimited*
Width	16 pixels	Any size
Colours	3 (+transparent)	As many as bitplanes allow
CPU cost	Zero	Low (Blitter DMA)
Erasing	Automatic	Must be done manually
Behind playfield	Easy	Requires masking

*Limited by Blitter time per frame

Enabling Blitter DMA

We added blitter DMA to our DMACON setup:

move.w  #$87e0,DMACON(a5)   ; Master + blit + copper + bitplane + sprite

Bit 6 (BLTEN) enables Blitter DMA.

Key Takeaways

8 sprites isn’t enough for games with many objects
The Blitter copies rectangular blocks via DMA
BOBs are objects drawn by the Blitter
BLTCON0 controls which channels and what operation
BLTSIZE encodes size and triggers the blit
Always wait for the Blitter before starting another blit

The Code

;══════════════════════════════════════════════════════════════════════════════
; SIGNAL - A Frogger-style game for the Commodore Amiga
; Unit 6: The Blitter Introduction
;
; Hardware sprites are limited to 8. A Frogger game needs dozens of moving
; objects: cars, trucks, logs, turtles. The solution? The Blitter—a DMA
; coprocessor that copies rectangular blocks of memory at high speed.
;
; This unit introduces the Blitter with a simple demonstration: one car
; driving across the road, drawn using the Blitter instead of sprites.
;══════════════════════════════════════════════════════════════════════════════

;══════════════════════════════════════════════════════════════════════════════
; CONSTANTS
;══════════════════════════════════════════════════════════════════════════════

; Screen setup
SCREEN_W        equ 40          ; 320 pixels = 40 bytes per line
SCREEN_H        equ 256         ; PAL lines
PLANE_SIZE      equ SCREEN_W*SCREEN_H   ; 10240 bytes per bitplane

; Grid constants (from Unit 5)
GRID_COLS       equ 20
GRID_ROWS       equ 13
CELL_SIZE       equ 16
GRID_ORIGIN_X   equ 48
GRID_ORIGIN_Y   equ 44
START_GRID_X    equ 9
START_GRID_Y    equ 12

; Animation
HOP_FRAMES      equ 8
PIXELS_PER_FRAME equ 2
STATE_IDLE      equ 0
STATE_HOPPING   equ 1
DIR_UP          equ 0
DIR_DOWN        equ 1
DIR_LEFT        equ 2
DIR_RIGHT       equ 3
FROG_HEIGHT     equ 16

; Car constants
CAR_WIDTH       equ 2           ; 32 pixels = 2 words
CAR_HEIGHT      equ 12          ; 12 lines tall
CAR_SPEED       equ 2           ; Pixels per frame
CAR_ROW         equ 10          ; Road lane (row 10 = scanline 204)

; Zone colours
COLOUR_BLACK    equ $0000
COLOUR_HOME     equ $0282
COLOUR_HOME_LIT equ $03a3
COLOUR_WATER1   equ $0148
COLOUR_WATER2   equ $026a
COLOUR_MEDIAN   equ $0383
COLOUR_ROAD1    equ $0333
COLOUR_ROAD2    equ $0444
COLOUR_START    equ $0262
COLOUR_START_LIT equ $0373

; Sprite and playfield colours
COLOUR_FROG     equ $00f0
COLOUR_EYES     equ $0ff0
COLOUR_OUTLINE  equ $0000
COLOUR_CAR      equ $0f00       ; Red car on bitplane

;══════════════════════════════════════════════════════════════════════════════
; HARDWARE REGISTERS
;══════════════════════════════════════════════════════════════════════════════

CUSTOM      equ $dff000

DMACONR     equ $002
VPOSR       equ $004
JOY1DAT     equ $00c

; Blitter registers
BLTCON0     equ $040
BLTCON1     equ $042
BLTAFWM     equ $044
BLTALWM     equ $046
BLTCPTH     equ $048
BLTBPTH     equ $04c
BLTAPTH     equ $050
BLTDPTH     equ $054
BLTSIZE     equ $058
BLTCMOD     equ $060
BLTBMOD     equ $062
BLTAMOD     equ $064
BLTDMOD     equ $066

COP1LC      equ $080
COPJMP1     equ $088
DMACON      equ $096
INTENA      equ $09a
INTREQ      equ $09c
COLOR00     equ $180
SPR0PTH     equ $120
SPR0PTL     equ $122

;══════════════════════════════════════════════════════════════════════════════
; CODE SECTION
;══════════════════════════════════════════════════════════════════════════════

            section code,code_c

start:
            lea     CUSTOM,a5

            ; --- System takeover ---
            move.w  #$7fff,INTENA(a5)
            move.w  #$7fff,INTREQ(a5)
            move.w  #$7fff,DMACON(a5)

            ; --- Clear screen ---
            bsr     clear_screen

            ; --- Set up bitplane pointer in copper list ---
            lea     screen_plane,a0
            move.l  a0,d0
            swap    d0
            lea     bplpth_val,a1
            move.w  d0,(a1)
            swap    d0
            lea     bplptl_val,a1
            move.w  d0,(a1)

            ; --- Initialise frog ---
            move.w  #START_GRID_X,frog_grid_x
            move.w  #START_GRID_Y,frog_grid_y
            move.w  #STATE_IDLE,frog_state
            clr.w   joy_prev
            bsr     grid_to_pixels

            ; --- Set sprite pointer ---
            lea     frog_data,a0
            move.l  a0,d0
            swap    d0
            lea     sprpth_val,a1
            move.w  d0,(a1)
            swap    d0
            lea     sprptl_val,a1
            move.w  d0,(a1)

            bsr     update_sprite

            ; --- Initialise car ---
            clr.w   car_x

            ; --- Install copper list ---
            lea     copperlist,a0
            move.l  a0,COP1LC(a5)
            move.w  d0,COPJMP1(a5)

            ; --- Enable DMA (including Blitter) ---
            move.w  #$87e0,DMACON(a5)   ; Master + blit + copper + bitplane + sprite

;══════════════════════════════════════════════════════════════════════════════
; MAIN LOOP
;══════════════════════════════════════════════════════════════════════════════

mainloop:
            bsr     wait_vblank

            ; --- Update frog ---
            bsr     update_frog
            bsr     update_sprite

            ; --- Update car ---
            bsr     erase_car           ; Erase at old position
            bsr     move_car            ; Update position
            bsr     draw_car            ; Draw at new position

            bra     mainloop

;══════════════════════════════════════════════════════════════════════════════
; BLITTER ROUTINES
;══════════════════════════════════════════════════════════════════════════════

;------------------------------------------------------------------------------
; WAIT_BLIT - Wait for Blitter to finish
;------------------------------------------------------------------------------
wait_blit:
            btst    #6,DMACONR(a5)      ; Test BBUSY flag
            bne.s   wait_blit           ; Loop while busy
            rts

;------------------------------------------------------------------------------
; CLEAR_SCREEN - Clear the screen buffer using Blitter
;------------------------------------------------------------------------------
clear_screen:
            bsr.s   wait_blit

            ; Clear entire plane: D channel only, minterm = 0
            move.l  #screen_plane,BLTDPTH(a5)
            move.w  #0,BLTDMOD(a5)      ; No modulo (continuous)
            move.w  #$0100,BLTCON0(a5)  ; D only, minterm 0 (clear)
            move.w  #0,BLTCON1(a5)
            move.w  #(SCREEN_H<<6)|SCREEN_W/2,BLTSIZE(a5)   ; Trigger!

            rts

;------------------------------------------------------------------------------
; ERASE_CAR - Clear car at current position
;------------------------------------------------------------------------------
erase_car:
            bsr.s   wait_blit

            ; Calculate screen address for car position
            move.w  car_x,d0
            move.w  #CAR_ROW,d1
            bsr     calc_screen_addr    ; A0 = destination

            ; Erase: D channel only, minterm 0
            move.l  a0,BLTDPTH(a5)
            move.w  #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5)
            move.w  #$0100,BLTCON0(a5)
            move.w  #0,BLTCON1(a5)
            move.w  #(CAR_HEIGHT<<6)|CAR_WIDTH,BLTSIZE(a5)

            rts

;------------------------------------------------------------------------------
; DRAW_CAR - Draw car at current position using Blitter
;------------------------------------------------------------------------------
draw_car:
            bsr.s   wait_blit

            ; Calculate screen address
            move.w  car_x,d0
            move.w  #CAR_ROW,d1
            bsr     calc_screen_addr    ; A0 = destination

            ; Copy A→D: source graphics to screen
            move.l  #car_gfx,BLTAPTH(a5)
            move.l  a0,BLTDPTH(a5)

            move.w  #$ffff,BLTAFWM(a5)  ; No masking
            move.w  #$ffff,BLTALWM(a5)
            move.w  #0,BLTAMOD(a5)      ; Source: no gaps
            move.w  #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5)    ; Dest: screen width
            move.w  #$09f0,BLTCON0(a5)  ; A→D, D=A
            move.w  #0,BLTCON1(a5)
            move.w  #(CAR_HEIGHT<<6)|CAR_WIDTH,BLTSIZE(a5)  ; Trigger!

            rts

;------------------------------------------------------------------------------
; CALC_SCREEN_ADDR - Calculate screen address from grid position
;------------------------------------------------------------------------------
; Input: D0 = pixel X, D1 = row number
; Output: A0 = screen address

calc_screen_addr:
            lea     screen_plane,a0

            ; Calculate Y offset: row × CELL_SIZE × SCREEN_W
            move.w  d1,d2
            mulu    #CELL_SIZE,d2       ; D2 = row in pixels (from top of grid)
            add.w   #GRID_ORIGIN_Y,d2   ; Add top margin
            mulu    #SCREEN_W,d2        ; D2 = byte offset for Y
            add.l   d2,a0

            ; Calculate X offset: pixel_x / 8 (convert to bytes)
            move.w  d0,d2
            lsr.w   #3,d2               ; D2 = X in bytes
            ext.l   d2
            add.l   d2,a0

            rts

;------------------------------------------------------------------------------
; MOVE_CAR - Update car position
;------------------------------------------------------------------------------
move_car:
            add.w   #CAR_SPEED,car_x
            cmp.w   #320,car_x
            blt.s   .no_wrap
            clr.w   car_x
.no_wrap:
            rts

;══════════════════════════════════════════════════════════════════════════════
; FROG ROUTINES (from Unit 5)
;══════════════════════════════════════════════════════════════════════════════

update_frog:
            tst.w   frog_state
            beq     .idle
            bra     .hopping

.idle:
            bsr     read_joystick_edge
            tst.w   d0
            beq     .done

            btst    #8,d0
            beq.s   .not_up
            move.w  frog_grid_y,d1
            tst.w   d1
            beq.s   .not_up
            move.w  #DIR_UP,frog_dir
            bra.s   .start_hop
.not_up:
            btst    #0,d0
            beq.s   .not_down
            move.w  frog_grid_y,d1
            cmp.w   #GRID_ROWS-1,d1
            beq.s   .not_down
            move.w  #DIR_DOWN,frog_dir
            bra.s   .start_hop
.not_down:
            btst    #9,d0
            beq.s   .not_left
            move.w  frog_grid_x,d1
            tst.w   d1
            beq.s   .not_left
            move.w  #DIR_LEFT,frog_dir
            bra.s   .start_hop
.not_left:
            btst    #1,d0
            beq     .done
            move.w  frog_grid_x,d1
            cmp.w   #GRID_COLS-1,d1
            beq     .done
            move.w  #DIR_RIGHT,frog_dir

.start_hop:
            move.w  #STATE_HOPPING,frog_state
            clr.w   frog_anim_frame
            bra.s   .done

.hopping:
            addq.w  #1,frog_anim_frame
            move.w  frog_dir,d0

            cmp.w   #DIR_UP,d0
            bne.s   .hop_not_up
            sub.w   #PIXELS_PER_FRAME,frog_pixel_y
            bra.s   .check_done
.hop_not_up:
            cmp.w   #DIR_DOWN,d0
            bne.s   .hop_not_down
            add.w   #PIXELS_PER_FRAME,frog_pixel_y
            bra.s   .check_done
.hop_not_down:
            cmp.w   #DIR_LEFT,d0
            bne.s   .hop_not_left
            sub.w   #PIXELS_PER_FRAME,frog_pixel_x
            bra.s   .check_done
.hop_not_left:
            add.w   #PIXELS_PER_FRAME,frog_pixel_x

.check_done:
            cmp.w   #HOP_FRAMES,frog_anim_frame
            blt.s   .done

            move.w  frog_dir,d0
            cmp.w   #DIR_UP,d0
            bne.s   .end_not_up
            subq.w  #1,frog_grid_y
            bra.s   .snap
.end_not_up:
            cmp.w   #DIR_DOWN,d0
            bne.s   .end_not_down
            addq.w  #1,frog_grid_y
            bra.s   .snap
.end_not_down:
            cmp.w   #DIR_LEFT,d0
            bne.s   .end_not_left
            subq.w  #1,frog_grid_x
            bra.s   .snap
.end_not_left:
            addq.w  #1,frog_grid_x

.snap:
            bsr     grid_to_pixels
            move.w  #STATE_IDLE,frog_state

.done:
            rts

grid_to_pixels:
            move.w  frog_grid_x,d0
            mulu    #CELL_SIZE,d0
            add.w   #GRID_ORIGIN_X,d0
            move.w  d0,frog_pixel_x

            move.w  frog_grid_y,d0
            mulu    #CELL_SIZE,d0
            add.w   #GRID_ORIGIN_Y,d0
            move.w  d0,frog_pixel_y
            rts

read_joystick_edge:
            move.w  JOY1DAT(a5),d0
            move.w  d0,d1
            lsr.w   #1,d1
            eor.w   d1,d0

            move.w  joy_prev,d1
            not.w   d1
            and.w   d0,d1
            move.w  d0,joy_prev

            move.w  d1,d0
            rts

;══════════════════════════════════════════════════════════════════════════════
; UTILITY ROUTINES
;══════════════════════════════════════════════════════════════════════════════

wait_vblank:
            move.l  #$1ff00,d1
.wait:
            move.l  VPOSR(a5),d0
            and.l   d1,d0
            bne.s   .wait
            rts

update_sprite:
            lea     frog_data,a0
            move.w  frog_pixel_y,d0
            move.w  frog_pixel_x,d1

            move.w  d0,d2
            lsl.w   #8,d2
            lsr.w   #1,d1
            or.b    d1,d2
            move.w  d2,(a0)

            add.w   #FROG_HEIGHT,d0
            lsl.w   #8,d0
            move.w  d0,2(a0)
            rts

;══════════════════════════════════════════════════════════════════════════════
; VARIABLES
;══════════════════════════════════════════════════════════════════════════════

frog_grid_x:    dc.w    9
frog_grid_y:    dc.w    12
frog_pixel_x:   dc.w    0
frog_pixel_y:   dc.w    0
frog_state:     dc.w    0
frog_dir:       dc.w    0
frog_anim_frame: dc.w   0
joy_prev:       dc.w    0

car_x:          dc.w    0

;══════════════════════════════════════════════════════════════════════════════
; COPPER LIST
;══════════════════════════════════════════════════════════════════════════════

copperlist:
            dc.w    COLOR00,COLOUR_BLACK

            ; --- Bitplane control: 1 plane, colour on ---
            dc.w    $0100,$1200         ; BPLCON0: 1 plane
            dc.w    $0102,$0000         ; BPLCON1: no scroll
            dc.w    $0104,$0000         ; BPLCON2: default priority
            dc.w    $0108,$0000         ; BPL1MOD
            dc.w    $010a,$0000         ; BPL2MOD

            ; --- Bitplane pointer ---
            dc.w    $00e0               ; BPL1PTH
bplpth_val: dc.w    $0000
            dc.w    $00e2               ; BPL1PTL
bplptl_val: dc.w    $0000

            ; --- Playfield colours ---
            dc.w    $0180,$0000         ; Colour 0: transparent (shows Copper bg)
            dc.w    $0182,COLOUR_CAR    ; Colour 1: red (car from bitplane)

            ; --- Sprite palette ---
            dc.w    $01a2,COLOUR_FROG
            dc.w    $01a4,COLOUR_EYES
            dc.w    $01a6,COLOUR_OUTLINE

            ; --- Sprite 0 pointer ---
            dc.w    SPR0PTH
sprpth_val: dc.w    $0000
            dc.w    SPR0PTL
sprptl_val: dc.w    $0000

            ; ROW 1: HOME ZONE
            dc.w    $2c07,$fffe
            dc.w    COLOR00,COLOUR_HOME
            dc.w    $3407,$fffe
            dc.w    COLOR00,COLOUR_HOME_LIT
            dc.w    $3807,$fffe
            dc.w    COLOR00,COLOUR_HOME

            ; ROWS 2-6: WATER ZONE
            dc.w    $3c07,$fffe
            dc.w    COLOR00,COLOUR_WATER1
            dc.w    $4c07,$fffe
            dc.w    COLOR00,COLOUR_WATER2
            dc.w    $5c07,$fffe
            dc.w    COLOR00,COLOUR_WATER1
            dc.w    $6c07,$fffe
            dc.w    COLOR00,COLOUR_WATER2
            dc.w    $7c07,$fffe
            dc.w    COLOR00,COLOUR_WATER1

            ; ROW 7: MEDIAN
            dc.w    $8c07,$fffe
            dc.w    COLOR00,COLOUR_MEDIAN

            ; ROWS 8-12: ROAD ZONE
            dc.w    $9c07,$fffe
            dc.w    COLOR00,COLOUR_ROAD1
            dc.w    $ac07,$fffe
            dc.w    COLOR00,COLOUR_ROAD2
            dc.w    $bc07,$fffe
            dc.w    COLOR00,COLOUR_ROAD1
            dc.w    $cc07,$fffe
            dc.w    COLOR00,COLOUR_ROAD2
            dc.w    $dc07,$fffe
            dc.w    COLOR00,COLOUR_ROAD1

            ; ROW 13: START ZONE
            dc.w    $ec07,$fffe
            dc.w    COLOR00,COLOUR_START
            dc.w    $f407,$fffe
            dc.w    COLOR00,COLOUR_START_LIT
            dc.w    $f807,$fffe
            dc.w    COLOR00,COLOUR_START

            ; BOTTOM BORDER
            dc.w    $fc07,$fffe
            dc.w    COLOR00,COLOUR_BLACK

            dc.w    $ffff,$fffe

;══════════════════════════════════════════════════════════════════════════════
; GRAPHICS DATA
;══════════════════════════════════════════════════════════════════════════════

            even
car_gfx:
            ; 32×12 pixel car (2 words wide × 12 lines)
            dc.w    $0ff0,$0ff0         ; ..####....####..
            dc.w    $3ffc,$3ffc         ; ##########..####
            dc.w    $7ffe,$7ffe         ; ##############..
            dc.w    $ffff,$ffff         ; ################
            dc.w    $ffff,$ffff         ; ################
            dc.w    $ffff,$ffff         ; ################
            dc.w    $ffff,$ffff         ; ################
            dc.w    $ffff,$ffff         ; ################
            dc.w    $ffff,$ffff         ; ################
            dc.w    $7ffe,$7ffe         ; ##############..
            dc.w    $3c3c,$3c3c         ; Wheels
            dc.w    $0000,$0000

;══════════════════════════════════════════════════════════════════════════════
; SPRITE DATA
;══════════════════════════════════════════════════════════════════════════════

            even
frog_data:
            dc.w    $ec50,$fc00

            dc.w    $0000,$0000
            dc.w    $07e0,$0000
            dc.w    $1ff8,$0420
            dc.w    $3ffc,$0a50
            dc.w    $7ffe,$1248
            dc.w    $7ffe,$1008
            dc.w    $ffff,$2004
            dc.w    $ffff,$0000
            dc.w    $ffff,$0000
            dc.w    $7ffe,$2004
            dc.w    $7ffe,$1008
            dc.w    $3ffc,$0810
            dc.w    $1ff8,$0420
            dc.w    $07e0,$0000
            dc.w    $0000,$0000
            dc.w    $0000,$0000

            dc.w    $0000,$0000

;══════════════════════════════════════════════════════════════════════════════
; SCREEN BUFFER (Chip RAM)
;══════════════════════════════════════════════════════════════════════════════

            section chipbss,bss_c

            even
screen_plane:
            ds.b    PLANE_SIZE

Build It

vasmm68k_mot -Fhunkexe -kick1hunks -o signal signal.asm

What’s Next

We have one car. In Unit 7, we’ll add collision detection—the frog needs to die when it hits the car!

What Changed

Unit 5 → Unit 6

+269-114

1	1		`;══════════════════════════════════════════════════════════════════════════════`
2	2		`; SIGNAL - A Frogger-style game for the Commodore Amiga`
3		-	`; Unit 5: Grid-Based Movement`
	3	+	`; Unit 6: The Blitter Introduction`
4	4		`;`
5		-	`; Real Frogger doesn't glide—it hops. Each press moves the frog exactly one`
6		-	`; grid cell, with smooth animation over 8 frames. This unit implements that`
7		-	`; distinctive movement feel using a simple state machine.`
	5	+	`; Hardware sprites are limited to 8. A Frogger game needs dozens of moving`
	6	+	`; objects: cars, trucks, logs, turtles. The solution? The Blitter—a DMA`
	7	+	`; coprocessor that copies rectangular blocks of memory at high speed.`
	8	+	`;`
	9	+	`; This unit introduces the Blitter with a simple demonstration: one car`
	10	+	`; driving across the road, drawn using the Blitter instead of sprites.`
8	11		`;══════════════════════════════════════════════════════════════════════════════`
9	12
10	13		`;══════════════════════════════════════════════════════════════════════════════`
11		-	`; GRID CONSTANTS`
	14	+	`; CONSTANTS`
12	15		`;══════════════════════════════════════════════════════════════════════════════`
13		-
14		-	`; Grid dimensions`
15		-	`GRID_COLS equ 20 ; 20 columns (320 ÷ 16)`
16		-	`GRID_ROWS equ 13 ; 13 rows (matching our playfield)`
17		-	`CELL_SIZE equ 16 ; Each cell is 16×16 pixels`
18		-
19		-	`; Grid origin (pixel coordinates of top-left cell)`
20		-	`GRID_ORIGIN_X equ 48 ; Left margin`
21		-	`GRID_ORIGIN_Y equ 44 ; Top of playfield`
22		-
23		-	`; Starting position (grid coordinates)`
24		-	`START_GRID_X equ 9 ; Middle column (0-19)`
25		-	`START_GRID_Y equ 12 ; Bottom row (0-12)`
26	16
27		-	`; Animation timing`
28		-	`HOP_FRAMES equ 8 ; Animation lasts 8 frames`
29		-	`PIXELS_PER_FRAME equ 2 ; 2 pixels per frame × 8 frames = 16 pixels`
	17	+	`; Screen setup`
	18	+	`SCREEN_W equ 40 ; 320 pixels = 40 bytes per line`
	19	+	`SCREEN_H equ 256 ; PAL lines`
	20	+	`PLANE_SIZE equ SCREEN_W*SCREEN_H ; 10240 bytes per bitplane`
30	21
31		-	`; Movement states`
32		-	`STATE_IDLE equ 0 ; Waiting for input`
33		-	`STATE_HOPPING equ 1 ; Currently animating a hop`
	22	+	`; Grid constants (from Unit 5)`
	23	+	`GRID_COLS equ 20`
	24	+	`GRID_ROWS equ 13`
	25	+	`CELL_SIZE equ 16`
	26	+	`GRID_ORIGIN_X equ 48`
	27	+	`GRID_ORIGIN_Y equ 44`
	28	+	`START_GRID_X equ 9`
	29	+	`START_GRID_Y equ 12`
34	30
35		-	`; Direction codes`
	31	+	`; Animation`
	32	+	`HOP_FRAMES equ 8`
	33	+	`PIXELS_PER_FRAME equ 2`
	34	+	`STATE_IDLE equ 0`
	35	+	`STATE_HOPPING equ 1`
36	36		`DIR_UP equ 0`
37	37		`DIR_DOWN equ 1`
38	38		`DIR_LEFT equ 2`
39	39		`DIR_RIGHT equ 3`
40		-
41	40		`FROG_HEIGHT equ 16`
	41	+
	42	+	`; Car constants`
	43	+	`CAR_WIDTH equ 2 ; 32 pixels = 2 words`
	44	+	`CAR_HEIGHT equ 12 ; 12 lines tall`
	45	+	`CAR_SPEED equ 2 ; Pixels per frame`
	46	+	`CAR_ROW equ 10 ; Road lane (row 10 = scanline 204)`
42	47
43	48		`; Zone colours`
44	49		`COLOUR_BLACK equ $0000`
			...
52	57		`COLOUR_START equ $0262`
53	58		`COLOUR_START_LIT equ $0373`
54	59
55		-	`; Sprite palette`
	60	+	`; Sprite and playfield colours`
56	61		`COLOUR_FROG equ $00f0`
57	62		`COLOUR_EYES equ $0ff0`
58	63		`COLOUR_OUTLINE equ $0000`
	64	+	`COLOUR_CAR equ $0f00 ; Red car on bitplane`
59	65
60	66		`;══════════════════════════════════════════════════════════════════════════════`
61	67		`; HARDWARE REGISTERS`
			...
64	70		`CUSTOM equ $dff000`
65	71
66	72		`DMACONR equ $002`
67		-	`DMACON equ $096`
68		-	`INTENA equ $09a`
69		-	`INTREQ equ $09c`
70	73		`VPOSR equ $004`
71	74		`JOY1DAT equ $00c`
	75	+
	76	+	`; Blitter registers`
	77	+	`BLTCON0 equ $040`
	78	+	`BLTCON1 equ $042`
	79	+	`BLTAFWM equ $044`
	80	+	`BLTALWM equ $046`
	81	+	`BLTCPTH equ $048`
	82	+	`BLTBPTH equ $04c`
	83	+	`BLTAPTH equ $050`
	84	+	`BLTDPTH equ $054`
	85	+	`BLTSIZE equ $058`
	86	+	`BLTCMOD equ $060`
	87	+	`BLTBMOD equ $062`
	88	+	`BLTAMOD equ $064`
	89	+	`BLTDMOD equ $066`
	90	+
72	91		`COP1LC equ $080`
73	92		`COPJMP1 equ $088`
	93	+	`DMACON equ $096`
	94	+	`INTENA equ $09a`
	95	+	`INTREQ equ $09c`
74	96		`COLOR00 equ $180`
75	97		`SPR0PTH equ $120`
76	98		`SPR0PTL equ $122`
			...
89	111		`move.w #$7fff,INTREQ(a5)`
90	112		`move.w #$7fff,DMACON(a5)`
91	113
92		-	`; --- Initialise game state ---`
	114	+	`; --- Clear screen ---`
	115	+	`bsr clear_screen`
	116	+
	117	+	`; --- Set up bitplane pointer in copper list ---`
	118	+	`lea screen_plane,a0`
	119	+	`move.l a0,d0`
	120	+	`swap d0`
	121	+	`lea bplpth_val,a1`
	122	+	`move.w d0,(a1)`
	123	+	`swap d0`
	124	+	`lea bplptl_val,a1`
	125	+	`move.w d0,(a1)`
	126	+
	127	+	`; --- Initialise frog ---`
93	128		`move.w #START_GRID_X,frog_grid_x`
94	129		`move.w #START_GRID_Y,frog_grid_y`
95	130		`move.w #STATE_IDLE,frog_state`
96		-	`move.w #0,frog_anim_frame`
97	131		`clr.w joy_prev`
98		-
99		-	`; --- Calculate initial pixel position ---`
100	132		`bsr grid_to_pixels`
101	133
102		-	`; --- Set sprite pointer in copper list ---`
	134	+	`; --- Set sprite pointer ---`
103	135		`lea frog_data,a0`
104	136		`move.l a0,d0`
105	137		`swap d0`
			...
109	141		`lea sprptl_val,a1`
110	142		`move.w d0,(a1)`
111	143
112		-	`; --- Update sprite control words ---`
113	144		`bsr update_sprite`
	145	+
	146	+	`; --- Initialise car ---`
	147	+	`clr.w car_x`
114	148
115	149		`; --- Install copper list ---`
116	150		`lea copperlist,a0`
117	151		`move.l a0,COP1LC(a5)`
118	152		`move.w d0,COPJMP1(a5)`
119	153
120		-	`; --- Enable DMA ---`
121		-	`move.w #$83a0,DMACON(a5)`
	154	+	`; --- Enable DMA (including Blitter) ---`
	155	+	`move.w #$87e0,DMACON(a5) ; Master + blit + copper + bitplane + sprite`
122	156
123	157		`;══════════════════════════════════════════════════════════════════════════════`
124	158		`; MAIN LOOP`
			...
126	160
127	161		`mainloop:`
128	162		`bsr wait_vblank`
	163	+
	164	+	`; --- Update frog ---`
129	165		`bsr update_frog`
130	166		`bsr update_sprite`
131		-	`bra.s mainloop`
	167	+
	168	+	`; --- Update car ---`
	169	+	`bsr erase_car ; Erase at old position`
	170	+	`bsr move_car ; Update position`
	171	+	`bsr draw_car ; Draw at new position`
	172	+
	173	+	`bra mainloop`
132	174
133	175		`;══════════════════════════════════════════════════════════════════════════════`
134		-	`; UPDATE_FROG - Main frog logic`
	176	+	`; BLITTER ROUTINES`
135	177		`;══════════════════════════════════════════════════════════════════════════════`
136		-	`; State machine:`
137		-	`; IDLE: Check for joystick input, start hop if valid`
138		-	`; HOPPING: Animate position, return to IDLE when complete`
	178	+
	179	+	`;------------------------------------------------------------------------------`
	180	+	`; WAIT_BLIT - Wait for Blitter to finish`
	181	+	`;------------------------------------------------------------------------------`
	182	+	`wait_blit:`
	183	+	`btst #6,DMACONR(a5) ; Test BBUSY flag`
	184	+	`bne.s wait_blit ; Loop while busy`
	185	+	`rts`
	186	+
	187	+	`;------------------------------------------------------------------------------`
	188	+	`; CLEAR_SCREEN - Clear the screen buffer using Blitter`
	189	+	`;------------------------------------------------------------------------------`
	190	+	`clear_screen:`
	191	+	`bsr.s wait_blit`
	192	+
	193	+	`; Clear entire plane: D channel only, minterm = 0`
	194	+	`move.l #screen_plane,BLTDPTH(a5)`
	195	+	`move.w #0,BLTDMOD(a5) ; No modulo (continuous)`
	196	+	`move.w #$0100,BLTCON0(a5) ; D only, minterm 0 (clear)`
	197	+	`move.w #0,BLTCON1(a5)`
	198	+	`move.w #(SCREEN_H<<6)\|SCREEN_W/2,BLTSIZE(a5) ; Trigger!`
	199	+
	200	+	`rts`
	201	+
	202	+	`;------------------------------------------------------------------------------`
	203	+	`; ERASE_CAR - Clear car at current position`
	204	+	`;------------------------------------------------------------------------------`
	205	+	`erase_car:`
	206	+	`bsr.s wait_blit`
	207	+
	208	+	`; Calculate screen address for car position`
	209	+	`move.w car_x,d0`
	210	+	`move.w #CAR_ROW,d1`
	211	+	`bsr calc_screen_addr ; A0 = destination`
	212	+
	213	+	`; Erase: D channel only, minterm 0`
	214	+	`move.l a0,BLTDPTH(a5)`
	215	+	`move.w #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5)`
	216	+	`move.w #$0100,BLTCON0(a5)`
	217	+	`move.w #0,BLTCON1(a5)`
	218	+	`move.w #(CAR_HEIGHT<<6)\|CAR_WIDTH,BLTSIZE(a5)`
	219	+
	220	+	`rts`
	221	+
	222	+	`;------------------------------------------------------------------------------`
	223	+	`; DRAW_CAR - Draw car at current position using Blitter`
	224	+	`;------------------------------------------------------------------------------`
	225	+	`draw_car:`
	226	+	`bsr.s wait_blit`
	227	+
	228	+	`; Calculate screen address`
	229	+	`move.w car_x,d0`
	230	+	`move.w #CAR_ROW,d1`
	231	+	`bsr calc_screen_addr ; A0 = destination`
	232	+
	233	+	`; Copy A→D: source graphics to screen`
	234	+	`move.l #car_gfx,BLTAPTH(a5)`
	235	+	`move.l a0,BLTDPTH(a5)`
	236	+
	237	+	`move.w #$ffff,BLTAFWM(a5) ; No masking`
	238	+	`move.w #$ffff,BLTALWM(a5)`
	239	+	`move.w #0,BLTAMOD(a5) ; Source: no gaps`
	240	+	`move.w #SCREEN_W-CAR_WIDTH*2,BLTDMOD(a5) ; Dest: screen width`
	241	+	`move.w #$09f0,BLTCON0(a5) ; A→D, D=A`
	242	+	`move.w #0,BLTCON1(a5)`
	243	+	`move.w #(CAR_HEIGHT<<6)\|CAR_WIDTH,BLTSIZE(a5) ; Trigger!`
	244	+
	245	+	`rts`
	246	+
	247	+	`;------------------------------------------------------------------------------`
	248	+	`; CALC_SCREEN_ADDR - Calculate screen address from grid position`
	249	+	`;------------------------------------------------------------------------------`
	250	+	`; Input: D0 = pixel X, D1 = row number`
	251	+	`; Output: A0 = screen address`
	252	+
	253	+	`calc_screen_addr:`
	254	+	`lea screen_plane,a0`
	255	+
	256	+	`; Calculate Y offset: row × CELL_SIZE × SCREEN_W`
	257	+	`move.w d1,d2`
	258	+	`mulu #CELL_SIZE,d2 ; D2 = row in pixels (from top of grid)`
	259	+	`add.w #GRID_ORIGIN_Y,d2 ; Add top margin`
	260	+	`mulu #SCREEN_W,d2 ; D2 = byte offset for Y`
	261	+	`add.l d2,a0`
	262	+
	263	+	`; Calculate X offset: pixel_x / 8 (convert to bytes)`
	264	+	`move.w d0,d2`
	265	+	`lsr.w #3,d2 ; D2 = X in bytes`
	266	+	`ext.l d2`
	267	+	`add.l d2,a0`
	268	+
	269	+	`rts`
	270	+
	271	+	`;------------------------------------------------------------------------------`
	272	+	`; MOVE_CAR - Update car position`
	273	+	`;------------------------------------------------------------------------------`
	274	+	`move_car:`
	275	+	`add.w #CAR_SPEED,car_x`
	276	+	`cmp.w #320,car_x`
	277	+	`blt.s .no_wrap`
	278	+	`clr.w car_x`
	279	+	`.no_wrap:`
	280	+	`rts`
	281	+
	282	+	`;══════════════════════════════════════════════════════════════════════════════`
	283	+	`; FROG ROUTINES (from Unit 5)`
	284	+	`;══════════════════════════════════════════════════════════════════════════════`
139	285
140	286		`update_frog:`
141	287		`tst.w frog_state`
			...
143	289		`bra .hopping`
144	290
145	291		`.idle:`
146		-	`; --- Read joystick with edge detection ---`
147	292		`bsr read_joystick_edge`
148	293		`tst.w d0`
149		-	`beq .done ; No new input`
	294	+	`beq .done`
150	295
151		-	`; --- Check each direction ---`
152		-	`btst #8,d0 ; Up?`
	296	+	`btst #8,d0`
153	297		`beq.s .not_up`
154	298		`move.w frog_grid_y,d1`
155	299		`tst.w d1`
156		-	`beq.s .not_up ; Already at top`
	300	+	`beq.s .not_up`
157	301		`move.w #DIR_UP,frog_dir`
158	302		`bra.s .start_hop`
159	303		`.not_up:`
160		-	`btst #0,d0 ; Down?`
	304	+	`btst #0,d0`
161	305		`beq.s .not_down`
162	306		`move.w frog_grid_y,d1`
163	307		`cmp.w #GRID_ROWS-1,d1`
164		-	`beq.s .not_down ; Already at bottom`
	308	+	`beq.s .not_down`
165	309		`move.w #DIR_DOWN,frog_dir`
166	310		`bra.s .start_hop`
167	311		`.not_down:`
168		-	`btst #9,d0 ; Left?`
	312	+	`btst #9,d0`
169	313		`beq.s .not_left`
170	314		`move.w frog_grid_x,d1`
171	315		`tst.w d1`
172		-	`beq.s .not_left ; Already at left`
	316	+	`beq.s .not_left`
173	317		`move.w #DIR_LEFT,frog_dir`
174	318		`bra.s .start_hop`
175	319		`.not_left:`
176		-	`btst #1,d0 ; Right?`
	320	+	`btst #1,d0`
177	321		`beq .done`
178	322		`move.w frog_grid_x,d1`
179	323		`cmp.w #GRID_COLS-1,d1`
180		-	`beq .done ; Already at right`
	324	+	`beq .done`
181	325		`move.w #DIR_RIGHT,frog_dir`
182		-	`; Fall through to start_hop`
183	326
184	327		`.start_hop:`
185		-	`; --- Begin hopping animation ---`
186	328		`move.w #STATE_HOPPING,frog_state`
187		-	`move.w #0,frog_anim_frame`
	329	+	`clr.w frog_anim_frame`
188	330		`bra.s .done`
189	331
190	332		`.hopping:`
191		-	`; --- Advance animation frame ---`
192	333		`addq.w #1,frog_anim_frame`
193		-
194		-	`; --- Move pixel position based on direction ---`
195	334		`move.w frog_dir,d0`
196	335
197	336		`cmp.w #DIR_UP,d0`
198	337		`bne.s .hop_not_up`
199	338		`sub.w #PIXELS_PER_FRAME,frog_pixel_y`
200		-	`bra.s .check_hop_done`
	339	+	`bra.s .check_done`
201	340		`.hop_not_up:`
202	341		`cmp.w #DIR_DOWN,d0`
203	342		`bne.s .hop_not_down`
204	343		`add.w #PIXELS_PER_FRAME,frog_pixel_y`
205		-	`bra.s .check_hop_done`
	344	+	`bra.s .check_done`
206	345		`.hop_not_down:`
207	346		`cmp.w #DIR_LEFT,d0`
208	347		`bne.s .hop_not_left`
209	348		`sub.w #PIXELS_PER_FRAME,frog_pixel_x`
210		-	`bra.s .check_hop_done`
	349	+	`bra.s .check_done`
211	350		`.hop_not_left:`
212		-	`; Must be RIGHT`
213	351		`add.w #PIXELS_PER_FRAME,frog_pixel_x`
214	352
215		-	`.check_hop_done:`
216		-	`; --- Check if animation complete ---`
	353	+	`.check_done:`
217	354		`cmp.w #HOP_FRAMES,frog_anim_frame`
218	355		`blt.s .done`
219	356
220		-	`; --- Hop complete: update grid position ---`
221	357		`move.w frog_dir,d0`
222		-
223	358		`cmp.w #DIR_UP,d0`
224	359		`bne.s .end_not_up`
225	360		`subq.w #1,frog_grid_y`
226		-	`bra.s .snap_to_grid`
	361	+	`bra.s .snap`
227	362		`.end_not_up:`
228	363		`cmp.w #DIR_DOWN,d0`
229	364		`bne.s .end_not_down`
230	365		`addq.w #1,frog_grid_y`
231		-	`bra.s .snap_to_grid`
	366	+	`bra.s .snap`
232	367		`.end_not_down:`
233	368		`cmp.w #DIR_LEFT,d0`
234	369		`bne.s .end_not_left`
235	370		`subq.w #1,frog_grid_x`
236		-	`bra.s .snap_to_grid`
	371	+	`bra.s .snap`
237	372		`.end_not_left:`
238		-	`; Must be RIGHT`
239	373		`addq.w #1,frog_grid_x`
240	374
241		-	`.snap_to_grid:`
242		-	`; --- Snap pixel position to grid (prevents drift) ---`
	375	+	`.snap:`
243	376		`bsr grid_to_pixels`
244		-
245		-	`; --- Return to idle state ---`
246	377		`move.w #STATE_IDLE,frog_state`
247	378
248	379		`.done:`
249	380		`rts`
250		-
251		-	`;══════════════════════════════════════════════════════════════════════════════`
252		-	`; GRID_TO_PIXELS - Convert grid coordinates to pixel coordinates`
253		-	`;══════════════════════════════════════════════════════════════════════════════`
254		-	`; Input: frog_grid_x, frog_grid_y`
255		-	`; Output: frog_pixel_x, frog_pixel_y`
256	381
257	382		`grid_to_pixels:`
258	383		`move.w frog_grid_x,d0`
			...
264	389		`mulu #CELL_SIZE,d0`
265	390		`add.w #GRID_ORIGIN_Y,d0`
266	391		`move.w d0,frog_pixel_y`
267		-
268	392		`rts`
269		-
270		-	`;══════════════════════════════════════════════════════════════════════════════`
271		-	`; READ_JOYSTICK_EDGE - Read joystick with edge detection`
272		-	`;══════════════════════════════════════════════════════════════════════════════`
273		-	`; Returns only newly-pressed directions (not held directions)`
274		-	`; Output: D0 = direction bits (only set on transition from not-pressed)`
275	393
276	394		`read_joystick_edge:`
277		-	`; --- Read and decode joystick ---`
278	395		`move.w JOY1DAT(a5),d0`
279	396		`move.w d0,d1`
280	397		`lsr.w #1,d1`
281		-	`eor.w d1,d0 ; D0 = decoded current state`
	398	+	`eor.w d1,d0`
282	399
283		-	`; --- Edge detection: current AND NOT previous ---`
284	400		`move.w joy_prev,d1`
285		-	`not.w d1 ; D1 = NOT previous`
286		-	`and.w d0,d1 ; D1 = newly pressed only`
287		-
288		-	`; --- Save current state for next frame ---`
	401	+	`not.w d1`
	402	+	`and.w d0,d1`
289	403		`move.w d0,joy_prev`
290	404
291		-	`move.w d1,d0 ; Return newly pressed in D0`
	405	+	`move.w d1,d0`
292	406		`rts`
293	407
294	408		`;══════════════════════════════════════════════════════════════════════════════`
295		-	`; SUBROUTINES`
	409	+	`; UTILITY ROUTINES`
296	410		`;══════════════════════════════════════════════════════════════════════════════`
297	411
298	412		`wait_vblank:`
			...
317	431		`add.w #FROG_HEIGHT,d0`
318	432		`lsl.w #8,d0`
319	433		`move.w d0,2(a0)`
320		-
321	434		`rts`
322	435
323	436		`;══════════════════════════════════════════════════════════════════════════════`
324	437		`; VARIABLES`
325	438		`;══════════════════════════════════════════════════════════════════════════════`
326		-
327		-	`; Grid position (which cell the frog occupies)`
328		-	`frog_grid_x: dc.w 9 ; Column (0-19)`
329		-	`frog_grid_y: dc.w 12 ; Row (0-12)`
330		-
331		-	`; Pixel position (for rendering and animation)`
332		-	`frog_pixel_x: dc.w 0 ; Screen X`
333		-	`frog_pixel_y: dc.w 0 ; Screen Y`
334	439
335		-	`; Movement state machine`
336		-	`frog_state: dc.w 0 ; 0=idle, 1=hopping`
337		-	`frog_dir: dc.w 0 ; Direction of current hop`
338		-	`frog_anim_frame: dc.w 0 ; Current frame of hop animation (0-7)`
	440	+	`frog_grid_x: dc.w 9`
	441	+	`frog_grid_y: dc.w 12`
	442	+	`frog_pixel_x: dc.w 0`
	443	+	`frog_pixel_y: dc.w 0`
	444	+	`frog_state: dc.w 0`
	445	+	`frog_dir: dc.w 0`
	446	+	`frog_anim_frame: dc.w 0`
	447	+	`joy_prev: dc.w 0`
339	448
340		-	`; Input state`
341		-	`joy_prev: dc.w 0 ; Previous joystick state (for edge detection)`
	449	+	`car_x: dc.w 0`
342	450
343	451		`;══════════════════════════════════════════════════════════════════════════════`
344	452		`; COPPER LIST`
			...
346	454
347	455		`copperlist:`
348	456		`dc.w COLOR00,COLOUR_BLACK`
	457	+
	458	+	`; --- Bitplane control: 1 plane, colour on ---`
	459	+	`dc.w $0100,$1200 ; BPLCON0: 1 plane`
	460	+	`dc.w $0102,$0000 ; BPLCON1: no scroll`
	461	+	`dc.w $0104,$0000 ; BPLCON2: default priority`
	462	+	`dc.w $0108,$0000 ; BPL1MOD`
	463	+	`dc.w $010a,$0000 ; BPL2MOD`
	464	+
	465	+	`; --- Bitplane pointer ---`
	466	+	`dc.w $00e0 ; BPL1PTH`
	467	+	`bplpth_val: dc.w $0000`
	468	+	`dc.w $00e2 ; BPL1PTL`
	469	+	`bplptl_val: dc.w $0000`
	470	+
	471	+	`; --- Playfield colours ---`
	472	+	`dc.w $0180,$0000 ; Colour 0: transparent (shows Copper bg)`
	473	+	`dc.w $0182,COLOUR_CAR ; Colour 1: red (car from bitplane)`
349	474
350	475		`; --- Sprite palette ---`
351	476		`dc.w $01a2,COLOUR_FROG`
			...
407	532		`dc.w COLOR00,COLOUR_BLACK`
408	533
409	534		`dc.w $ffff,$fffe`
	535	+
	536	+	`;══════════════════════════════════════════════════════════════════════════════`
	537	+	`; GRAPHICS DATA`
	538	+	`;══════════════════════════════════════════════════════════════════════════════`
	539	+
	540	+	`even`
	541	+	`car_gfx:`
	542	+	`; 32×12 pixel car (2 words wide × 12 lines)`
	543	+	`dc.w $0ff0,$0ff0 ; ..####....####..`
	544	+	`dc.w $3ffc,$3ffc ; ##########..####`
	545	+	`dc.w $7ffe,$7ffe ; ##############..`
	546	+	`dc.w $ffff,$ffff ; ################`
	547	+	`dc.w $ffff,$ffff ; ################`
	548	+	`dc.w $ffff,$ffff ; ################`
	549	+	`dc.w $ffff,$ffff ; ################`
	550	+	`dc.w $ffff,$ffff ; ################`
	551	+	`dc.w $ffff,$ffff ; ################`
	552	+	`dc.w $7ffe,$7ffe ; ##############..`
	553	+	`dc.w $3c3c,$3c3c ; Wheels`
	554	+	`dc.w $0000,$0000`
410	555
411	556		`;══════════════════════════════════════════════════════════════════════════════`
412	557		`; SPRITE DATA`
			...
414	559
415	560		`even`
416	561		`frog_data:`
417		-	`dc.w $ec50,$fc00 ; Control words`
	562	+	`dc.w $ec50,$fc00`
418	563
419	564		`dc.w $0000,$0000`
420	565		`dc.w $07e0,$0000`
			...
434	579		`dc.w $0000,$0000`
435	580
436	581		`dc.w $0000,$0000`
	582	+
	583	+	`;══════════════════════════════════════════════════════════════════════════════`
	584	+	`; SCREEN BUFFER (Chip RAM)`
	585	+	`;══════════════════════════════════════════════════════════════════════════════`
	586	+
	587	+	`section chipbss,bss_c`
	588	+
	589	+	`even`
	590	+	`screen_plane:`
	591	+	`ds.b PLANE_SIZE`
437	592
